1. Giriş
The instax mini LiPlay+ is a versatile hybrid instant camera that combines the functionality of a digital camera with an instant printer. It allows you to capture, review, edit, and print photos directly from the device or from your smartphone. Unique features include sound recording with photos, dual cameras (main and wide-angle selfie), and remote shooting capabilities via a dedicated app.
Figure 1: instax mini LiPlay+ Hybrid Instant Camera (Midnight Blue)
Temel Özellikler:
- Hybrid functionality: Capture digital images and print instantly.
- 2.7 inç LCD ekran için viewFotoğraf çekimi ve düzenleme.
- Internal image memory and Micro SD card slot for expanded storage.
- Dual cameras: Main camera and wide-angle selfie camera.
- Bluetooth connectivity for smartphone pairing and printing.
- Record Sound feature to embed audio with your photos.
- Self-timer function (2 to 10 seconds).
- USB Type-C şarj.
2. Kurulum
2.1 Kameranın Kutusundan Çıkarılması
Carefully remove all components from the packaging. The box contents typically include:
- instax mini LiPlay+ Camera Body
- USB Type-C Şarj Kablosu
- El Kayışı
- Kullanım Kılavuzu (bu belge)
2.2 Pilin Şarj Edilmesi
Before first use, fully charge the camera battery. Connect the supplied USB Type-C cable to the camera's charging port and to a USB power adapter (not supplied) or a computer's USB port. The charging indicator light will show the charging status.
2.3 Inserting instax mini Film
- Kameranın arkasındaki film bölmesinin kapağını açın.
- Film paketindeki sarı işareti kameradaki sarı işaretle hizalayın.
- Film paketini doğrudan bölmeye yerleştirin. Film paketine bastırmayın.
- Close the film compartment cover. The camera will automatically eject the black film cover sheet.
Önemli: Only use instax mini film. Do not open the film compartment until all 10 films have been used, as this will expose and ruin the remaining film.
2.4 Mikro SD Kart Takma (İsteğe Bağlı)
To expand storage for more photos, insert a Micro SD card (sold separately) into the Micro SD card slot located on the side of the camera. Ensure the card is inserted correctly until it clicks into place.
2.5 Downloading the instax mini LiPlay+ App
Download the free instax mini LiPlay+ app from your smartphone's app store (iOS App Store or Google Play Store). This app enables additional features like remote shooting, direct printing from your phone, and applying filters/frames.
2.6 Pairing with a Smartphone via Bluetooth
- Kamerayı aç.
- Akıllı telefonunuzda Bluetooth’u etkinleştirin.
- Open the instax mini LiPlay+ app and follow the on-screen instructions to pair your camera.
3. Kameranın Çalıştırılması
3.1 Fotoğraf Çekme
The camera features a main lens and a wide-angle selfie lens. Use the shutter button to capture images.
Figure 2: Selfie Camera and Layered Photo Mode
3.2 LCD Ekranın Kullanımı
The 2.7-inch LCD display on the back allows you to:
- Önview your shots before printing.
- Menülerde ve ayarlarda gezinme.
- Apply basic filters and frames (more available via app).
- Review yakalanan görüntüler.
3.3 Fotoğraf Yazdırma
You can print photos directly from the camera's internal memory or Micro SD card, or from your paired smartphone.
3.3.1 Printing from the Camera
- Select the desired image on the LCD screen.
- Press the print button. The camera will print the image in approximately 12 seconds.
Figure 3: Camera printing an instant photo
3.3.2 Printing from a Smartphone
- Ensure your camera is paired with your smartphone via Bluetooth.
- Open the instax mini LiPlay+ app on your smartphone.
- Select an image from your phone's gallery within the app.
- Tap the print icon. The image will be sent to the camera for printing.
Figure 4: Printing photos from a smartphone
3.4 Record Sound Feature
The LiPlay+ allows you to record up to 10 seconds of audio with your photos. This audio is embedded as a QR code on the printed instax photo, which can be scanned with a smartphone to play the sound.
- After taking a photo, select the sound recording option on the camera's display.
- Sesinizi kaydedin.
- When printing, ensure the sound feature is enabled to include the QR code.

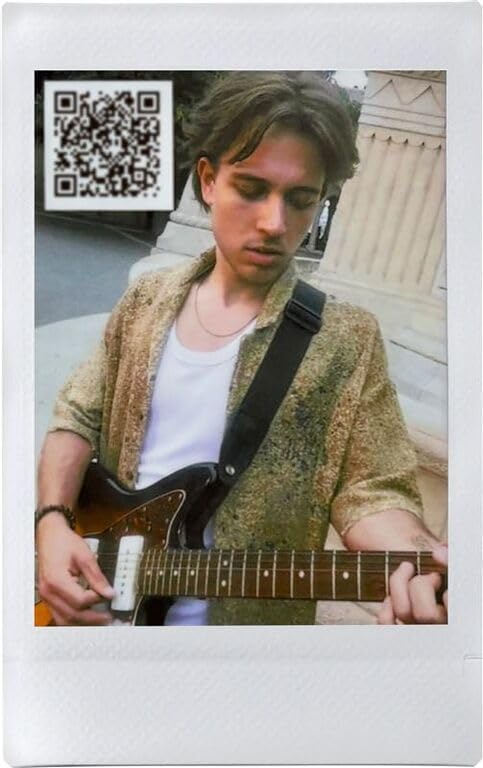

Figure 5: Printed photo with QR code for sound playback
Çünküample of the sound feature, visit: instax.com/mini_liplay_plus/sample/sound_01.html
3.5 Uzaktan Çekim
Use the instax mini LiPlay+ app to remotely control your camera's shutter, allowing for group photos or shots from a distance.
- Ensure the camera is paired with your smartphone.
- Open the app and select the remote shooting function.
- Position the camera and use your phone as a remote shutter button.
Figure 6: Remote shooting and hybrid functionality overview
4. Bakım
4.1 Kamerayı Temizleme
To clean the camera body, use a soft, dry cloth. For the lens and LCD screen, use a lens cleaning cloth specifically designed for optical surfaces. Avoid using abrasive cleaners or solvents.
4.2 Storing the Camera and Film
Store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Unused instax mini film should be stored in its original packaging in a refrigerator (do not freeze) and allowed to reach room temperature before use.
4.3 Pil Bakımı
To prolong battery life, avoid fully discharging the battery frequently. Charge the camera regularly, even if not in use for extended periods (e.g., once every 3-6 months).
5. Sorun Giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Kamera açılmıyor. | Pil boşalmış. | Charge the battery using the supplied USB Type-C cable. |
| Fotoğraflar basılmıyor. | No film inserted or film pack is empty. | Insert a new instax mini film pack. |
| Kötü baskı kalitesi. | Film expired or improperly stored. Lens is dirty. | Check film expiration date. Clean the lens with a soft cloth. |
| Akıllı telefona bağlanılamıyor. | Bluetooth is off on camera or phone. App not open. | Ensure Bluetooth is enabled on both devices. Open the instax mini LiPlay+ app. |
| Sound QR code not appearing. | Sound recording not enabled before printing. | Ensure sound recording is activated and saved with the photo before printing. |
6. Özellikler
| Özellik | Detay |
|---|---|
| Marka | instax |
| Model Adı | LiPlay |
| Film Formatı Türü | Instax Mini |
| Ürün Ağırlığı | 356 Gram |
| Ürün Boyutları (U x G x Y) | 38 x 83 x 123 milimetre |
| Özel Özellik | Dual Cameras with Sound Features |
| Minimum Deklanşör Hızı | 1/4 Saniye |
| Maksimum Deklanşör Hızı | 1/4 Saniye |
| Etkili Hareketsiz Çözünürlük | İnç Başına 318 Nokta |
| Viewbulucu Türü | LCD ekran |
| Ekran Boyutu | 3 inç |
| Bağlantı | Bluetooth |
| Şarj Portu | USB Tip-C |
| Menşei ülke | Çin |
7. Garanti Bilgileri
The instax mini LiPlay+ Hybrid Instant Camera typically comes with a 1 yıllık sınırlı garanti from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or visit the official instax webBölgeniz için site.
8. Destek
For further assistance, technical support, or service inquiries, please contact the manufacturer:
- Üretici: Fujifilm India Private Limited
- İthalatçı: Fujifilm India Pvt Ltd
- İletişim Bilgileri: Refer to the official Fujifilm or instax website for your region for the most up-to-date contact details, service centers, and FAQs.
