HULALA HOME RCAL1374 Elektrikli Bebek Odası Sallanan Yatar Koltuk Kullanım Kılavuzu

giriiş

This manual provides essential instructions for the safe and efficient operation, assembly, and maintenance of your HULALA HOME RCAL1374 Power Nursery Glider Recliner. Please read this manual thoroughly before using the product and retain it for future reference.

Image: The HULALA HOME RCAL1374 Power Nursery Glider Recliner, showcasing its design and white fabric in a nursery environment.

Güvenlik Talimatları

• Kullanmadan önce tüm bileşenlerin güvenli bir şekilde sabitlendiğinden emin olun.
• Do not allow children to play on or around the recliner unsupervised.
• Çalışma sırasında ellerinizi ve ayaklarınızı hareketli parçalardan uzak tutun.
• Avoid placing heavy objects on the recliner's footrest or backrest when extended.
• Yalnızca sağlanan güç adaptörünü kullanın.
• Do not expose the recliner to excessive moisture or direct sunlight.
• Maksimum ağırlık kapasitesi: 300 lbs (136 kg).

Paket İçeriği

Montaj işlemine başlamadan önce tüm parçaların mevcut olduğundan emin olun:

• Recliner Base
• arkalık
• Bel Yastığı
• Güç Adaptörü
• Kullanım Kılavuzu

Kurulum ve Montaj

The HULALA HOME RCAL1374 recliner is designed for tool-free assembly, typically taking approximately five minutes.

1. Tüm bileşenleri ambalajından dikkatlice çıkarın.
2. Place the recliner base in the desired location, ensuring sufficient clearance for reclining (approximately 12.5 inches from a wall).
3. Align the backrest with the mounting brackets on the recliner base and slide it down until it clicks securely into place.
4. Connect the power adapter to the recliner's power input and then plug it into a standard electrical outlet.
5. Position the lumbar pillow for comfort.

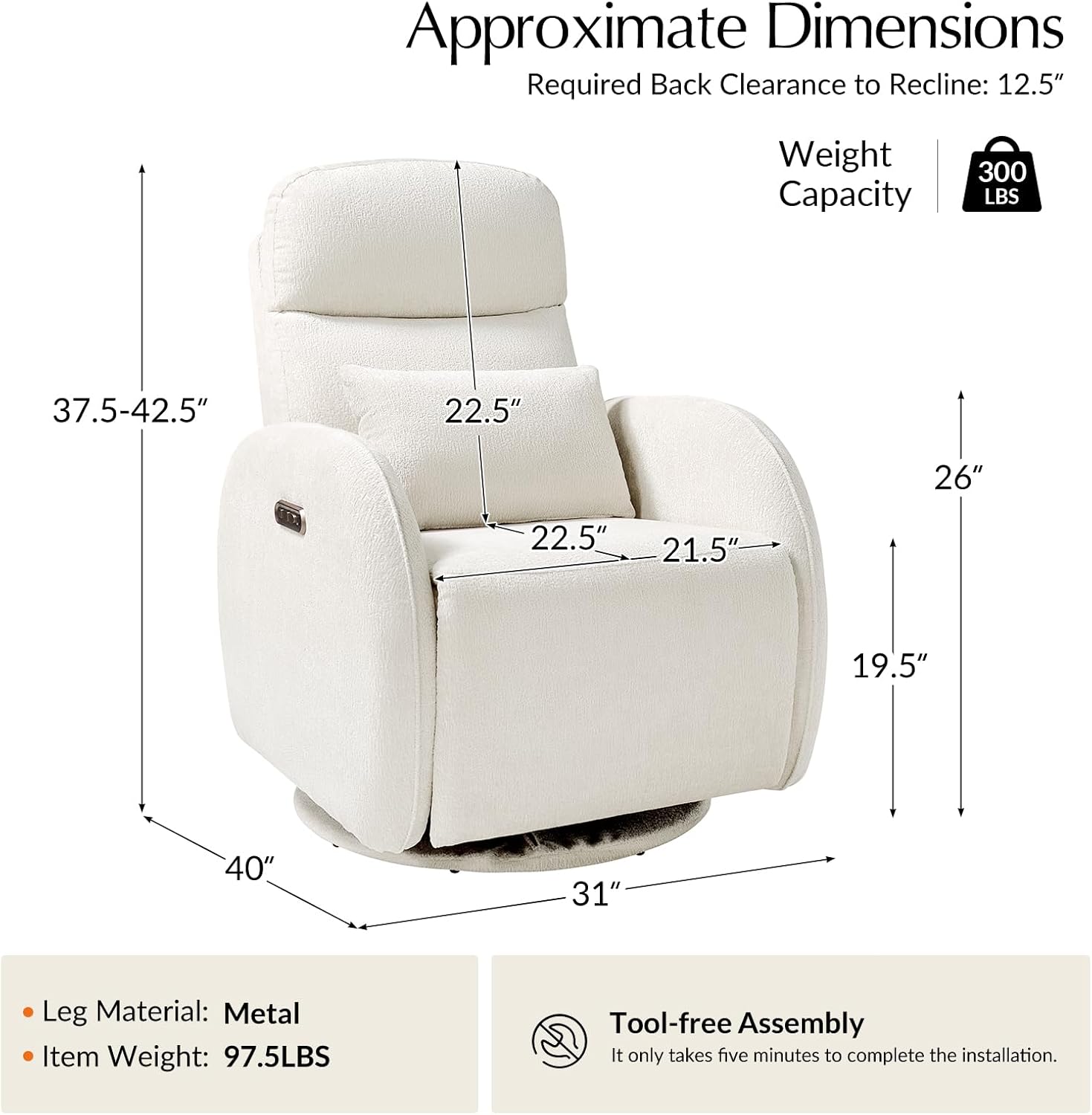

Image: Approximate dimensions and a note on tool-free assembly for the recliner.

Kullanım Talimatları

Kontrol Paneli Bittiview

The control panel is located on the side of the recliner and features buttons for rocking, reclining, and integrated USB/Type-C charging ports.

Image: Close-up of the control panel with labels for rocking control, recline control, and USB/Type-C ports.

Electric Rocking Mode

The recliner offers a gentle auto-rocking function with two speed settings. The rocking motion has a 1.5° shaking angle and operates quietly.

• 1'e basın: Activates Gentle Mode (approximately 12 swivels per minute).
• 2'e basın: Activates Quick Mode (approximately 16 swivels per minute).
• 3'e basın: Stops the rocking motion.

Not: The rocking function automatically stops after 20 minutes to prevent overstimulation.

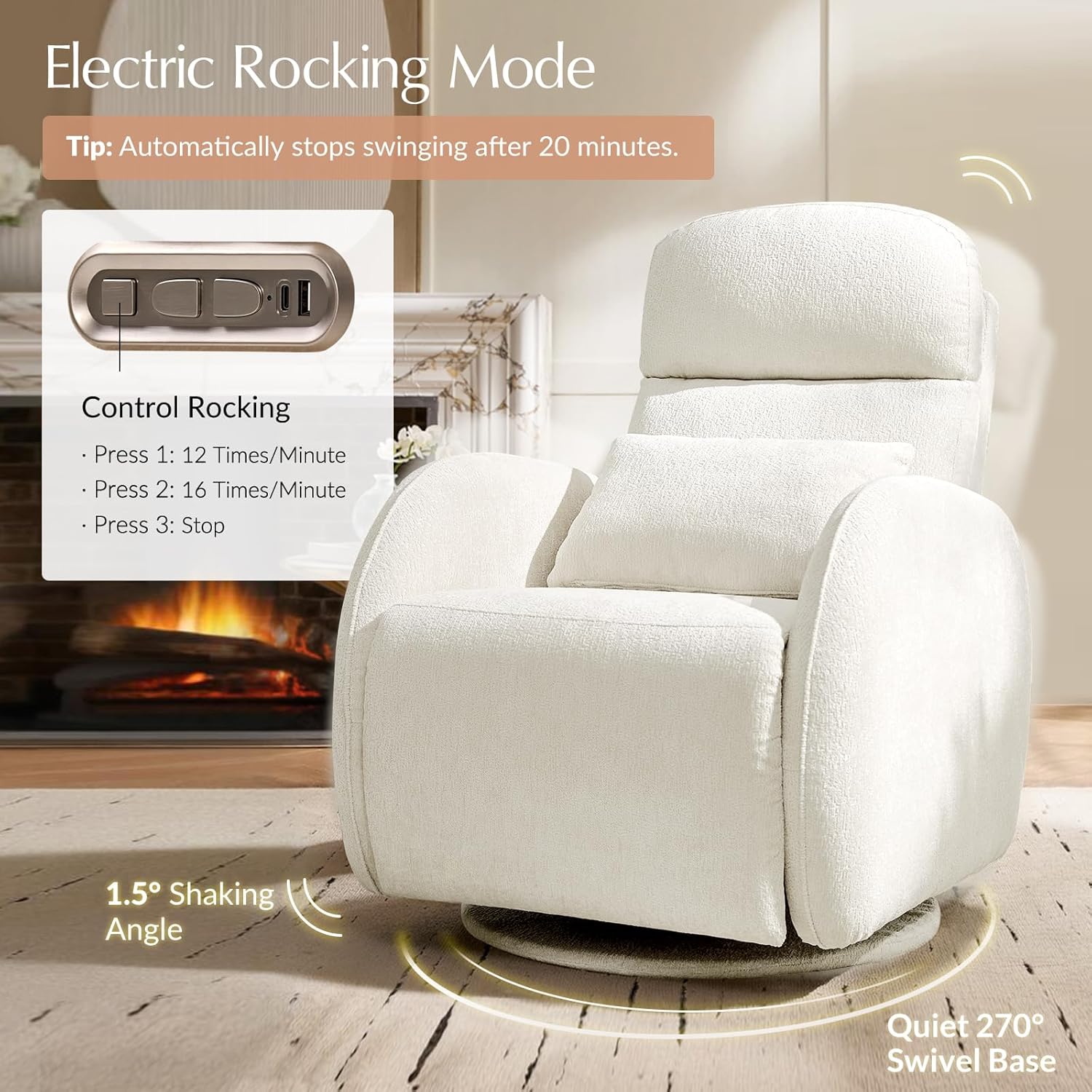

Image: The recliner in electric rocking mode, highlighting the 1.5° shaking angle and quiet 270° swivel base.

Yatırılabilir Fonksiyon

The recliner allows for effortless adjustment from an upright position (105°) to a fully reclined position (137°).

• Press 1 (Recline Control): Initiates one-touch recline.
• Press 2 (Recline Control): Pauses the recline at any desired position.
• Press 1 (Recline Control, second button): Initiates one-touch reset to the upright position.
• Press 2 (Recline Control, second button): Pauses the return to upright at any desired position.

Image: Demonstration of the recliner's recline function, showing various angles for rocking, nursing, and relaxing.

Ayarlanabilir Kafalık

The flip-top headrest can be manually adjusted to provide optimal neck and head support in any position.

Image: Details of the recliner's features, including the adjustable headrest, comfortable fabric, soft lumbar pillow, and thick cushioning.

Night Ambient Light

A gentle ambient light is integrated into the base of the recliner, providing subtle illumination for nighttime use without disturbing sleep.

• Hold the light button for 3 seconds: Turns the ambient light On/Off.

Image: The recliner with its night ambient light activated, showing its gentle illumination.

USB ve Type-C Şarj Portları

The integrated USB and Type-C ports allow for convenient charging of electronic devices while using the recliner.

• Connect your device's charging cable to the appropriate USB or Type-C port.
• Ensure the recliner is plugged into a power outlet for charging functionality.

Bakım ve Özen

• Temizlik: Genel temizlik için, kumaşı yumuşak bir bezle nazikçe silin.amp Dökülen sıvıları hemen temiz ve kuru bir bezle silin. Sert kimyasallar veya aşındırıcı temizleyicilerden kaçının.
• Kumaş Bakımı: The recliner features comfortable fabric. Refer to the care tag for specific fabric cleaning instructions if available.
• Moving the Recliner: When moving the recliner, lift it rather than dragging to prevent damage to the base or flooring.
• Güç Kablosu: Güç kablosunu düzenli olarak hasar belirtileri açısından kontrol edin. Hasarlıysa, kullanmayı bırakın ve müşteri desteğiyle iletişime geçin.

Sorun giderme

Özellikler

Garanti ve Destek

For warranty information or technical support, please contact HULALA HOME customer service. Details can typically be found on the product packaging or the official HULALA HOME webalan.

Please have your model number (RCAL1374) and purchase date available when contacting support.
