giriiş

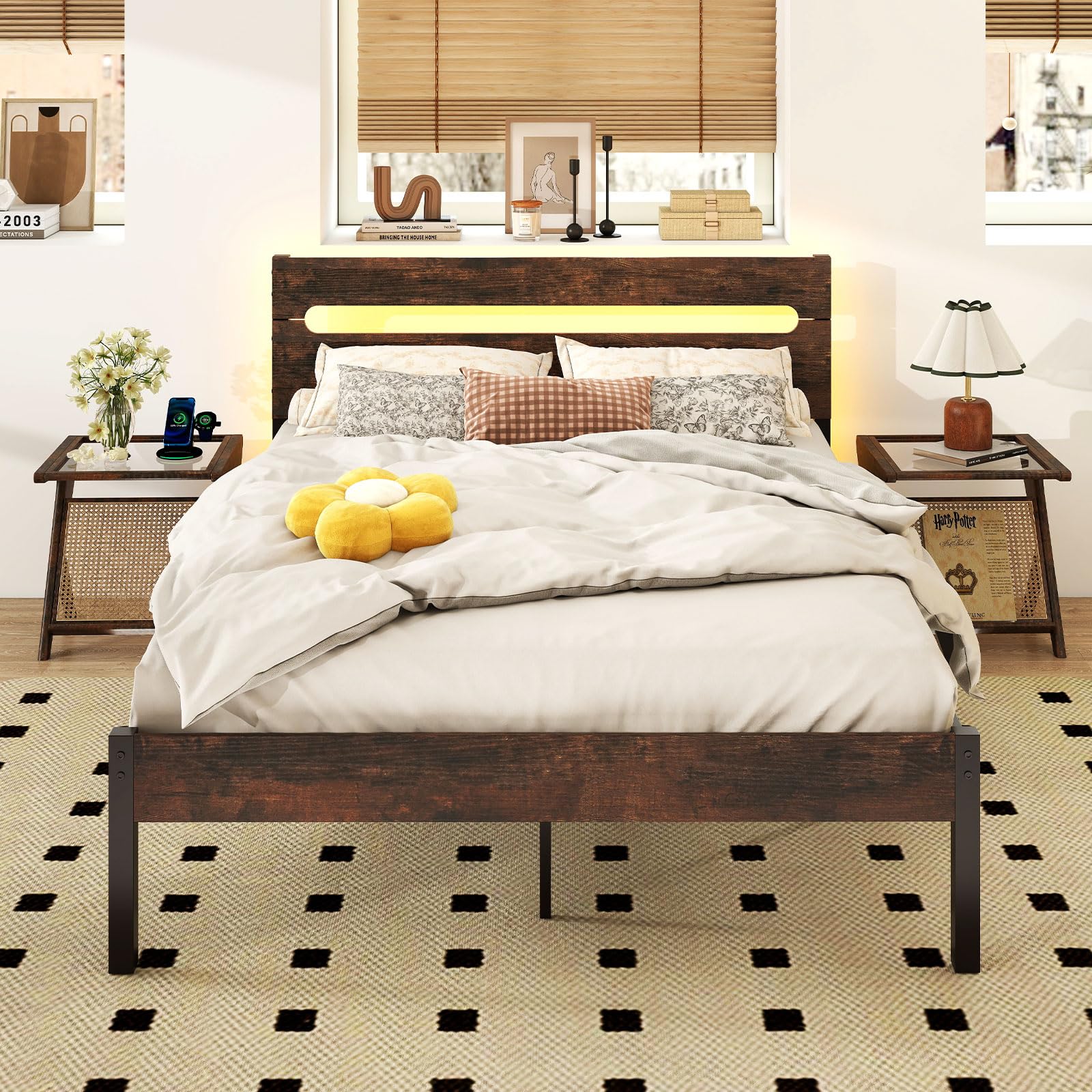

Thank you for choosing the Giantex Full Size LED Bed Frame with Charging Station. This bed frame is designed to provide a comfortable sleeping solution with added features such as integrated LED lighting and a convenient charging station. Its robust metal construction ensures stability, while the rustic wood-style headboard adds a modern industrial aesthetic. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal use of your product.
Güvenlik Bilgileri
- Ağırlık Kapasitesi: Do not load more than 880 lbs (399 kg) on the bed frame. Exceeding this limit may cause damage to the frame or personal injury.
- Keskin kenarlar: Exercise caution around all edges of the metal components during assembly and use to prevent injury.
- Toplantı: Ensure all bolts and connections are securely tightened before use. Periodically check and re-tighten fasteners as needed.
- Çocuklar: Montaj sırasında küçük parçaları çocuklardan uzak tutun.
- Elektriksel Güvenlik: Do not overload the charging station. Ensure power cords are not pinched or damaged. Disconnect power before cleaning or maintenance of electrical components.
Paket İçeriği
Montaja başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun. Herhangi bir parça eksik veya hasarlıysa, lütfen müşteri hizmetleriyle iletişime geçin.
- 1 x Metal Bed Frame (includes headboard, footboard, side rails, and support slats)
- 1 x LED Light Strip with Remote Control
- 1 x Integrated Charging Panel (with 2 standard outlets, 1 USB port, 1 Type-C port)
- Assembly Hardware (bolts, nuts, washers, Allen wrench)
- 1 x Kullanım Kılavuzu
Özellikler
| Özellik | Detay |
|---|---|
| Genel Boyutlar (U x G x Y) | 78" x 55" x 34.5" |
| Height of Footboard | 15" |
| Height of Under-bed Space | 12.5" |
| Ağırlık Kapasitesi | 880 kilo |
| Önerilen Yatak Kalınlığı | 8"-12" |
| Malzeme | Metal, Engineered Wood |
| LED Aydınlatma | 16 adjustable colors, 4 dynamic modes, adjustable speed and brightness |
| Şarj istasyonu | 2 Standard Outlets (250V/13A), 1 USB Port (5V/2.4A), 1 Type-C Port (5V/3A) |
| Güç Kablosu Uzunluğu | 5 fit |
| Net ağırlığı | 59.5 kilo |
Not: Tüm boyutlar yaklaşıktır ve ufak farklılıklar gösterebilir.
Kurulum ve Montaj
Assembly of this bed frame is designed to be straightforward with a quick snap-on connection system. Please follow the detailed steps provided in the included installation manual. Ensure you have adequate space and a clean area for assembly.
- Bileşenleri Paketinden Çıkarın: Carefully remove all parts from the packaging and lay them out on a soft, clean surface to prevent scratches. Verify all parts listed in the 'Package Contents' section are present.
- Başlık ve ayakucu birleştirin: Attach the headboard and footboard sections according to the diagrams in your separate installation manual.
- Yan Rayları Bağlayın: Use the snap-on connection system to attach the side rails to the headboard and footboard. Ensure these connections are secure.
- Destek çıtalarını takın: Place the steel slats across the frame. The snap-on design facilitates easy installation. Ensure all slats are properly seated and secured.
- Attach Center Legs: Secure the 5 center support legs to the frame for added stability. These legs are crucial for distributing weight evenly and preventing sagging.
- Şarj İstasyonunu Kurun: Integrate the charging panel into the designated slot on the headboard. Connect the power cord.
- LED şerit montajı: Adhere the LED light strip to the designated area on the headboard. Connect it to the power source.
- Son Kontrol: Before placing your mattress, ensure all connections are tight and the frame is stable.
Kullanım Talimatları
LED Aydınlatma Sistemi
The integrated RGB LED lighting system offers customizable ambiance for your bedroom.
- Güç Açma/Kapatma: Use the included remote control to turn the LED lights on or off.
- Renk Seçimi: Choose from 16 adjustable colors using the color buttons on the remote.
- Dinamik Modlar: Farklı aydınlatma efektleri oluşturmak için 4 dinamik moddan (örneğin, flaş, stroboskop, solma, yumuşatma) birini seçin.
- Parlaklık Ayarı: Adjust the brightness level of the lights using the dedicated brightness buttons.
- Hız Ayarı: For dynamic modes, adjust the speed of the light changes.
Şarj istasyonu
The built-in charging panel provides convenient power access for your electronic devices.
- Standart Çıkışlar: Two 250V/13A standard outlets are available for larger electronics or chargers.
- USB Bağlantı Noktası: One 5V/2.4A USB port is provided for charging smartphones, tablets, and other USB-powered devices.
- C Tipi Bağlantı Noktası: One 5V/3A Type-C port offers faster charging for compatible devices.
- Kullanım: Simply plug your devices into the appropriate ports. Ensure the bed frame's main power cord is connected to a wall outlet.
Bakım
- Temizlik: Wipe the metal and engineered wood surfaces with a soft, damp Kumaşı sert kimyasallardan veya aşındırıcı temizleyicilerden uzak tutun, bu da kaplamaya zarar verebilir.
- Bağlantı Elemanı Kontrolü: Periodically (e.g., every 3-6 months) inspect all bolts and screws to ensure they are tight. Re-tighten if necessary to maintain stability and prevent noise.
- Elektrik Bileşenleri: Keep the charging station and LED strip free from dust. Do not attempt to disassemble or repair electrical components yourself.
- Under-bed Area: Utilize the 12.5" under-bed clearance for storage. Keep the area clear of excessive clutter to allow for easy cleaning and air circulation.
Sorun giderme
- LED Işıklar Çalışmıyor:
- Ensure the bed frame's main power cord is securely plugged into a functional wall outlet.
- Check if the LED strip's connection to the power source is firm.
- Verify the remote control has working batteries and is pointed directly at the receiver.
- Şarj İstasyonu Güç Sağlamıyor:
- Confirm the bed frame's main power cord is plugged in.
- Duvar prizinin düzgün çalıştığından emin olmak için başka bir cihazla test edin.
- Ensure devices are properly plugged into the charging ports.
- Avoid overloading the charging station; disconnect some devices if it trips a circuit.
- Bed Frame is Noisy/Wobbly:
- Re-tighten all assembly bolts and screws. Loose connections are a common cause of noise.
- Ensure all support slats are correctly seated and not displaced.
- Check that all 5 center support legs are firmly on the floor and properly attached.
- Verify the noise-reducing foam pads are in place between metal components.
Garanti ve Destek
For any questions, concerns, or issues not covered in this manual, please contact Giantex customer support. Refer to your purchase documentation or the Giantex webBelirli garanti detayları ve iletişim bilgileri için siteyi ziyaret edin.
Müşteri Desteği: Yardım için lütfen şu adresi ziyaret edin: Giantex Store on Amazon Ya da satın alma işleminizle birlikte verilen iletişim bilgilerine başvurabilirsiniz.
