Hexgears GK735 Wired Full Size Mechanical Keyboard User Manual

1. Giriş

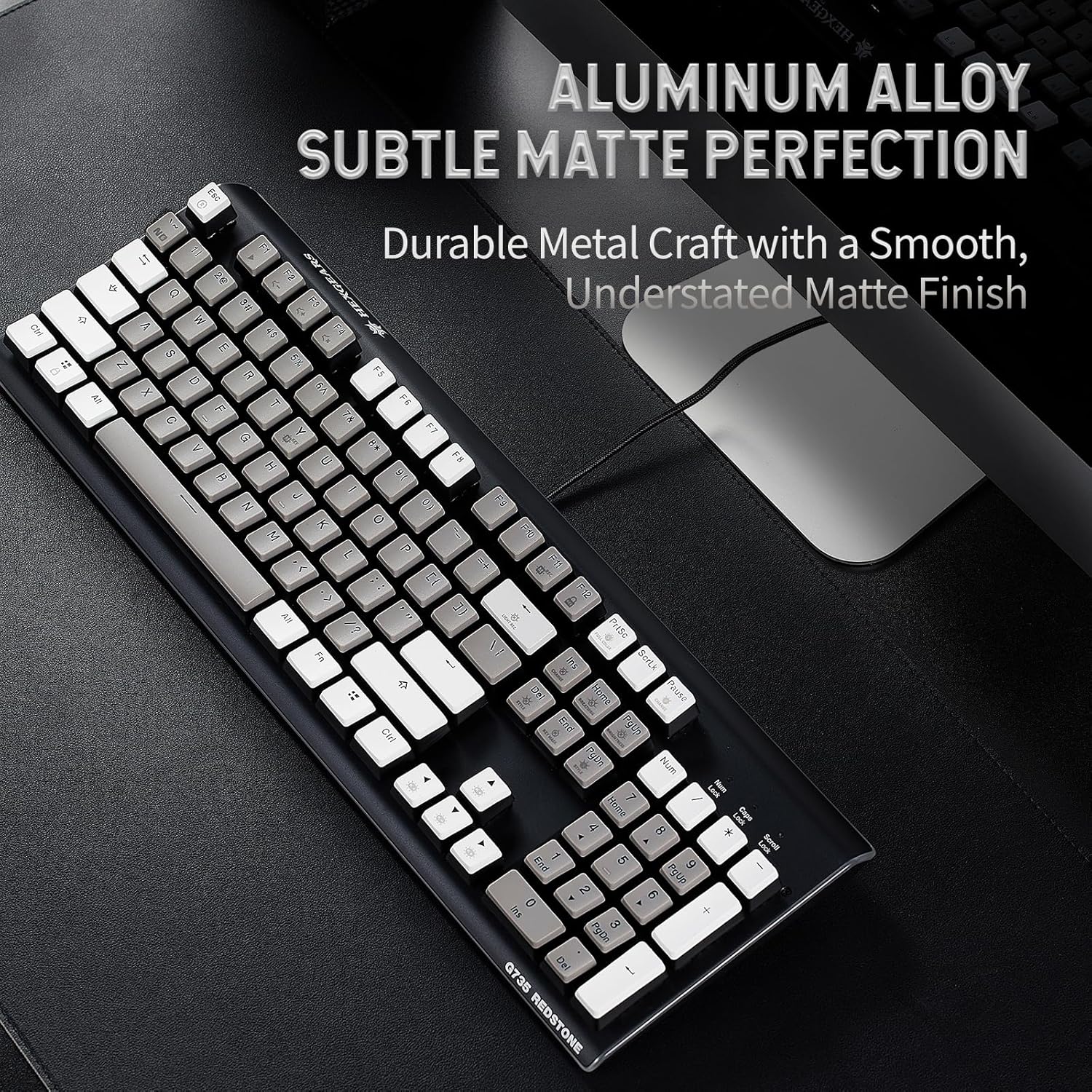

This manual provides detailed instructions for the Hexgears GK735 Wired Full Size Mechanical Keyboard. This keyboard features a durable aluminum top panel, Kailh BOX White switches, customizable RGB lighting, and a 104-key layout with a numpad. It is designed for a responsive and comfortable typing experience across various applications.

Figure 1: Hexgears GK735 Mechanical Keyboard with dimensions (44.1cm x 14.7cm)

Temel Özellikler:

• Alüminyum Kabuk: Şık bir görünüme sahip, dayanıklı yapı.
• Sıcak Değiştirilebilir Anahtarlar: Lehimlemeden anahtarların kolayca değiştirilmesine olanak sağlar.
• Kailh Box Switches: Provides crisp tactile feedback.
• White Backlit & RGB Light Strip: Dual-zone lighting for keys and side edges.
• PBT Tuş Takımları: Durable, oil-resistant keycaps.
• N-Anahtar Geçişi: Tüm tuş vuruşlarının doğru şekilde kaydedilmesini sağlar.
• Full-Size Layout with Numpad: Complete 104-key layout for versatile use.

Şekil 2: Üzeriview of Hexgears GK735 key features.

2. Kurulum

2.1 Bağlantı

The Hexgears GK735 is a wired mechanical keyboard. Connect the integrated USB-A cable from the keyboard to an available USB port on your computer or compatible device. The keyboard does not require additional drivers for basic functionality.

2.2 Sistem Uyumluluğu

This keyboard is compatible with Windows, Mac, and Linux operating systems. It can also be used with various gaming consoles that support USB keyboard input.

Figure 3: Keyboard connected to a computer.

Figure 4: System compatibility with Windows, Mac, and Linux.

2.3 Ayarlanabilir Yazma Açısı

The keyboard features two-level adjustable feet on the underside. Extend these feet to achieve a preferred ergonomic typing angle, which can help reduce wrist strain during prolonged use.

Figure 5: Adjustable feet for ergonomic support.

Figure 6: Ergonomic support with adjustable typing angles.

3. Kullanım Talimatları

3.1 Kailh BOX White Switches

The GK735 keyboard is equipped with Kailh BOX White mechanical switches. These switches provide a crisp, tactile feedback with an audible click, designed for responsive and satisfying keystrokes. They are rated for 80 million keystrokes and offer IP56 dust and water resistance.

• Feeling: Tıklamalı
• Çalışma kuvveti: 55 ± 10 gr
• İletim İnmesi: 1.8 ± 0.4 mm
• Toplam Seyahat: 3.6 ± 0.3 mm
• Ömür: 80 milyon Tıklama

Figure 7: Kailh BOX White Switches details.

Figure 8: Kailh BOX White Switches features.

3.2 RGB Lighting Features

The keyboard features dual-zone lighting: 16.8 million color anti-glare side bars and white backlit keys. The side bars offer 6 modes (breathing/wave) for dynamic visual effects. The diffused lighting is engineered to provide dazzling visuals without causing eye strain.

Figure 9: Keyboard with RGB lighting.

Figure 10: Dual-zone RGB illumination.

3.3 N-Key Rollover and Anti-Ghosting

The keyboard supports full N-key rollover and anti-ghosting, ensuring that every key press is registered accurately, even when multiple keys are pressed simultaneously. This feature is crucial for fast-paced gaming and high-speed typing.

Figure 11: Gaming-grade anti-ghosting.

3.4 Anket Oranı

The GK735 features a 1000Hz polling rate, providing a response time of less than 1ms. This wired connection ensures minimal input lag, offering a highly responsive experience.

Figure 12: High polling rate for reduced lag.

4. Bakım

4.1 Çalışırken Değiştirilebilen Anahtarlar ve Tuş Kapakları

The GK735 keyboard is designed with hot-swappable sockets, allowing you to easily exchange switches and keycaps without the need for soldering. Use the included keycap puller and switch puller to safely remove and replace components. This enables customization of the typing feel and aesthetics.

Şekil 13: Çalışırken değiştirilebilir anahtar mekanizması.

Figure 14: Hot-swappable keyboard feature.

4.2 PBT Double-Shot Keycaps

The keyboard features durable PBT double-shot keycaps. These keycaps are resistant to oil shine and wear, ensuring longevity and maintaining their appearance over time. The grey/white floating keycaps offer a distinct aesthetic.

Figure 15: Durable PBT double-shot keycaps.

4.3 Temizlik

To clean the keyboard, disconnect it from your device. Use a soft, dry cloth to wipe down the keycaps and frame. For deeper cleaning, remove the keycaps using the provided keycap puller and clean the switches and plate with compressed air or a small brush. Avoid using harsh chemicals or excessive moisture.

5. Sorun Giderme

5.1 Klavye Yanıt Vermiyor

• USB kablosunun hem klavyeye hem de bilgisayara güvenli bir şekilde bağlandığından emin olun.
• Klavyeyi bilgisayarınızdaki farklı bir USB portuna bağlamayı deneyin.
• Sorunun klavyeden mi yoksa orijinal bilgisayardan mı kaynaklandığını belirlemek için klavyeyi başka bir bilgisayarda test edin.
• Bilgisayarınızı yeniden başlatın.

5.2 Aydınlatma Sorunları

• Verify that the keyboard is properly powered via the USB connection.
• Refer to the keyboard's quick start guide for specific function key combinations to control RGB lighting modes and brightness.

5.3 Tuş Girişi Sorunları

• If a specific key is not registering, try removing and re-inserting its switch using the switch puller.
• Tuş başlığının veya anahtarın altında herhangi bir kalıntının kalmadığından emin olun.

If you continue to experience issues, please contact Hexgears customer support for further assistance.

6. Özellikler

7. Paket İçeriği

The Hexgears GK735 Mechanical Keyboard package includes the following items:

• 1 x GK735 Mechanical Keyboard with USB Cable
• 1 x Tuş Takımı Çıkartıcısı
• 1 x Anahtar Çektirici
• 1 x Kullanım Kılavuzu (Hızlı Başlangıç ​​Kılavuzu)

Şekil 16: Paket içeriği.

8. Resmi Ürün Videoları

9. Garanti ve Destek

The Hexgears GK735 Mechanical Keyboard comes with a manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the documentation included in your product packaging or visit the official Hexgears webalan.

For technical support, troubleshooting assistance, or warranty claims, please contact Hexgears customer service. Contact information can typically be found on the manufacturer's webSitede veya ürünün hızlı başlangıç ​​kılavuzunda.
