YESWELDER 140A MIG Welder User Manual

1. Önemli Güvenlik Bilgileri

Please read and understand all safety warnings and instructions before operating the YESWELDER MIG-140DS PRO welding machine. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.

Elektrik Çarpması Öldürebilir: Do not touch live electrical parts. Wear dry, insulating gloves and protective clothing. Ensure the work area is dry.
Dumanlar ve Gazlar Tehlikeli Olabilir: Keep your head out of the fumes. Use enough ventilation, exhaust at the arc, or both, to keep fumes and gases away from your breathing zone and the general area.
Ark ışınları gözleri ve cildi yakabilir: Wear a welding helmet with a proper shade of filter lens to protect your face and eyes when welding or watching. Wear appropriate protective clothing to protect your skin.
Yangın ve Patlama Tehlikesi: Remove all flammables within 35 feet (10 meters) of the welding arc. Have a fire extinguisher nearby.
Automatic Safeguards: The MIG-140DS PRO features comprehensive safeguards, including automatic compensation for voltagAşırı akım, aşırı yük ve aşırı ısınmaya karşı sağlam koruma özellikleri sayesinde benzersiz kullanıcı güvenliği ve cihaz ömrü sağlar.

YESWELDER MIG-140DS PRO with safety icons — Image 1.1: The YESWELDER MIG-140DS PRO welding machine highlighting its safety features such as protection against overheating, water rating (IP21), overload, and electrostatic discharge.

2. Ürün Bittiview

The YESWELDER MIG-140DS PRO is a versatile 4-in-1 welding machine designed for various applications, including automotive, construction, fabrication, and DIY projects. It supports Gas MIG, Flux Core, Lift TIG, and Stick welding processes.

2.1 Temel Özellikler

4'ü 1 arada Çok İşlevlilik: Capable of MIG, Flux Core, Lift TIG, and Stick welding. (Note: An additional Lift TIG torch is required for TIG welding, model B08BXGGNFL).
Çift Hacimtage: Operates on both 110V and 220V power supplies, providing flexibility for different work environments.
140A Çıkışı: Delivers a robust 140A output for reliable and stable welding performance.
Synergic MIG Mode: Automatically matches voltage to wire feeding speed (adjustable from 80 to 600 in/min) with fine-tuning capability (-3V to +3V), ideal for beginners.
Manual MIG Mode: Allows experienced users to manually adjust wire feeding speed and voltage for precise control.
Dijital gösterge: Advanced digital interface for enhanced clarity and real-time monitoring of welding current.

YESWELDER MIG-140DS PRO showing 4-in-1 welding capabilities — Image 2.1: The YESWELDER MIG-140DS PRO demonstrating its four welding functions: Gas MIG, Flux Core, Stick, and Lift TIG welding.

Close-up of YESWELDER MIG-140DS PRO digital display — Resim 2.2: Ayrıntılı view of the intelligent digital screen display on the YESWELDER MIG-140DS PRO, showing various welding parameters and settings.

2.2 Makine Bileşenleri

Diagram of YESWELDER MIG-140DS PRO machine overview — Resim 2.3: Bir aşırıview diagram of the YESWELDER MIG-140DS PRO, labeling key components such as the Digital Panel, MIG Torch, Output Terminals, Input Power Cable, Gas Inlet, Power Switch, Ground Screw, and Fan.

2.3 Kontrol Paneli Tanıtımı

Diagram of YESWELDER MIG-140DS PRO control panel — Image 2.4: A detailed diagram of the control panel on the YESWELDER MIG-140DS PRO, identifying the Gas Selector Button, Weld Mode Button, Wire Diameter Button, 2T/4T Button, Feed Wire Button, Left Value Knob/Button, Right Value Knob/Button, and the Digital Panel.

2.4 Dahil Aksesuarlar

YESWELDER MIG-140DS PRO and its accessories — Image 2.5: The YESWELDER MIG-140DS PRO welder shown with its standard accessories, including the Ground Clamp, Electrode Holder, MIG Gun Tips, Groove Drive Roller, 220V to 110V Adapter, MIG Gun, and Gas Hose.

3. Kurulum ve Kurulum

Proper setup is crucial for safe and effective welding. Ensure all connections are secure and correct for your chosen welding process.

3.1 Güç Bağlantısı

MIG-140DS PRO çift ses desteğine sahiptir.tage input (110V/220V). Use the appropriate power cord and adapter for your power supply.
Cihazı daima uygun şekilde topraklanmış bir elektrik prizine bağlayın.

3.2 Tel Makarası Montajı

The welder is compatible with both 10LB (8-inch spool diameter) and 2LB (4-inch spool diameter) welding wires.

Diagram showing compatibility with 10LB and 2LB welding wire spools — Image 3.1: Illustration of the YESWELDER MIG-140DS PRO's compatibility with both 10LB (8-inch spool) and 2LB (4-inch spool) welding wires.

3.3 Welding Mode Specific Installations

3.3.1 Flux Core Welding Installation

Diagram for Flux Welding Installation — Image 3.2: Steps for Flux Core Welding installation, showing connections for the MIG/Flux Torch, Work Clamp, and Torch Terminal.

3.3.2 MIG Welding Installation (Gas MIG)

Diagram for MIG Welding Installation — Image 3.3: Steps for Gas MIG Welding installation, detailing connections for the MIG/Flux Torch, Torch Terminal, and Work Clamp. Note: An electric welded gas cylinder needs to be connected.

3.3.3 TIG Welding Installation (Lift TIG)

Diagram for TIG Welding Installation — Image 3.4: Steps for Lift TIG Welding installation, showing connections for the Work Clamp and TIG Torch. Note: An electric welded gas cylinder needs to be connected, and a separate TIG torch is required.

3.3.4 Stick Welding Installation

Diagram for Stick Welding Installation — Image 3.5: Steps for Stick Welding installation, illustrating connections for the Electrode Holder and Work Clamp.

4. Kullanım Talimatları

Familiarize yourself with the control panel (refer to Section 2.3) before beginning any welding operation.

4.1 Kaynak Modunun Seçilmesi

Use the 'Weld Mode Button' on the control panel to cycle through the available welding processes: Stick, Manual MIG, Synergic MIG, and Lift TIG.

4.2 Synergic MIG Operation

Select 'Synergic MIG' mode.
Adjust the wire feeding speed using the 'Left Value Knob/Button'. The machine will automatically suggest a corresponding voltage.
Ses seviyesini ince ayar yapıntage if necessary using the 'Right Value Knob/Button' within a range of -3V to +3V from the automatically matched value.
This mode simplifies parameter setting, making it suitable for beginners.

4.3 Manual MIG Operation

Select 'Manual MIG' mode.
Independently adjust both the wire feeding speed and voltage using the respective 'Left Value Knob/Button' and 'Right Value Knob/Button' according to your welding requirements and preferences.
This mode offers greater control for experienced welders.

4.4 Dijital Ekran İzleme

The digital display provides real-time feedback on welding current and voltage. Monitor these values during operation to ensure consistent and quality welds.

5. Bakım

Düzenli bakım, kaynak makinenizin uzun ömürlü olmasını ve optimum performans göstermesini sağlar.

Temizlik: Toz ve kir birikmesini önlemek için makinenin dış yüzeyini ve havalandırma açıklıklarını periyodik olarak temizleyin. Gerekirse, makinenin fişinin çekili olduğundan emin olarak, iç bileşenleri temizlemek için basınçlı hava kullanın.
Kablo ve Bağlantı Denetimi: Regularly inspect all welding cables, power cords, and connections for wear, damage, or loose fittings. Replace damaged components immediately.
Wire Feed System: Check the wire feed rollers for wear and ensure they are clean and free of debris. Verify proper tension for smooth wire feeding.
El feneri ve sarf malzemeleri: Inspect the MIG gun nozzle, contact tip, and diffuser for wear. Replace consumables as needed to maintain arc quality. For Stick and TIG, ensure electrode holders and TIG torches are in good condition.
Depolamak: Kaynak makinesini kullanılmadığı zamanlarda temiz ve kuru bir ortamda saklayın.

6. Sorun Giderme

This section provides solutions to common issues you might encounter. For problems not listed here, contact YESWELDER customer support.

Sorun	Olası Neden	Çözüm
Makineye güç gelmiyor	Güç kablosu fişten çekilmiş, devre kesici atmış, güç şalteri arızalı.	Check power cord connection, reset circuit breaker, contact service if switch is faulty.
Ark yok veya zayıf ark	Poor ground connection, incorrect welding parameters, worn consumables, wrong polarity	Zemin temizliğini sağlayın.amp is on clean metal, adjust current/voltage, replace contact tip/electrode, verify polarity for process.
Wire feeding issues (MIG/Flux Core)	Incorrect wire tension, clogged liner, worn drive roller, tangled wire spool	Adjust drive roller tension, clean or replace liner, inspect/replace drive roller, untangle wire.
Aşırı ısınma koruması etkinleştirildi	Çalışma döngüsünün aşılması, yetersiz havalandırma	Allow machine to cool down, ensure clear airflow to vents, reduce welding time.

7. Özellikler

Detailed technical specifications for the YESWELDER MIG-140DS PRO.

Özellik	Şartname
Model Numarası	MIG-140DS PRO NEW
Üretici	YES KAYNAKÇI
Giriş Voltage	110V/220V Çift Voltage
Çıkış Akımı	140A
Kaynak İşlemleri	Gas MIG, Flux Core, Lift TIG, Stick
Ürün Ağırlığı	20.8 pound
Paket Boyutları	17.28 x 13.39 x 7.64 inç
Güç Kaynağı	DC
ASIN	B0FCF9MG56

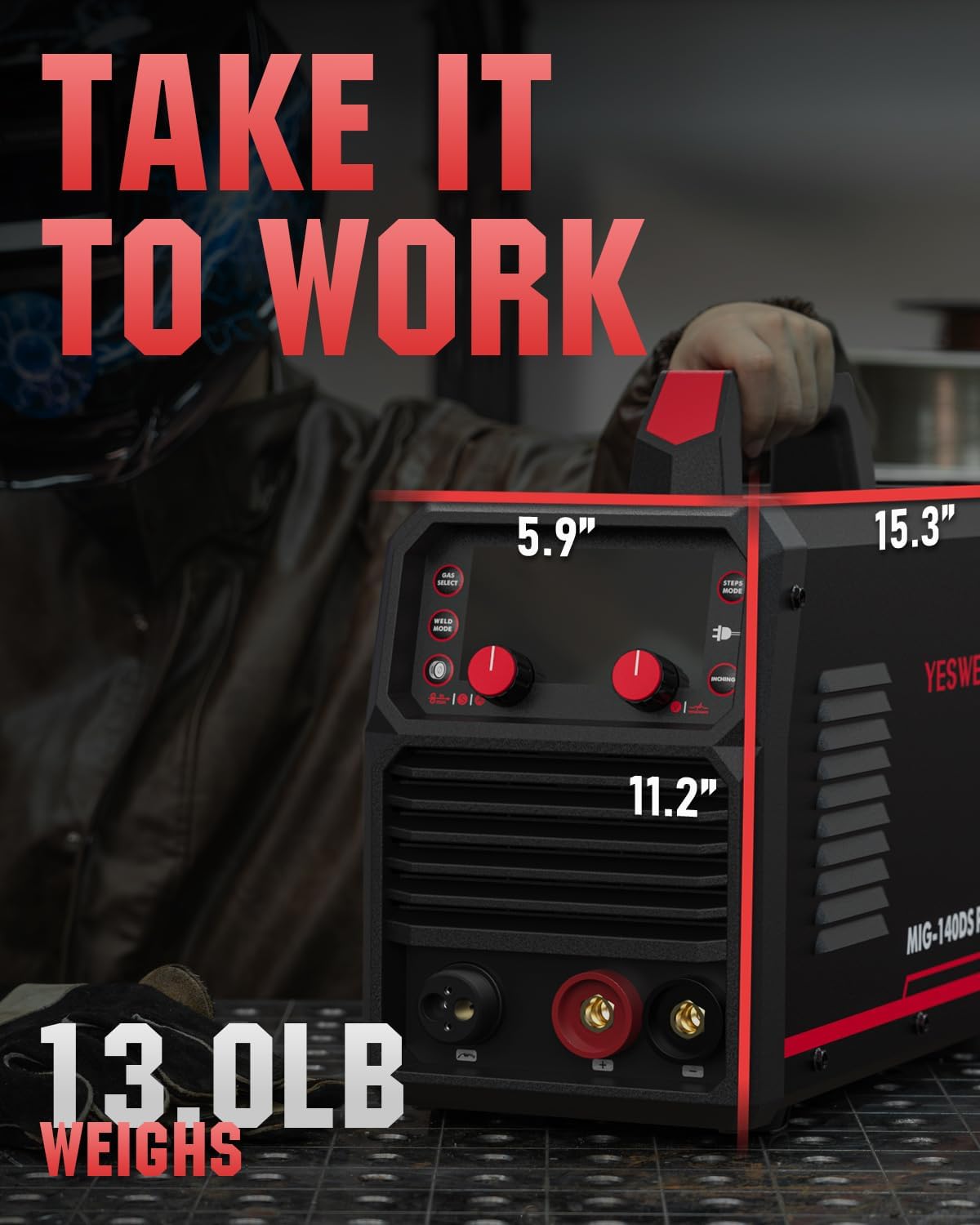

YESWELDER MIG-140DS PRO with dimensions and weight — Image 7.1: The YESWELDER MIG-140DS PRO highlighting its compact dimensions (5.9" width, 15.3" depth, 11.2" height) and light weight (13.0 lbs, note: product data states 20.8 lbs item weight, this image may refer to net weight or a different model).

8. Garanti ve Destek

For warranty information, product registration, or technical assistance, please contact YESWELDER customer support directly. Refer to the official YESWELDER website or the documentation included with your purchase for specific warranty terms and contact details.

Ziyaret edebilirsiniz YESWELDER Mağazası Amazon'da Daha fazla bilgi ve destek kaynakları için.
