Aoxun 12' x 20' Hardtop Gazebo Instruction Manual

giriiş

Thank you for choosing the Aoxun 12' x 20' Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Güvenlik Bilgileri

Önemli Güvenlik Talimatları:

• Montaj ve kullanımdan önce tüm talimatları mutlaka okuyun ve anlayın.
• Montaj için en az iki yetişkin gereklidir. Tek başınıza monte etmeye çalışmayın.
• Ensure all parts are present and undamaged before starting assembly.
• Kurulum için düz ve sağlam bir yüzey seçin.
• Securely anchor the gazebo to the ground using appropriate methods, such as expansion bolts, to withstand wind. Refer to the 'Wind Resistance' section for details.
• Do not hang heavy objects on the gazebo frame or roof, exceeding the specified weight limits for hooks (44 lbs).

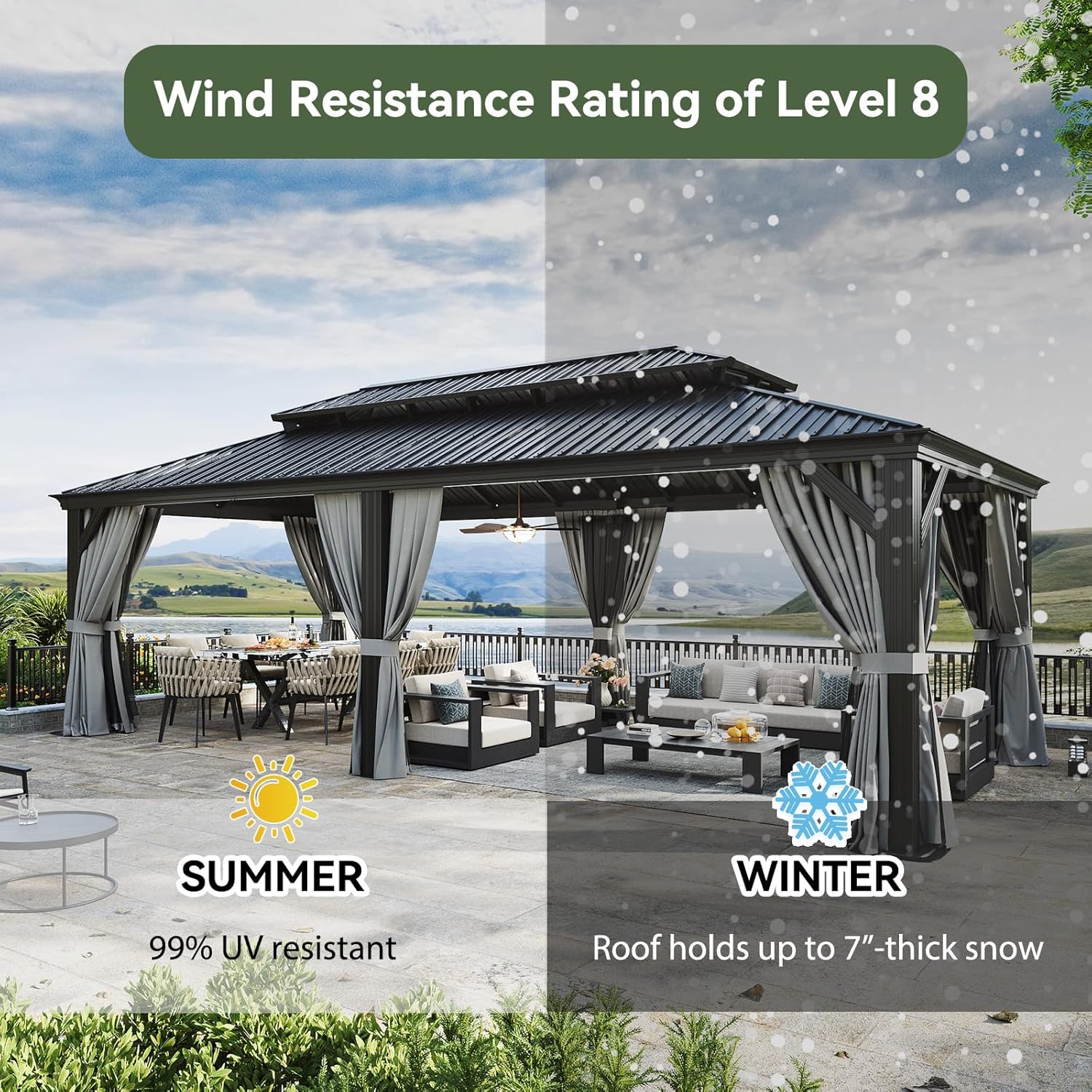

• In case of heavy snow accumulation, clear the roof promptly to prevent structural damage. The roof is designed to hold up to 7 inches of thick snow.
• In extreme weather conditions (e.g., strong winds, heavy storms), it is recommended to remove curtains and netting and, if possible, disassemble the gazebo to prevent damage.
• Çocukları ve evcil hayvanları toplanma alanından uzak tutun.

Paket İçeriği

Your Aoxun Hardtop Gazebo is delivered in multiple packages. Please verify all components against the included parts list diagram (typically found in a separate document or at the beginning of the assembly guide). Common components include:

• Aluminum Frame Components (posts, beams, connectors)
• Galvanized Steel Double Roof Panels
• Curtains (180 GSM Polyester)
• Netting (110 GSM Textilene Mesh)
• Hardware Kit (screws, bolts, washers, tools)

Kurulum ve Montaj

Başlamadan Önce:

• Select a clear, level area for assembly, free from overhead obstructions and underground utilities.
• Ensure you have all necessary tools, typically including a ladder, wrench, and screwdriver.
• Unpack all components and lay them out, verifying against the parts list.

Montaj Adımları (Genel Özet)view):

1. Taban Çerçevesini Birleştirin: Connect the horizontal beams to the vertical posts according to the provided diagrams. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
2. Çatı Desteklerini Takın: Attach the roof support beams and central structure.
3. Çatı Panellerini Takın: Carefully place and secure the galvanized steel roof panels. The double-roof design allows for airflow and UV protection.
4. Perde ve tül takma: Hang the curtains and netting onto the designated tracks or rings.
5. Final Tightening and Anchoring: Once the entire structure is assembled, tighten all bolts. Securely anchor the gazebo to the ground.

Kullanım Talimatları

Perdeler ve Tüller:

• The gazebo includes both privacy curtains and mesh netting. These can be used independently or together.
• To open or close, slide them along their respective tracks. Use the included ties to secure them to the posts when open.
• The mesh netting helps keep insects out while allowing airflow.

Drenaj sistemi:

• The integrated drainage system directs rainwater from the roof's edge into the posts and down to the ground.
• Ensure the drainage channels are clear of debris (leaves, dirt) to maintain efficient water runoff.

Tavan Kancaları:

• The gazebo is equipped with heavy-duty hooks on the ceiling.
• Each hook can support up to 44 lbs (20 kg).
• These hooks are suitable for hanging lights, fans, or lightweight decorations. Do not exceed the weight limit.

Bakım

Düzenli bakım, çardaklarınızın ömrünü ve görünümünü uzatacaktır.

• Çerçevenin Temizlenmesi: Wipe the aluminum frame with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
• Çatı Temizliği: Periodically clean the galvanized steel roof panels to remove leaves, dirt, and other debris. Use a soft brush or cloth with water.
• Perde ve Tül Temizliği: The polyester curtains and Textilene mesh can be spot cleaned with mild soap and water. For deeper cleaning, they may be removed and hand washed. Ensure they are completely dry before re-installing or storing to prevent mildew.
• Bağlantı Elemanı Kontrolü: Annually, or after severe weather, inspect all bolts and screws to ensure they are tight. Re-tighten as necessary.
• Kış Bakımı: While the gazebo is designed for all-weather use and can hold up to 7 inches of snow, it is advisable to regularly clear heavy snow accumulation from the roof to prevent excessive stress on the structure.

Sorun giderme

If you encounter issues not listed here or require further assistance, please contact Aoxun customer support.

Özellikler

• Modeli: G30052GR03
• Boyutlar (U x G x Y): 233" x 142" x 128" (approximately 19.4 ft x 11.8 ft x 10.7 ft)
• Çerçeve Malzemesi: Aluminum, Metal with Thick Powder Coating
• Roof Material: Galvanized Steel Double Roof
• Curtain Material: 180 GSM Polyester
• Netting Material: 110 GSM Textilene Mesh
• Renk: Gri
• Ürün Ağırlığı: 550 Pound
• Suya Dayanıklılık Seviyesi: Su geçirmez
• Ultraviyole Işık Koruması: Evet
• Rüzgar Direnci: Up to 9 (47-54 mph) with expansion bolts
• Snow Loading Depth: Up to 7 inches thick snow
• Montaj Gerekli: Evet

Ürün Bittiview Video

Garanti ve Destek

For warranty information, please refer to the documentation included with your purchase or contact Aoxun customer support directly. If you have any questions, require replacement parts, or need assistance with assembly or troubleshooting, please reach out to the manufacturer's customer service department. Contact details are typically available on the product packaging or the official Aoxun webalan.
