BROMECH Digital Commercial Scale BPT01AA-200 User Manual

1. Giriş

This manual provides instructions for the BROMECH Digital Commercial Scale, model BPT01AA-200. This high-capacity, high-precision postal scale is designed for various applications, including industrial use, small businesses, and home shipping. It features a durable stainless steel platform, a separate LCD display, and convenient functions like Tare and Hold.

Image: BROMECH Digital Commercial Scale with its separate display unit.

2. Güvenlik Bilgileri

• Tartıyı maksimum kapasitesi olan 200 kg'ın (440 lb) üzerinde aşırı yüklemeyin.
• Place the scale on a stable, flat surface to ensure accurate measurements.
• Teraziyi aşırı sıcaklıklara, neme veya doğrudan güneş ışığına maruz bırakmaktan kaçının.
• Teraziyi güçlü elektromanyetik alanlardan uzak tutun.
• Do not immerse the scale or its display unit in water.
• Use only the specified AAA batteries or Type-C charging cable for power.

3. Paket İçeriği

Paketin içinde tüm öğelerin mevcut olduğundan emin olun:

• BROMECH Digital Commercial Scale Platform
• Separate LCD Display Unit
• Coiled Cable (connecting platform to display)
• 2 x AAA Pil
• C Tipi Şarj Kablosu
• Kullanım Kılavuzu (bu belge)

4. Kurulum

1. Teraziyi Açın: Tüm bileşenleri dikkatlice ambalajından çıkarın.
2. Platformu yerleştirin: Position the stainless steel weighing platform on a firm, level surface.
3. Ekranı bağlayın: Connect the coiled cable from the weighing platform to the separate LCD display unit.
4. Güç Kaynağı:
   • Pil Montajı: Open the battery compartment on the back of the display unit and insert the 2 AAA batteries, ensuring correct polarity.
   • USB-C Gücü: Alternatively, connect the Type-C charging cable to the display unit and a suitable USB power source (adapter not included).


   Resim: Ayrıntılı view of the LCD display unit, showing the battery compartment and connection port.



   Image: Illustration of the two power supply methods: 2 AAA batteries and Type-C USB charging.

5. Ekran Yerleşimi: The separate display can be placed on a desktop or mounted on a wall for convenience.

5. Kullanım Talimatları

The display unit features four buttons: Power (ON/OFF), Unit (U), Hold (H), and Tare (T).

1. Güç AÇIK/KAPALI: Basın Güç Ölçeği açıp kapatmak için düğme.
2. Birim dönüştürme: Basın U button to cycle through available units: kilograms (kg), pounds (lb), ounces (oz), and pounds:ounces (lb:oz).


   Image: The scale's high-precision sensor and unit conversion options (kg, lb, oz, lb:oz).
3. Dara Fonksiyonu: The Tare function allows you to subtract the weight of a container, so you only measure the net weight of its contents.

   1. Platforma boş bir kap yerleştirin.
   2. Basın T (Tare) button. The display will reset to zero.
   3. Add items to the container to measure their net weight.


   Image: Step-by-step demonstration of using the Tare function to measure net weight.

4. Tutma İşlevi: The Hold function locks the displayed weight, which is useful for large or irregularly shaped items that might obscure the display.

   1. Place an item on the platform.
   2. Basın H (Hold) button. The weight will be locked on the display.
   3. You can now remove the item, and the weight will remain displayed for easy reading.

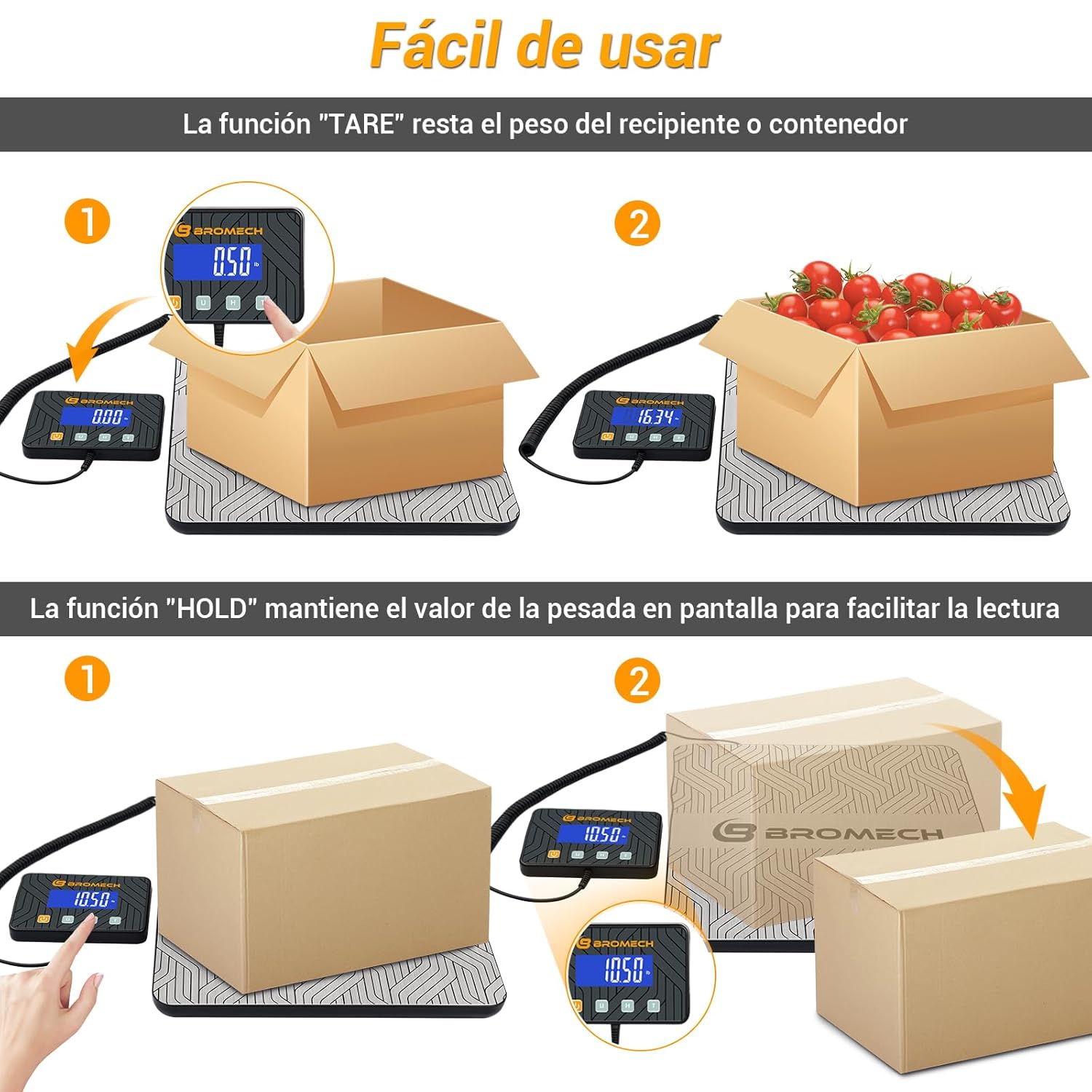

   Image: Visual explanation of both Tare and Hold functions for accurate and easy measurements.



   Image: Step-by-step demonstration of using the Hold function to retain weight readings.

6. Bakım

To ensure the longevity and accuracy of your BROMECH Digital Commercial Scale, follow these maintenance guidelines:

• Temizlik: Wipe the stainless steel platform and display unit with a soft, damp bez. Aşındırıcı temizleyiciler kullanmayın veya suya batırmayın.
• Depolamak: When not in use, store the scale in a dry, cool place. The compact design allows for easy storage of the display unit under the platform.


  Image: The scale's compact design allows for easy storage of the display unit when not in use.

• Pil Değişimi: Replace AAA batteries when the low battery indicator appears on the display.
• Etkiden Kaçının: Do not drop the scale or subject it to heavy impacts, as this can damage the internal sensors.

7. Sorun Giderme

Tartım cihazınızla ilgili sorunlarla karşılaşırsanız, aşağıdaki yaygın sorunlar ve çözümlerine bakın:

Image: Display indicators for low battery ("Lo") and overload ("Err").

8. Özellikler

Image: Visual representation of the scale's high precision, capacity (220 kg / 440 lb), division (0.01 kg), and minimum weight (0.04 kg).

9. Garanti ve Destek

For warranty information and customer support, please refer to the documentation included with your purchase or contact BROMECH customer service directly. Keep your purchase receipt as proof of purchase.
