Kenmore 10655606400 Refrigerator Icemaker Replacement Part Instruction Manual

giriiş

This manual provides essential information for the safe and correct installation, operation, and maintenance of your new replacement icemaker. Please read these instructions thoroughly before beginning installation to ensure proper function and to prevent damage to the product or your appliance. Keep this manual for future reference.

Güvenlik Bilgileri

Gücü Kesin: Always disconnect power to the refrigerator before attempting any installation, repair, or maintenance. Failure to do so can result in electric shock or injury.
Su Temini: Turn off the water supply to the refrigerator before installation to prevent water leaks.
Profesyonel Kurulum: If you are unsure about any step of the installation process, it is recommended to seek assistance from a qualified appliance technician.
Uyumluluk: Verify that this replacement part is compatible with your specific refrigerator model before installation. Refer to the "Specifications" section for compatible models.

Paket İçeriği

Paket şunları içerir:

1 Set of Icemaker Replacement Part

Note: Please inspect all components upon receipt to ensure no parts are missing or damaged.

Kurulum ve Yükleme

This section outlines the general steps for replacing your refrigerator's icemaker. Specific procedures may vary slightly depending on your refrigerator model. Always refer to your refrigerator's original service manual for detailed instructions if available.

Buzdolabını Hazırlayın:
- Buzdolabını elektrik güç kaynağından ayırın.
- Turn off the water supply valve to the refrigerator.
- Empty the ice bin and remove any existing ice.
Access the Old Icemaker:
- Locate the icemaker compartment, typically in the freezer section.
- Remove any screws or clips securing the old icemaker.
- Carefully disconnect the electrical wiring harness from the old icemaker.
- Remove the old icemaker unit.
Install the New Icemaker:
- Connect the electrical wiring harness from the refrigerator to the new icemaker. Ensure the connection is secure.
- Position the new icemaker in the compartment and secure it with the screws or clips previously removed.
- Ensure the icemaker is level and properly seated.
Elektrik ve Suyun Geri Gelmesi:
- Turn on the water supply valve to the refrigerator.
- Buzdolabını elektrik güç kaynağına yeniden bağlayın.
İlk Kontrol:
- Listen for the icemaker to fill with water. This may take a few minutes.
- Check for any leaks around the water connections.

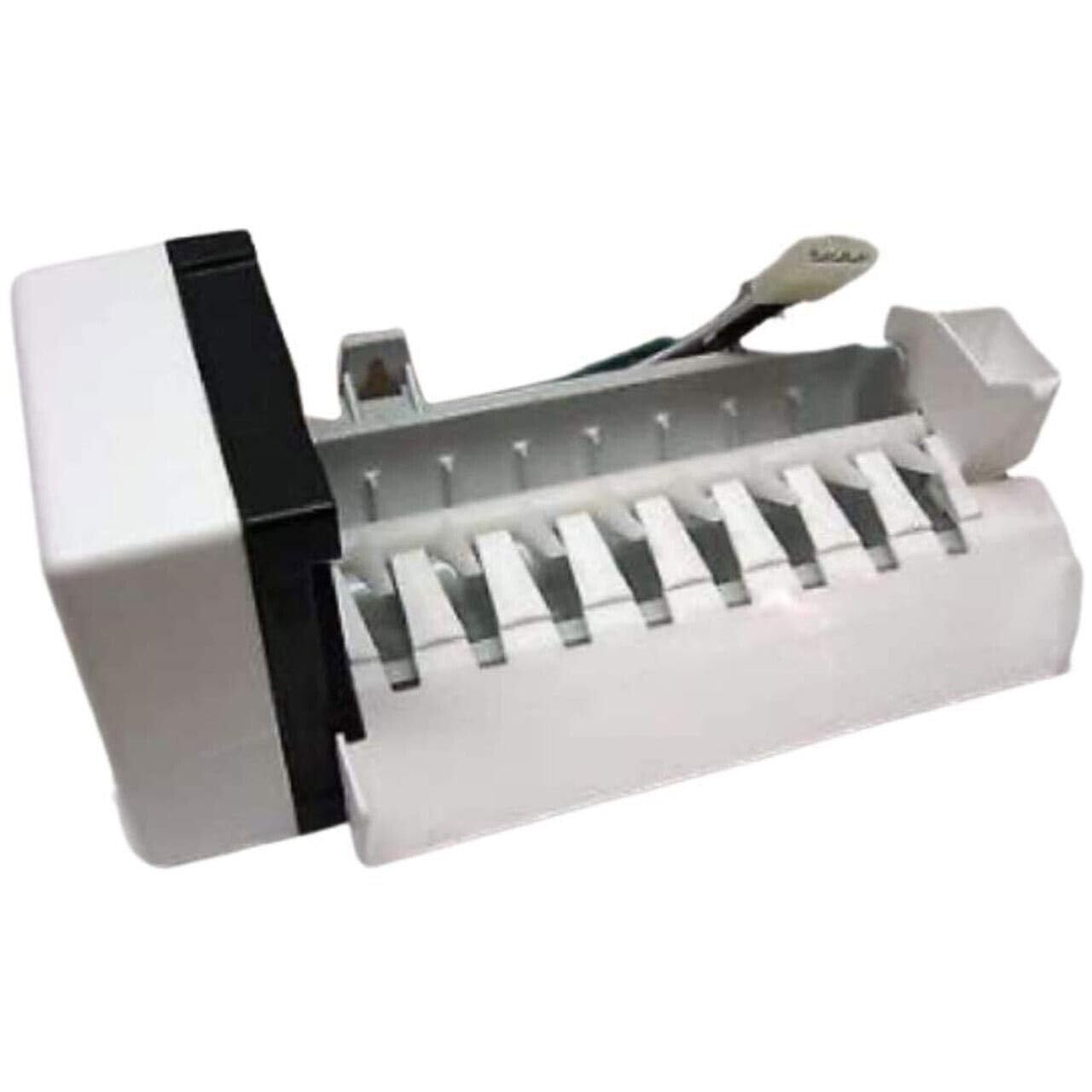

Replacement icemaker for Kenmore refrigerator, showing the white plastic body with ice mold and electrical connector.

Image: The replacement icemaker unit, featuring its white plastic housing, ice mold, and electrical connector. This unit is designed to fit Kenmore refrigerator model 10655606400.

Kullanım Talimatları

After successful installation, the icemaker will begin producing ice. The first few batches of ice may be smaller or have an unusual taste. It is recommended to discard the first 2-3 batches of ice to ensure optimal taste and quality.

Buz Üretim Döngüsü: The icemaker will automatically cycle to produce ice as needed, filling the ice bin.
Ice Level Arm: The icemaker typically has a shut-off arm that senses the ice level in the bin. When the bin is full, the arm will rise, and the icemaker will stop producing ice until the level drops. Ensure this arm is not obstructed.
Sıcaklık: Ensure your freezer temperature is set correctly (typically 0°F / -18°C) for efficient ice production.

Bakım

Buz Haznesinin Temizlenmesi: Periodically remove and wash the ice bin with mild soap and warm water. Rinse thoroughly and dry completely before returning it to the freezer.
Cleaning the Icemaker: If mineral deposits build up on the icemaker, it may affect performance. Disconnect power and water, then gently wipe down accessible parts with a damp bezle silin. Aşındırıcı temizleyiciler kullanmayın.
Su Filtresi: If your refrigerator has a water filter, ensure it is replaced according to the manufacturer's recommendations to maintain water quality and icemaker performance.

Sorun giderme

Sorun	Olası Neden	Çözüm
Icemaker not producing ice.	No power to refrigerator. Water supply turned off or clogged. Dondurucu sıcaklığı çok yüksek. Ice level arm obstructed or in "off" position. Faulty water inlet valve.	Güç bağlantısını ve devre kesiciyi kontrol edin. Ensure water supply valve is open and water line is not kinked. Set freezer temperature to 0°F (-18°C). Clear any obstructions and ensure the arm is free to move. Inspect water inlet valve for proper function (may require professional service).
Buz küpleri küçük veya içi boştur.	Düşük su basıncı. Su filtresi tıkalı. Su hattı kısmen donmuş.	Evdeki su basıncını kontrol edin. Replace water filter if applicable. Thaw water line if frozen (ensure freezer temperature is not too low).
Icemaker is noisy.	Normal çalışma sesleri. Gevşek montaj.	Some operational noises are normal. Ensure icemaker is securely mounted.

Özellikler

Marka: Genel
Part Model Name: icepart#24131752
Compatible Refrigerator Model: 10655606400
Parça Numarası: 10655606400 (as listed in feature bullets, likely referring to the compatible part number for the refrigerator)
Renk: Black (referring to the visible black component on the unit)
Paket İçeriği: 1 Takım

Garanti ve Destek

As this is a generic replacement part, warranty coverage may vary. Please retain your proof of purchase and contact the seller directly for specific warranty information and support inquiries. For technical assistance regarding installation or troubleshooting, refer to the troubleshooting section of this manual or consult a qualified appliance technician.

icepart#24131752
