Meetion BTM005 Kablosuz Fare Kullanım Kılavuzu

1. Ürün Bittiview

The Meetion BTM005 is a versatile wireless mouse designed for office and portable use. It offers dual connectivity options: 2.4G wireless via a USB dongle and dual Bluetooth for connecting to multiple devices. Key features include silent clicks and adjustable DPI settings for precise control.

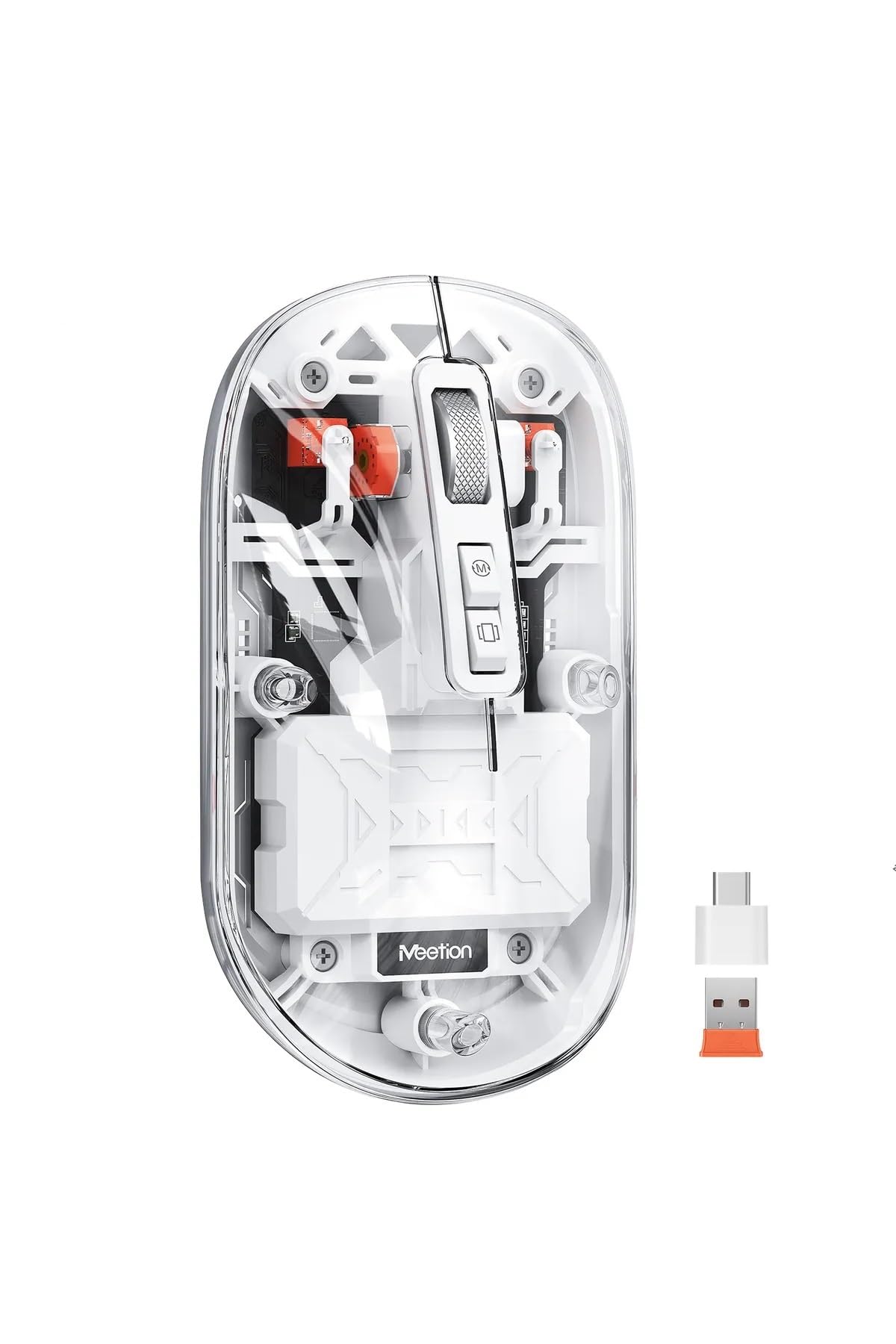

Figure 1: Meetion BTM005 Wireless Mouse (White)

2. Paket İçeriği

Lütfen paketi aşağıdaki öğeler açısından kontrol edin:

• Meetion BTM005 Wireless Mouse
• USB-C - USB Şarj Kablosu
• USB 2.4G Wireless Receiver (dongle) - located inside the mouse
• Kullanım Kılavuzu (bu belge)

Figure 2: Mouse with top cover removed, showing internal components and USB receiver storage.

3. Kurulum

3.1 Fareyi Şarj Etme

The Meetion BTM005 mouse features a built-in rechargeable battery. Before first use, or when the battery is low, connect the mouse to a USB power source using the provided USB-C charging cable.

• Locate the USB-C port on the front of the mouse.
• Connect the USB-C end of the cable to the mouse and the USB-A end to a computer's USB port or a USB wall adapter.
• Gösterge ışığı şarj durumunu gösterecek ve tam şarj olduğunda sönecektir.

Figure 3: Mouse connected for charging via USB-C cable.

3.2 2.4G Kablosuz Bağlantısı

1. Farenin manyetik üst kapağını nazikçe çıkarın.
2. Take out the USB 2.4G wireless receiver (dongle) stored inside the mouse.
3. USB alıcısını bilgisayarınızdaki uygun bir USB bağlantı noktasına takın.
4. Replace the magnetic top cover.
5. Fareyi, farenin alt kısmında bulunan ON/OFF düğmesini kullanarak açın.
6. Press the mode switch button (located behind the scroll wheel) until the indicator light shows 2.4G mode (usually a specific color or pattern).
7. Your computer should automatically detect and connect to the mouse.

Figure 4: USB 2.4G receiver stored inside the mouse.

3.3 Bluetooth aracılığıyla bağlanma

The mouse supports dual Bluetooth connections (BT1 and BT2).

1. Alt kısımda bulunan AÇMA/KAPATMA düğmesini kullanarak fareyi açın.
2. Press the mode switch button (behind the scroll wheel) to select either BT1 or BT2 mode. The indicator light will flash, indicating pairing mode.
3. Cihazınızda (bilgisayar, tablet vb.) Bluetooth ayarlarına gidin ve yeni cihazları arayın.
4. Select "Meetion BTM005" from the list of available devices to pair.
5. Eşleştirildikten sonra gösterge ışığının yanıp sönmesi duracak ve sabit kalacaktır.
6. Repeat steps 2-5 to connect to a second device using the other Bluetooth channel (BT2).

4. Kullanım Talimatları

4.1 Güç Açma/Kapatma

Use the physical ON/OFF switch located on the bottom of the mouse to conserve battery when not in use.

4.2 Bağlantı Modlarını Değiştirme

The button located directly behind the scroll wheel allows you to switch between 2.4G wireless, Bluetooth 1 (BT1), and Bluetooth 2 (BT2) modes. Press the button once to cycle through the modes. The indicator light will change to reflect the active mode.

4.3 DPI Hassasiyetinin Ayarlanması

The mouse offers adjustable DPI (Dots Per Inch) settings to control cursor speed. The DPI button is located on the bottom of the mouse, next to the optical sensor.

• Press the DPI button to cycle through the available sensitivities: 1200, 1600, and 2400 DPI.
• Each press will change the DPI level, allowing you to find the most comfortable speed for your tasks.

Figure 5: Bottom of the mouse with ON/OFF switch and DPI button.

4.4 Sessiz Tıklama Özelliği

The left and right mouse buttons are designed for silent operation, reducing click noise in quiet environments.

5. Bakım

5.1 Temizlik

To clean the mouse, gently wipe the exterior with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials. The magnetic top cover can be removed for easier cleaning of the internal transparent surfaces if necessary.

Figure 6: Mouse with top cover open, illustrating easy access for cleaning.

5.2 Pil Bakımı

To prolong battery life, avoid fully discharging the mouse frequently. Charge the mouse when the low battery indicator appears. Store the mouse in a cool, dry place when not in use for extended periods.

6. Sorun Giderme

• Fare yanıt vermiyor:
  • Farenin açık olduğundan emin olun.
  • Pil seviyesini kontrol edin ve gerekirse şarj edin.
  • Verify the correct connection mode (2.4G, BT1, or BT2) is selected.
  • For 2.4G mode, ensure the USB receiver is securely plugged into the computer. Try a different USB port.
  • For Bluetooth mode, ensure Bluetooth is enabled on your device and re-pair if necessary.
• İmleç düzensiz veya düzgün hareket etmiyor:
  • Farenin alt kısmındaki optik sensörü temizleyin.
  • Fareyi uygun bir yüzeyde (yansıtıcı olmayan, opak) kullandığınızdan emin olun.
  • Adjust the DPI setting to a lower value if the cursor is too fast, or a higher value if too slow.
• Buttons making squeaking noises:
  • This can sometimes occur due to manufacturing tolerances. If the noise is persistent and bothersome, contact customer support.
• Difficulty switching between devices:
  • Ensure you are pressing the mode switch button firmly and briefly to cycle through modes.
  • If a device is not connecting, try unpairing and re-pairing the mouse in your device's Bluetooth settings.

7. Özellikler

8. Garanti ve Destek

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support or further assistance, please reach out to the manufacturer, Meetion, or the seller from whom you purchased the product.
