Electric Go Kart User Manual

1. Giriş

Thank you for choosing the wanan Electric Go Kart. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new electric go-kart. Please read this manual thoroughly before initial use and retain it for future reference.

Image: The wanan Electric Go Kart in white, featuring BMW branding, LED lights, and a rear flag.

2. Güvenlik Bilgileri

For external use only. Always ensure the rider wears appropriate safety gear, including a helmet, knee pads, and elbow pads. Adult supervision is required at all times. Do not operate the go-kart near stairs, on public roads, or in heavy traffic. Ensure the go-kart is fully charged before each use. Keep hands, hair, and clothing away from moving parts. Maximum weight capacity is 132 lbs. Recommended for ages 6 and up.

3. Kutuda Neler Var?

• Go Kart Car Body
• Montaj Donanımı
• Şarj cihazı
• Kullanım Kılavuzu (bu belge)

4. Kurulum ve Montaj

Assembly of the Electric Go Kart is straightforward and typically takes less than 30 minutes. Follow the step-by-step instructions provided in the included assembly guide. Ensure all connections are secure and the battery is properly installed before first use. A full charge is recommended prior to initial operation.

5. Kullanım Talimatları

5.1. Kontroller

Resim: Ayrıntılı view of the go-kart's foot pedals (gas and brake) and dashboard controls including power, light, and forward/reverse switches.

• Güç düğmesi: Located on the dashboard, turn to ON to activate the go-kart.
• Forward/Backward Switch: Select desired direction of travel.
• Gaz Pedalı: Press to accelerate.
• Fren Pedalı: Press to slow down or stop.
• Işık Anahtarı: Activates the LED lights.
• Güç Göstergesi: Kalan pil şarjını gösterir.
• Ayar Düğmeleri: Used for speed mode selection.

5.2. Hız Modları

The go-kart features two speed modes: high speed and low speed. Use the adjustment buttons on the dashboard to switch between modes. The low speed setting is recommended for beginners or younger riders, while the high speed offers a more exhilarating experience for experienced users.

5.3. Drift Mode

Engage drift mode for exciting 360° rotations and controlled slides. This mode utilizes the specialized drifting nylon tires for enhanced maneuverability. Practice in an open, safe area away from obstacles.

Image: A child enjoying the go-kart's drift capabilities, highlighting 360° rotation and free drift.

6. Özellikler Bittiview

• Powerful Motors & Battery: Equipped with dual 200W motors (total 400W) and a 24V 9Ah battery.

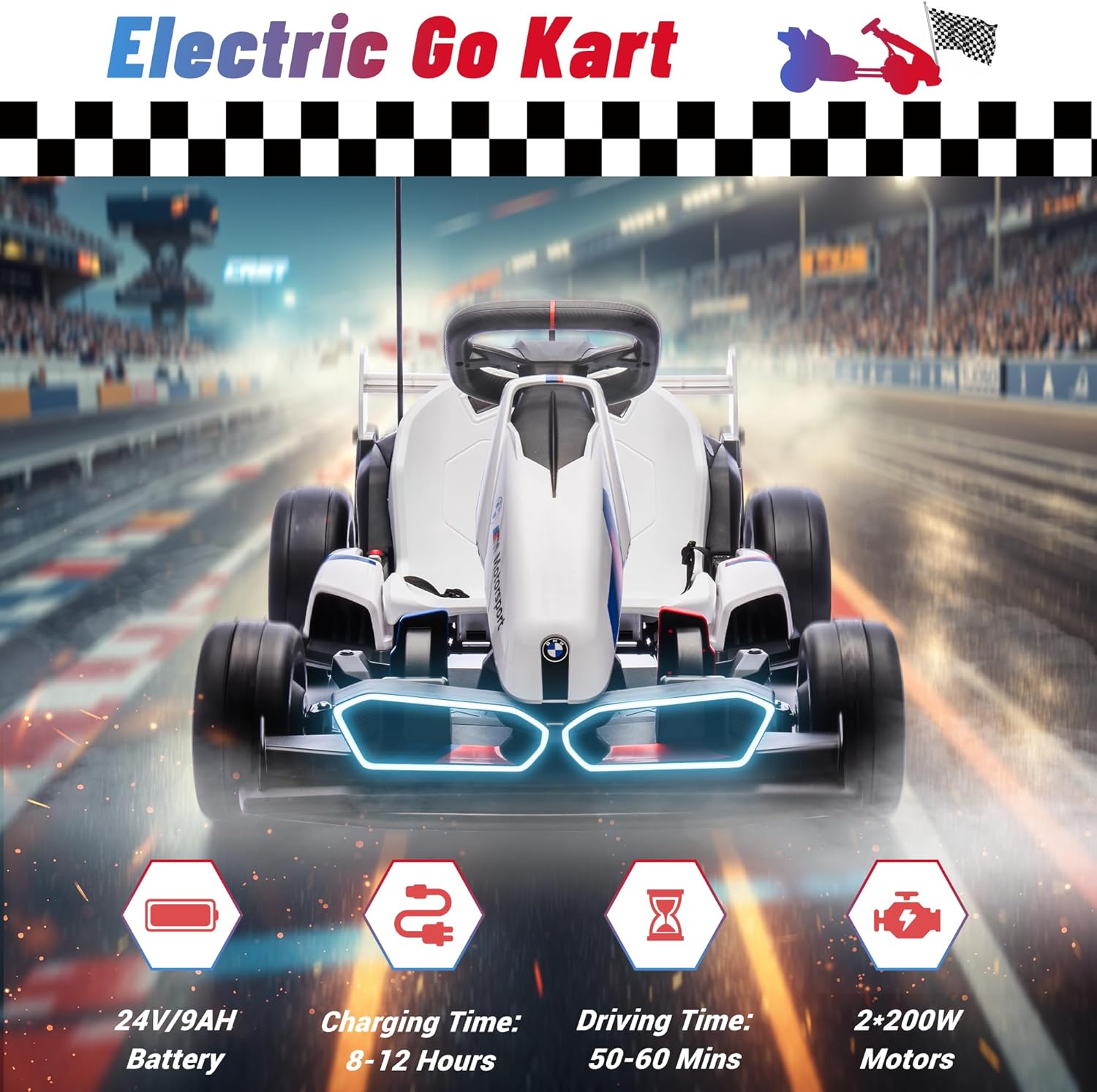

Image: Key specifications including battery type, charging time, driving time, and motor power.

• Adjustable & Spacious Seat: Features a 15"x8" seat and an extendable body from 38.6'' to 50'' to accommodate riders aged 6 and up.

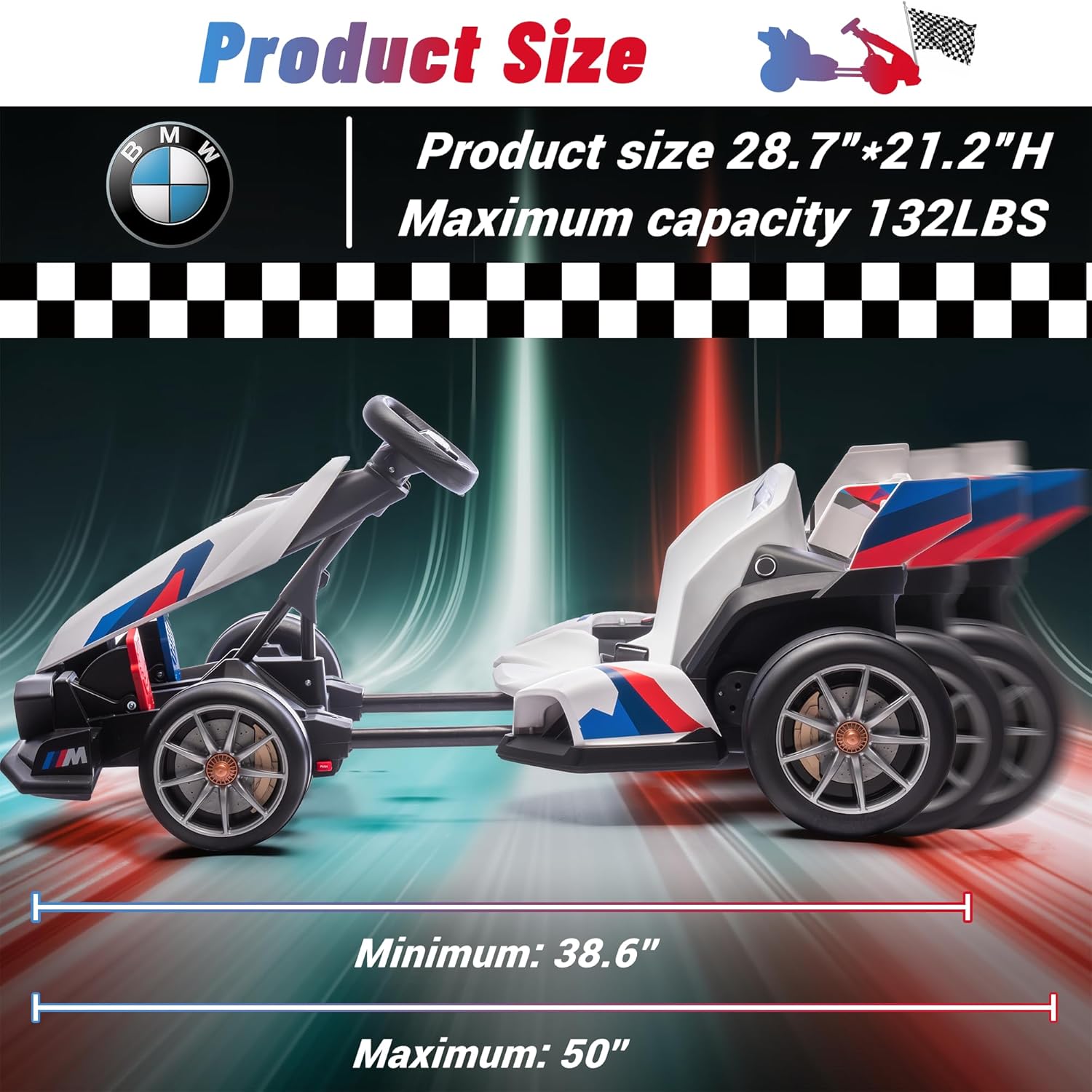

Image: Dimensions illustrating the adjustable length of the go-kart and its maximum weight capacity.



Image: Detailed measurements of the go-kart seat and recommended age/weight limits.

• Exciting Drift Mode: Equipped with EVA tires and specialized drifting nylon tires for 360° rotation and free drift. The dual-pedal accelerator enhances control.
• Önce Güvenlik Odaklı Tasarım: Includes a secure two-point seatbelt and a sturdy metal bracket frame for enhanced protection.
• Interactive Driving Experience: The steering wheel features a horn, light strip, racing flag, and music control buttons for added realism and fun.


Image: Close-up details of the go-kart's design elements, including the BMW flag, LED light strip, and wheel.

• Cool Multi-Lights: Features vibrant LED light strips on the front and rear for an enhanced visual experience.


Resim: Ön ve arka views of the go-kart showcasing its illuminated LED lights.

7. Bakım

• Pil Şarjı: Charge the 24V 9Ah battery for 8-12 hours using the provided charger. Do not overcharge (maximum 12 hours). Charge regularly, even during periods of non-use (at least once a month) to maintain battery health.
• Temizlik: Wipe the go-kart with a damp Bez kullanın. Sert kimyasallar veya aşındırıcı temizleyiciler kullanmaktan kaçının. Elektrikli parçalara doğrudan su püskürtmeyin.
• Depolamak: Go-kartı kuru, serin ve doğrudan güneş ışığından ve nemden uzak bir yerde saklayın.
• Lastik Muayenesi: Regularly check the tires for wear and tear.

8. Sorun Giderme

• Go-kart çalışmıyor: Check battery connection and ensure the battery is charged. Verify the power switch is in the ON position.
• Reduced speed or short runtime: The battery may need charging, or its capacity might be reduced due to age or improper charging habits. Ensure the go-kart is not overloaded.
• Unresponsive controls: Check all cable connections. If issues persist, contact customer support.

9. Özellikler

Image: A comparison chart detailing specifications for 24V and 36V Go-Karts.

10. Garanti ve Destek

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official wanan website. Herhangi bir garanti talebi için satın alma belgeniz olarak satın alma makbuzunuzu saklayın.
