LiitoKala 12V/12.8V 60Ah Lithium Iron Phosphate Battery User Manual

giriiş

This manual provides essential instructions for the safe and efficient use of your LiitoKala 12V/12.8V 60Ah Lithium Iron Phosphate (LiFePO4) battery. Please read this manual thoroughly before installation, operation, or maintenance to ensure optimal performance and longevity of your battery.

Ürün Bittiview

The LiitoKala 12V/12.8V 60Ah LiFePO4 battery is designed for various applications including camping, golf carts, off-road vehicles, off-grid solar systems, marine use, and emergency power storage. It offers high capacity, long cycle life, and robust performance.

Şekil 1: Ön view of the LiitoKala 12V 60Ah LiFePO4 battery, showing the product label with specifications and safety warnings.

Temel Özellikler:

• 12.8V Nominal Voltage
• 60Ah Kapasite
• Lithium Iron Phosphate (LiFePO4) Chemistry
• Integrated Battery Management System (BMS) for protection
• Long cycle life (4000 cycles or more)
• Geniş çalışma sıcaklığı aralığı
• Kompakt ve hafif tasarım
• Su geçirmez yapı

Paket İçeriği:

• 1 x LiitoKala 12V/12.8V 60Ah LiFePO4 Battery
• 1 x Compatible Charger (as indicated by product images)
• 1 x Kullanım Kılavuzu (bu belge)

Figure 2: The LiitoKala 12V 60Ah LiFePO4 battery shown with its accompanying charger.

Güvenlik Bilgileri

Failure to follow these safety instructions can result in fire, electric shock, injury, or damage to the battery and other property.

• Sökmeyin the battery pack. Disassembly can lead to internal damage, short circuits, and potential hazards.
• Do not open, crush, or heat the battery above 70°C (158°F). High temperatures can cause internal pressure buildup and lead to fire or explosion.
• Kısa devre yapmayın the positive (+) and negative (-) terminals with metal objects. This can cause severe sparks, heat, and damage to the battery.
• Do not charge the battery if abnormal conditions are detected, such as swelling, leakage, or unusual heat. Immediately disconnect the battery if any abnormalities are observed.
• Use only the specified special charger provided with the battery or a charger explicitly approved for LiFePO4 batteries with the correct voltage ve mevcut derecelendirmeler.
• Pili sudan, ateşten ve aşındırıcı maddelerden uzak tutun.
• Pil şarj edilirken veya boşaltılırken yeterli havalandırma sağlandığından emin olun.
• Pili serin, kuru ve doğrudan güneş ışığından uzak bir yerde saklayın.
• Çocukların erişemeyeceği yerde saklayınız.
• Refer to local regulations for proper disposal of lithium batteries.

Şekil 3: Ayrıntılı view of the safety and specification label on the battery, emphasizing critical warnings.

Kurmak

Ambalajın Açılması ve Muayene:

Upon receiving your battery, carefully unpack it and inspect for any visible damage. If any damage is found, contact your supplier immediately.

Başlangıç ​​ücreti:

It is recommended to fully charge the battery before its first use. Connect the provided charger to a suitable power outlet and then connect the charger's output to the battery terminals. Ensure correct polarity (+ to + and - to -). The charging process will be indicated by the charger's status light or the battery's display.

Montaj ve Bağlantı:

Mount the battery in a secure, well-ventilated location. Ensure that the battery is protected from physical damage and extreme temperatures. Connect the battery to your system (e.g., camping car, golf cart, solar inverter) using appropriate gauge cables and connectors. Always ensure correct polarity. It is recommended to install an appropriate fuse or circuit breaker in the positive line close to the battery.

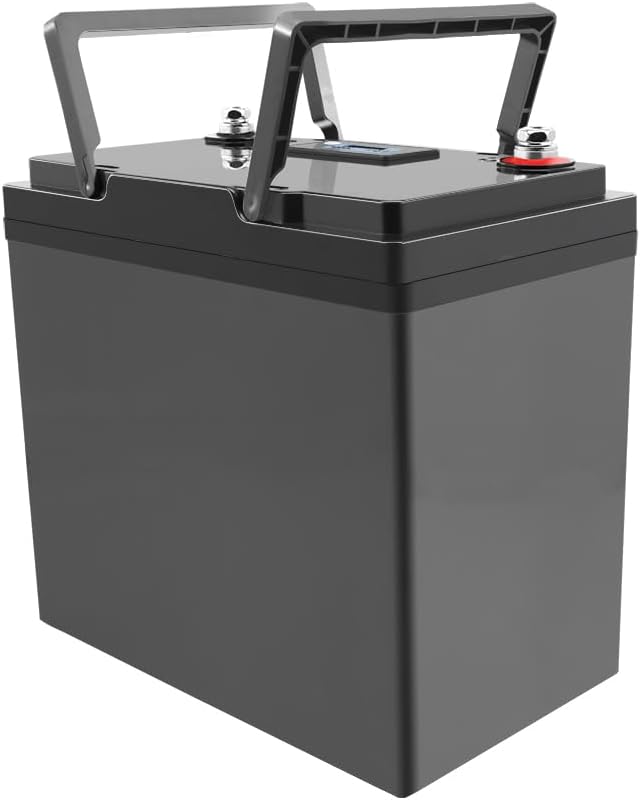

Şekil 4: Yan view of the battery, highlighting the positive and negative terminals for connection.

Kullanım Talimatları

Pil Durumunun İzlenmesi:

The LiitoKala 12V/12.8V 60Ah battery features an integrated display that shows the current voltage and state of charge (%). This allows for easy monitoring of the battery's performance.

Figure 5: The battery's digital display indicating voltage ve ücret yüzdesitage.

Şarj:

Connect the charger to the battery terminals, ensuring correct polarity. The battery's internal Battery Management System (BMS) will manage the charging process, protecting against overcharge. Disconnect the charger once the battery is fully charged or if the display indicates 100%.

Boşaltma:

Connect your load to the battery terminals, observing correct polarity. The BMS will protect the battery from over-discharge. It is recommended to avoid consistently discharging the battery to its absolute minimum voltage to maximize cycle life.

Bakım

Düzenli Muayene:

Periodically inspect the battery terminals for corrosion or loose connections. Ensure the battery casing is clean and free from damage. Clean terminals with a wire brush if necessary and ensure connections are tight.

Depolamak:

If storing the battery for an extended period, ensure it is charged to approximately 50-70% of its capacity. Store in a cool, dry place between -20°C and 45°C. Avoid storing in direct sunlight or extreme temperatures. Recharge the battery every 3-6 months during long-term storage to prevent deep discharge.

Temizlik:

Aküyü temizleyin.asinyumuşak bir g ile, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no moisture enters the terminals or display area.

Sorun giderme

• Pil şarj olmuyor:
  • Check charger connection and power supply.
  • Verify charger is compatible and functioning correctly.
  • Akü terminallerinin temiz ve bağlantıların sağlam olduğundan emin olun.
  • If the battery is deeply discharged, it might require a specific recovery charge from a compatible charger.
• Battery not providing power:
  • Check connections to the load.
  • Verify the load is within the battery's continuous discharge current limit (50A).
  • Check the battery's state of charge on the display. If low, recharge the battery.
  • The internal BMS may have activated protection (e.g., over-discharge, over-current, over-temperature). Disconnect the load, allow the battery to rest, and then attempt to reconnect.
• Unusual heat or smell:
  • Immediately disconnect the battery from all loads and chargers.
  • Move the battery to a safe, non-flammable area.
  • Müşteri desteğiyle iletişime geçin.

Özellikler

Figure 6: Dimensional drawing of the battery.

Garanti ve Destek

Specific warranty information for this product is not provided in the available data. Please refer to your purchase documentation or contact the seller (YIZHIHUA1) directly for details regarding warranty coverage and support.

For technical assistance or inquiries, please contact the manufacturer or your point of purchase.
