giriiş
This manual provides instructions for the installation, operation, and maintenance of the Lynxcel Gigabit Ethernet Media Converter. This device facilitates the conversion of electrical Ethernet signals to optical fiber signals, extending network reach and providing immunity to electromagnetic interference. It is designed for reliable performance in various network environments.
Paket İçeriği
- 1 x Gigabit Media Converter
- 1 x 1000Base-SX SFP Transceiver
- 1 x 5V 1A Power Supply (100V-240V)
- 1 x Kullanım Kılavuzu
This image shows the complete package contents: the Lynxcel Gigabit Ethernet Media Converter unit, a 1000Base-SX SFP module, and the 5V 1A power supply adapter.
Ürün Özellikleri
- Fiber Optical Port: Features a 1.25Gbps SFP port, including one Multi-mode 1000Base-SX 1.25G LC SFP module. Supports Multimode Fiber (MMF) 850nm, extending connections up to 550 meters. The flexible open SFP slot allows for various SFP module configurations to meet different network requirements.
- RJ45 Bağlantı Noktası: Equipped with a 10/100/1000Mbps Ethernet port that supports auto-negotiation for half-duplex and full-duplex transfer modes. Compatible with Cat5/5e and Cat6 cables for distances up to 100 meters. Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards.
- Dayanıklı Tasarım: Constructed with a high-quality metal shell and main chip, ensuring low power consumption, minimal delay, and a long service life. Both sides are designed with vents for efficient heat dissipation, guaranteeing normal operation in diverse indoor and outdoor environments.
- Tak ve Çalıştır: Requires no complex configuration. Simply insert the optical fiber and RJ45 cables, connect the power supply, and the device will begin operation immediately. LED status lights provide easy monitoring of network status and data transmission to ensure uninterrupted connectivity.
Kurulum Kılavuzu
1. Bileşen Tanımlaması

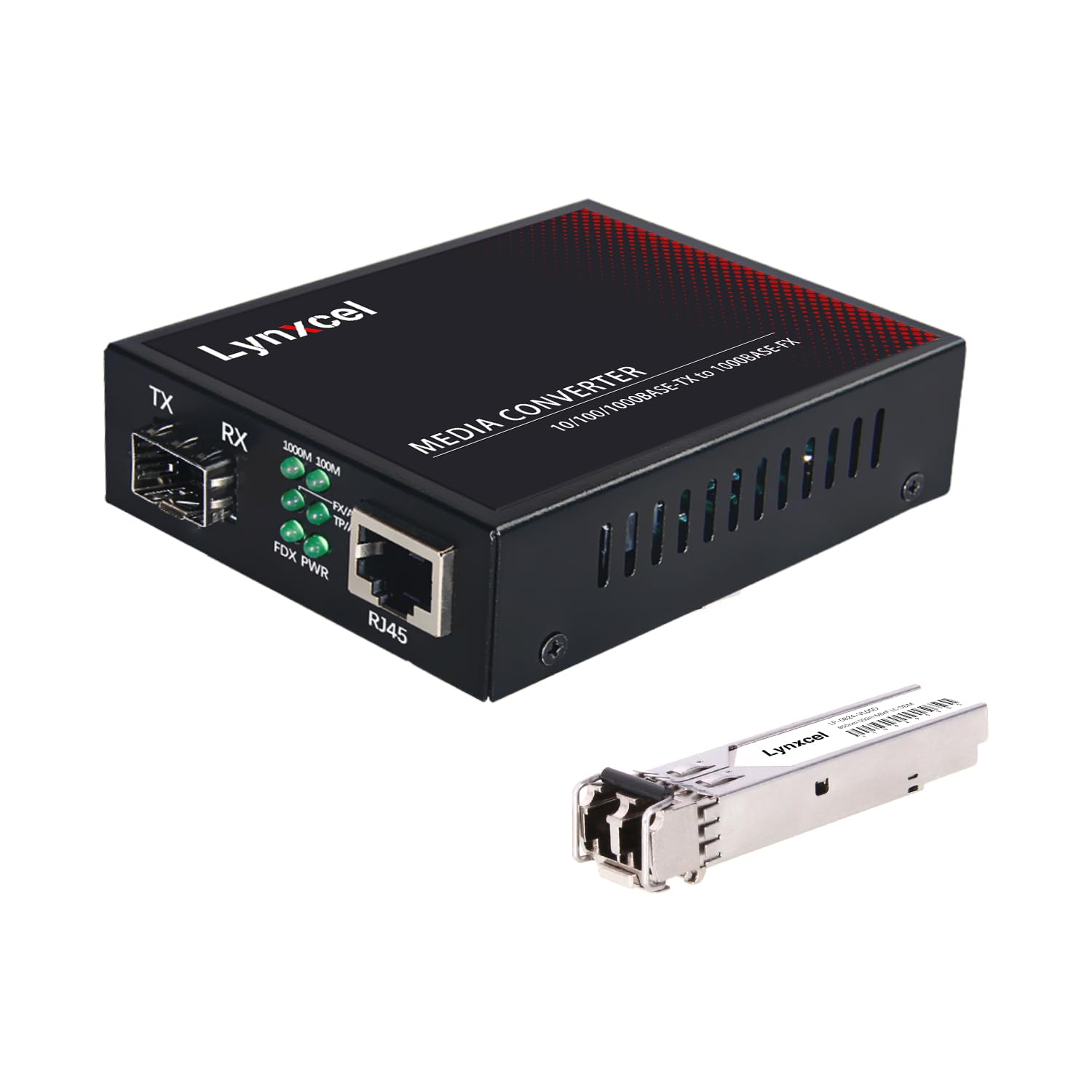

This image displays the front panel of the Lynxcel Gigabit Ethernet Media Converter, highlighting the RJ45 Ethernet port, the SFP module slot, and the various LED indicators for power, link status, and data activity.
2. Bağlantı Şeması
This diagram illustrates how the Gigabit Ethernet Media Converter can be used in various network setups, such as connecting an Ethernet switch, router, IP camera, server, or PC over a multimode fiber optic link.
3. Kurulum Adımları
- SFP Modülünü Takın: Gently insert the provided 1000Base-SX SFP module into the SFP slot of the media converter until it clicks into place.
- Fiber Kabloyu Bağlayın: Connect a multimode LC fiber optic cable to the SFP module's LC ports (TX and RX). Ensure the fiber cable is securely connected.
- Ethernet Kablosunu Bağlayın: Connect a standard Ethernet cable (Cat5/5e or Cat6) from your network device (e.g., switch, router, computer) to the RJ45 port of the media converter.
- Gücü bağlayın: Plug the 5V 1A power adapter into the DC 5V power input port on the media converter, then plug the adapter into a power outlet.
- Bağlantıları Doğrulayın: Check the LED indicators on the media converter to ensure proper link and activity.
Kullanım Talimatları
LED Gösterge Durumu
This image provides a detailed explanation of the LED indicators on the media converter, including 1000M, 100M, Link, ACT, FDX, and PWR, and their respective statuses for network speed, connection, activity, duplex mode, and power.
The device is designed for plug-and-play operation, requiring no software configuration. Once all cables and power are connected, the converter will automatically establish a link based on the connected devices and fiber type.
- 1000M: ON = Ethernet 1000Mbps, OFF = Ethernet 100Mbps.
- 100M: ON = Ethernet 100Mbps, OFF = Ethernet 1000Mbps.
- Bağlantı: ON = Fiber Connected, FLASH = Fiber Data Flow, OFF = Fiber Not Connected.
- DAVRANMAK: ON = Ethernet Connected, FLASH = Ethernet Data Flow, OFF = Ethernet Not Connected.
- FDX'in özellikleri: ON = Ethernet Full Duplex, OFF = Ethernet Half Duplex.
- güç: ON = Power On, OFF = Power Off.
Bakım
- Keep the device in a clean, dry environment, away from direct sunlight and heat sources.
- Cihazınızı aşırı sıcaklıklara veya neme maruz bırakmaktan kaçının.
- Ensure proper ventilation around the device to prevent overheating. The built-in vents are crucial for heat dissipation.
- Clean fiber optic connectors regularly with appropriate cleaning tools to maintain optimal signal quality and performance.
- Do not attempt to open or repair the device yourself. Refer to qualified service personnel for any repairs or internal maintenance.
Sorun giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Güç Yok (GÜÇ LED'i Kapalı) | Güç adaptörü bağlı değil veya arızalı; elektrik prizi çalışmıyor. | Ensure power adapter is securely connected to the device and a working power outlet. Test with another adapter if available. |
| No Fiber Link (Link LED Off) | Fiber cable disconnected, damaged, or incorrect type; SFP module not properly seated or faulty. | Check fiber cable connections at both ends. Ensure the fiber type (multimode) matches the SFP module. Re-seat or replace the SFP module. Clean fiber connectors. |
| No Ethernet Link (ACT LED Off) | Ethernet kablosu bağlantısı kesilmiş, hasar görmüş veya yanlış tipte; bağlı cihaz kapalı veya arızalı. | Verify Ethernet cable connections. Ensure the connected network device is powered on and functioning. Use a Cat5e/Cat6 cable. |
| Yavaş Ağ Hızı | Duplex mismatch; faulty cable; network congestion. | Check FDX LED for full duplex operation. Ensure all cables are in good condition. Verify network device settings for auto-negotiation. |
Özellikler
| Özellik | Detay |
|---|---|
| Ürün Adı | Gigabit Fiber Ethernet Media Converter |
| Port Sayısı | 1 x 10/100/1000Mbps Ethernet Port, 1 x 1000Mbps SFP Port |
| Desteklenen SFP Modülleri | Single-Mode, Multimode, BIDI |
| Çalışma Dalga Boyu | 850nm MMF (for included SFP) |
| İletim Mesafesi | Up to 550m (with included SFP) |
| Çalışma Sıcaklığı | 0°C ila 60°C |
| güç Özellikleri | Input: 100-240V, 50/60 Hz; Output: DC 5V 1A |
| Güç Tüketimi | <3W |
| Ürün Boyutu | 3.70 x 2.76 x 1.02 inç |
| Donanım Arayüzü | Ethernet |
| Veri Bağlantı Protokolü | Ethernet |
| Veri Aktarım Hızı | Saniyede 1250 Megabit |
Garanti ve Destek
This Lynxcel Gigabit Ethernet Media Converter comes with a 1 Yıl Üretici Garantisi Ürün özelliklerine göre.
For technical support, troubleshooting assistance, or warranty claims, please contact Lynxcel customer service through their official channels or the retailer where the product was purchased. Please refer to the contact information provided in the product packaging or on the official Lynxcel webEn güncel destek detayları için siteyi ziyaret edin.
