Generic Model 3751 Manual Nail Gun User Manual

1. Giriş

This manual provides detailed instructions for the safe and effective use of the Generic Model 3751 Manual Nail Gun. This versatile fastening tool is designed for various applications across different materials, offering a reliable solution for your projects. Please read this manual thoroughly before operating the tool to ensure proper function, safety, and longevity of the product.

2. Güvenlik Bilgileri

Always prioritize safety when operating any power tool. Failure to follow these safety guidelines may result in injury or damage to the tool.

Genel Güvenlik Kuralları:

• Kişisel Koruyucu Ekipman (KKD) giyin: Always wear the provided safety glasses, ear defenders, and gloves during operation. Additional PPE, such as a hard hat, may be required depending on the work environment.
• Aracı inceleyin: Before each use, inspect the nail gun for any signs of damage, loose parts, or obstructions. Do not use a damaged tool.
• Çalışma Alanı: Keep your work area clean, well-lit, and free from clutter. Ensure no bystanders are in the immediate vicinity.
• İş Parçasını Güvenli Hale Getirin: Always ensure the material you are fastening is stable and securely held.
• Doğru Tutuş: Maintain a firm grip on the tool at all times.
• Kazara Boşaltmayı Önleyin: The tool is designed not to fire without adequate pressure applied to the workpiece. However, always handle it with care and keep your fingers away from the firing mechanism when not in use.
• Recoil Management: This tool is designed to minimize recoil. Be prepared for a slight recoil after each shot.
• Depolamak: Aleti ve aksesuarlarını kuru, güvenli ve çocukların erişemeyeceği bir yerde saklayın.
• Bakım: Perform regular maintenance as described in this manual to keep the tool in optimal condition.

Note: The product includes safety glasses, ear defenders, and gloves. Always use them.

3. Ürün Bittiview ve Bileşenler

The Generic Model 3751 Manual Nail Gun is a robust tool constructed from metal and plastic, designed for durability and ease of use. It features a design that minimizes recoil and reduces noise during operation.

Dahil Bileşenler:

• 1x Manual Nail Gun
• 1x Taşıma Çantası
• 1x Pair of Gloves
• 1x Acrylic Safety Glasses
• 1x Ear Defenders
• 20x Rivets (Nails)
• 1x Spring (Spare part)
• 1x Locking Pin (Spare part)
• 1x Yağlama Yağı

Figure 3.1: Complete kit contents of the Manual Nail Gun.

Tool Parts Diagram:

Şekil 3.2: Üzeriview of the Manual Nail Gun and its key features.

4. Kurulum

Before using the nail gun, ensure you have all necessary components and have read the safety information.

Loading Rivets (Nails):

1. Ensure the tool is disengaged and pointed away from yourself and others.
2. Locate the loading mechanism at the front of the tool.
3. Insert a rivet (nail) into the barrel. The tool accepts pins with or without protrusions on the head.
4. Ensure the rivet is seated correctly and securely within the barrel.

Figure 4.1: Loading a rivet into the nail gun.

5. Kullanım Talimatları

Follow these steps for safe and effective operation of your manual nail gun.

1. Hazırlamak: Ensure you are wearing all required PPE (safety glasses, ear defenders, gloves). Prepare your workpiece and ensure it is stable.
2. Yük: Load a rivet into the tool as described in the "Setup" section.
3. Konum: Place the muzzle of the nail gun firmly against the surface where you intend to fasten the rivet. Ensure the tool is perpendicular to the surface for a straight drive.
4. Basınç Uygula: Apply firm, consistent pressure to the back of the tool. The tool is designed not to fire unless sufficient pressure is applied to the workpiece, enhancing safety.
5. Ateş: Once sufficient pressure is applied, the internal mechanism will engage, driving the rivet into the material. You will hear a distinct sound and feel a slight recoil.
6. İncelemek: After firing, inspect the fastening to ensure it is secure. If necessary, repeat the process for additional fastenings.
7. Boşalt: When finished, ensure no rivets remain in the tool. Store the tool safely.

Uygulamalar:

This manual nail gun is suitable for various fastening tasks, including but not limited to:

• Fixing materials to concrete, brick, or metal surfaces.
• Light construction and DIY projects.
• Securing electrical conduits or cables.

Şekil 5.1: Ör.amples of the nail gun in various fastening applications.

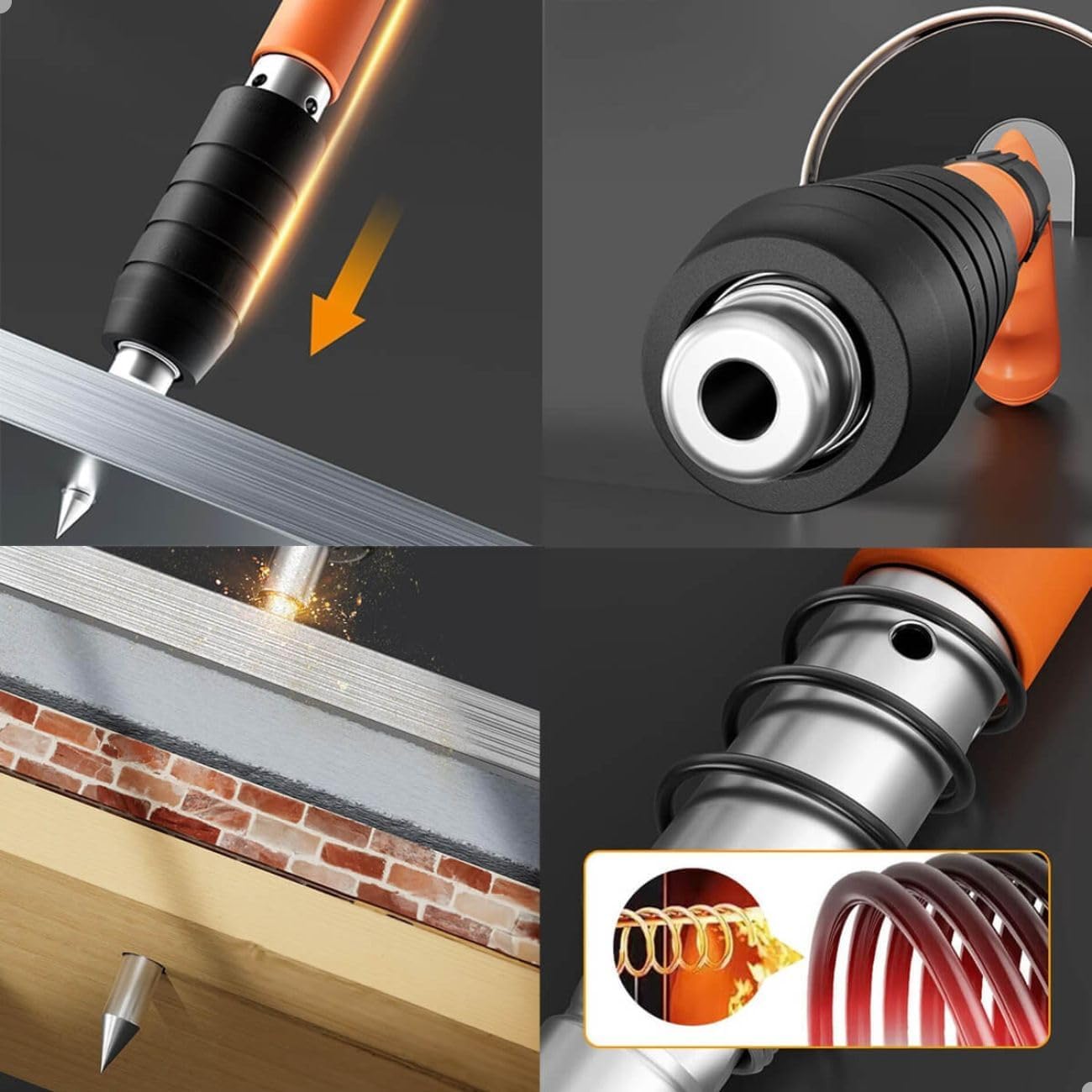

Şekil 5.2: Ayrıntılı views of the nail gun's operation and internal components.

6. Bakım

Regular maintenance ensures the longevity and reliable performance of your manual nail gun.

• Temizlik: After each use, wipe down the tool with a clean, dry cloth to remove dust and debris. Ensure the barrel and firing mechanism are free from obstructions.
• Yağlama: Apply a small amount of the provided lubricating oil to moving parts, especially the firing pin and spring mechanism, periodically or as needed. This helps prevent rust and ensures smooth operation.
• Denetleme: Regularly check for any signs of wear, damage, or loose components. Replace worn parts immediately. The kit includes a spare spring and locking pin.
• Depolamak: Store the tool in its carrying case in a dry, cool place, away from direct sunlight and moisture.

7. Sorun Giderme

This section addresses common issues you might encounter with your manual nail gun.

8. Özellikler

Key technical specifications for the Generic Model 3751 Manual Nail Gun.

9. Garanti ve Destek

For information regarding warranty coverage or technical support, please refer to the retailer or point of purchase. As this is a generic product, specific warranty details may vary. Keep your purchase receipt as proof of purchase.
