Tineco Floor ONE S7 Buharlı ve A30S Akülü Elektrikli Süpürge Kullanım Kılavuzu

giriiş

This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your Tineco Floor ONE S7 Steam Cordless Wet Dry Vacuum and Tineco A30S Cordless Stick Vacuum Cleaner. Please read this manual thoroughly before first use and keep it for future reference.

Önemli Güvenlik Talimatları

To reduce the risk of fire, electric shock, or injury, always follow basic precautions when using an electrical appliance. This includes:

• Cihazı kullanmadan önce tüm talimatları okuyun.
• Sadece bu kılavuzda açıklandığı şekilde kullanın. Sadece üreticinin önerdiği aparatları kullanın.
• Cihazı suya veya başka sıvılara daldırmayın.
• Do not use on wet surfaces or for picking up liquids, except as specifically designed for wet cleaning.
• Saçınızı, bol giysilerinizi, parmaklarınızı ve vücudunuzun tüm kısımlarını açıklıklardan ve hareketli parçalardan uzak tutun.
• Sigara, kibrit, sıcak kül gibi yanan veya dumanı tüten hiçbir şeyi toplamayın.
• Merdivenleri temizlerken özellikle dikkatli olun.
• Filtreler takılı olmadan kullanmayınız.
• Kullanmadığınız zamanlarda ve bakım yapmadan önce fişini prizden çekin.

Ürün Bileşenleri

Your Tineco cleaning system includes two primary units: the Floor ONE S7 Steam Wet Dry Vacuum and the A30S Cordless Stick Vacuum. Each unit comes with specific components designed for optimal performance.

Tineco Floor ONE S7 Steam

• Kulplu Ana Gövde
• Temiz Su Tankı
• Kirli Su Tankı
• Fırça Rulosu
• Şarj Üssü

Tineco A30S Cordless Stick Vacuum

• Ana Motor Gövdesi
• Uzatma Çubuğu
• Çok amaçlı elektrikli fırça
• Çöp kovası
• Pil Paketi
• 2'si 1 arada Dar Alan Fırçası

Kurulum ve Montaj

Tineco Floor ONE S7 Steam Assembly

1. Sapı ana gövdeye, yerine oturana kadar yerleştirin.
2. Ensure the clean water tank and dirty water tank are securely installed.
3. Place the unit on its charging base to fully charge before first use.

Tineco A30S Cordless Stick Vacuum Assembly

1. Attach the extension wand to the main motor body.
2. Connect the multi-tasker power brush to the end of the extension wand.
3. Ensure the dustbin is properly attached to the main motor body.
4. Install the battery pack into the designated slot on the main motor body.

Kullanım Talimatları

Using the Tineco Floor ONE S7 Steam

Before operation, fill the clean water tank with clean water. For optimal steam performance, use distilled or demineralized water. The device features two steam modes for different cleaning needs.

• Güç Açma/Kapatma: Cihazı açmak veya kapatmak için tutamaç üzerindeki güç düğmesine basın.
• Steam Modu: For general cleaning and large-scale dirt, select the standard steam mode.
• Boost Steam Mode: For localized and stubborn stains, activate the boost steam mode. The 284°F (140°C) HyperSteam technology helps melt away grease and tough stains.

Using the Tineco A30S Cordless Stick Vacuum

The A30S provides powerful suction for both carpets and hard floors, offering up to 60 minutes of runtime on a single charge.

• Şarj: Connect the charger to the battery pack or the charging dock. Ensure the battery is fully charged before each use for maximum runtime.
• Güç Açma/Kapatma: Press the trigger or power button to start or stop the vacuum.
• Eklenti Kullanımı: Use the multi-tasker power brush for general floor cleaning. The 2-in-1 crevice brush is ideal for tight spaces and upholstery.

Bakım ve Temizlik

Tineco Floor ONE S7 Steam Maintenance

• Kirli Su Tankının Boşaltılması: After each use, empty the dirty water tank and rinse it thoroughly to prevent odors and buildup.

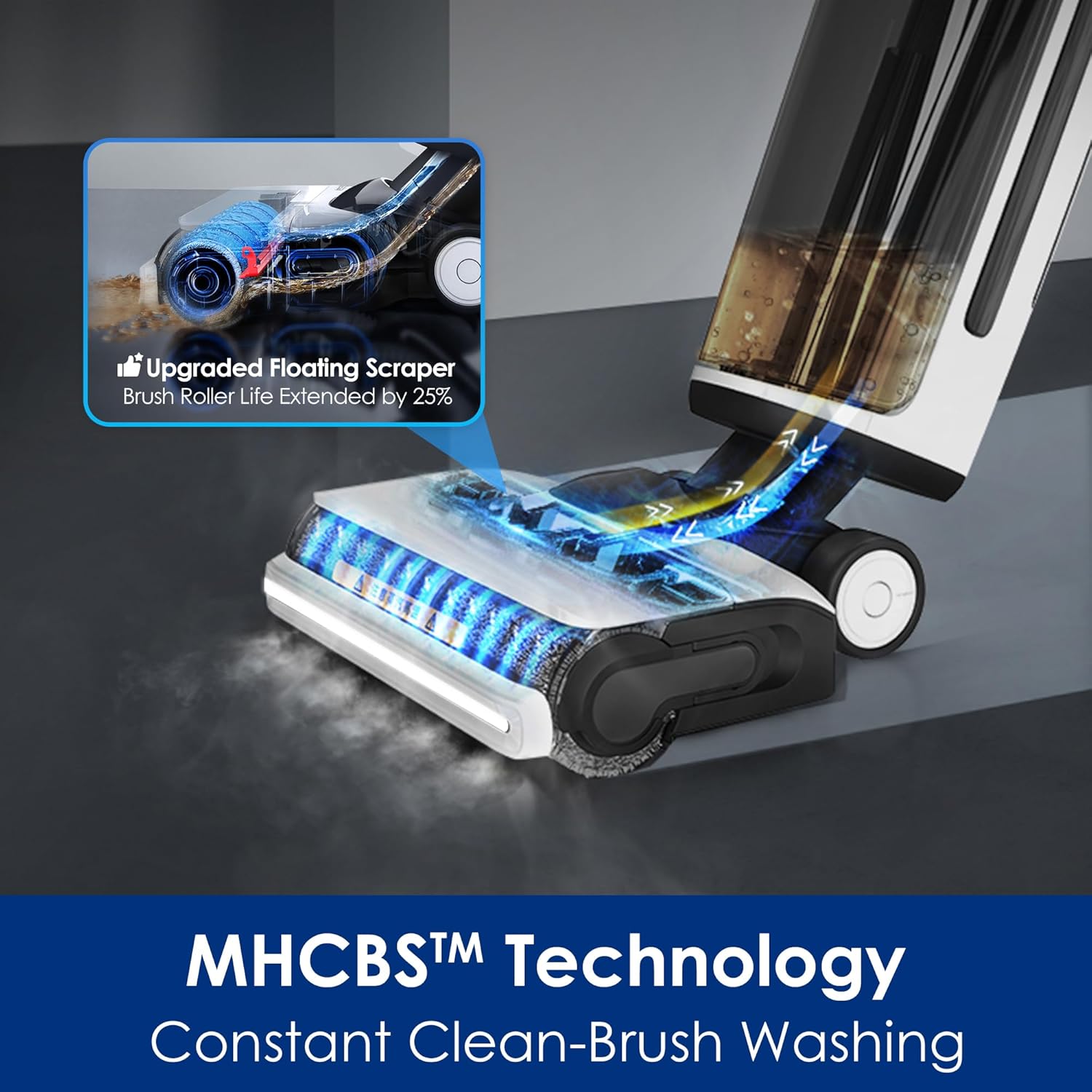

• Cleaning Brush Roller: The MHCBS (Multi-stage High-speed Continuous Brush Washing System) technology ensures the brush roller is continuously cleaned. Periodically remove the brush roller for manual cleaning and inspection.

Tineco A30S Cordless Stick Vacuum Maintenance

• Çöp Kutusunu Boşaltma: The 1L capacity dustbin should be emptied regularly, especially when full, to maintain optimal suction performance.
• Filtrelerin Temizlenmesi: The HEPA filter and other internal filters should be cleaned periodically according to the instructions in the full manual to ensure efficient air filtration and prevent clogging.

Sorun giderme

Refer to the table below for common issues and their solutions. If the problem persists, please contact Tineco customer support.

Teknik Özellikler

Garanti ve Destek

Tineco products are manufactured to the highest quality standards. For information regarding warranty coverage, product registration, or technical support, please refer to the warranty card included with your product or visit the official Tineco website. You may also contact Tineco customer service directly for assistance with any issues or questions.

Tineco Customer Service: Please refer to your product packaging or the official Tineco webEn güncel iletişim bilgileri için sitemizi ziyaret edin.
