Generic 1500 Watt Steam Cleaner Kit (Model 70065-G) Instruction Manual

1. Giriş

This manual provides essential instructions for the safe and effective use of your Generic 1500 Watt Steam Cleaner Kit, Model 70065-G. This powerful steam cleaner is designed for chemical-free deep cleaning, utilizing high-temperature steam to remove dirt, grease, and grime from various surfaces without harsh chemicals, fumes, or residue. Please read this manual thoroughly before first use and retain it for future reference.

2. Önemli Güvenlik Bilgileri

WARNING: Steam is extremely hot and can cause severe burns. Always exercise caution when operating the steam cleaner.

• Always use distilled water only to prevent mineral buildup and ensure optimal performance.
• Su tankını aşırı doldurmayın.
• Ensure the unit is unplugged before filling or emptying the water tank, or changing accessories.
• Keep hands, face, and body away from the steam nozzle during operation.
• Buharı insanlara, evcil hayvanlara veya elektrikli cihazlara doğrultmayın.
• Do not leave the steam cleaner unattended while it is powered on or producing steam.
• Saklamadan önce ünitenin tamamen soğumasını bekleyin.
• Bu cihaz, fiziksel, duyusal veya zihinsel yetenekleri kısıtlı olan veya deneyim ve bilgi eksikliği bulunan kişiler (çocuklar dahil) tarafından, güvenliklerinden sorumlu bir kişi tarafından cihazın kullanımıyla ilgili olarak gözetim veya talimat sağlanmadığı sürece kullanılmak üzere tasarlanmamıştır.

3. Ürün Bileşenleri ve Aksesuarları

Your 1500 Watt Steam Cleaner Kit comes with a variety of accessories to tackle different cleaning tasks. Familiarize yourself with each component before use.

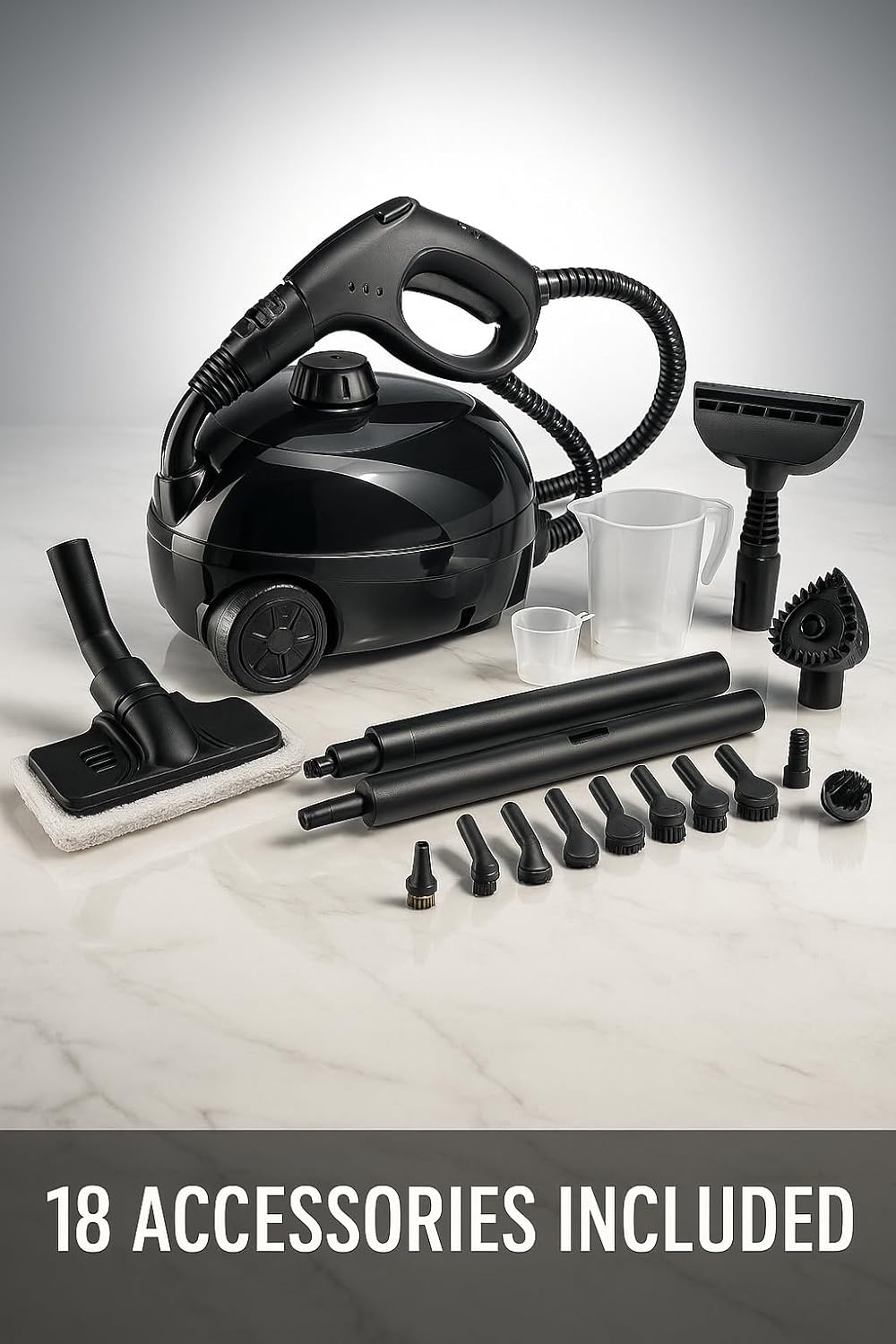

Şekil 1: The Generic 1500 Watt Steam Cleaner unit shown with all 18 included accessories, including various brushes, nozzles, extension wands, and cloths.

Dahil Aksesuarlar:

• (1) Püskürtme memesi
• (1) Nozzle and brush adapter
• (5) Assorted nylon utility brushes
• (1) Brass brush
• (1) Scrub pad
• (1) Triangle brush
• (1) Flat surface head squeegee
• (1) Mop head
• (2) 19 in. extension wands
• (1) Huni
• (1) Ölçüm kabı
• (1) Small cloth towel
• (1) Large cloth towel

4. Kurulum Talimatları

1. Üniteyi Paketinden Çıkarın: Tüm bileşenleri dikkatlice ambalajından çıkarın.
2. Su Tankını Doldurun:
   • Ensure the steam cleaner is unplugged.
   • Locate the water reservoir cap, typically at the back or top of the main unit.
   • Kapağı sökün.
   • Using the provided measuring cup and funnel, fill the water tank with up to 41 fluid ounces (approximately 1.2 liters) of sadece damıtılmış su. Do not use tap water, as mineral deposits can damage the unit.
   • Securely replace the water reservoir cap.
3. İstenilen aksesuarı takın:
   • Select the appropriate cleaning attachment for your task (e.g., jet nozzle, brush, mop head).
   • Connect the attachment to the steam gun or extension wand as needed. Ensure it clicks securely into place.
4. Güç Açık:
   • Güç kablosunu standart bir 120V AC elektrik prizine takın.
   • Locate the power switch (often at the back of the unit) and turn it to the "ON" position.
   • The unit will begin to heat up. This process typically takes 8 to 10 minutes.
   • A green indicator light on the unit will illuminate when the steam cleaner has reached its operating temperature and is ready to produce steam.

5. Kullanım Talimatları

Once the green indicator light is on, your steam cleaner is ready for use. Always test on an inconspicuous area first to ensure compatibility with the surface.

1. Initiate Steam: Press and hold the trigger on the steam gun to release steam. Release the trigger to stop the steam flow.
2. Temizleme Yüzeyleri:
   • Hold the nozzle or attachment close to the surface you wish to clean.
   • Move the attachment slowly and steadily over the area. For stubborn dirt, allow the steam to penetrate for a few seconds before wiping.
   • Use the appropriate accessory for the task:
     • Jet Nozulu: For concentrated steam on small areas, grout, or crevices.
     • Utility Brushes (Nylon/Brass): For scrubbing tough grime on various surfaces like ovens, grills, or bathroom tiles. Use brass brushes on very durable, non-scratchable surfaces only.
     • Triangle Brush/Mop Head with Cloth: For larger flat surfaces like floors, countertops, or walls.
     • Flat Surface Head Squeegee: Ideal for windows, mirrors, and other smooth surfaces.
     • Uzatma Çubukları: Use with floor attachments or for reaching high areas.
3. Çok Yönlü Uygulamalar:













4. Kullanım Sırasında Yeniden Doldurma: If the water tank runs dry during operation, turn off the unit, unplug it, and allow it to cool for a few minutes before carefully refilling with distilled water.

6. Bakım

Düzenli bakım, buharlı temizleyicinizin uzun ömürlü olmasını ve optimum performans göstermesini sağlar.

• Her Kullanımdan Sonra:
  • Cihazınızı kapatın ve fişini çekin.
  • Ünitenin tamamen soğumasını bekleyin.
  • Carefully empty any remaining water from the tank.
  • Wipe down the exterior of the unit and accessories with a damp Kumaş.
  • Clean any used brushes or cloths.
• Kireç Çözme (Aylık veya gerektiğinde):

  Even with distilled water, minor mineral buildup can occur over time. If you notice reduced steam output, descaling may be necessary.

  • Ensure the unit is cool and empty.
  • Eşit miktarda beyaz sirke ve damıtılmış suyu karıştırarak bir karışım hazırlayın.
  • Pour the solution into the water tank (do not fill completely).
  • Allow it to sit for 30 minutes to an hour.
  • Empty the solution and rinse the tank thoroughly with distilled water several times.
  • Run a tank of plain distilled water through the unit to flush out any residual vinegar.
• Depolamak: Buharlı temizleyiciyi ve aksesuarlarını serin, kuru bir yerde, doğrudan güneş ışığından ve aşırı sıcaklıklardan uzakta saklayın.

7. Sorun Giderme

8. Ürün Özellikleri

9. Garanti ve Destek

For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the manufacturer's official webSite. Satın alma belgeniz olarak satın alma fişinizi saklayın.
