User Manual: XINLANTECH 3.7V 5200mAh Rechargeable Li-ion Battery Pack

1. Giriş

1.1 Ürün Üzeriview

The XINLANTECH XL-18650-1S2P is a high-quality 3.7V 5200mAh rechargeable Li-ion battery pack designed to provide reliable power for compatible devices. It consists of two balanced 2600mAh cells connected in parallel, integrated with a protection circuit for enhanced safety and performance.

1.2 Amaçlanan Kullanım

This battery pack is specifically designed as a replacement battery for various AOSU camera models. It is compatible with:

• AOSU C9E2CA11
• AOSU D1 SE
• AOSU DC8L
• AOSU C8L P1 Lite
• AOSU C9L SolarCam D1 Lite/D1 Classic
• AOSU C6L WirelessCam Lite

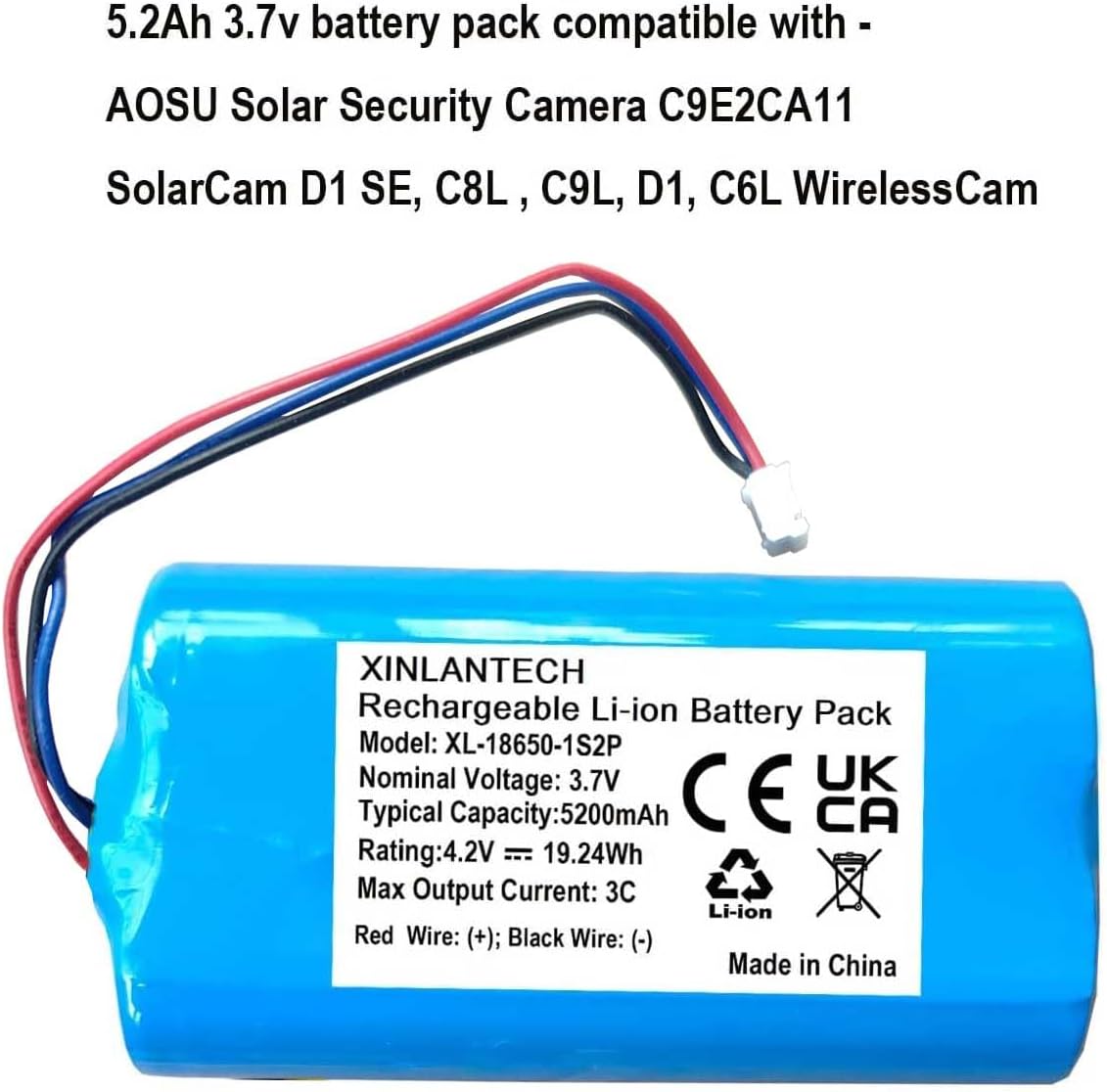

Image 1.1: XINLANTECH battery pack showing compatible AOSU camera models.

2. Güvenlik Bilgileri

Bu ürünü kullanmadan önce lütfen tüm güvenlik talimatlarını okuyun ve anlayın. Bu talimatlara uyulmaması yangına, elektrik çarpmasına veya diğer yaralanmalara neden olabilir.

• Pil takımını sökmeyin, açmayın veya parçalamayın.
• Pili ısıya veya ateşe maruz bırakmayın. Doğrudan güneş ışığında saklamaktan kaçının.
• Do not short-circuit the battery. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
• Aküyü mekanik darbeye maruz bırakmayın.
• Pil sızıntısı durumunda, sıvının cildinize veya gözünüze temas etmesine izin vermeyin. Temas halinde, etkilenen bölgeyi bol su ile yıkayın ve tıbbi yardım alın.
• Ekipmanla birlikte kullanılmak üzere özel olarak sağlanan şarj cihazı dışında herhangi bir şarj cihazı kullanmayın.
• Aküyü temiz ve kuru tutun.
• Kullanılmadığı zaman pili uzun süre şarjda bırakmayın.
• Dispose of properly according to local regulations. Do not dispose of with household waste.
• This battery features built-in protection against overcharge, overheating, and short circuits.

3. Paket İçeriği

Paket şunları içerir:

• 1 x XINLANTECH 3.7V 5200mAh Rechargeable Li-ion Battery Pack (Model: XL-18650-1S2P)

4. Kurulum

4.1 Pil Kurulumu

Before replacing your old battery, carefully compare it with the new XINLANTECH battery pack. Pay close attention to the wiring and connector type. This battery pack features a 3-pin JST connector.

Important Polarity Check: The red wire connector is positive ('+'), and the black wire connector is negative ('-'). It is crucial to ensure the correct polarity when connecting the battery to your device. If the wire positions are reversed compared to your device's original battery or connection port, you may need to adjust the wire positions on the connector to match.

Image 4.1: Battery pack showing the JST connector and wire colors (red for positive, black for negative).

Carefully insert the battery into the designated compartment of your compatible AOSU camera, ensuring the connector is securely plugged in and the battery fits without force.

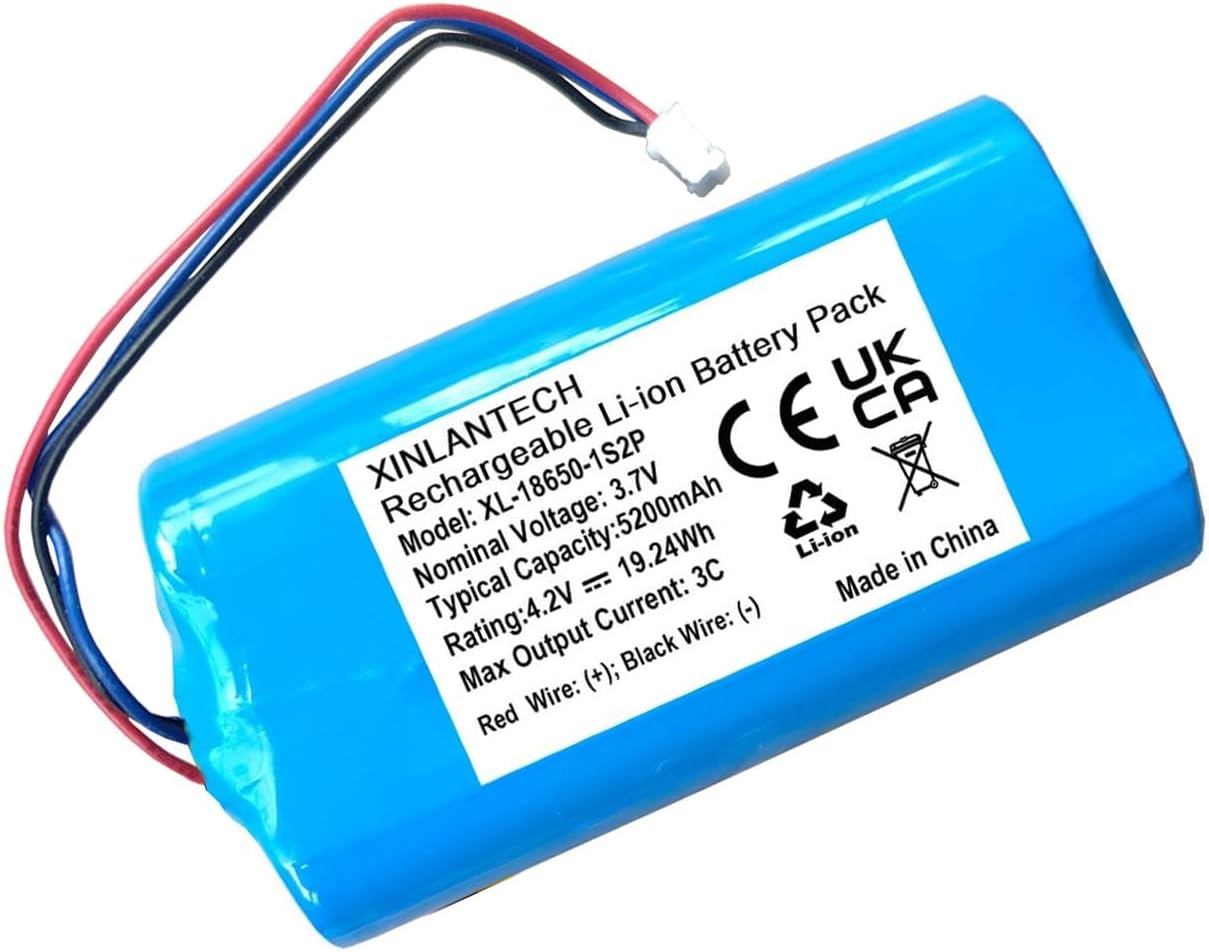

Resim 4.2: Genel view of the XINLANTECH battery pack.

5. Kullanım Talimatları

5.1 Şarj Etme

Use only the charger provided with your AOSU camera or a compatible charger designed for 3.7V Li-ion batteries with a maximum charge voltage of 4.2V. Connect the battery to the device, and then connect the device to its power adapter. The maximum charge current is 1C.

5.2 Boşaltma

The battery will discharge as it powers your device. The cut-off discharge voltage is 2.85V. The maximum discharge current is 15A. Avoid fully draining the battery to 0% frequently, as this can reduce its lifespan.

6. Bakım

• Pili doğrudan güneş ışığından ve aşırı sıcaklıklardan uzakta, serin ve kuru bir yerde saklayın.
• Uzun süreli depolama için pilin yaklaşık %50 şarj seviyesinde saklanması önerilir.
• Avoid exposing the battery to moisture or corrosive substances.
• Clean the battery contacts periodically with a dry, clean cloth to ensure good connection.

7. Sorun Giderme

• Pil şarj olmuyor: Ensure the charger is properly connected and functioning. Check the battery contacts for dirt or corrosion. Verify the battery is correctly installed with the correct polarity.
• Cihaz açılmıyor: Check if the battery is fully charged. Ensure the battery is securely connected to the device. Verify the battery polarity is correct. If the issue persists, the battery or device may require professional inspection.
• Pil ömrünün kısalması: This can be due to frequent full discharges, exposure to extreme temperatures, or the natural aging of the battery. Ensure proper charging and storage practices are followed.

8. Özellikler

Image 8.1: Product packaging displaying model number and barcode (X0022WJTBX).

9. Garanti ve Destek

This product is manufactured by XINLANTECH. For any warranty claims or technical support, please refer to the contact information provided on the product packaging or reach out to your point of purchase.

Image 9.1: Product packaging with manufacturer and EU representative details.
