Yaheetech 5-Tier Adjustable Standing Shelf Units Instruction Manual

1. Ürün Bittiview

The Yaheetech 5-Tier Adjustable Standing Shelf Units are designed for versatile storage in various environments such as garages, home offices, kitchens, and living rooms. These heavy-duty industrial shelving units feature a robust metal frame and five adjustable MDF board tiers, providing ample storage space for a wide range of items.

Each shelf is capable of supporting a significant load, making these units suitable for organizing tools, books, pantry items, and more. The boltless construction allows for easy assembly and customization of shelf height to meet specific storage needs.

Image: Two Yaheetech 5-Tier Standing Shelf Units, showcasintasarımları ve kapasiteleri açısından.

2. Güvenlik Bilgileri

To ensure safe and stable use of your Yaheetech Standing Shelf Units, please adhere to the following safety guidelines:

• Duvara Sabitleyin: Always secure the shelf to the wall using the provided anti-tipping unit. This is crucial to prevent accidental tipping, especially in households with children or pets.
• Uygun Montaj: Assemble the shelf strictly according to the instructions. Incorrect assembly can compromise the unit's stability and load-bearing capacity.
• Aşırı Yüklemeyin: Do not exceed the maximum weight capacity of 386 pounds per shelf. Distribute weight evenly across the shelves.
• Hasarı Önleyin: Avoid placing heavy or sharp objects that could damage the shelf boards or frame.
• Kararlı Yüzey: Place the shelving unit on a flat, stable, and level surface to prevent wobbling.
• Eldiven Giyin: It is recommended to wear the provided gloves during assembly to protect your hands from sharp edges.

Image: Illustration of the anti-tipping unit and the importance of securing the shelf for safety.

3. Paket İçeriği

Before beginning assembly, please verify that all components are present and undamaged. The package for each 5-tier standing shelf unit should contain the following:

• Metal Frame Components (Uprights, Beams, Crossbars)
• 5 x MDF Shelf Boards
• 16 x Rubber Foot Covers (4 per upright, plus spares)
• 1 x Pair of Assembly Gloves
• 1 x Set of Fasteners (for securing shelves when used separately)
• Anti-tipping Hardware (Wall anchors and screws)

If any parts are missing or damaged, please contact Yaheetech customer support for assistance.

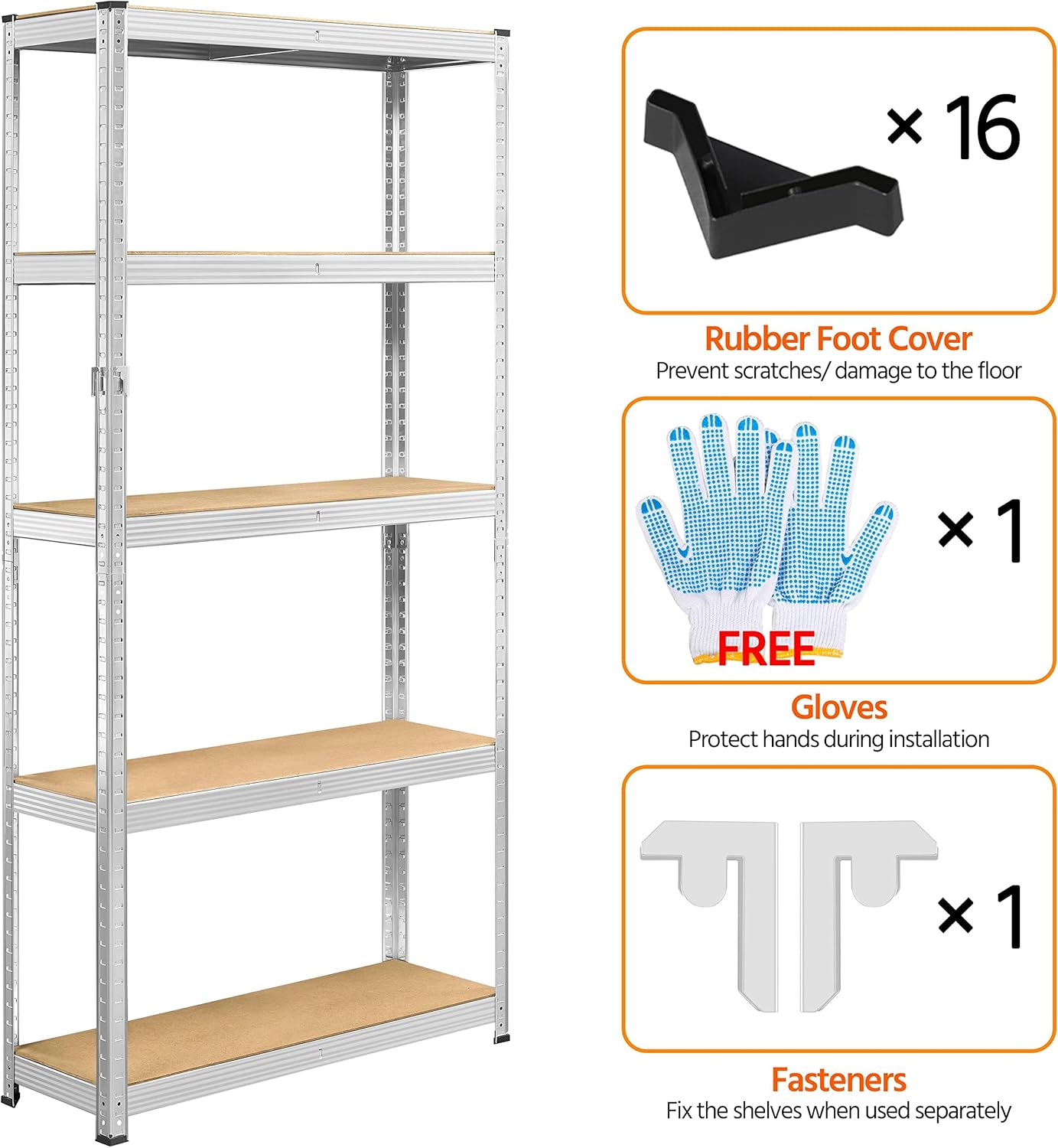

Image: Visual representation of the included rubber foot covers, assembly gloves, and fasteners.

4. Montaj Talimatları (Kurulum)

The Yaheetech shelving unit features a boltless design for straightforward assembly. It is recommended to assemble the unit with at least two people for ease and safety. Please wear the provided gloves during assembly to protect your hands.

1. Alanı Hazırlayın: Clear a spacious, flat area for assembly. Lay out all components and identify them according to the parts list.
2. Ayak Kılıflarını Takın: Place the rubber foot covers onto the bottom ends of the upright posts.
3. Taban Çerçevesini Birleştirin: Connect the bottom horizontal beams to the upright posts. The boltless design uses interlocking tabs and slots. Ensure the tabs are fully inserted and locked into the slots. A rubber mallet (not included) may be helpful to gently tap components into place.
4. Install Lower Shelves: Insert the MDF shelf boards onto the assembled frame. Ensure they sit securely within the metal supports.
5. Yukarı Doğru İnşa Etmek: Continue adding upright extensions and horizontal beams for the next tiers, working your way up. Pay close attention to aligning the tabs and slots correctly for a secure connection.
6. Raf Yüksekliğini Ayarlayın: The height of each shelf is adjustable. Before fully securing the beams for a tier, you can select the desired height by choosing the appropriate slots on the uprights.
7. Üst Çerçeveyi Takın: Complete the top section of the frame, ensuring all connections are firm.
8. Insert Remaining Shelf Boards: Place the remaining MDF shelf boards onto their respective tiers.
9. Duvara Sabitleyin: Once fully assembled and in its final position, use the provided anti-tipping hardware to secure the unit to a wall. This step is critical for stability and safety.

Resim: Yakın çekim view illustrating the boltless construction, embedded connections, reinforced support, and high-quality MDF boards.

5. Kullanım ve Çalıştırma

Your Yaheetech 5-Tier Standing Shelf Unit is designed for versatile storage. Here are guidelines for optimal use:

• Yük Kapasitesi: Each individual shelf is designed to hold a maximum weight of 386 pounds (175 kg). Distribute items evenly across the shelf surface to prevent stress points.
• Ayarlanabilir Raflar: The five tiers are fully adjustable. You can customize the height of each shelf to accommodate items of various sizes, from small boxes to taller equipment.
• Çok Yönlü Yerleştirme: These units are suitable for a wide range of indoor environments, including garages, workshops, home offices, kitchens, living rooms, and storage areas.
• Yapılandırma Seçenekleri: The units can be used as a single tall shelving unit or, with the included fasteners, can be separated into two smaller, shorter units for different storage needs.

Image: Diagram showing the overall dimensions of the shelf unit (71" H x 35.5" W x 12" D) and highlighting the maximum load capacity of 386 pounds per shelf.

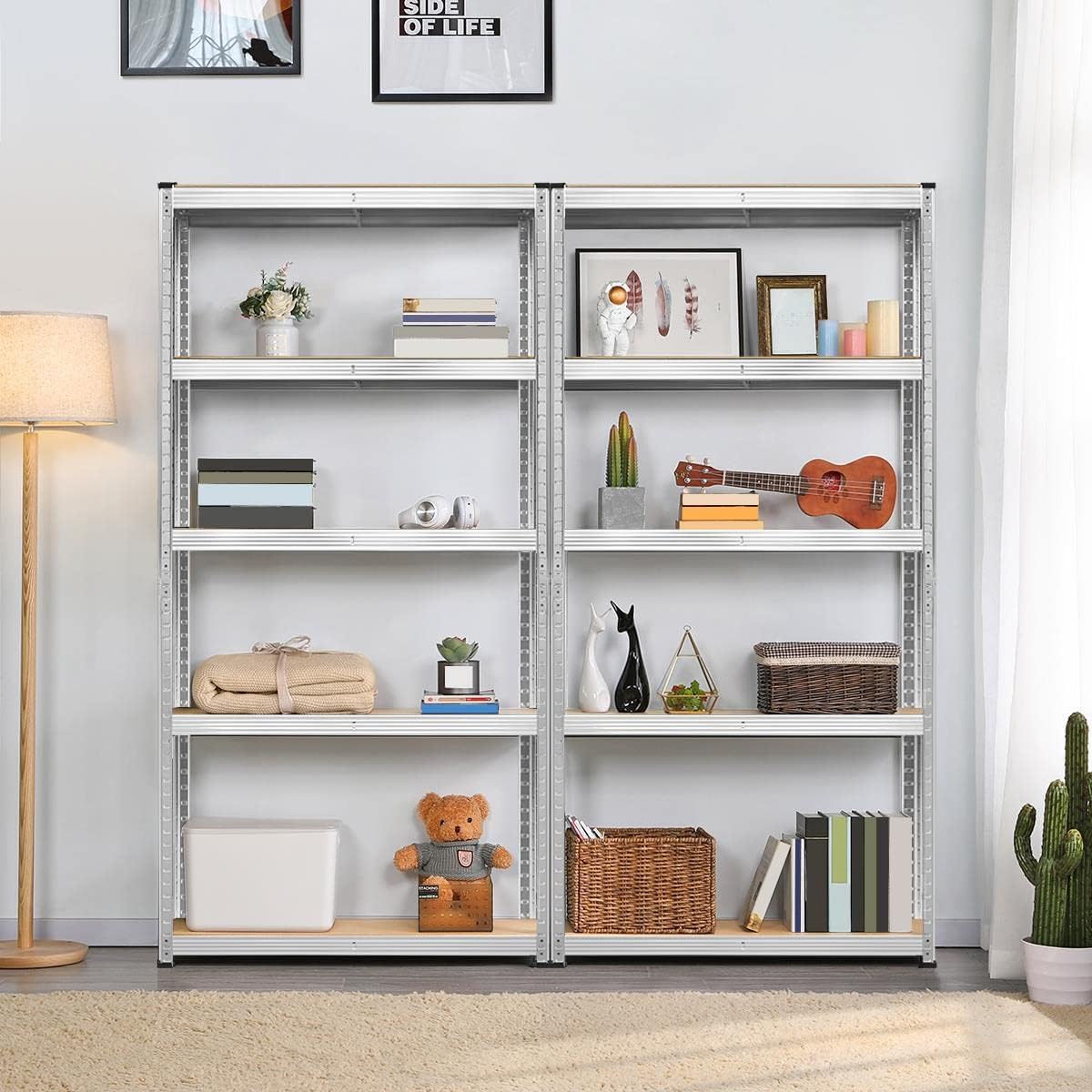

Image: Two Yaheetech shelving units arranged side-by-side in a living space, demonstrating their use for organizing various household items.

6. Bakım

Proper maintenance will extend the lifespan of your shelving unit:

• Temizlik: Wipe the metal frame and MDF boards with a dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
• Nem Koruması: The MDF boards are not waterproof. Avoid exposing them to excessive moisture or spills. If spills occur, wipe them immediately to prevent warping or damage.
• Düzenli Muayene: Periodically check all connections to ensure they remain secure. Re-tighten any loose fasteners if applicable, or ensure boltless connections are fully engaged.
• Stabilite Kontrolü: Regularly verify the overall stability of the unit, especially if it is frequently moved or reconfigured. Ensure the anti-tipping unit remains securely fastened to the wall.

7. Sorun Giderme

Raf ünitenizle ilgili sorunlarla karşılaşırsanız, aşağıdaki yaygın çözümleri göz önünde bulundurun:

If these solutions do not resolve the issue, please contact Yaheetech customer support.

8. Özellikler

Image: A visual summary of the product specifications, including dimensions, weight capacity, and materials.

9. Müşteri Desteği

For any questions, concerns, or assistance with your Yaheetech 5-Tier Adjustable Standing Shelf Units, please contact Yaheetech customer support. While specific warranty details are not provided here, Yaheetech is committed to customer satisfaction.

You can typically find contact information on the Yaheetech official website veya ürünün satın alındığı perakendeci aracılığıyla.
