Yaheetech Standing Shelf Units Instruction Manual

giriiş

Thank you for choosing the Yaheetech 5-Tier Standing Shelf Unit. This heavy-duty shelving system is designed to provide robust and versatile storage solutions for various environments, including garages, offices, kitchens, pantries, closets, sheds, warehouses, and basements. Its adjustable design and durable construction ensure long-lasting performance and adaptability to your storage needs.

Image: The Yaheetech 5-Tier Standing Shelf Unit, showcasing its black metal frame and five light-colored MDF shelves.

Temel Özellikler

• Solid Storage Rack: Constructed from heavy-duty steel and durable CARB P2-compliant MDF boards, ensuring stability and longevity.
• Yüksek Yük Kapasitesi: Each tier is capable of bearing 386 lb, with a total capacity of 1925 lb for the entire unit.
• Anti-skid Rubber Pads: Features rubber foot pads for enhanced stability and to prevent scratches on floors during movement.
• Ayarlanabilir Raflar: The five shelves can be adjusted to accommodate items of various sizes, maximizing storage flexibility.
• Changeable Design: Can be assembled vertically as a single tall unit or reconfigured into two shorter, side-by-side units to suit different space requirements.
• AmpDosya Depolama: Provides significant storage area without occupying excessive floor space, suitable for diverse applications.
• Boltless Assembly: Designed for quick and easy assembly without the need for bolts, requiring minimal technical skill.

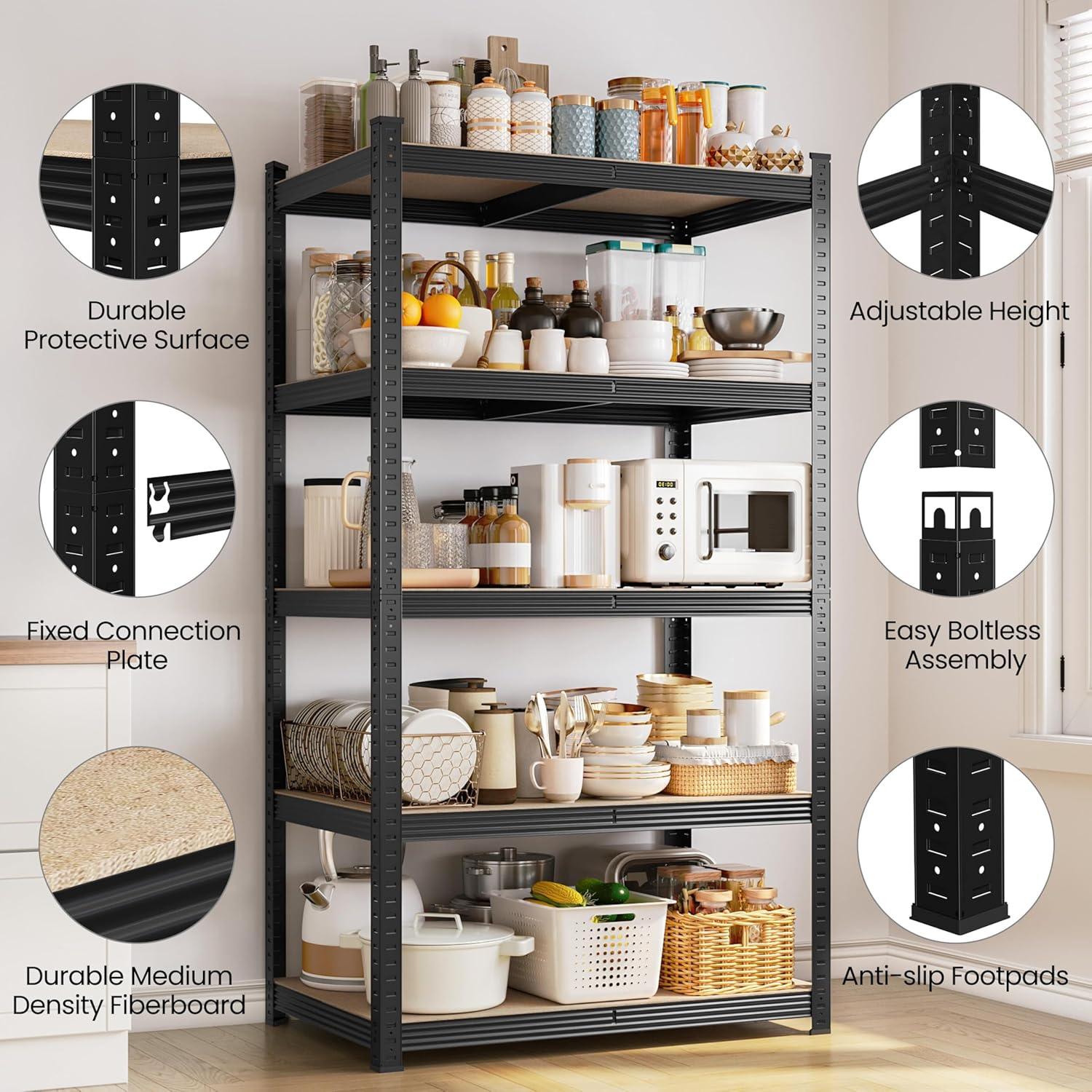

Image: Visual breakdown of key features including durable protective surface, adjustable height, fixed connection plate, easy boltless assembly, durable medium density fiberboard, and anti-slip footpads.

Güvenlik Bilgileri

• Do not overload the shelf beyond its stated capacity of 386 lb per shelf or 1925 lb total.
• Always follow the assembly instructions carefully to ensure proper and stable construction.
• Keep the shelf unit away from heat sources and open flames.
• Use the product only as intended for storage.
• It is recommended that 2 people work together for assembly to ensure safety and ease.
• A rubber mallet (not included) will be very helpful during assembly to secure components without damage.

Kurulum ve Montaj

Başlamadan Önce

Ensure you have all components listed in the packaging. A rubber mallet is highly recommended for easier assembly.

Assembly Steps (Boltless Design)

1. Connect the Beam: Align the tabs on the beams with the slots on the vertical posts. Gently tap with a rubber mallet to secure the connection.
2. Snap the Crossbar: Insert the crossbars into the designated slots on the beams. Ensure they snap firmly into place.
3. Place the Wooden Board: Lay the MDF wooden boards onto the assembled frame, ensuring they sit flush within the beams.
4. Attach Non-Slip Foot Pads: Secure the non-slip foot pads to the bottom of the vertical posts for added stability and floor protection.

The shelves are adjustable. You can customize the height of each shelf by re-positioning the beams in different slots along the vertical posts.

This unit offers flexible configuration. It can be assembled as one tall 5-tier unit or as two separate shorter units (e.g., a 3-tier and a 2-tier unit) to best fit your space and storage needs.

Image: Step-by-step visual guide for quick and easy boltless assembly, showing how to connect beams, snap crossbars, place boards, and attach foot pads.

Image: Demonstrates the flexible configuration options, showing the unit assembled as a single tall shelf and as two shorter, side-by-side units.

Kullanım Talimatları

• Loading the Shelf: Distribute weight evenly across each shelf. Avoid concentrating heavy items in one small area.
• Ağırlık Kapasitesi: Each individual shelf can hold up to 386 pounds. The total maximum weight capacity for the entire unit is 1925 pounds. Do not exceed these limits.
• Raf Yüksekliğinin Ayarlanması: To adjust a shelf, carefully remove all items from it. Disconnect the beams from the vertical posts, reposition them to the desired height, and re-secure them by tapping with a rubber mallet. Then, replace the MDF board.

Image: The 5-tier heavy-duty shelf unit shown holding multiple tires, illustrating its high weight capacity of 1930 lbs (note: product specs state 1925 lbs).

Bakım

To maintain the appearance and longevity of your Yaheetech Standing Shelf Unit, simply wipe it with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the painted finish or the MDF boards. Regularly check all connections to ensure they remain secure, especially after moving the unit or reconfiguring shelves.

Sorun giderme

• Unit Wobbles After Assembly:
  • Ensure all beams and crossbars are fully seated and secured into their respective slots. Use a rubber mallet to tap them firmly into place.
  • Verify that the unit is placed on a flat, level surface. Adjust the position if necessary.
  • Ensure weight is distributed evenly across the shelves. Uneven loading can affect stability.
• Parçaların Montajında ​​Zorluk:
  • Ensure you are using a rubber mallet to gently tap components into place. Forceful hammering with a metal hammer can bend the frame.
  • Double-check that components are oriented correctly according to the instructions.
  • If a connection is too tight, try wiggling the component slightly while applying pressure.
• Shelf Boards Sagging:
  • Check if the weight on the shelf exceeds the 386 lb per-shelf limit. Redistribute or remove items if necessary.
  • Ensure the MDF boards are properly seated within the supporting beams.

Özellikler

Garanti ve Destek

Specific warranty details and direct customer support contact information are not provided in this manual. For warranty claims, technical support, or further inquiries, please refer to the product packaging or contact Yaheetech customer service through their official webÜrünün satın alındığı site veya perakendeci.
