BASETBL ErgoGame Max Ergonomic Office Chair User Manual

1. Giriş

Thank you for choosing the BASETBL ErgoGame Max Ergonomic Office Chair. This manual provides detailed instructions for the assembly, operation, and maintenance of your new chair. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

1.1 Güvenlik Uyarıları

• Do not use the chair if your weight exceeds 200 kg (440 lbs) to prevent damage or accidents.
• Kullanmadan önce tüm vidaların ve cıvataların iyice sıkıldığından emin olun. Periyodik olarak kontrol edin ve gerekirse tekrar sıkın.
• Keep children and pets away during assembly. Small parts may pose a choking hazard.
• Sandalyeyi yalnızca ofis sandalyesi olarak kullanım amacına uygun olarak kullanın.
• Sandalyenin üzerine çıkmaktan veya onu basamak olarak kullanmaktan kaçının.

1.2 Ürün Üzeriview

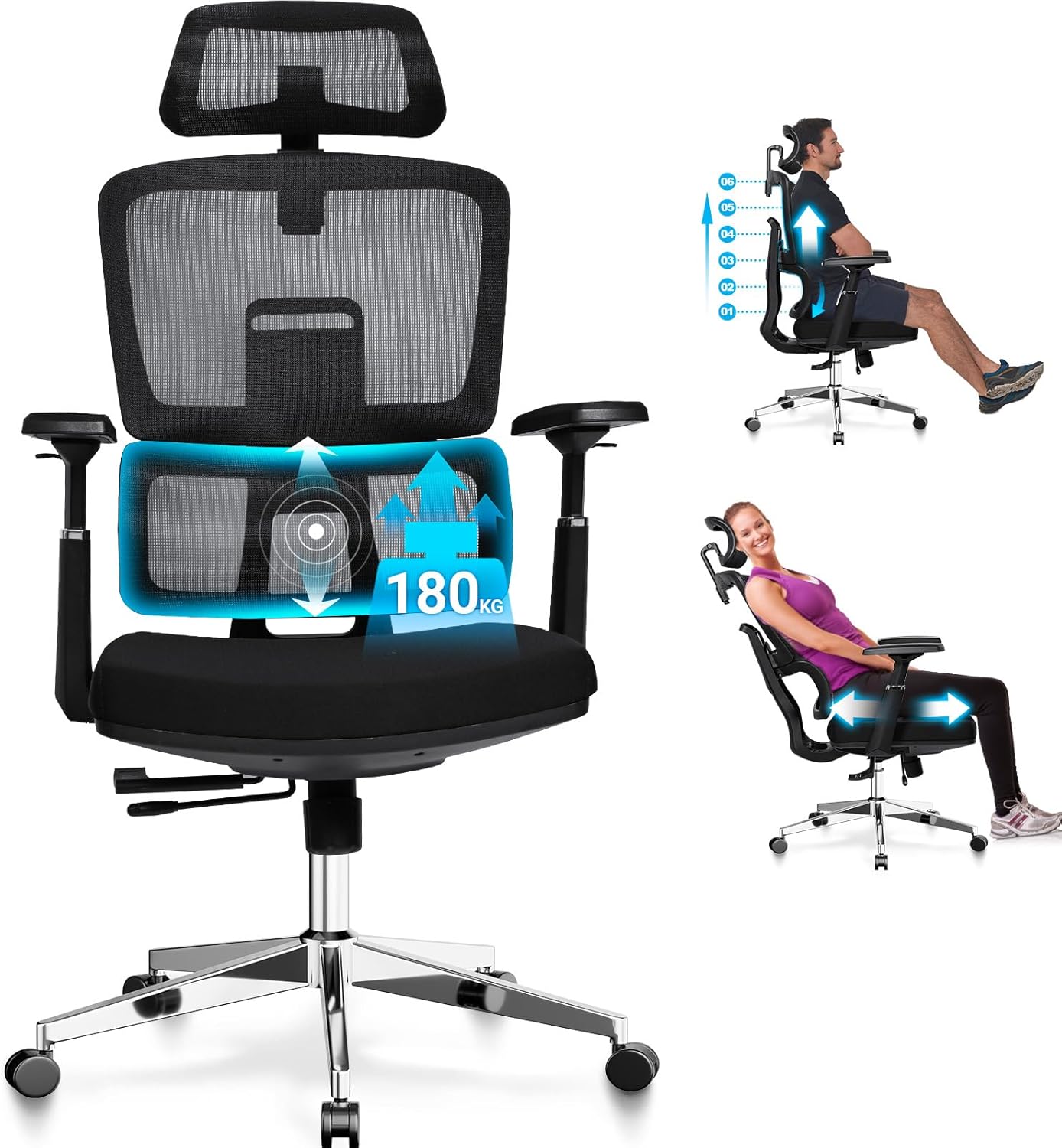

The BASETBL ErgoGame Max is an ergonomic office chair designed for comfort and support during long periods of sitting. It features dynamic lumbar support, adjustable seat depth, backrest height, headrest, and 3D armrests, along with a multi-level recline lock. The chair is built with a robust SGS-certified gas lift and silent PU casters, supporting users up to 200 kg.

2. Montaj Talimatları

Please follow these steps carefully to assemble your BASETBL ErgoGame Max office chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.

2.1 Paket İçeriği

Başlamadan önce, tüm bileşenlerin mevcut olduğundan emin olun:

• arkalık
• Koltuk Minderi
• Kolçaklar (Sol ve Sağ)
• Baş dayanağı
• Mekanizma (Kontrol Ünitesi)
• Gaz Kaldırma Silindiri
• Beş Yıldızlı Üs
• Tekerlekler (5 adet)
• Donanım Seti (vidalar, rondelalar, Allen anahtarı)

2.2 Adım Adım Montaj

1. Tekerlekleri Tabana Takın: Beş adet tekerleği, beş yıldızlı tabanın her ayağının ucundaki deliklere yerleştirin. Yerlerine oturana kadar sıkıca bastırın.
2. Gazlı Asansörü Takın: Gaz kaldırma silindirini beş yıldızlı tabanın orta deliğine yerleştirin. Sağlam bir şekilde oturduğundan emin olun.
3. Mekanizmayı koltuğa takın: Align the mechanism (control unit) with the pre-drilled holes on the underside of the seat cushion. Secure it with the provided screws, ensuring the front of the mechanism faces the front of the seat.
4. Kolçakları Koltuğa Takın: Secure the armrests to the sides of the seat cushion using the designated screws. Pay attention to the 'L' (left) and 'R' (right) markings if present.
5. Sırtlığı Koltuğa Takın: Connect the backrest to the seat cushion assembly. This typically involves aligning brackets and securing with screws.
6. Baş Desteğini Takın: Slide the headrest into the designated slots at the top of the backrest.
7. Koltuk Tertibatını Gazlı Asansöre Bağlayın: Birleştirilmiş koltuğu ve sırtlığı dikkatlice gazlı kaldırma silindirinin üzerine yerleştirin ve mekanizmanın orta deliğinin gazlı kaldırma silindirinin üst kısmıyla hizalandığından emin olun. Sıkıca bastırarak sabitleyin.
8. Son Kontrol: Verify that all screws are tightened and the chair is stable before use.

3. Kullanım Talimatları

Your BASETBL ErgoGame Max chair offers multiple adjustment options to customize your seating experience for optimal comfort and ergonomic support.

3.1 Koltuk Yükseklik Ayarı

To adjust the seat height (range: 49-60 cm), locate the lever on the right side, beneath the seat. Pull the lever upwards while:

• Koltuğu yükseltmek için: Lift your weight off the seat.
• Koltuğu indirmek için: Remain seated and apply pressure.

3.2 Koltuk Derinliği Ayarı

The seat depth can be adjusted by up to 4 cm. This feature helps prevent discomfort and supports proper posture. Locate the lever or button, typically on the left side beneath the seat. Activate the control and slide the seat forward or backward to achieve a comfortable distance from the backrest, ensuring about two to three fingers' width between the edge of the seat and the back of your knees. Release the control to lock the position.

3.3 Backrest Height Adjustment

The backrest height can be adjusted by 6 cm to align the dynamic lumbar support with the natural curve of your spine. To adjust, lift the backrest upwards. It will click into different height positions. To reset to the lowest position, lift the backrest to its highest point, and it will automatically drop to the lowest setting.

3.4 Recline and Lock Function

The chair features a 4-level recline lock, allowing you to fix the backrest at angles of 95°, 110°, 120°, or 130°. To recline, pull out the recline lever (usually on the left side). Lean back to your desired angle and push the lever in to lock the position. To return to an upright position, pull the lever out, lean forward slightly, and then release the lever.

3.5 Kafalık Ayarı

The 2D headrest offers 8 cm of height adjustment and 90° of rotation. Adjust the headrest vertically by sliding it up or down. Rotate the headrest pad to find the most comfortable angle for neck support.

3.6 Kolçak Ayarı

The 3D polyurethane (PU) armrests provide versatile adjustment options:

• Yükseklik Ayarı: Press the button on the side of each armrest and slide it up or down (8 cm range).
• Depth/Width Adjustment: Slide the armrest pad forward or backward, or inward/outward (5 cm range).
• Rotasyon: Rotate the armrest pad up to 45° to support your forearms in various working postures.

4. Bakım ve Onarım

Proper care and maintenance will extend the life and appearance of your BASETBL office chair.

4.1 Temizlik

• Genel Temizlik: Wipe the chair surfaces (nylon, metal, PU) with a soft, damp cloth. For stubborn stains, use a mild soap solution and then wipe with a clean, damp Kumaş.
• Sert Kimyasallardan Kaçının: Do not use abrasive cleaners, strong detergents, or solvents, as these can damage the materials.
• Mesh Backrest: Gently vacuum the mesh backrest to remove dust and debris. For spills, dab with a damp bez ve yumuşak sabun.

4.2 Genel Bakım

• Düzenli Muayene: Tüm vida ve cıvataların sıkılığını düzenli olarak kontrol edin. Gerekirse tekrar sıkın.
• Tekerlek Bakımı: Keep the casters clean from hair and debris to ensure smooth movement.
• Ağırlık sınırı: Adhere strictly to the 200 kg weight limit to prevent structural damage.

5. Sorun Giderme

If you encounter any issues with your BASETBL ErgoGame Max chair, refer to the following common troubleshooting tips:

• Sandalye Gıcırdıyor: Check all bolted connections and tighten them. A small amount of silicone lubricant can be applied to moving parts if the squeaking persists, avoiding contact with fabric or mesh.
• Gazlı amortisör ayarlanmıyor: Ensure the height adjustment lever is fully engaged or disengaged. If the gas lift still doesn't function, it may require replacement.
• Sandalye Dengesiz Hissediyor: Verify that all components are correctly assembled and all screws are securely tightened. Ensure the casters are fully inserted into the base.
• Tekerlekler Düzgün Dönmüyor: Remove any hair, dust, or debris that may be caught in the caster wheels. Clean the wheels thoroughly.
• Backrest Not Locking: Check the recline lock lever to ensure it is fully engaged at one of the four specified angles.

6. Ürün Özellikleri

7. Garanti ve Müşteri Desteği

BASETBL is committed to providing high-quality ergonomic office chairs and excellent customer service.

7.1 Garanti Bilgileri

Your BASETBL ErgoGame Max office chair comes with a 5 yıllık garanti, exceeding industry standards. This warranty covers manufacturing defects and significant malfunctions under normal use. Please retain your proof of purchase for warranty claims.

7.2 Müşteri Desteği

If you have any questions regarding assembly, operation, maintenance, or warranty, please do not hesitate to contact BASETBL customer support. We are dedicated to finding a satisfactory solution for any issues you may encounter.

For support, please refer to the contact information provided with your purchase or visit the official BASETBL webalan.
