North Edge Sport Adventure Kronograf Dijital Saat Kullanım Kılavuzu

giriiş

This manual provides comprehensive instructions for the operation and maintenance of your North Edge Sport Adventure Chronograph Digital Watch, Model ALPS. Designed for outdoor enthusiasts, this watch combines durability with essential navigation and tracking features.

Cihazınızın doğru kullanımını sağlamak ve kullanım ömrünü en üst düzeye çıkarmak için lütfen bu kılavuzu dikkatlice okuyun.

Ürün Bittiview

The North Edge ALPS watch is engineered with a lightweight carbon fiber case and a comfortable knit nylon strap, making it an ideal companion for various outdoor activities. It features a digital display with multiple functions to assist you in your adventures.

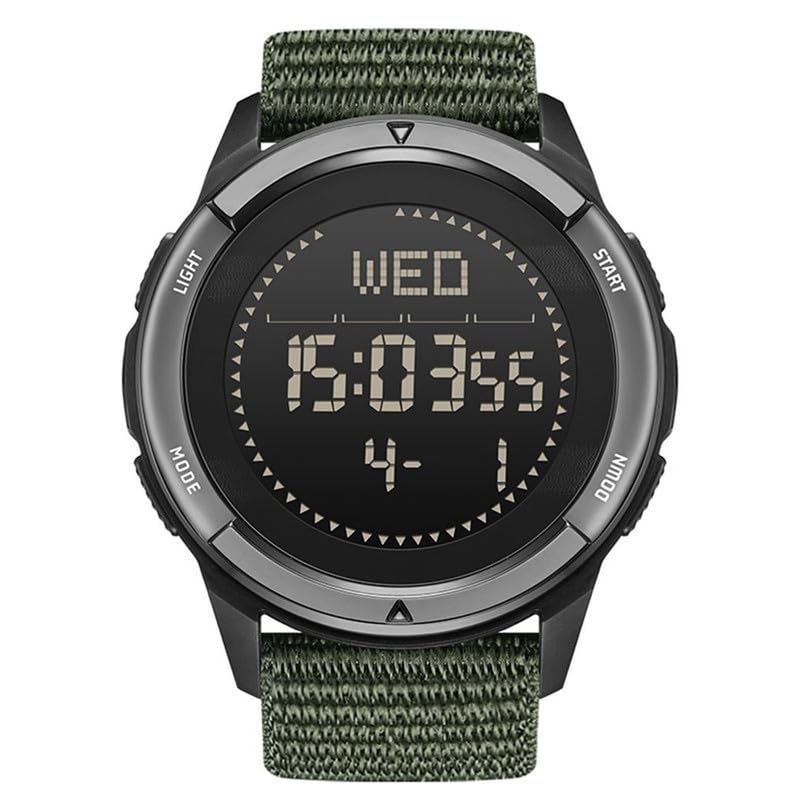

Şekil 1: Ön view of the North Edge ALPS watch. This image shows the watch face with the digital display, indicating the day of the week, time, and date. The watch has a black case and a green woven nylon strap. Buttons are visible on both sides of the watch case, labeled "LIGHT", "MODE", "START", and "DOWN".

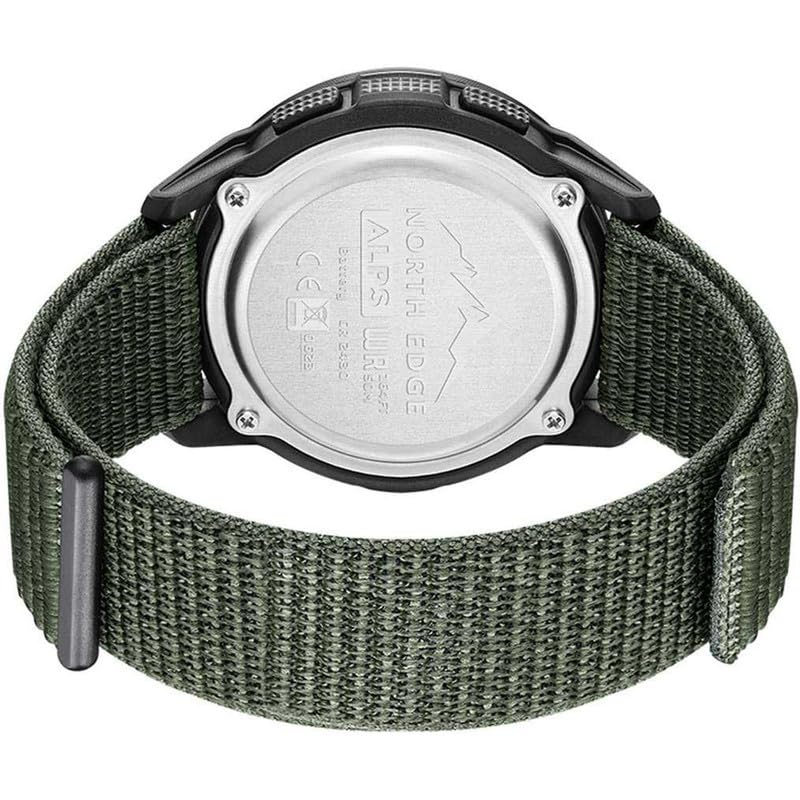

Şekil 2: Geri view of the North Edge ALPS watch. The stainless steel case back is visible, engraved with "NORTH EDGE", "ALPS WRIST WATCH", "BATTERY CR2430", and regulatory marks. The green nylon strap is also clearly visible.

Kurmak

İlk Açılış ve Zaman Ayarı

1. Güç Açık: The watch is typically shipped in a low-power state. Press and hold the IŞIK button (top left) for a few seconds to activate the display.
2. Zaman Ayar Moduna Girin: Basın MOD button (bottom left) repeatedly until the time setting interface appears. Digits to be set will usually flash.
3. Zamanı Ayarla: Kullanın BAŞLANGIÇ Değeri artırmak için (sağ üstteki) düğmeye tıklayın. AŞAĞI button (bottom right) to decrease the value.
4. Navigate Between Settings: Basın MOD button to move to the next setting (e.g., hours, minutes, seconds, year, month, day).
5. Ayarları Kaydet: Tüm ayarlar yapıldıktan sonra, MOD button until you return to the main time display.

Kayış Ayarı

The watch features an elastic ultra-light nylon knitted strap designed for comfort. Adjust the strap to fit snugly but comfortably around your wrist. The strap is replaceable and has a width of 24mm.

Figure 3: Details of the watch strap. This image highlights that the strap is elastic, weighs only 5 grams, is comfortable and breathable, and is replaceable with a 24mm width. It also shows options for black and green knit nylon straps.

Kullanım Talimatları

Your North Edge ALPS watch is equipped with several functions to assist you in your daily activities and outdoor adventures. Familiarize yourself with the buttons and their corresponding operations.

• IŞIK Düğmesi (Sol Üst): Activates the EL backlight for visibility in low-light conditions. Press briefly to illuminate the display.
• MOD Düğmesi (Sol Alt): Cycles through different modes: Time, Chronograph, Pacer, Compass, Perpetual Calendar, Pedometer, Countdown.
• BAŞLAT Düğmesi (Sağ Üst): Used to start/stop functions in Chronograph mode, adjust values upwards in setting modes, or confirm selections.
• DOWN Button (Bottom Right): Used to reset functions, adjust values downwards in setting modes, or navigate menus.

Temel Fonksiyonlar

• Kronograf: For timing events. Enter Chronograph mode using the MOD buton. Kullanmak BAŞLANGIÇ başlamak/duraklatmak ve AŞAĞI sıfırlamak için.
• Tempo: Helps maintain a consistent pace. Refer to the on-screen prompts in Pacer mode for specific settings.
• Pusula: Provides directional guidance. Ensure you are in an open area away from strong magnetic fields for accurate readings. Calibrate if necessary (refer to troubleshooting).
• Sürekli Takvim: Ay uzunluklarındaki farklılıkları ve artık yılları otomatik olarak dikkate alır.
• 12/24 H System: Toggle between 12-hour and 24-hour time formats in time setting mode.
• Pedometre: Tracks your steps. Ensure the watch is worn securely on your wrist for accurate step counting.
• Geri sayım: Belirli süreler için bir zamanlayıcı ayarlayın.
• Düşük Pil Hatırlatıcısı: An icon or message will appear on the display when the battery level is low, indicating it's time for replacement.

Figure 4: Visual representation of the watch's functions. This diagram illustrates icons for Chronograph, Pedometer, Pacer, Perpetual Calendar, 12/24 hours, Compass, EL light, Low battery reminder, 50M Waterproof, and Countdown.

Bakım

Temizlik

Saatinizin görünümünü ve işlevselliğini korumak için:

• Saat kasasını ve kayışını yumuşak bir bezle düzenli olarak silin.amp Kumaş.
• For the nylon strap, mild soap and water can be used, then rinse thoroughly and allow to air dry completely.
• Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the watch's finish or internal components.

Suya Dayanıklılık

The North Edge ALPS watch is water-resistant up to 50 meters (5 ATM). This means it is suitable for everyday use, showering, and swimming in shallow water. It is not suitable for diving or high-pressure water activities.

• Saatiniz sudayken düğmelere basmayın.
• Saati suya maruz bırakmadan önce (varsa) kurma kolunun tamamen içeri itildiğinden emin olun.
• Tuzlu suya maruz kaldıktan sonra saati tatlı suyla durulayın ve iyice kurulayın.

Pil Değişimi

The watch uses a CR2430 battery. When the low battery reminder appears, it is recommended to have the battery replaced by a qualified watch technician to ensure water resistance is maintained.

Sorun giderme

Özellikler

Figure 5: Product dimensions. This image provides a visual reference for the watch's strap width (24mm), thickness (12.5mm), and diameter (45mm).

Garanti Bilgileri

The North Edge ALPS watch comes with a warranty. For specific details regarding warranty coverage, duration, and claims, please contact the Seller of Record from whom you purchased the product. Keep your proof of purchase for warranty validation.

Müşteri Desteği

For any questions, technical assistance, or support not covered in this manual, please contact North Edge customer service:

• E-posta: lily@northedgewatch.com
• Üretici: Xiamen North Edge Technology Co. Ltd

When contacting support, please have your watch model (ALPS) and purchase details ready.
