Stylecraft Blade Fade Black Diamond Carbon DLC + Shallow Blade Replacement for Clipper Instruction Manual

1. Giriş

This manual provides detailed instructions for the installation, operation, and maintenance of the Stylecraft Blade Fade Black Diamond Carbon DLC and Shallow Blade set. This blade set is designed for use with compatible Stylecraft and Gamma+ clippers, offering enhanced cutting performance for various hair types and styles.

2. Güvenlik Bilgileri

• Kullanmadan önce tüm talimatları dikkatlice okuyunuz.
• Observe all safety precautions provided with your clipper device.
• Avoid using the clipper on infants.
• Keep the clipper and blades away from water sources to prevent electrical hazards.
• Handle blades with care as they are sharp.

3. Paket İçeriği

The Stylecraft Blade Fade Black Diamond Carbon DLC + Shallow Blade set includes the following components:

• 1x Fixed Fade Black Diamond Carbon DLC Blade
• 1x Moving Shallow Gold Blade

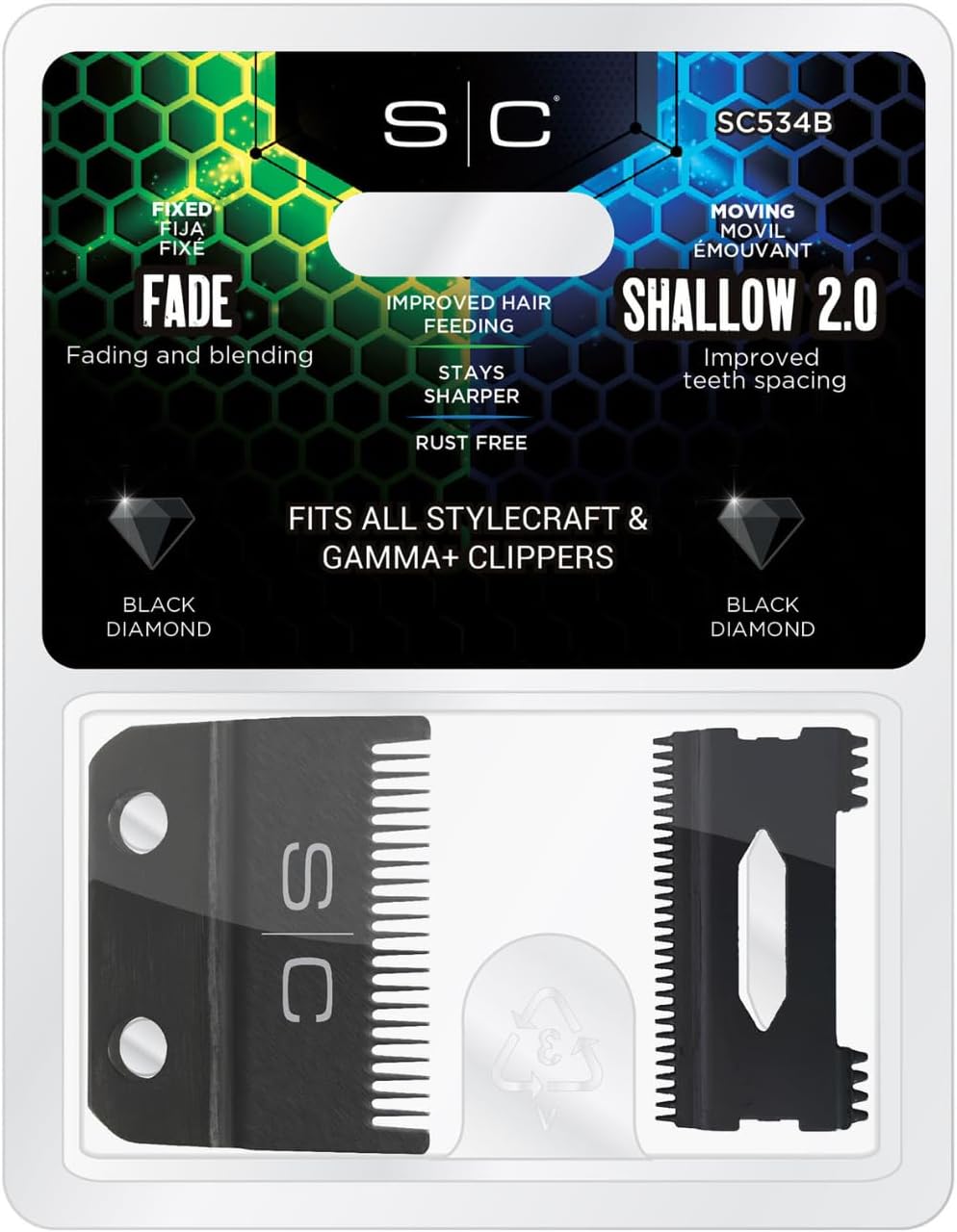

Image: The Stylecraft Fade and Shallow blades displayed in their retail packaging.

4. Kurulum ve Kurulum

Follow these steps to replace the blades on your clipper:

1. Ensure the clipper is turned off and unplugged from any power source.
2. Using a screwdriver, carefully unscrew the two screws holding the existing blade set on the clipper.
3. Gently remove the old blade set.
4. Position the new Fixed Fade Black Diamond Carbon DLC Blade and Moving Shallow Gold Blade onto the clipper.
5. Align the blades correctly. The fixed blade should be parallel to the clipper housing, and the moving blade should be centered.
6. Re-tighten the two screws securely, but do not overtighten.
7. Before turning on the device, visually inspect the blade alignment to ensure it is correct and safe for use.

Image: A screwdriver being used to remove or install a clipper blade.

5. Kullanım Talimatları

The Stylecraft Blade Fade and Shallow Blade set offers versatile cutting options:

• Fixed Fade Blade: This blade is designed to be completely flat, allowing for closer cuts to the scalp. It is ideal for creating precise fades and blends, especially when used with slower, controlled movements.
• Moving Shallow Blade: Featuring a thin profile and short teeth, this blade is suitable for all hair types and various cutting techniques.
• Zero Gap Capability: By carefully aligning the fixed Fade blade with the movable Shallow blade, it is possible to achieve a zero-gap cut for extremely close finishes. Refer to your clipper's specific instructions for zero-gap adjustment.

Image: A diagram illustrating the Fixed Black Diamond Fade Blade and Moving Black Diamond Shallow 2.0 Tooth Cutter, highlighting their features and compatibility.

6. Bakım ve Temizlik

Proper maintenance ensures optimal performance and longevity of your blades:

1. After each use, gently brush the blades with the cleaning brush (typically included in your clipper's maintenance kit) to remove any hair residue.
2. Apply a few drops of clipper oil to the blades. Turn on the clipper for a few seconds to distribute the oil evenly.
3. Fazla yağı temiz ve kuru bir bezle silin.
4. It is recommended to change the blades every 1 to 4 months, depending on the frequency of use, to maintain optimal cutting performance.

7. Sorun Giderme

If you experience issues with your clipper blades, consider the following:

• Zayıf Kesme Performansı: Ensure blades are clean, oiled, and properly aligned. If performance does not improve, the blades may be dull and require replacement.
• Aşırı Gürültü veya Titreşim: Check for proper blade alignment and ensure screws are securely tightened. Lubricate blades if necessary.
• Aşırı Isınma: Ensure blades are clean and well-oiled. Excessive friction from dry or dirty blades can cause overheating.

8. Özellikler

9. Garanti ve Destek

For specific warranty information or technical support regarding your Stylecraft blades, please refer to the documentation provided with your original clipper purchase or contact Stylecraft customer service directly. Contact details can typically be found on the manufacturer's official website veya ürün ambalajı.
