HEXIEDEN Electronic Pet Fencing System User Manual

1. Giriş

This manual provides detailed instructions for the installation, operation, and maintenance of your HEXIEDEN Electronic Pet Fencing System. This system is designed to create a safe and controlled environment for your pets within a defined boundary, utilizing an underground wire and a training collar.

Paket İçeriği

• 1 x Indoor Wall-mounted Transmitter
• 2 x Adjustable Receiver Collars with Neck Straps (for 2 dogs)
• 1 x Power Adapter with Charging Cable
• 1 x Boundary Wire (300 meters / 984 feet)
• 20 x Training Flags
• 1 x Kullanım Kılavuzu

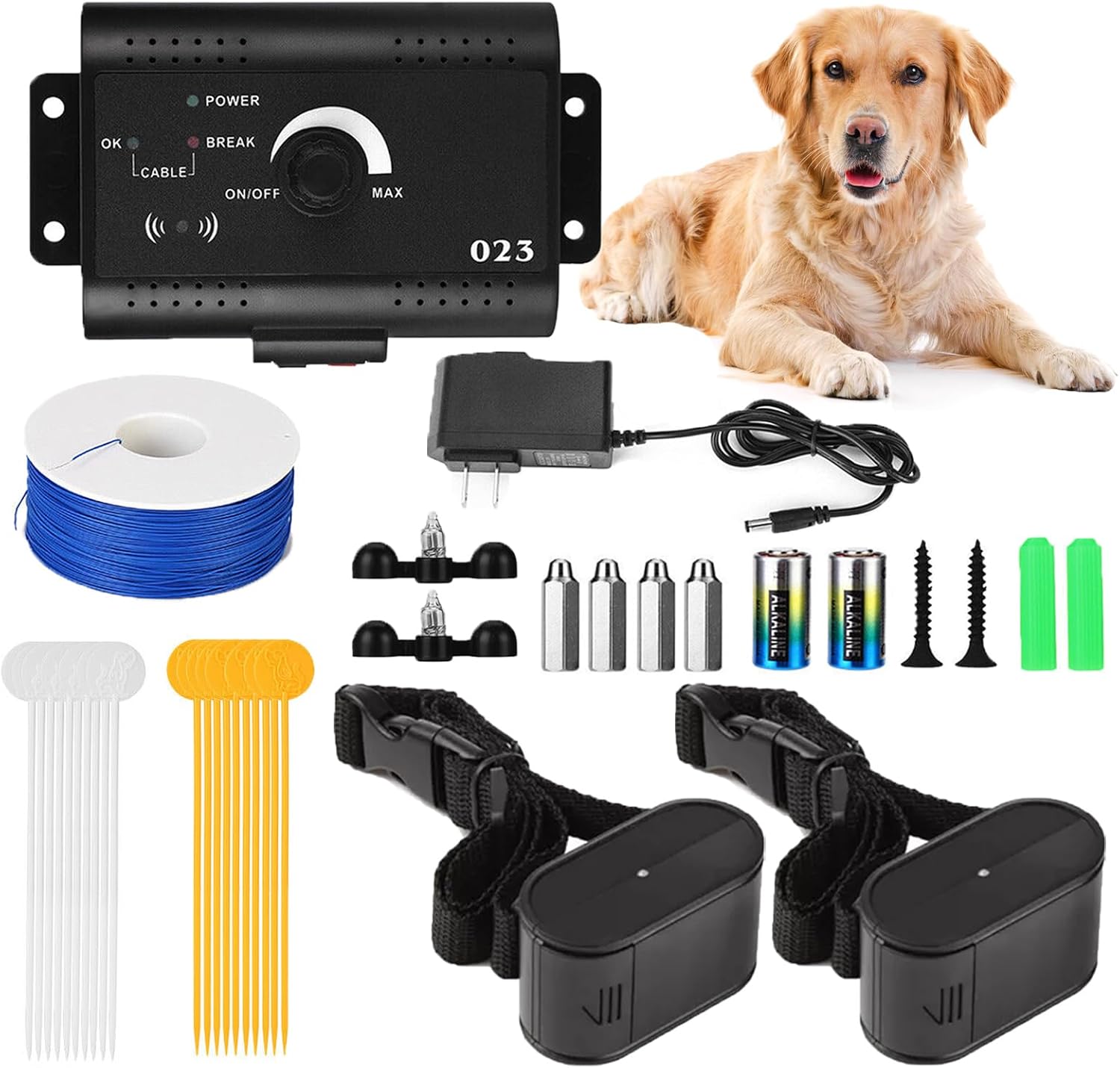

Image 1.1: Complete contents of the HEXIEDEN Electronic Pet Fencing System package.

2. Sistem Bileşenleri

The system consists of a wall-mounted transmitter, receiver collars, boundary wire, and training flags. Understanding each component is crucial for proper setup and operation.

Verici Birimi

The transmitter is the central control unit for the entire electronic fencing system. It generates the radio signal that travels through the boundary wire.

Resim 2.1: Ayrıntılı view of the transmitter unit with labeled indicators and controls.

• Güç Göstergesi: Ünite açıldığında yanar.
• Cable OK Indicator: Illuminates when the boundary wire loop is intact and functioning correctly.
• Cable Break Indicator: Illuminates if there is a break in the boundary wire. An audible alarm will also sound.
• ON/OFF (Field Width Adjustment Knob): Controls the signal range, allowing you to adjust the width of the containment field. Turn clockwise to increase the range (MAX), counter-clockwise to decrease.
• Güç girişi: Güç adaptörüne bağlanır.
• Tel Terminaller: Connect the ends of the boundary wire to these terminals.

Alıcı Yaka

The receiver collar is worn by your dog and detects the radio signal from the boundary wire. When the dog approaches the boundary, the collar emits a warning beep, followed by a static correction.

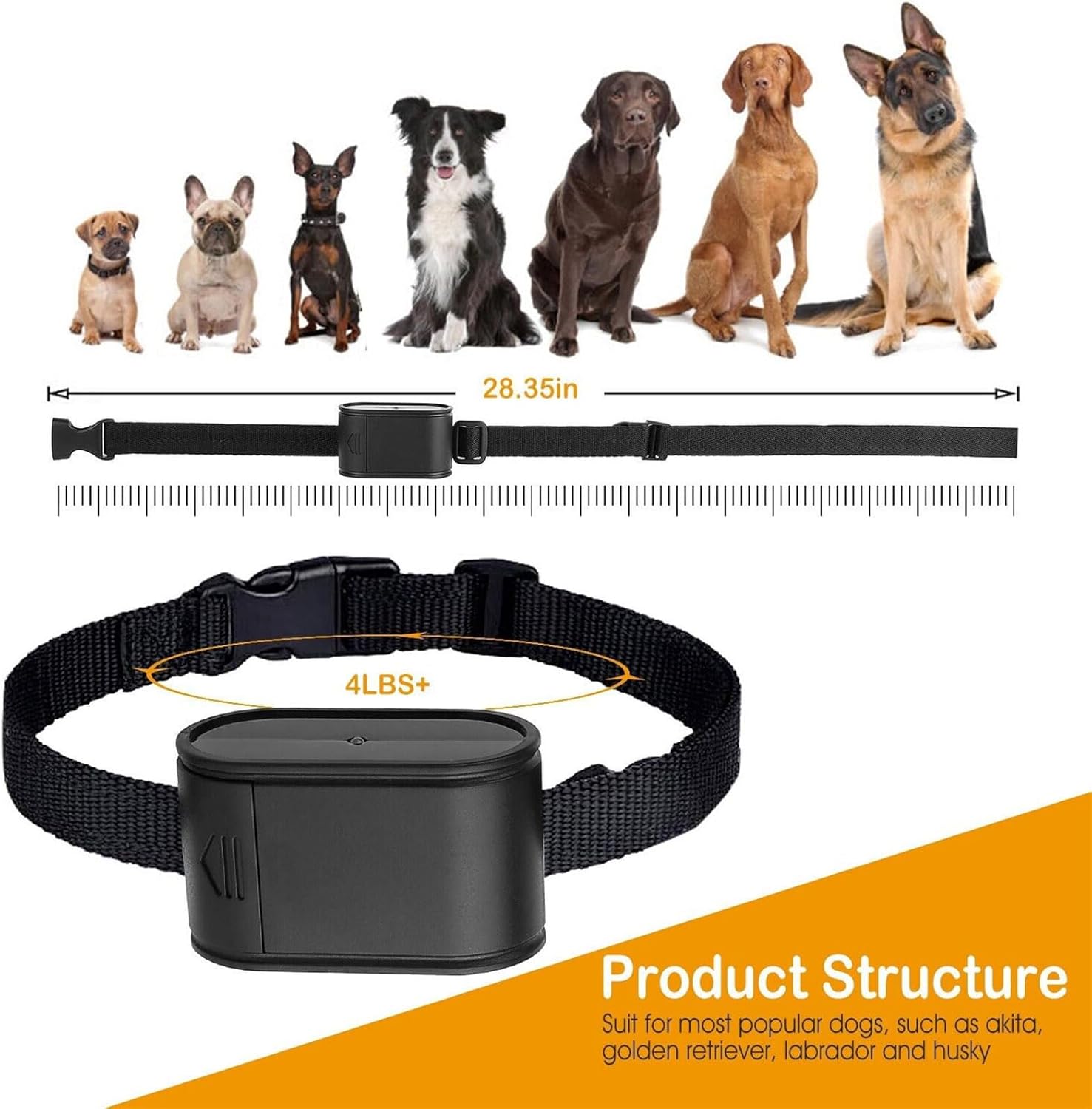

Image 2.2: Receiver collar showing dimensions and suitability for various dog breeds.

• Ayarlanabilir Kayış: Fits neck sizes from 7.5 inches to 17.92 inches, suitable for dogs weighing 4 lbs and above.
• Suya Dayanıklı Tasarım: The collar receiver is designed to be waterproof.
• Proportional Impulse Stimulation: The closer your dog gets to the boundary, the greater the intensity of the static correction.
• Speed Detector: The faster your dog moves towards the boundary, the quicker the intensity level of the correction increases.
• Çoklu Yaka Operasyonu: One transmitter can support up to three receiver collars simultaneously.

Boundary Wire and Training Flags

The boundary wire defines the containment area. Training flags are used as visual cues during the initial training phase to help your dog understand the boundary.

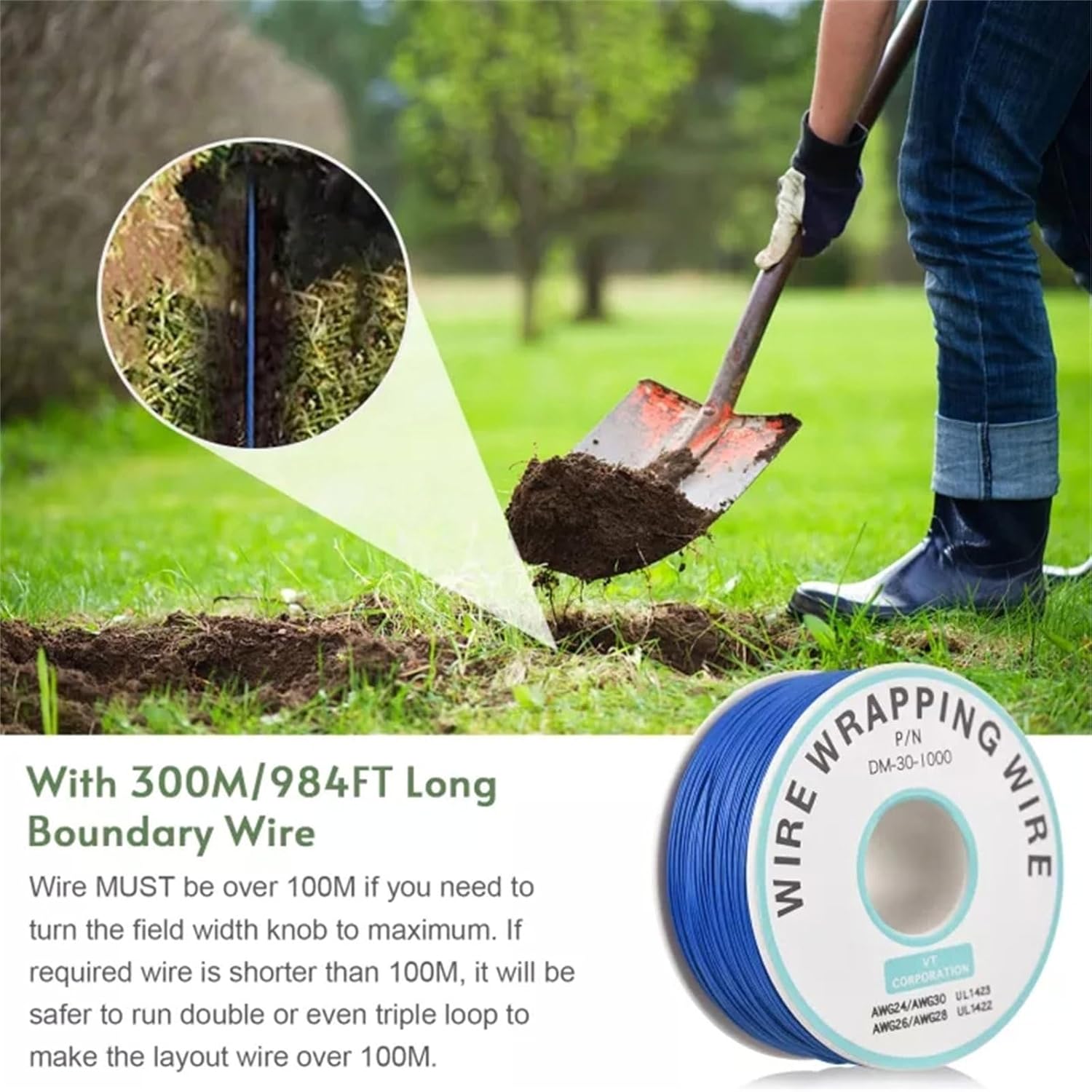

Image 2.3: Illustration of burying the boundary wire in the ground.

3. System Setup and Installation

Careful planning and installation are essential for the effective operation of your pet fencing system.

3.1 Planning Your Containment Area

1. Düzeni Tasarlayın: Sketch your desired containment area, ensuring it forms a continuous loop. Consider areas you want your dog to access and areas to avoid.
2. Calculate Wire Length: Measure the perimeter of your planned area to determine the required length of boundary wire. The system includes 300 meters (984 feet) of wire. If a shorter wire is needed, ensure it is still over 100 meters for optimal performance when adjusting the field width knob to maximum. For larger areas or to create a stronger signal, you can run a double or triple loop.

3.2 Vericinin Kurulumu

1. Konum: Install the wall-mounted transmitter in a dry, protected area, such as a garage or utility room, close to a power outlet.
2. Montaj: Securely mount the transmitter to a wall using appropriate hardware.

3.3 Laying the Perimeter Wire

1. Temporary Layout: Initially, lay the boundary wire on the ground according to your planned design. This allows for adjustments before permanent installation.
2. Burying the Wire: Once satisfied with the layout, bury the wire approximately 1-3 inches deep. Ensure the wire forms a continuous, unbroken loop.

3.4 Sistem Bağlantısı

1. Connect Wire to Transmitter: Connect both ends of the boundary wire to the wire terminals on the transmitter unit. Ensure a secure connection.
2. Güç Açık: Plug the power adapter into the transmitter's power port and then into a standard electrical outlet. The Power Indicator on the transmitter should illuminate.
3. Verify Wire Loop: Check the Cable OK Indicator. If it is illuminated, the wire loop is intact. If the Cable Break Indicator is on and an audible alarm sounds, inspect the wire for any breaks or poor connections.

3.5 Setting Up Receiver Collars

1. Charge Collars: Ensure the receiver collars are fully charged before use.
2. Adjust Field Width: With the transmitter powered on, test the containment system by walking the collar receiver towards the boundary. Adjust the Field Width Adjustment Knob on the transmitter until the collar activates at your desired distance from the wire.
3. Install Training Flags: Place the training flags along the boundary wire at regular intervals (e.g., every 10 feet). These flags serve as visual markers for your dog during initial training.

Resim 3.1: Eski bir sevgiliample of a dog within a defined containment area, with boundary flags visible.

Image 3.2: Visual representation of adjustable boundary width and the wire break warning feature.

4. Operation and Dog Training

The system operates automatically once installed. Proper training is crucial for your dog to understand and respect the boundary.

4.1 How the System Works

When your dog, wearing the receiver collar, approaches the boundary wire, the collar will activate in two stagTürkçe:

1. Bip Modu: As the dog gets close to the boundary, the collar emits a warning beep. This is the primary cue for your dog to turn back.
2. Shock Mode (Static Correction): If the dog continues to move past the warning beep zone and closer to the boundary wire, a low static correction will be delivered. The intensity of this correction increases proportionally as the dog gets closer to the wire, encouraging them to retreat to the safe area.

Image 4.1: Visual explanation of the beep and static correction zones as a dog approaches the boundary.

4.2 Yakanın Takılması

1. Uygun Uyum: The collar should be snug enough for the contact points to touch your dog's skin, but not so tight as to cause discomfort. You should be able to fit one or two fingers comfortably between the strap and your dog's neck.
2. Konumlandırma: Position the receiver unit centrally on your dog's throat.
3. Süre: Do not leave the collar on your pet for more than 12 hours a day to prevent skin irritation.

4.3 Training Your Dog

Initial training is essential for your dog to understand the system. Always supervise your dog during the training phase.

1. Leash Training: For the first few days, walk your dog on a leash around the perimeter of the containment area, allowing them to encounter the training flags and hear the warning beep. Gently guide them back into the safe zone when the beep activates.
2. Olumlu Güçlendirme: Praise and reward your dog when they respond correctly to the warning beep and stay within the boundary.
3. Gradual Independence: Gradually reduce the use of the leash as your dog demonstrates understanding of the boundary. Continue to supervise closely.
4. Tutarlılık: Consistency in training is key. Ensure all family members understand and follow the training protocol.

5. Bakım

Regular maintenance ensures the longevity and effectiveness of your pet fencing system.

• Collar Cleaning: Periodically clean the receiver collar and contact points with a damp cloth. Ensure the contact points are free of dirt or debris.
• Pil Kontrolü: Monitor the collar's battery status. A red low-battery indicator will prompt you to replace or recharge the collar battery to prevent intermittent operation.
• Tel Muayenesi: Regularly inspect the boundary wire for any signs of damage or exposure, especially after landscaping or severe weather. Repair any breaks promptly.
• Transmitter Location: Ensure the transmitter remains in a dry, protected environment.

6. Sorun Giderme

Refer to the following common issues and solutions before contacting support.

7. Özellikler

Image 7.1: Detailed dimensions of the transmitter and receiver collar.

8. Garanti Bilgileri

Specific warranty details for the HEXIEDEN Electronic Pet Fencing System are typically provided at the point of purchase or within separate documentation included with your product. Please refer to your purchase receipt or the manufacturer's official website for the most accurate and up-to-date warranty terms and conditions. Generally, products are covered against manufacturing defects for a specified period from the date of purchase.

9. Müşteri Desteği

If you encounter any issues not covered in this manual or require further assistance, please contact HEXIEDEN customer support. Contact information can usually be found on the product packaging, the manufacturer's official websitenizden veya perakendeciniz aracılığıyla.

When contacting support, please have your product model name (Electronic Pet Fencing System) and purchase details readily available.
