Autopixl Front Wiper Blades User Manual

giriiş

Thank you for choosing Autopixl Front Wiper Blades. This manual provides essential information for the proper installation, operation, and maintenance of your new wiper blades. Designed for optimal visibility and durability, these blades ensure clear vision in various weather conditions.

These wiper blades are specifically designed for the Citroen C5 MK1 model years 2001, 2002 ve 2003, featuring a J/U Hook mounting type. The set includes two blades, sized 26 inç ve 19 inç for the front windshield.

Ürün Bittiview

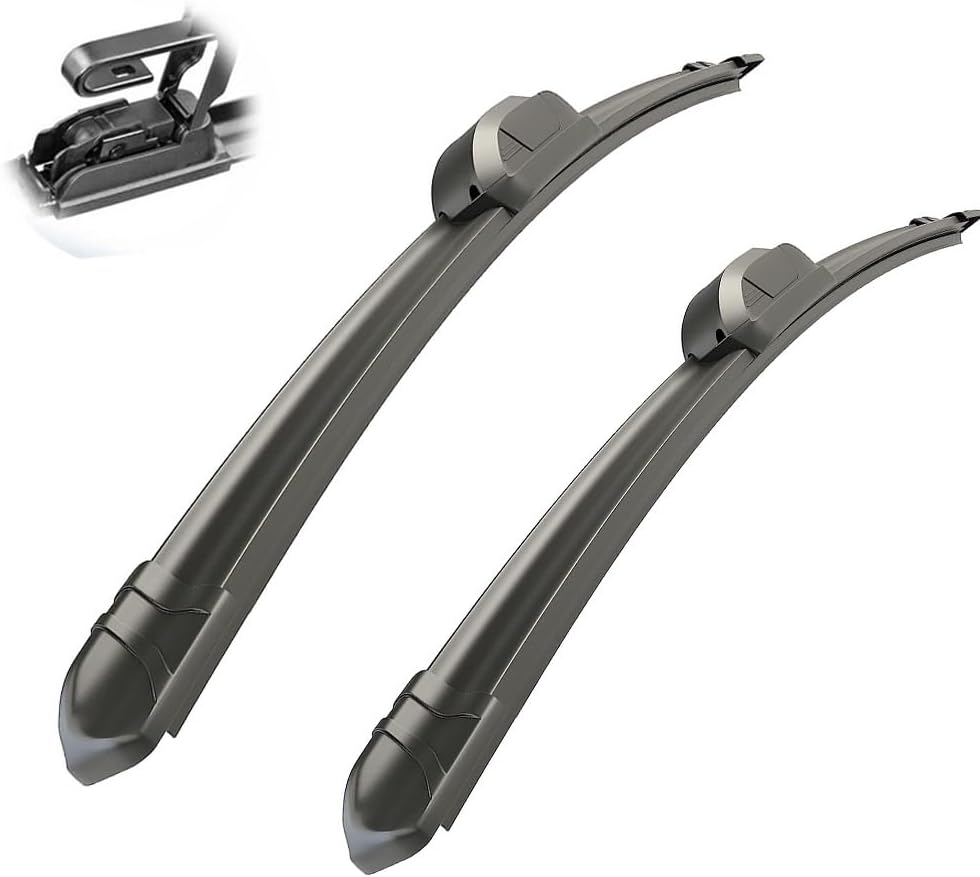

Image: Autopixl Front Wiper Blades with J/U Hook detail.

The Autopixl Front Wiper Blades are engineered for a perfect fit and superior performance. They feature a robust design with high-quality materials to provide streak-free wiping and long-lasting reliability.

Image: Wiper blades displayed with a Citroen C5 MK1, indicating compatibility and sizes.

Temel Özellikler:

• Mükemmel Uyum: Designed for Citroen C5 MK1 (2001-2003) with U/J Hook wiper arms.
• Yüksek Kaliteli Malzeme: Made from premium rubber for exceptional wiping performance and durability.
• Streak-Free Wiping: Dual high tenacity memory spring steel sheet and asymmetrical wind spoiler ensure uniform pressure and clear visibility.
• Tüm Hava Koşullarında Performans: Reliable operation in rain, snow, and other challenging conditions.
• Kolay Kurulum: Simple and quick installation without the need for awkward adapters.

Kurulum Kılavuzu

Follow these steps for easy and quick installation of your new Autopixl wiper blades. Ensure the vehicle is parked safely and the ignition is off before beginning.

Image: Step-by-step installation guide for J/U Hook wiper blades.

1. Step 1: Remove Old Blade: Lift the wiper arm away from the windshield. Locate the small tab or clip on the underside of the wiper blade where it connects to the arm. Press this tab and slide the old blade off the J/U hook.
2. Step 2: Prepare New Blade: Remove any protective covers from the new wiper blade. Orient the new blade so that the J/U hook on the wiper arm can slide into the connector on the blade.
3. Step 3: Attach New Blade: Slide the J/U hook of the wiper arm into the connector of the new blade until you hear a click or feel it lock securely into place. Ensure the blade is firmly attached and cannot be easily pulled off.
4. Step 4: Secure and Test: Gently lower the wiper arm back onto the windshield. Repeat the process for the other wiper blade. Once both blades are installed, test them with your vehicle's washer fluid to ensure proper operation and a clear wipe.

It is recommended to install one blade at a time to avoid the wiper arm from snapping back and potentially damaging the windshield.

Operating and Performance

Your Autopixl wiper blades are designed to provide optimal visibility and quiet operation. The advanced design ensures consistent contact with the windshield, preventing streaks and missed spots.

Image: Wiper blade performing in snowy conditions.

The dual high tenacity memory spring steel sheet, combined with an asymmetrical wind spoiler, delivers uniform pressure distribution across the entire blade length. This design minimizes lift-off at high speeds and ensures effective wiping without leaving any gaps.

Image: Flow Guide Plate Design and environmental adaptability.

These blades are built for all-weather performance, maintaining stability, durability, and quiet operation in rain, snow, and even when encountering road grime or mud.

Bakım

Proper maintenance can extend the lifespan and effectiveness of your wiper blades.

• Düzenli Temizlik: Periodically clean the rubber edge of the wiper blades with a soft cloth or sponge and mild soap and water. This removes dirt, grime, and road film that can cause streaking.
• Hasarı Kontrol Edin: Regularly check the rubber blade for cracks, tears, or hardening. Replace blades if any damage is visible or if performance degrades.
• Kuru silmeden kaçının: Do not operate wipers on a dry windshield as this can damage the rubber and scratch the glass. Always use windshield washer fluid.
• Enkazı Temizle: Before using wipers, remove any heavy snow, ice, or large debris from the windshield to prevent damage to the blades.

Sorun giderme

Silecek lastiklerinizde sorun yaşıyorsanız aşağıdakileri göz önünde bulundurun:

• Streaking: This can be caused by dirt or residue on the blade or windshield. Clean the blade and windshield thoroughly. If streaking persists, the blade may be worn and require replacement.
• Chattering/Skipping: Often due to a dirty blade, a bent wiper arm, or a hardened rubber blade. Clean the blade, check the arm for proper angle, or replace the blade if the rubber is stiff.
• Gürültü: Squeaking or grinding noises can indicate a dry windshield, a dirty blade, or a worn blade. Ensure adequate washer fluid, clean the blade, or replace if worn.
• Eksik Silme: If parts of the windshield are not being wiped, check for debris stuck to the blade or a bent wiper arm. The blade might also be worn unevenly.

Özellikler

Garanti ve Destek

Autopixl wiper blades are designed for long-lasting performance. While specific warranty details are not provided in this manual, please refer to your purchase documentation or contact your retailer for warranty information.

For technical support, installation assistance, or any product-related inquiries, please contact Autopixl customer service through the retailer's platform or the official Autopixl website. Please have your product model number (DGBNCGFIH-RIGHTHANDDRIVE) and purchase details ready when contacting support.
