1. Güvenlik Bilgileri
Please read and understand all instructions before operating the Blitzshark 24V 2-Seater Kids Ride-On Car. Failure to follow these safety guidelines may result in serious injury or property damage. This product is designed for children aged 3-8 years.
- Yetişkin Denetimi Gereklidir: Always supervise children when they are operating the ride-on car.
- Ağırlık sınırı: 130 lbs (59 kg) maksimum yük kapasitesini aşmayın.
- Yaş Aralığı: Suitable for children aged 3 to 8 years. For two children, ensure they are under 4 years old and their combined height is less than 42 inches.
- Koruyucu Ekipman: Ensure children wear appropriate safety gear, such as helmets and knee pads, especially when learning to drive.
- Safe Driving Environment: Operate the car on flat, dry surfaces away from traffic, swimming pools, or other hazards. Avoid steep inclines.
- Emniyet Kemerleri: Always ensure children are securely fastened with the provided seat belts.
- Acil Fren: The parental remote control includes an emergency brake button to stop the vehicle immediately if needed.
- Şarj: Only use the provided charger. Do not overcharge the battery. Keep the charger away from water.
Video: Precautions for Using 24V Kids Ride on Vehicles. This video provides essential safety guidelines and precautions for operating 24V ride-on vehicles, ensuring a safe experience for children.
2. Paket İçeriği
Before assembly, please ensure all parts are present and undamaged. Refer to the packing list in your product box for a complete inventory. Typically, the package includes:
- Main Car Body
- Tekerlekler (4)
- Direksiyon
- Seat(s)
- Arka spoyler
- Şarj cihazı
- Uzaktan kumanda
- Montaj Donanımı (vidalar, pullar, vb.)
- Kullanım Kılavuzu
3. Montaj Talimatları
Follow these steps carefully to assemble your Blitzshark ride-on car. It is recommended to have two adults for assembly.
- Tekerlek Kurulumu: Attach the wheels to the axles, securing them with the provided washers and nuts. Ensure they spin freely but are firmly attached.
- Direksiyon Bağlantısı: Connect the steering column to the car's main body and then attach the steering wheel, ensuring all electrical connections for horn and music are secure.
- Koltuk Montajı: Place the seat(s) into position and secure them with the designated screws. Ensure seat belts are accessible and functional.
- Pil Bağlantısı: Locate the battery compartment (usually under the seat or hood). Connect the battery terminals (red to red, black to black).
- Rear Spoiler: Attach the rear spoiler to the back of the car using the provided screws.
- Son Kontroller: Before first use, ensure all screws are tightened, all connections are secure, and the car's functions (lights, music, horn) are working.
Video: 24V Kids Ride on Lamborghini Installation Video. This video provides a step-by-step guide for assembling your Blitzshark 24V ride-on car.
Resim: Ön view of the fully assembled Blitzshark 24V ride-on car, ready for use.
4. Pilin Şarj Edilmesi
The vehicle is powered by a 24V 7AH battery. For optimal performance and battery life, follow these charging instructions:
- Başlangıç ücreti: Before first use, charge the battery for 8-12 hours. Do not exceed 18 hours.
- Düzenli Şarj: Recharge the battery after each use for 8-12 hours.
- Şarj Portu: Locate the charging port on the vehicle (refer to your specific model's diagram if unsure). Plug the charger into the port, then into a standard wall outlet.
- Gösterge Işığı: The charger typically has an indicator light that changes color when charging is complete.
- Depolamak: If storing the vehicle for an extended period, charge the battery fully every 30 days to prevent damage.
5. Kullanım Talimatları
Your Blitzshark ride-on car offers dual driving modes for flexibility and fun.
5.1 Ebeveyn Uzaktan Kontrolü
The 2.4G remote control allows parents to guide the vehicle, especially for younger children or for safety interventions.
- Eşleştirme: Refer to the remote control's specific instructions for pairing with the vehicle.
- Kontroller: The remote typically features buttons for forward/backward movement, left/right steering, speed selection (3-speeds switchable), and an emergency brake.
- Öncelik: The remote control generally overrides manual operation for safety.
Image: The Blitzshark ride-on car with its parental remote control, illustrating the dual driving modes.
5.2 Kids Manual Operation
Older children can operate the car independently using the steering wheel and foot pedal.
- Başlat/Durdur: Use the power button to turn the vehicle on or off.
- Hızlanma: Hızlanmak için ayak pedalına basın. Fren yapmak için pedalı bırakın.
- Direksiyon: Yönü kontrol etmek için direksiyonu kullanın.
- Vites Değiştirme: Select forward or reverse using the gear lever.
- Hız Seçimi: Some models allow children to select high or low speed.
5.3 Multifunction Features
The central control panel offers various entertainment and informational features:
- Güç Göstergesi: Indicates the remaining battery level, allowing for timely recharging.
- Music/FM Radio: Enjoy pre-loaded music or tune into FM radio stations.
- Bright Headlights & Taillights: Functional lights enhance realism and visibility.
- Korna: A working horn for added fun.
Video: 24V Kids Ride on Lamborghini Introduction Video. Bu videoview of the Blitzshark ride-on car's features and functions.
Resim: İç mekan view highlighting the multifunction central control panel with power display, music, and horn buttons.
6. Bakım
Düzenli bakım, binilebilir arabanızın uzun ömürlü olmasını ve güvenli çalışmasını sağlar.
- Temizlik: Arabayı yumuşak bir bezle silin.amp Bez kullanın. Aşındırıcı temizleyiciler veya çözücüler kullanmayın. Elektrikli bileşenlerin üzerine doğrudan su püskürtmekten kaçının.
- Pil Bakım: Always recharge the battery after each use. If the car is not used for a long period, charge the battery fully every 30 days. Do not store the battery in extreme temperatures.
- Lastik Muayenesi: Regularly check the tires for wear and tear. Ensure they are free from debris.
- Elektrik Bağlantıları: Tüm elektrik bağlantılarının güvenli ve korozyondan arınmış olduğundan emin olmak için düzenli olarak kontrol edin.
- Depolamak: Store the vehicle in a dry, covered area away from direct sunlight and moisture.
7. Sorun Giderme
If you encounter issues with your Blitzshark ride-on car, refer to the following common problems and solutions:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Araba hareket etmiyor | Battery is low or not connected; Power switch is off; Loose wire connection; Motor malfunction. | Charge the battery; Turn on the power switch; Check and secure all wire connections; Contact customer support if motor is faulty. |
| Araba yavaş hareket ediyor | Low battery; Overload (exceeding weight limit); Operating on rough terrain. | Recharge the battery fully; Reduce load; Operate on flat, smooth surfaces. |
| Uzaktan kumanda çalışmıyor | Remote not paired; Remote batteries are dead; Interference. | Re-pair the remote control; Replace remote batteries; Move to an area with less interference. |
| Ses/ışık yok | Loose wire connection; Speaker/light malfunction. | Check and secure wire connections to speakers/lights; Contact customer support. |
If these solutions do not resolve the issue, please contact Blitzshark customer support for further assistance.
8. Özellikler
Detailed technical specifications for the Blitzshark 24V 2-Seater Kids Ride-On Car (Model SRK-311L):
- Model Numarası: SRK-311L
- Genel Boyutlar (U x G x Y): 52.8 x 31.9 x 19.7 inç (134 x 81 x 50 cm)
- Ürün Ağırlığı: 64 lbs (29 kg)
- Maksimum Yük Kapasitesi: 130 lbs (59 kg)
- Pil: 24V 7AH
- Motorlar: 4WD Powerful Engine (Total 300W, 4 x 75W motors)
- Hız Aralığı: 1.2 - 4 MPH (2 - 6.5 KM/S)
- Önerilen Yaş: 3-8 yaş
- Malzeme: Plastik
- Özellikler: Parental Remote Control, Kids Manual Operation, Spring Suspension, Seat Belt, Safety Door Lock, Multifunction Central Control (Music, FM Radio, Power Display, Bright Headlights, Horn).

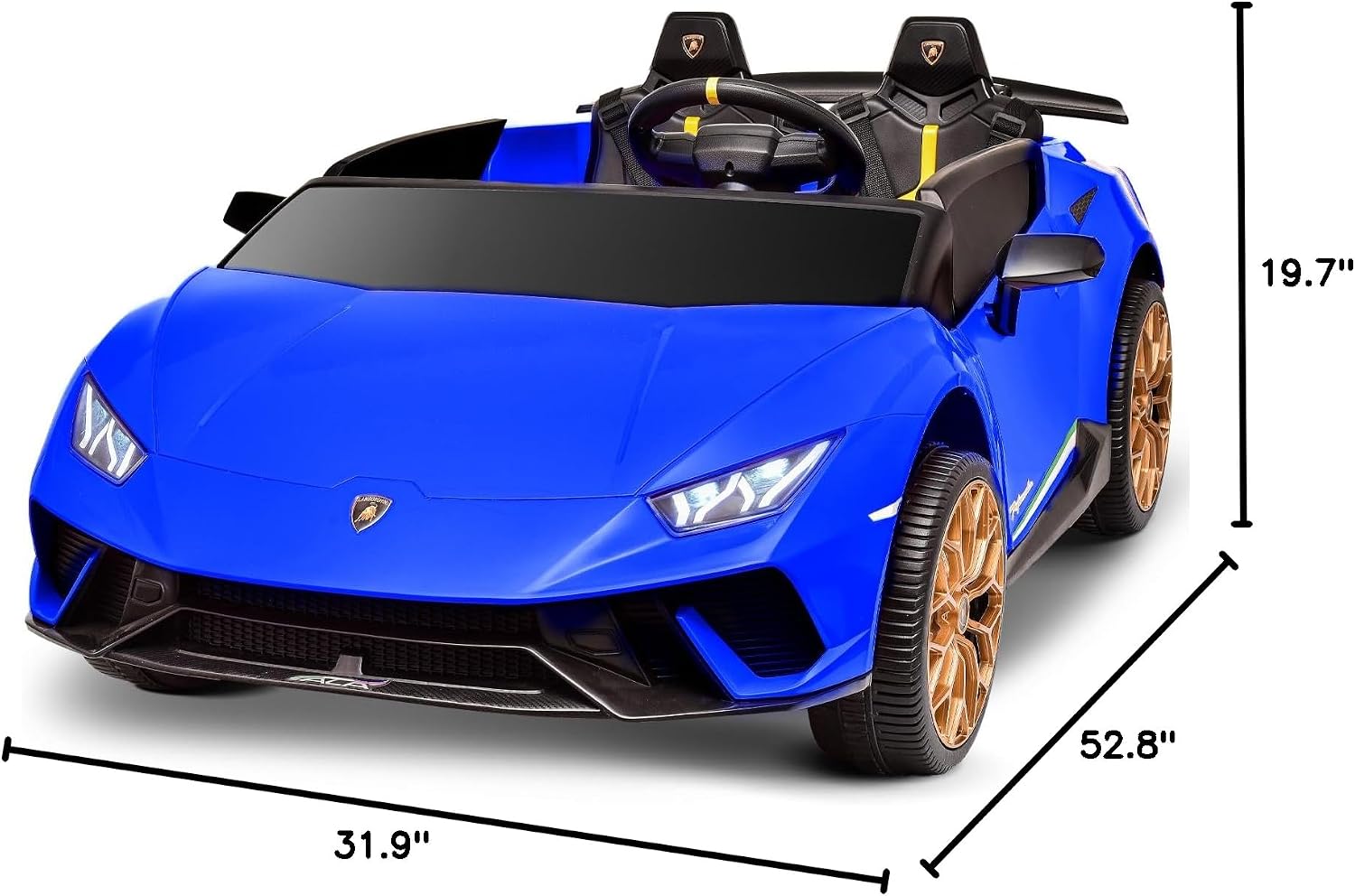

Image: Diagram illustrating the key dimensions and specifications of the Blitzshark ride-on car.
Image: Detailed dimensional drawing of the Blitzshark 24V ride-on car.
9. Garanti ve Destek
For warranty information, product support, or to purchase replacement parts, please contact Blitzshark customer service. Refer to your purchase documentation or the Blitzshark official webiletişim bilgileri için site.
- Müşteri Hizmetleri: Please refer to the contact information provided with your product or on the manufacturer's webalan.
- Satın Alma Kanıtı: Keep your receipt or proof of purchase for warranty claims.
