Autopixl BEFINHIIF-A58E02774E7F09D73A0917D9D93

Autopixl Universal Windshield Wiper Blades User Manual

Model: BEFINHIIF-A58E02774E7F09D73A0917D9D93

1. Ürün Bittiview

The Autopixl Universal Windshield Wiper Blades are designed to provide clear and streak-free visibility in all weather conditions. These frameless, bracketless wiper blades feature a U-type universal hook for broad compatibility with most car models. Constructed with high-grade natural rubber and high carbon memory steel, they offer durability and optimal performance.

Temel Özellikler:

  • Streak-Free Wiping: Specially blended rubber ensures smooth, clean, and chatter-free wiping for ultimate visibility.
  • Evrensel Uyum: Designed for J-hook wiper arms, requiring no additional adapters for quick installation.
  • Dayanıklı Malzemeler: Made with AAA grade natural rubber strips, high carbon memory steel, and a one-piece deflector for maximum performance and longevity.
  • Tüm Hava Koşullarında Performans: Engineered with 1,000 pressure points to fit your windshield perfectly, reducing drag, noise, and wind lift in rain, snow, or dust.

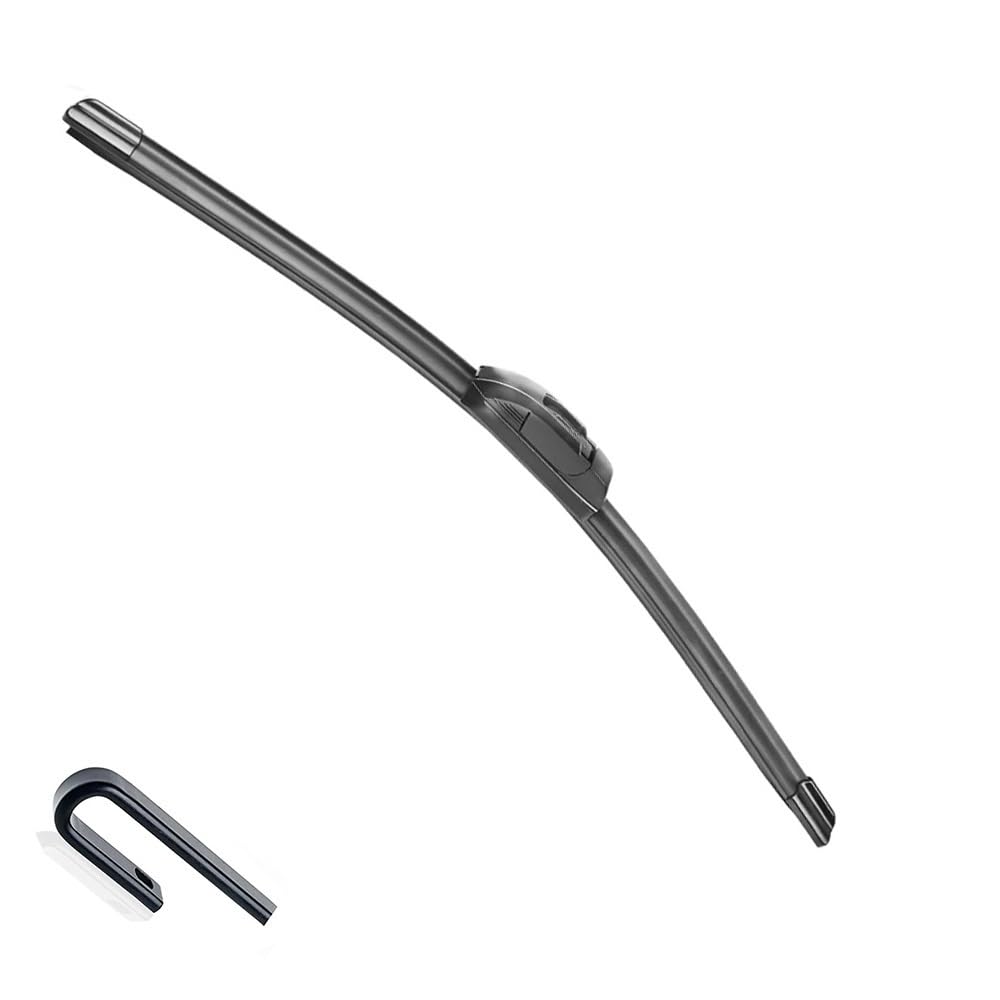

Autopixl Universal Windshield Wiper Blade
Image 1.1: Autopixl Universal Windshield Wiper Blade.

These wiper blades meet or exceed OEM safety and durability standards, ensuring a reliable and safe driving experience.

2. Kurulum Kılavuzu

Installing your Autopixl Universal Windshield Wiper Blades is a straightforward process. Please follow these steps carefully to ensure proper fitment and performance.

2.1 Uyumluluk Kontrolü

These wiper blades are designed for vehicles with a Universal U-type hook wiper arm. Please verify your vehicle's wiper arm type before proceeding with installation.

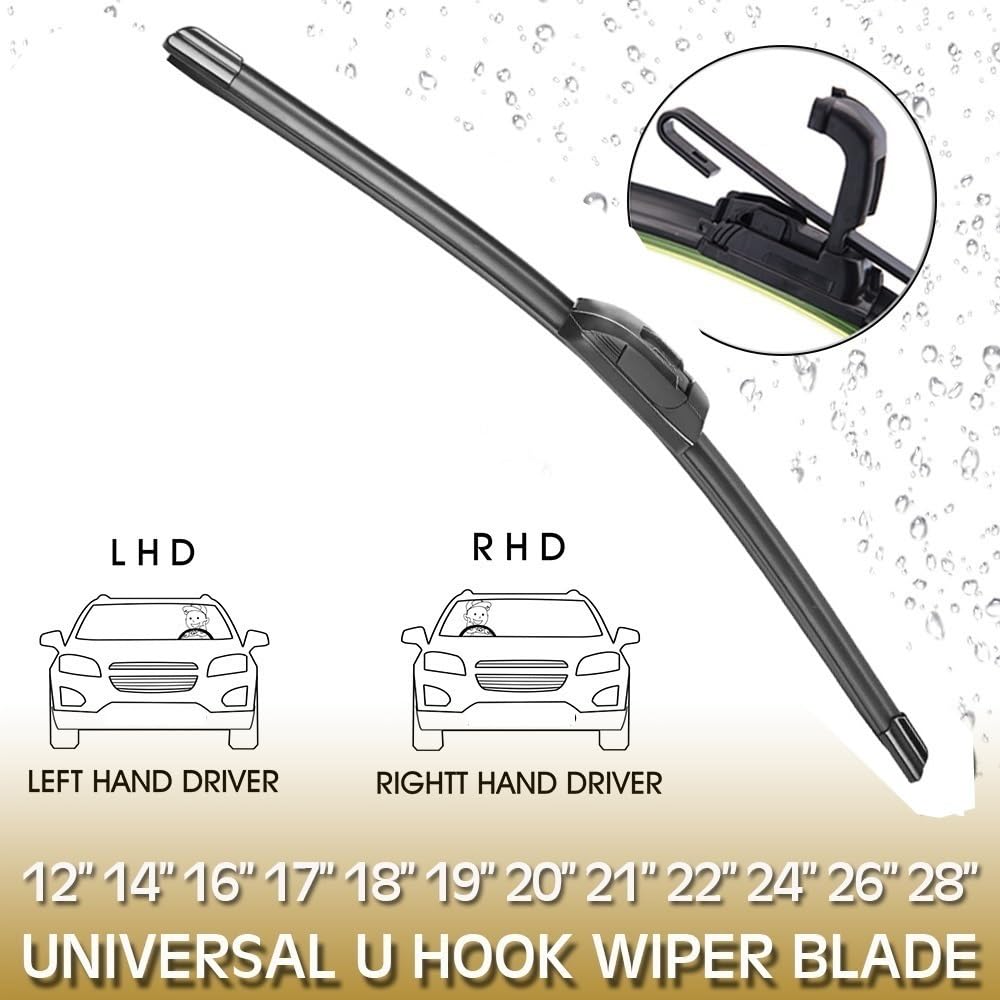

Wiper blade with J-hook detail and size chart for Left Hand Drive (LHD) and Right Hand Drive (RHD) vehicles
Image 2.1: Universal U-Hook Wiper Blade compatibility for LHD and RHD vehicles, showing available sizes.

2.2 Kurulum Adımları

Follow these 4 easy steps for a secure installation:

  1. Step 1: Prepare the Wiper Arm. Lift the existing wiper arm away from the windshield until it locks into the upright position. If replacing old blades, remove them according to your vehicle's manual.
  2. Step 2: Remove Protective Cover. Locate the green plastic protector on the rubber blade of your new Autopixl wiper. Carefully remove this protective strip before installation.
  3. Step 3: Attach the Blade. Align the J-hook of your vehicle's wiper arm with the connector on the new wiper blade. Push the blade firmly onto the hook until you hear a click, indicating it is securely locked in place.
  4. Step 4: Secure and Test. Gently pull on the wiper blade to ensure it is firmly attached. Carefully lower the wiper arm back onto the windshield. Repeat for the other wiper blade. Test the wipers with water to confirm proper operation and streak-free performance.
Four step diagram showing how to install a J-hook wiper blade
Image 2.2: Visual guide for the 4-step installation process, including removing the green plastic protector.

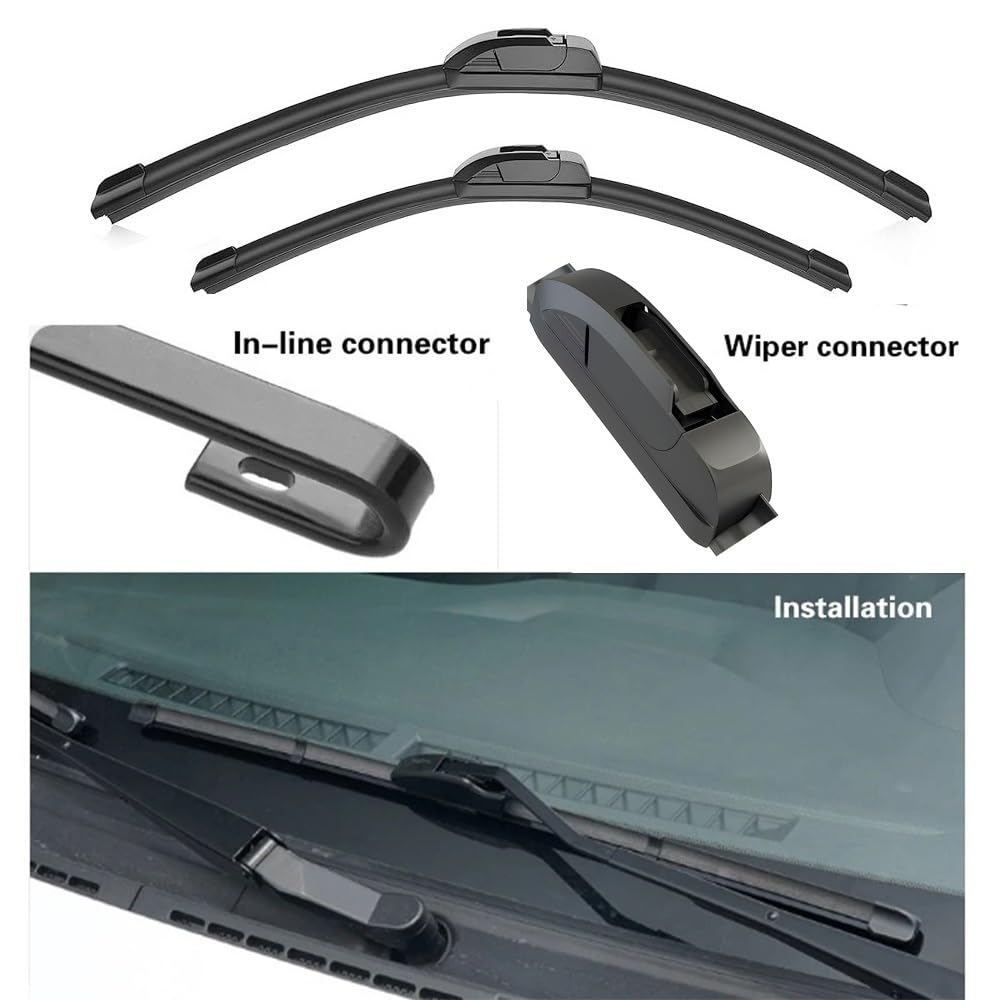

Close-up of inline and wiper connectors, and a view of the wiper blade installed on a car windshield
Image 2.3: Details of the J-hook connector and an installed wiper blade on a windshield.

3. Kullanım Talimatları

Once installed, your Autopixl Windshield Wiper Blades are ready for use. They are designed to provide optimal performance in various driving conditions.

Activate your vehicle's windshield wiper system as needed. The aerodynamic design of these blades significantly reduces drag, noise, and wind lift, ensuring a quiet and effective wipe.

A car windshield with clear visibility during rain, demonstrating the effectiveness of the wiper blades
Image 3.1: Clear vision provided by Autopixl wiper blades during rainy conditions.

The 1,000 pressure points ensure the blade conforms perfectly to your windshield's curvature, delivering consistent contact and a streak-free wipe across the entire glass surface.

4. Bakım

Proper maintenance can extend the lifespan and maintain the performance of your Autopixl Windshield Wiper Blades.

  • Düzenli Temizlik: Periodically clean the rubber blade with a soft cloth and windshield washer fluid or mild soapy water. This removes dirt, grime, and road film that can cause streaking or chattering.
  • Hasarı Kontrol Edin: Regularly check the rubber blade for cracks, tears, or hardening. Damaged blades should be replaced promptly to ensure clear visibility.
  • Kuru silmeden kaçının: Do not operate wipers on a dry windshield as this can damage the rubber blade and scratch the glass. Always use with sufficient water or windshield washer fluid.
  • Enkazı Temizle: Before using wipers, remove any large debris like leaves, ice, or heavy snow from the windshield to prevent damage to the blades.

5. Sorun Giderme

If you experience issues with your Autopixl Windshield Wiper Blades, consider the following common problems and solutions:

SorunOlası NedenÇözüm
ÇizgiliDirt or debris on the blade; worn or damaged rubber; windshield contamination.Bıçağı reklamla temizleyinamp cloth. Inspect the blade for damage and replace if necessary. Clean the windshield thoroughly.
Gevezelik/AtlamaBlade not making full contact; bent wiper arm; dry windshield.Ensure blade is properly installed. Check wiper arm for bends. Always use with sufficient water or washer fluid.
Gürültü (Gıcırdama/Cıtırtı)Dry windshield; dirty blade; incorrect blade angle.Use washer fluid. Clean the blade. Ensure proper installation and contact with the windshield.
Unwiped AreasBlade not conforming to windshield; worn blade.Check for proper installation. Replace the blade if it appears worn or stiff.

6. Özellikler

The following are the general specifications for Autopixl Universal Windshield Wiper Blades:

BağlanmakDetay
MarkaAutopixl
Model NumarasıBEFINHIIF-A58E02774E7F09D73A0917D9D93
Araç Servis TipiAraba
Montaj TipiHook (Universal U-type)
MevsimlerAll-Season (All, Summer)
MalzemeHigh Grade Natural Rubber, High Carbon Memory Steel
Mevcut Boyutlar12", 14", 16", 17", 18", 19", 20", 21", 22", 24", 26", 28"
Ürün AğırlığıApprox. 7.1 ounces (varies by size)
Menşei ülkeÇin
İlk Mevcut Tarih11 Haziran 2023
Diagram showing manufacturing process steps and an international wiper size chart in inches and millimeters
Image 6.1: International Wiper Size Chart (Inches and Millimeters).
Diagram illustrating the design features of the wiper blade: flow guide plate, J-hook interface, ABS cap, AAA rubber strips, and double memory steel sheet
Image 6.2: Key design features and material composition of the wiper blade.

7. Garanti Bilgileri

Specific warranty details for the Autopixl Universal Windshield Wiper Blades are not provided in the available product information. Please refer to the product packaging or contact the seller directly for warranty terms and conditions.

8. Destek

For further assistance, technical support, or inquiries regarding your Autopixl Universal Windshield Wiper Blades, please contact the seller or manufacturer through the platform where the product was purchased. Specific contact information is not provided in this manual.
