Walimex Pro 60W Bi-Colour LED OctagSoftbox Kullanım Kılavuzunda

1. Giriş

Thank you for choosing the Walimex Pro 60W Bi-Colour LED Octagon Softbox. This professional lighting kit is designed for high-quality photo and video productions, offering flexible illumination with adjustable color temperature and high color accuracy. This manual provides essential information for the safe and efficient use of your new equipment.

The kit includes a 60W bi-colour LED, an octagon softbox with a 65 cm diameter, a diffuser, a lamp stand, a remote control, and a carrying bag. Its compact design and ease of use make it suitable for both small studios and on-location shoots.

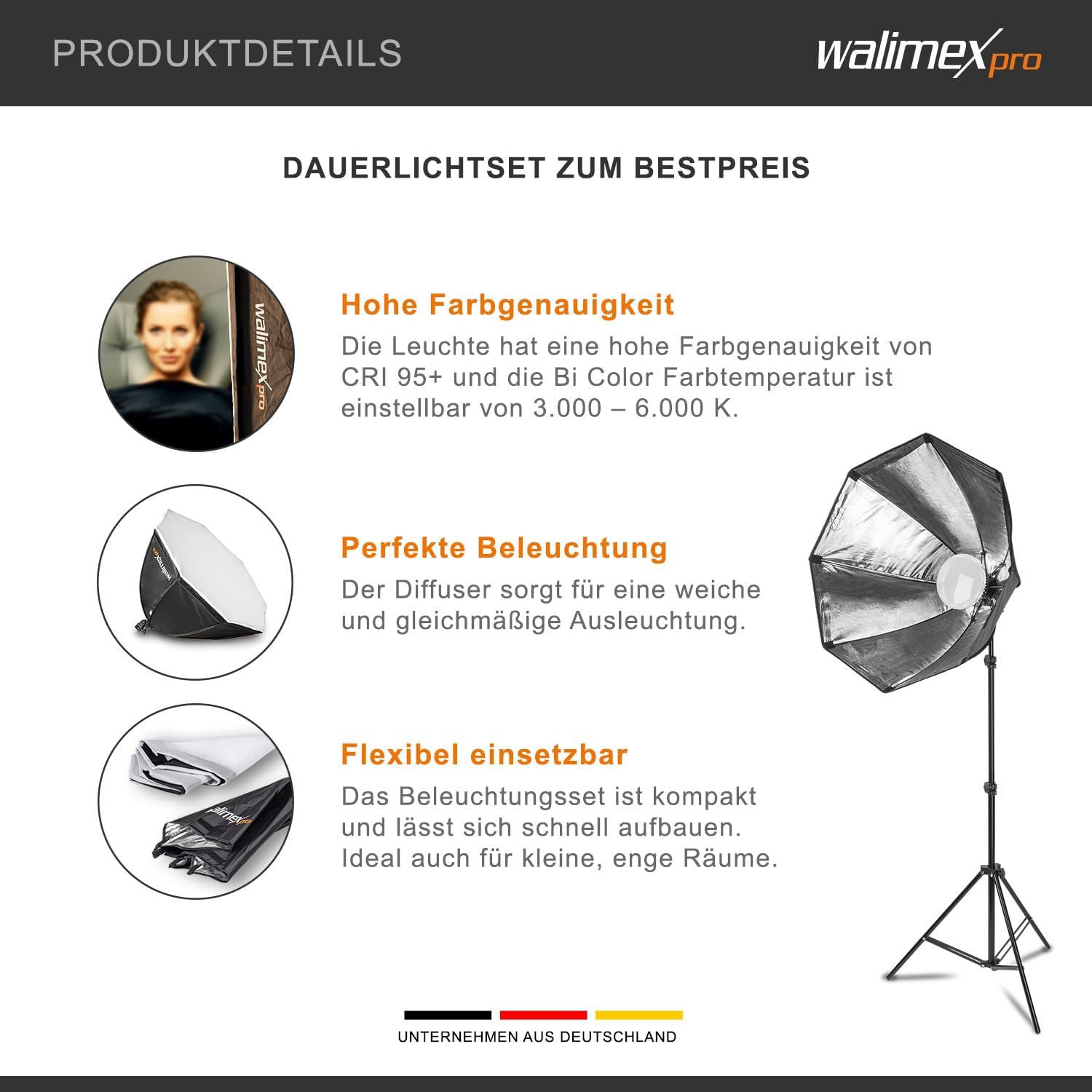

Resim 1.1: Üzeriview of the Walimex Pro Octagon Softbox kit highlighting high color accuracy (CRI 95+), perfect illumination with diffuser, and flexible, compact design.

2. Güvenlik Talimatları

• Kullanmadan önce tüm talimatları okuyun ve bu kılavuzu ileride başvurmak üzere saklayın.
• Cihazı yağmura, neme veya aşırı sıcaklıklara maruz bırakmayın.
• Güç kaynağının cihazın gereksinimlerine uygun olduğundan emin olun.
• Temizlemeden önce veya kullanılmadığı zamanlarda cihazın fişini daima çekin.
• Havalandırma açıklıklarını kapatmayın.
• LED ışığına doğrudan göz temasından kaçının.
• Çocukların erişemeyeceği yerde saklayınız.
• Sadece üretici tarafından belirtilen aksesuarları kullanın.
• If any damage occurs, do not attempt to repair it yourself. Contact qualified service personnel.

3. Paket İçeriği

Lütfen aşağıda listelenen tüm öğelerin paketinizde yer aldığından emin olun:

• 1 x Walimex Pro LED (60W Bi-Colour)
• 1 x Octagon Softbox (Diameter 65 cm)
• 1 x Difüzör
• 1 x Uzunamp Üçayak
• 1 x Uzaktan Kumanda
• 1 x Saklama Çantası

Image 3.1: Visual representation of the items included in the Walimex Pro Octagon Softbox kit: lamp tripod, remote control, storage bag, 60W Bi-Colour LED, 65 cm octagon softbox, and diffuser.

4. Kurulum

1. L'yi birleştirinamp Tripod: Extend the legs of the lamp tripod to a stable position. Adjust the height using the locking mechanisms. The tripod is adjustable from 71 cm to 182 cm.
2. Attach the LED Lamp: Mount the 60W Bi-Colour LED lamp onto the spigot connection at the top of the lamp tripod. Ensure it is securely fastened. The E27 lamp holder allows for easy installation of the LED bulb.
3. Assemble the Octagon Softbox: Open the octagon softbox. Insert the support rods into the designated slots on the LED lamp holder and the softbox fabric to form the octagson şekli.
4. Difüzörü Takın: Secure the white diffuser fabric to the front of the softbox using the hook-and-loop fasteners. This will soften and evenly spread the light.
5. Gücü bağlayın: Plug the power cable from the LED lamp uygun bir elektrik prizine takın.

Image 4.1: The assembled Walimex Pro Octagon Softbox showing its 65 cm diameter and the lamp tripod adjustable from 71 cm to 182 cm in height.

5. Kullanım Talimatları

5.1 Uzaktan Kumanda İşlevleri

The included remote control has a range of 3-5 meters and provides convenient access to various lighting functions:

• Güç Açma/Kapatma: Işığı açmak veya kapatmak için güç düğmesine basın.
• Renk Sıcaklığı Ayarı: Cycle through preset color temperatures (3000K, 5000K, 6000K) using the dedicated buttons.
• Karartma İşlevi: Use the brightness adjustment buttons to increase or decrease the light intensity.
• Strobe Fonksiyonu: Activate the strobe effect for special lighting scenarios.
• Gece Işığı İşlevi: Engage the night light function for subtle backlighting, available in 3 levels (3000K, 5000K, 6000K).

Image 5.1: The remote control for easy operation and the 60W Bi-Colour LED with E27 lamp holder, compatible with standard lamp tripods.

5.2 Adjusting Colour Temperature

The bi-colour LED allows you to adjust the color temperature between 3,000 K (warm light) and 6,000 K (cool daylight) to match your shooting environment or creative needs. Use the remote control to select the desired temperature.

Image 5.2: Demonstration of the bi-colour temperature feature, showing the difference between warm and cool lighting effects.

5.3 Tilting the Softbox

The softbox assembly can be tilted by approximately 135° to direct the light precisely where needed. Loosen the tilt adjustment knob on the lamp holder, position the softbox, and then tighten the knob to secure it.

6. Bakım

• Temizlik: Ensure the device is unplugged before cleaning. Use a soft, dry cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
• Depolamak: When not in use, disassemble the softbox and store all components in the provided carrying bag to protect them from dust and damage. Store in a cool, dry place.
• LED Bakımı: The LED bulb is designed for long life. Avoid touching the LED surface directly.

7. Sorun Giderme

• Işık açılmıyor:
  • Check if the power cable is securely plugged into the outlet and the lamp.
  • Elektrik prizinin çalışır durumda olduğundan emin olun.
  • Uzaktan kumanda pillerinin bitmemiş olduğundan emin olun.
• Uzaktan kumanda yanıt vermiyor:
  • Uzaktan kumandanın pillerini değiştirin.
  • Ensure there are no obstructions between the remote and the LED lamp'nin alıcısı.
  • Check if you are within the 3-5 meter operating range.
• Işık çıkışı tutarsız veya titriyor:
  • Gevşek bağlantıları kontrol edin.
  • Güç kaynağının stabil olduğundan emin olun.

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact Walimex Pro customer support.

8. Özellikler

9. Garanti ve Destek

This product comes with a manufacturer's guarantee. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, service, or warranty claims, please contact Walimex Pro customer service through their official webSiteye veya satın alma işleminizle birlikte verilen iletişim bilgilerine.

Garanti işlemleri için satın alma belgenizi saklayın.
