Hexgears X5 Wireless Mechanical Keyboard User Manual

1. Kurulum

1.1 Kutudan Çıkarma

Tüm bileşenleri ambalajından dikkatlice çıkarın. Kutuda aşağıdaki ürünler bulunmalıdır:

• X5 Kablosuz Mekanik Klavye
• X5 Dongle (USB receiver)
• Bilek Desteği
• Plastik Toz Kapağı
• USB-C Veri Kablosu
• Tuş Çektirmesi
• Kullanım Kılavuzu (bu belge)

Image: Hexgears X5 keyboard with its accessories, including the detachable wrist rest, USB-C cable, USB dongle, and keycap puller.

1.2 Klavyenin Bağlanması

The Hexgears X5 keyboard supports both 2.4GHz wireless and USB-C wired connectivity.

1.2.1 2.4 GHz Kablosuz Modu

1. Locate the X5 USB dongle. It is typically stored in a compartment on the underside of the keyboard or within the packaging.
2. USB dongle'ı bilgisayarınızdaki veya cihazınızdaki kullanılabilir bir USB bağlantı noktasına takın.
3. Ensure the keyboard's power switch (usually on the back or bottom) is set to the wireless mode.
4. Klavyenin otomatik olarak bağlanması gerekir. Bağlanmazsa, sorun giderme bölümüne bakın.

1.2.2 USB-C Kablolu Modu

1. Connect one end of the provided USB-C data cable to the USB-C port on the keyboard.
2. Connect the other end of the USB-C data cable to an available USB port on your computer or device.
3. The keyboard will function immediately in wired mode and will also charge its internal battery.

Image: The Hexgears X5 keyboard demonstrating both wired connectivity via USB-C and wireless connectivity using the USB dongle.

1.3 Bilek Desteğinin Takılması

The ergonomic wrist rest can be easily attached to the front of the keyboard for enhanced comfort during extended use. Align the magnetic connectors on the wrist rest with those on the keyboard and gently bring them together until they snap into place.

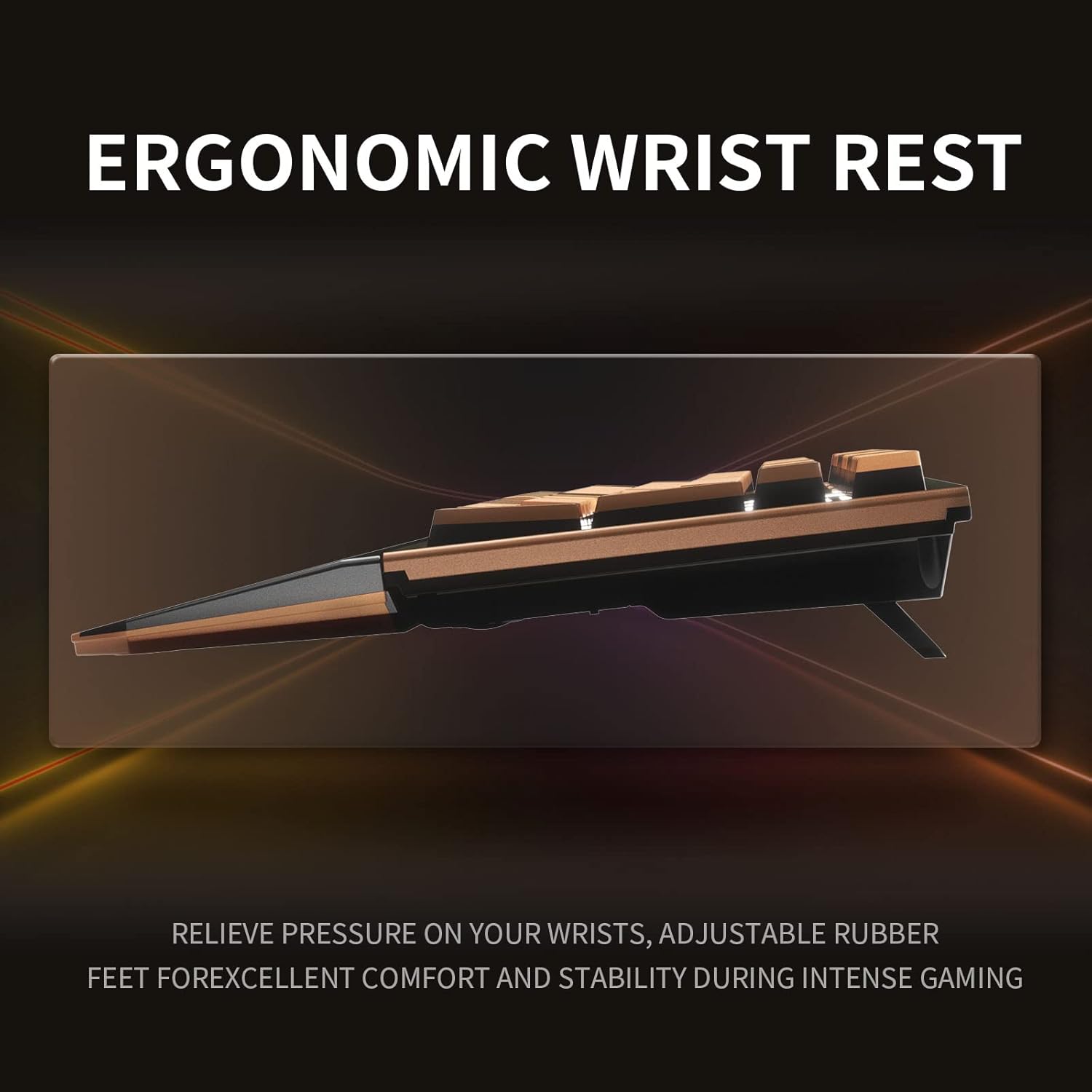

Image: An illustration highlighting the ergonomic design of the Hexgears X5 keyboard, specifically showing the integrated wrist rest for comfortable typing and gaming.

2. Kullanım Talimatları

2.1 Temel Özellikler

The Hexgears X5 features 108 keys, including a full numeric keypad and function keys. It supports N-Key Rollover, ensuring every key press is registered accurately, even when multiple keys are pressed simultaneously.

Image: The Hexgears X5 keyboard featuring double-colored keycaps, highlighting its full 108-key layout.

2.2 Kailh Box 3.0 Switches

The keyboard is equipped with Hexgears customized Kailh Box 3.0 switches, designed for durability and a smooth typing experience. The switches feature a reduced gap between the shaft and housing for improved stability and dust/water resistance. Each switch is factory-lubricated for a lifespan of 100 million clicks.

• Kailh Box 3.0 Gold Switch (Quicksand Gold): Linear switch with a 45g actuation force, providing a smooth and quiet typing experience with a creamy sound profile.
• Sky Blue Switch: Offers tactile feedback with a "Clicky" sound.
• Rose Red Switch: Provides a linear typing effect.

Resim: Ayrıntılı view of the Kailh Box switches installed on the Hexgears X5 keyboard, showing their design.

Image: An exploded diagram of a Kailh Box switch, detailing its components, including the dust seal in four directions and the patented safety box for conductors.

2.3 Arka Aydınlatma Kontrolü

The Hexgears X5 features white LED backlighting with 16 lighting modes. These controls are accessed using the Function (Fn) key in combination with other keys.

2.3.1 Side LED Controls (Keyboard Rim)

• Fn + PrtSc: Activates a full, rainbow-colored border around the keyboard (if applicable to the current mode).
• Fn + Pause: Cycles through specific single colors for the keyboard border (red, green, blue, white, light blue, light magenta, dark magenta, orange).
• Fn + PgDn: Switches between various side LED modes:
  • Entire LED border cycles through colors (e.g., blue to green to yellow).
  • Rainbow color moves counter-clockwise.
  • Rainbow color moves in both directions.
  • Stable rainbow color.
• Fn + ,<: Decreases the speed of light changes for the side LED.
• Fn + .>: Increases the speed of light changes for the side LED.
• Fn + -_: Decreases the brightness of the side LED, down to off.
• Fn + =+: Increases the brightness of the side LED.

2.3.2 Key Backlighting Controls

• Fn + Girişler: Cycles through several key lighting modes:
  • Pressing a key sends rainbow light from that key across the keyboard.
  • Light goes outward from the pressed key only in that row.
  • Light moves in two split columns away from the key.
  • A key lights only itself up, and the light lasts briefly.
  • All keys are lit continuously with stable light.
• Fn + Ana Sayfa: Activates "breathing mode," where the entire keyboard's light changes color continuously.
• Fn + PgUp: Changes the color of key presses to a single color (press repeatedly to cycle colors).
• Fn + Del: Provides additional key lighting modes:
  • All keys lit with the same color (adjustable with Fn + PgUp).
  • Random keys lit across the keyboard (default mixed colors, adjustable to single color with Fn + PgUp).
  • Pulsing rainbow light under all keys.
  • Pulsing single light under all keys.
  • Wave effect moving left to right.
  • Bouncing wave effect.
  • Diagonal wave effect.
  • Wave effect across rows.
• Fn + Son: Turns all key lights off.
• Fn + Yukarı Ok: Increases brightness of key light.
• Fn + Aşağı Ok: Decreases brightness of key light.
• Fn + Sol Ok: Decreases speed of key light changes.
• Fn + Sağ Ok: Increases speed of key light changes.

3. Bakım

3.1 Klavyeyi Temizleme

To maintain optimal performance and appearance, regularly clean your Hexgears X5 keyboard.

• Toz Giderimi: Tuş başlıkları arasındaki toz ve kalıntıları temizlemek için yumuşak bir fırça veya basınçlı hava kullanın.
• Yüzey Temizliği: Tuş başlıklarını ve klavye yüzeyini hafifçe kuru bir bezle silin.amp, tiftiksiz bir bez kullanın. Aşırı nemden kaçının.
• Tuş Takımının Çıkarılması: Use the provided keycap puller to carefully remove keycaps for deeper cleaning. Gently pull straight up on the keycap. Do not force it.

3.2 Suya Dayanıklılık

The Hexgears X5 keyboard features a water-resistant design with three drain holes on the underside to help prevent damage from accidental spills. While it offers protection, it is not fully waterproof. Avoid submerging the keyboard in liquid.

Image: The underside of the Hexgears X5 keyboard, illustrating the three drain holes designed to prevent water damage from spills.

4. Sorun Giderme

4.1 Bağlantı Sorunları

• Kablosuz Bağlantı Hatası:
  • USB dongle'ın çalışan bir USB portuna güvenli bir şekilde takılı olduğundan emin olun.
  • Verify the keyboard's power switch is in wireless mode.
  • Check the keyboard's battery level. Recharge if necessary using the USB-C cable.
  • Try plugging the dongle into a different USB port or a different computer to isolate the issue.
• Wired Connection Failure:
  • USB-C kablosunun hem klavyeye hem de bilgisayara sıkıca bağlı olduğundan emin olun.
  • Try using a different USB-C cable or a different USB port on your computer.

4.2 Keys Sticking or Not Registering

If keys are intermittently sticking, ghosting, or not registering, try the following:

• Re-plugging: If using wireless, try plugging the keyboard into wired mode, then unplugging it and returning to wireless. This can sometimes reset the connection.
• Temizlik: Dust or debris under the keycaps can cause issues. Refer to the "Cleaning the Keyboard" section for instructions on how to clean or remove keycaps.
• Pil Seviyesi: A low battery can sometimes lead to inconsistent key registration in wireless mode. Ensure the keyboard is fully charged.

4.3 Arka Aydınlatma Çalışmıyor

• Parlaklık Ayarı: Ensure the brightness is not set to minimum (off) using Fn + Down Arrow (for keys) or Fn + -_ (for side LED).
• Mod Seçimi: Cycle through different lighting modes using Fn + Ins, Fn + Home, or Fn + Del to see if the lights activate.
• Güç Döngüsü: Klavyeyi kapatıp tekrar açın.

5. Özellikler

6. Garanti ve Destek

For any issues encountered while using your Hexgears X5 Wireless Mechanical Keyboard, please contact Hexgears customer support. They aim to respond within 24 hours (excluding holidays).

Please refer to your purchase documentation or the official Hexgears webBelirli garanti koşulları ve iletişim bilgileri için siteyi ziyaret edin.

Hexgears Support: Visit the Hexgears Store on Amazon
