SawStop Compact Table Saw Folding Stand CTS-FS Instruction Manual

1. Giriş

This manual provides essential instructions for the safe and effective use of your SawStop Compact Table Saw Folding Stand, model CTS-FS. Designed specifically for SawStop's Compact Table Saw, this portable stand offers a sturdy work surface wherever needed. Please read this manual thoroughly before assembly and operation to ensure proper usage and to prevent injury or damage.

Temel Özellikler:

• Kompakt Depolama: Folds flat for easy storage.
• Güvenli Montaj: Custom brackets easily secure the saw to the stand.
• Depolama Boyutları: Approximately 5.5 inches (length) x 26.25 inches (width) x 39.25 inches (height) when folded.

2. Güvenlik Bilgileri

Always prioritize safety when working with power tools and accessories. Failure to follow these safety guidelines may result in serious injury or property damage.

Genel Güvenlik Yönergeleri:

• Tüm talimatları okuyunuz: Familiarize yourself with all instructions and warnings provided with both the stand and your SawStop Compact Table Saw.
• Kararlı Yüzey: Always place the stand on a firm, level, and stable surface to prevent tipping.
• Uygun Montaj: Kullanmadan önce tüm parçaların doğru şekilde monte edildiğinden ve sıkıldığından emin olun.
• Ağırlık Kapasitesi: Do not exceed the maximum weight capacity of the stand. This stand is designed for the SawStop Compact Table Saw.
• Çalışma Alanını Temizle: Çalışma alanınızı temiz ve iyi aydınlatılmış tutun. Dağınık veya karanlık alanlar kazalara davetiye çıkarır.
• Kişisel Koruyucu Donanım (KKD): Always wear appropriate PPE, including safety glasses, hearing protection, and suitable clothing, when operating power tools on the stand.
• Çocuklar ve Çevredekiler: Çocukları ve etraftaki kişileri çalışma alanından uzak tutun.
• Kullanmadan Önce İnceleyin: Before each use, inspect the stand for any damage, loose parts, or wear. Do not use if damaged.

3. Paket İçeriği

Verify that all items listed below are included in your package. If any parts are missing or damaged, contact SawStop customer service.

• SawStop Compact Table Saw Folding Stand (CTS-FS)
• SawStop Compact Table Saw Mounting Clamp (pre-installed or separate)

4. Kurulum ve Montaj

Follow these steps to set up your folding stand and attach your SawStop Compact Table Saw.

4.1 Standın Açılması

1. Katlanmış standı düz ve sağlam bir yüzeye yerleştirin.
2. Grasp the top frame and carefully pull the legs outwards until they lock into their open position. Ensure all four legs are fully extended and stable.

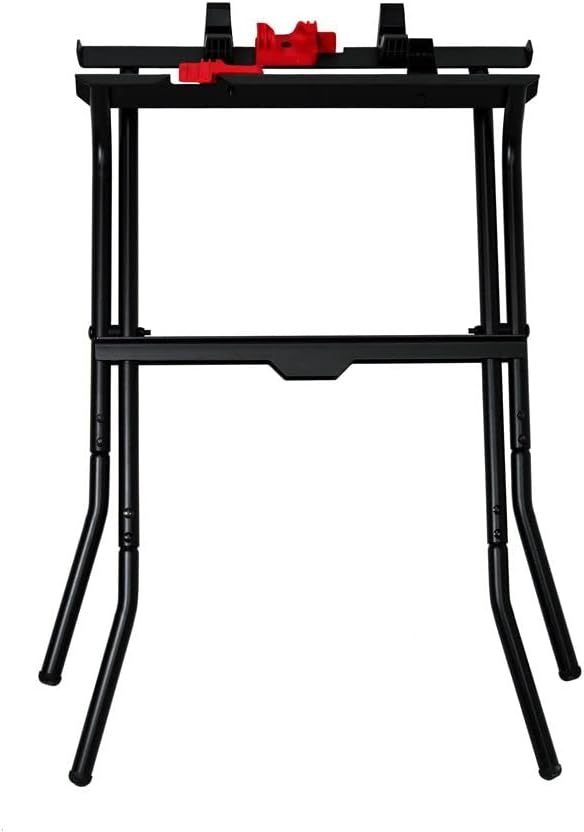

Resim Açıklaması: An image showing the SawStop Compact Table Saw Folding Stand fully unfolded and ready for use. The black metal frame forms an 'X' shape with support bars, and the top brackets are visible.

4.2 Attaching the Saw

The stand features custom brackets designed for secure attachment of the SawStop Compact Table Saw.

1. Align the mounting points on the bottom of your SawStop Compact Table Saw with the custom brackets on the stand.
2. Carefully lower the saw onto the stand, ensuring it sits flush and securely within the brackets.
3. Engage any locking mechanisms or clamps provided with the stand or saw to firmly secure the saw in place. Refer to your saw's manual for specific attachment instructions if necessary.

Resim Açıklaması: A SawStop Compact Table Saw is shown securely mounted on the folding stand. The saw's base fits perfectly into the stand's brackets, indicating a stable setup for operation.

5. Kullanım Talimatları

Once the stand is set up and the saw is securely attached, you are ready to begin your work. Always ensure the stand is on a stable surface before operating the saw.

5.1 Standın Kullanımı

• Verify the stand is stable and does not wobble.
• Ensure the saw is firmly attached to the stand before starting any cutting operations.
• Maintain a clear area around the stand to allow for safe material handling and movement.

5.2 Saklama için Katlanabilir

To fold the stand for compact storage:

1. First, remove the SawStop Compact Table Saw from the stand.
2. Locate the locking mechanisms on the legs (if applicable) and disengage them.
3. Carefully push the legs inwards until the stand folds flat. Ensure all parts are nested correctly for compact storage.

Resim Açıklaması: An image showing the SawStop Compact Table Saw Folding Stand in its fully folded, compact state, ready for storage or transport.

6. Bakım

Regular maintenance ensures the longevity and safe operation of your stand.

• Temizlik: Standı reklamla silin.amp Toz ve kalıntıları temizlemek için bir bez kullanın. Yüzeye zarar verebilecek sert kimyasallardan kaçının.
• Denetleme: Periodically check all bolts, screws, and locking mechanisms for tightness. Tighten any loose fasteners. Inspect the frame for any signs of damage, bends, or cracks.
• Yağlama: Lightly lubricate moving parts or pivot points if they become stiff, using a suitable lubricant.
• Depolamak: Store the stand in a dry, clean environment when not in use.

7. Sorun Giderme

This section addresses common issues you might encounter with the stand.

Stand is Unstable/Wobbles:

• Ensure the stand is placed on a completely flat and level surface.
• Verify that all legs are fully extended and locked into position.
• Check all fasteners for tightness and tighten if necessary.

Saw Does Not Fit Securely:

• Confirm that you are using the SawStop Compact Table Saw, as this stand is designed specifically for that model.
• Ensure the saw's mounting points are correctly aligned with the stand's brackets.
• Check for any obstructions preventing the saw from seating properly.

8. Özellikler

9. Garanti ve Destek

For warranty information, technical support, or to order replacement parts, please contact SawStop customer service. Refer to the official SawStop website or your product packaging for the most current contact details and warranty terms.

Çevrimiçi Kaynaklar: Visit the official SawStop webEk ürün bilgileri, SSS ve destek kaynakları için siteyi ziyaret edin.
