Tefal Convenient Series Deluxe Buharlı Pişirici Kullanım Kılavuzu

giriiş

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Tefal Convenient Series Deluxe Steamer. Please read it thoroughly before first use and keep it for future reference.

The Tefal Convenient Series Deluxe Steamer is designed for healthy and convenient cooking, featuring a simple touch screen, 8 cooking programs, and a multi-level design for preparing various dishes simultaneously. Its durable stainless steel containers ensure quality and taste.

Ürün Bittiview

Figure 1: Complete Steamer Unit with Rice Bowl. This image shows the Tefal Convenient Series Deluxe Steamer assembled with its three stainless steel steaming levels, glass lid, and the base unit. A separate rice bowl is shown next to it.

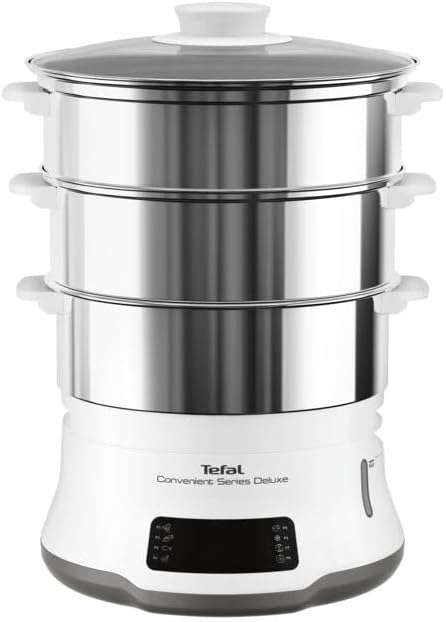

Şekil 2: Ön View of Steamer. This image provides a clear view of the steamer's front, highlighting the control panel and the water level indicator on the side.

Bileşenler:

• Ana ünite: Isıtma elemanı ve su haznesini içerir.
• Su deposu: For holding water for steaming.
• Kontrol Paneli: Digital touch screen for program selection and settings.
• Steaming Baskets (3 levels): Stainless steel containers for food.
• Kapak: Glass lid to cover the top steaming basket.
• Pirinç Kasesi: Accessory for cooking rice or other grains.

Kurmak

1. Paketin açılması: Tüm bileşenleri ambalajından dikkatlice çıkarın. Ambalajı, ilerideki depolama veya taşıma için saklayın.
2. İlk Temizlik: Before first use, wash all removable parts (steaming baskets, lid, rice bowl) with warm soapy water. Wipe the base unit with a damp Bez. Montajdan önce tüm parçaların tamamen kuru olduğundan emin olun.
3. Atama: Place the steamer on a stable, flat, heat-resistant surface, away from walls and other appliances to allow for proper ventilation.
4. Toplantı:
   • Place the base unit on the counter.
   • Fill the water reservoir with clean water up to the MAX fill line. Do not overfill.
   • Stack the steaming baskets onto the base unit. You can use one, two, or all three baskets depending on your cooking needs.
   • Place the lid securely on the top steaming basket.
5. Güç Bağlantısı: Güç kablosunu topraklı bir elektrik prizine takın.

Kullanım Talimatları

Genel İşlem:

• Ensure the water reservoir is filled before starting.
• Place food in the steaming baskets. For multi-level cooking, place foods requiring longer cooking times in the lower baskets.
• Kapağı sıkıca kapatın.
• Use the digital touch screen to select one of the 8 pre-programmed settings or manually adjust cooking time.
• Press the "Start/Stop" button to begin steaming.
• The steamer will automatically shut off when the cooking cycle is complete and emit an audible signal.
• For extended cooking, the steamer can operate for up to 45 minutes without refilling the water tank. Water can be refilled during operation if needed.

Figure 3: Digital Touch Screen Control Panel. This image highlights the intuitive touch screen with program selections (P1-P8), time adjustment buttons (+/-), and the Start/Stop button.

Figure 4: Steamer in Operation. This image shows the steamer actively cooking, with steam visible and prepared food (salmon, broccoli, rice) displayed next to it, demonstrating its multi-level cooking capability.

Pişirme Programları:

The steamer features 8 pre-set programs for various food types. Refer to the downloadable recipe book for detailed guidance on specific cooking times and food preparation.

Note: Cooking times are approximate and may vary based on food quantity, size, and desired doneness.

Bakım

Temizlik:

• Temizlemeden önce buharlı ütünün fişini çekin ve tamamen soğumasını bekleyin.
• The stainless steel containers and lid are dishwasher-safe for easy cleaning.
• Ana birimi reklamla silinamp Bez. Taban ünitesini suya veya başka bir sıvıya batırmayın.
• For stubborn food residue, soak the baskets in warm soapy water before cleaning.

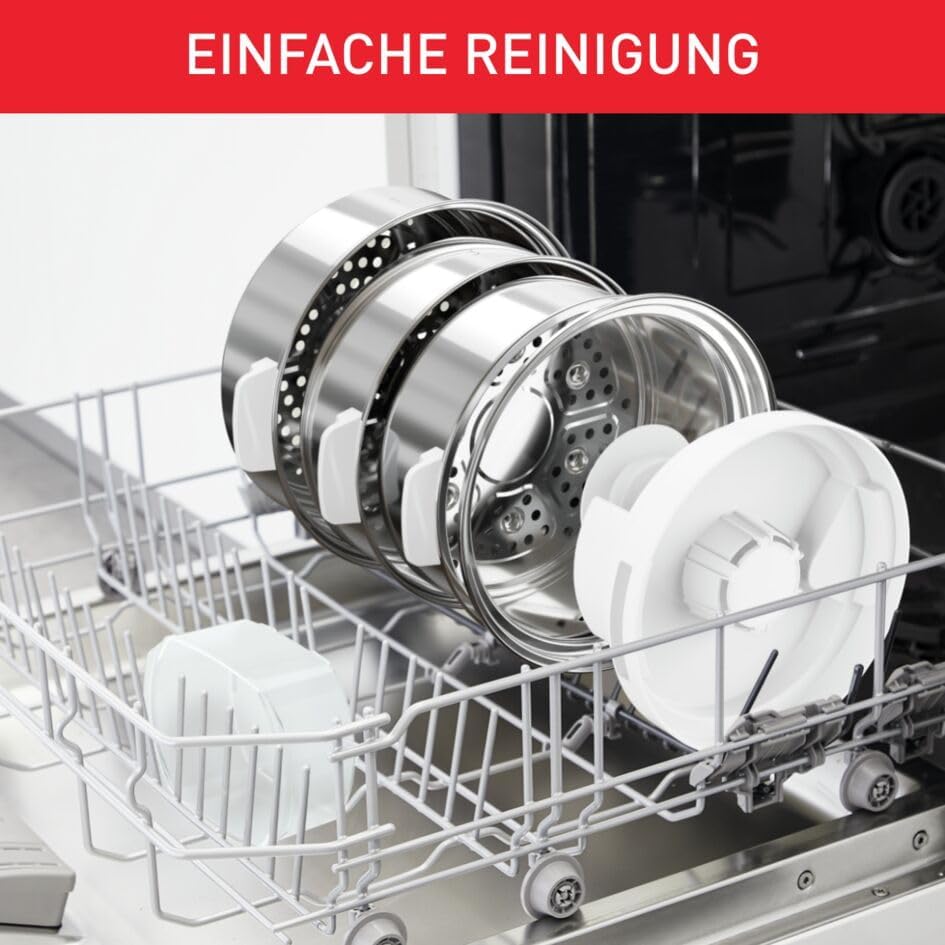

Figure 5: Dishwasher-Safe Components. This image illustrates the ease of cleaning, showing the stainless steel steaming baskets and other removable parts placed inside a dishwasher.

Kireç çözme:

Over time, mineral deposits (limescale) may build up in the water reservoir, especially in areas with hard water. Regular descaling is recommended to maintain optimal performance.

1. Eşit miktarda beyaz sirke ve suyu karıştırarak bir karışım hazırlayın.
2. Pour the solution into the water reservoir up to the MAX fill line.
3. Buhar makinesini yaklaşık 20-30 dakika boyunca yiyecek koymadan çalıştırın.
4. Unplug the steamer, allow it to cool, and then empty the reservoir.
5. Rinse the reservoir thoroughly with clean water several times to remove any vinegar odor.
6. Wipe the exterior of the base unit.

Depolamak:

The steamer features a space-saving design with stackable containers for easy storage. Ensure all parts are clean and dry before storing.

Figure 6: Compact Storage. This image demonstrates how the steamer's components can be stacked and stored efficiently within a kitchen cabinet, highlighting its space-saving design.

Sorun giderme

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Tefal customer support.

Özellikler

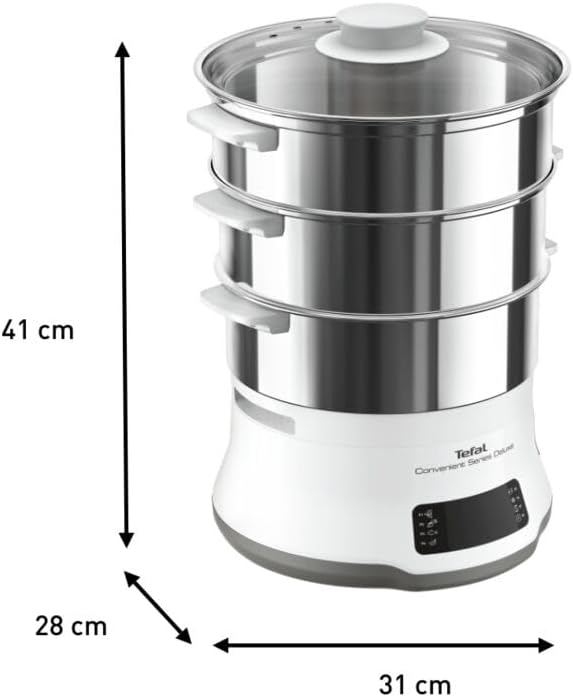

Figure 7: Product Dimensions. This image provides a visual representation of the steamer's height (41 cm), width (31 cm), and depth (28 cm), aiding in understanding its physical footprint.

Garanti ve Destek

Tefal products are designed for durability and quality. This product is backed by a commitment to 15 years of repairability.

For warranty claims, technical support, or to inquire about repairs, please visit the official Tefal webSiteyi ziyaret edin veya müşteri hizmetleri departmanıyla iletişime geçin. Garanti geçerliliği için satın alma belgenizi saklayın.
