Homech HM-AH003 Cool Mist Humidifier User Manual

1. Giriş

The Homech HM-AH003 Cool Mist Humidifier is designed to enhance your indoor environment by providing consistent and even mist. With its large 6-liter water tank, it offers extended operation without frequent refills. This ultrasonic humidifier operates quietly, making it ideal for bedrooms and other living spaces. It incorporates several safety features for reliable use.

Resim: Ön view of the Homech HM-AH003 Cool Mist Humidifier, showing its sleek white design and control dial.

2. Paket İçeriği

Lütfen aşağıdaki öğelerin kutucuğunu işaretleyin:

• 1 x Homech Nemlendirici (Model: HM-AH003)
• 1 x Temizleme Fırçası
• 1 x Toz Geçirmez Sünger
• 1 x Kullanıcı Kılavuzu

3. Kurulum Talimatları

1. Paketi aç: Tüm bileşenleri dikkatlice ambalajından çıkarın.
2. Atama: Place the humidifier on a flat, stable, and water-resistant surface at least 12 inches (30 cm) away from walls and appliances. Ensure the mist outlet is not directed at furniture or electronics.
3. Su deposunu doldur:
   • Nemlendiricinin üst kapağını çıkarın.
   • Locate the wide opening (9cm / 3.54in) for easy filling.
   • Pour clean, cool tap water directly into the tank. Do not exceed the maximum fill line.
   • Üst kapağı güvenli bir şekilde yerine takın.


   Image: Close-up of the humidifier's 6-liter water tank, highlighting its large capacity.



   Image: Diagram showing the enlarged opening for convenient water filling and cleaning, along with a concealed portable handle.
4. Gücü bağlayın: Plug the power cord into a suitable AC100-120V 50/60Hz electrical outlet.

4. Kullanım Talimatları

4.1 Power On/Off and Mist Control

1. Güç Açık: Turn the control dial clockwise from the 'OFF' position. The humidifier will start operating.
2. Sis Seviyesini Ayarla: Continue turning the control dial clockwise to increase the mist output, or counter-clockwise to decrease it.
3. Kapat: Turn the control dial counter-clockwise to the 'OFF' position.

4.2 Gece Lambası Fonksiyonu

The humidifier features a warm night light (2700K) for added comfort.

• Gece Işığını Etkinleştir: Press the light bulb button once to turn on the warm night light.
• Parlaklığı Ayarla: Press the light bulb button repeatedly to cycle through brightness levels (brightest, medium, low) and off.

Image: The humidifier emitting a warm night light, creating a cozy ambiance.

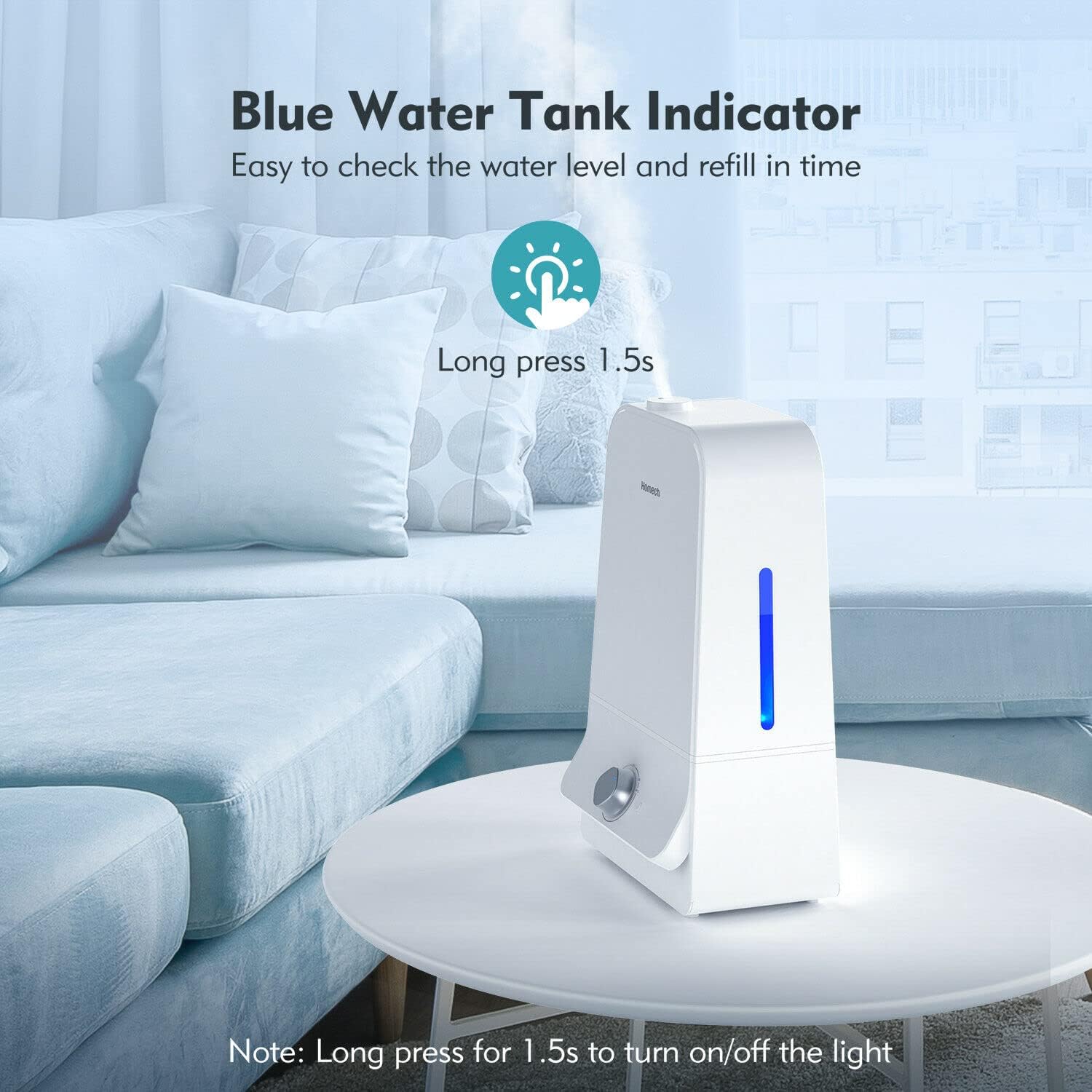

Image: The humidifier displaying a blue water tank indicator, making it easy to check water levels.

4.3 Night Mode (Sleep Mode)

For undisturbed sleep, activate Night Mode:

• Press the moon icon button to enter Night Mode. In this mode, the humidifier operates at a reduced mist output (approximately 150ml/h) and the night light is turned off.
• Press the moon icon button again to exit Night Mode.

Image: The humidifier is shown operating quietly, emphasizing its virtually silent ultrasonic mist technology.

4.4 Zamanlayıcı İşlevi

Set the humidifier to operate for a specific duration:

• Press the timer button to cycle through available timer settings (e.g., 2 hours, 4 hours, 8 hours). The corresponding indicator light will illuminate.
• The humidifier will automatically shut off once the set time has elapsed.

4.5 Max Mist Function

For maximum humidity output:

• Press the 'MAX' mist button. The humidifier will operate at its highest mist output (approximately 500ml/h) for a set duration (e.g., 1 hour).
• The humidifier will revert to its previous setting or turn off after the max mist duration.

Image: The humidifier producing a mist that reaches 1 meter (3.3 feet) high, ensuring even distribution without dampening the floor.

4.6 360° Rotatable Nozzle

The humidifier features a 360-degree rotatable nozzle, allowing you to direct the mist in any desired direction for optimal coverage.

5. Bakım

Regular cleaning is essential to prevent mineral buildup and ensure optimal performance and hygiene.

5.1 Günlük Bakım

• Su deposunu her gün boşaltın ve durulayın.
• Wipe the base and mist outlet with a clean, dry cloth.

5.2 Haftalık Temizlik

1. Fişi çekin: Temizlemeden önce nemlendiricinin fişini mutlaka çekin.
2. Demonte: Remove the water tank and any detachable parts.
3. Temiz Su Tankı: Use the provided cleaning brush to scrub the inside of the tank. For mineral buildup, fill the tank with a mixture of white vinegar and water (1:1 ratio) and let it soak for 30 minutes. Rinse thoroughly.
4. Temiz Temel: Gently wipe the base with a soft cloth dampened with white vinegar or a mild descaling solution. Do not immerse the base in water.
5. Durulayın ve Kurutun: Rinse all parts thoroughly with clean water and allow them to air dry completely before reassembling.

6. Sorun Giderme

7. Özellikler

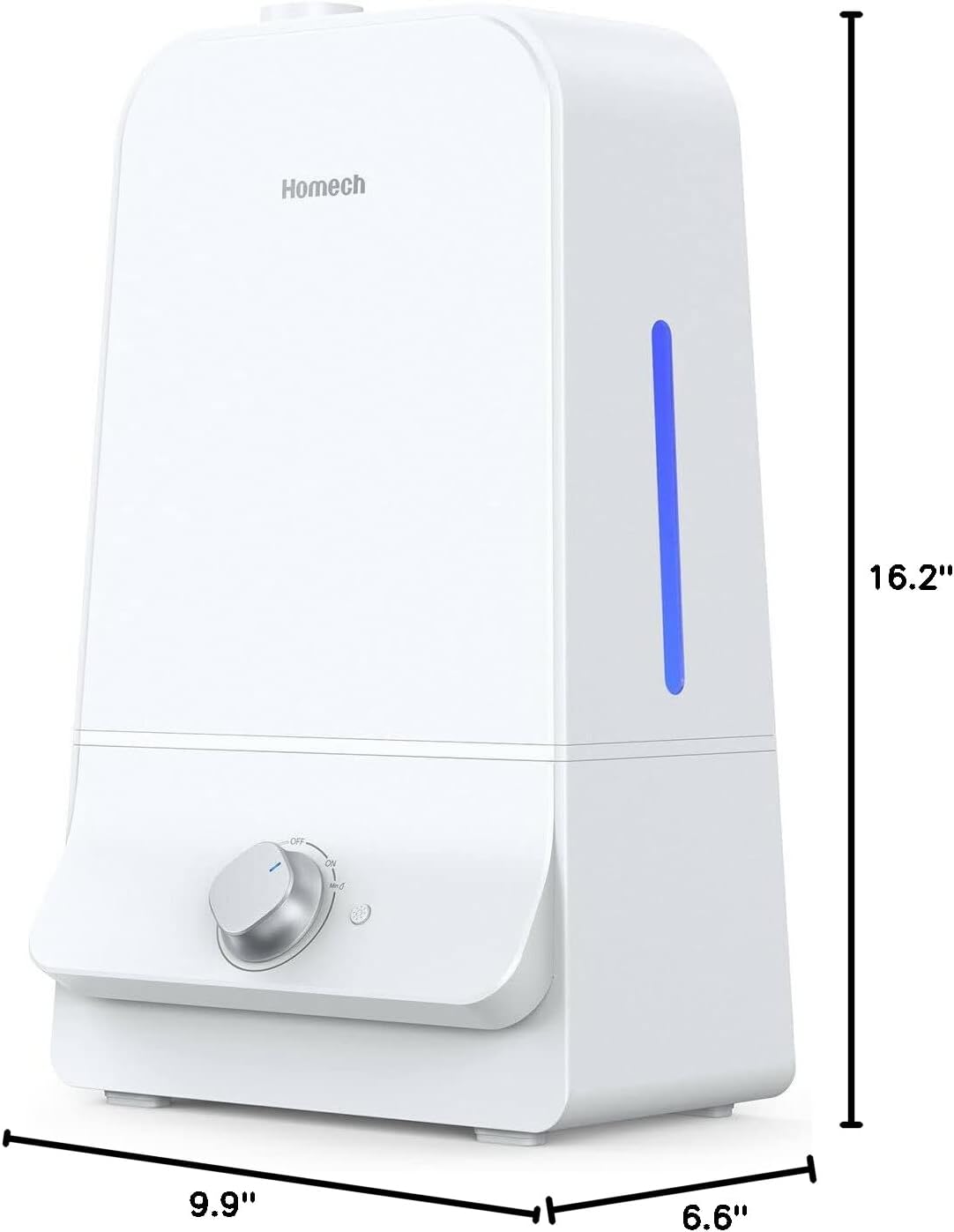

Image: The humidifier with its dimensions (height, width, depth) clearly indicated.

8. Garanti ve Destek

For warranty information or technical support, please refer to the warranty card included in your package or contact Homech customer service directly. Keep your purchase receipt for warranty claims.

If you require further assistance, please contact the manufacturer's support team. Contact details are typically found in the user guide or on the manufacturer's official webalan.
