1. Giriş
Thank you for choosing the LUITON Speaker Microphone. This device is designed to enhance your two-way radio communication experience by providing clear audio transmission and reception, even in challenging environments. Its robust construction ensures durability and reliable performance.
This manual provides essential information for the proper setup, operation, and maintenance of your speaker microphone. Please read it thoroughly before use to ensure optimal performance and longevity of the product.
Image 1: LUITON Speaker Microphone with key features labeled, including impact-resistant housing, side PTT, detachable swivel clip, 3.5mm audio jack, high-performance speaker and microphone, sturdy strain relief, and PU cable reinforced by Kevlar fiber.
2. Ürün Özellikleri
- Ağır Hizmet Tipi İnşaat: Features a strong reinforced PU cable and durable coil cord, designed for high tensile strength and long-life use.
- Detachable Swivel Clip: Includes a rugged, replaceable swivel clip for secure attachment to clothing or gear.
- High Quality Audio: Equipped with an omni-directional microphone and electret speaker to transmit and receive clear sound, even in noisy environments.
- Kolay Kullanım: Simple push-to-talk (PTT) button for intuitive communication.
- Uyumluluk: Designed for a wide range of Motorola APX and XPR series radios.
Resim 2: Yakın çekim view of the speaker microphone's durable coiled cord, highlighting the sturdy strain relief and the PU cable reinforced by Kevlar fiber with a diameter of 4.8mm.
3. Paket İçeriği
The LUITON Speaker Microphone package includes:
- 1 x LUITON Speaker Microphone (Model LUITON-M0001)
- 1 x Garanti Kartı
4. Uyumluluk
This speaker microphone is compatible with the following Motorola two-way radio models:
- Motorola APX Series: APX 4000, APX 6000, APX 7000, APX 8000
- Motorola XPR Series: XPR 6350, XPR 6550, XPR 7350, XPR 7550
Ensure your radio model is listed above for proper functionality.
5. Kurulum Talimatları
Follow these steps to connect your LUITON Speaker Microphone to your compatible Motorola radio:
- Herhangi bir aksesuar bağlamadan önce radyonuzun kapalı olduğundan emin olun.
- Locate the microphone jack on the side of your Motorola radio.
- Align the multi-pin connector of the LUITON Speaker Microphone with the radio's microphone jack.
- Gently but firmly insert the connector until it is fully seated. Do not force the connection.
- Once connected, you can power on your radio.
Resim 3: Yakın çekim view of the speaker microphone's high-quality multi-pin connector (Pogo Pin) designed for secure connection to compatible radios.

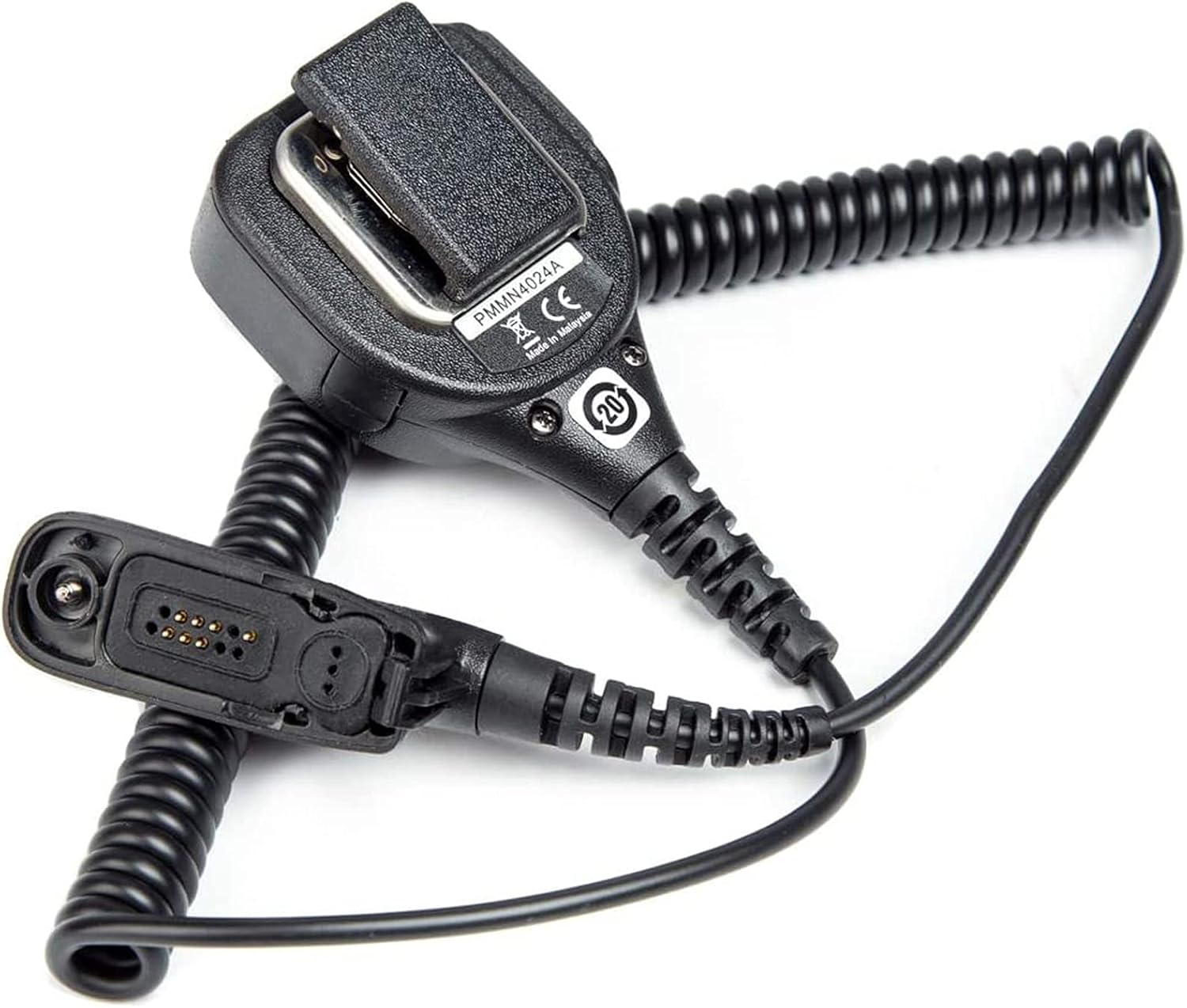

Image 4: The LUITON Speaker Microphone with its coiled cable and multi-pin connector, ready for attachment to a radio.
6. Kullanım Talimatları
Using your LUITON Speaker Microphone is straightforward:
- İletmek İçin: Press and hold the Push-to-Talk (PTT) button located on the side of the speaker microphone. Speak clearly into the microphone.
- Almak İçin: Release the PTT button. Audio will be heard through the speaker on the microphone.
- Sesi Ayarlama: Adjust the volume directly on your radio unit. The speaker microphone's volume is controlled by the radio's master volume.
- Using the Swivel Clip: Attach the speaker microphone to your uniform, vest, or belt using the detachable swivel clip for convenient access.
Resim 5: Ön view of the LUITON Speaker Microphone, showing the speaker grille and the LUITON brand logo.
7. Bakım ve Özen
To ensure the longevity and optimal performance of your speaker microphone, follow these maintenance guidelines:
- Temizlik: Wipe the exterior of the microphone with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no moisture enters the speaker grille or microphone opening.
- Depolamak: Store the microphone in a dry, cool place away from direct sunlight and extreme temperatures when not in use.
- Kablo Bakımı: Avoid sharp bends or excessive pulling on the cable. The reinforced PU cable is designed for durability, but proper handling will extend its life.
- Konnektör Koruması: Keep the multi-pin connector clean and free from dirt or debris. Avoid bending the pins.
- Döner Klips: Periodically check the swivel clip for secure attachment and wear. It is designed to be replaceable if needed.
8. Sorun Giderme
If you encounter issues with your LUITON Speaker Microphone, refer to the following common problems and solutions:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Hoparlör mikrofonundan ses gelmiyor | Loose connection; Radio volume too low; Radio not powered on; Faulty unit. | Ensure connector is fully seated. Increase radio volume. Power on radio. Test with another radio if possible. |
| İletim yapılamıyor (PTT çalışmıyor) | Loose connection; PTT button malfunction; Radio not in transmit mode. | Check connection. Ensure PTT button is fully pressed. Verify radio settings. |
| Bozuk veya net olmayan ses | Microphone/speaker obstruction; Environmental noise; Damaged cable. | Clear any obstructions. Move to a quieter area. Inspect cable for damage. |
| Swivel clip is loose or broken | Wear and tear; Improper handling. | The clip is detachable and replaceable. Contact customer support for a replacement if needed. |
If the problem persists after attempting these solutions, please contact LUITON customer support for further assistance.
9. Özellikler
| Özellik | Detay |
|---|---|
| Model Adı | LUITON-M0001 |
| Marka | LUITON |
| Bağlantı Teknolojisi | Multi-pin connector (8-pin) |
| Mikrofon Form Faktörü | Lavalier / Shoulder Microphone |
| Kutup Deseni | Çok yönlü |
| Empedans | 2200 Ohm |
| Muhafaza Malzemesi | Plastik |
| Kablo Tipi | Reinforced PU cable & durable coil cord |
| Özel Özellik | Detachable Swivel Clip, Noise Reduction |
| Dahil Bileşenler | Garanti Kartı |
10. Garanti ve Müşteri Desteği
LUITON provides a warranty for this speaker microphone to ensure your satisfaction.
- Garanti Süresi: Ürün satın alma tarihinden itibaren 6 ay garantilidir.
- Garanti Kapsamı: This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, accidents, or unauthorized modifications.
- İade Süreci: LUITON offers a simple and convenient return process.
- Müşteri Hizmetleri: For warranty claims, technical support, or any inquiries regarding your LUITON Speaker Microphone, please refer to the contact information provided on your warranty card or visit the official LUITON webalan.
Your satisfaction is 100% guaranteed.
