Ezcap Bluetooth Cassette Player User Manual

giriiş

This manual provides comprehensive instructions for the operation and maintenance of your Ezcap Bluetooth Cassette Player. Please read this manual thoroughly before using the device to ensure proper function and to maximize your listening experience. This portable cassette player allows you to enjoy your classic cassette tapes and transmit the audio wirelessly via Bluetooth to compatible receivers, or through wired headphones and speakers.

Güvenlik Bilgileri

• Cihazı aşırı sıcaklıklara, neme veya doğrudan güneş ışığına maruz bırakmayın.
• Cihazı düşürmekten veya güçlü darbelere maruz bırakmaktan kaçının.
• Cihazı kendiniz sökmeyin veya tamir etmeye çalışmayın. Tüm servis işlemlerini yetkili personele yaptırın.
• Use only specified power sources (2 AA batteries or DC 5V USB power).
• Cihazı su veya diğer sıvılardan uzak tutun.
• When using headphones, avoid excessively high volume levels for prolonged periods to prevent hearing damage.

Paket İçeriği

Paketin içinde tüm öğelerin mevcut olduğundan emin olun:

• Ezcap Bluetooth Cassette Player
• USB-DC Power Cable
• Earbuds (3.5mm jack)
• Kullanım Kılavuzu (bu belge)

Image: Contents of the Ezcap Bluetooth Cassette Player package, showing the player, wired earbuds, a USB power cable, and the instruction manual.

Ürün Bittiview

Familiarize yourself with the various parts and controls of your cassette player.

Resim: Ön view of the Ezcap Bluetooth Cassette Player, highlighting its compact design and the transparent window for viewing the cassette tape.

Resim: Yan view of the cassette player, indicating the location of the volume control dial, the slide-down mechanism to open the cassette compartment, and the 3.5mm AUX port for headphones or external speakers.

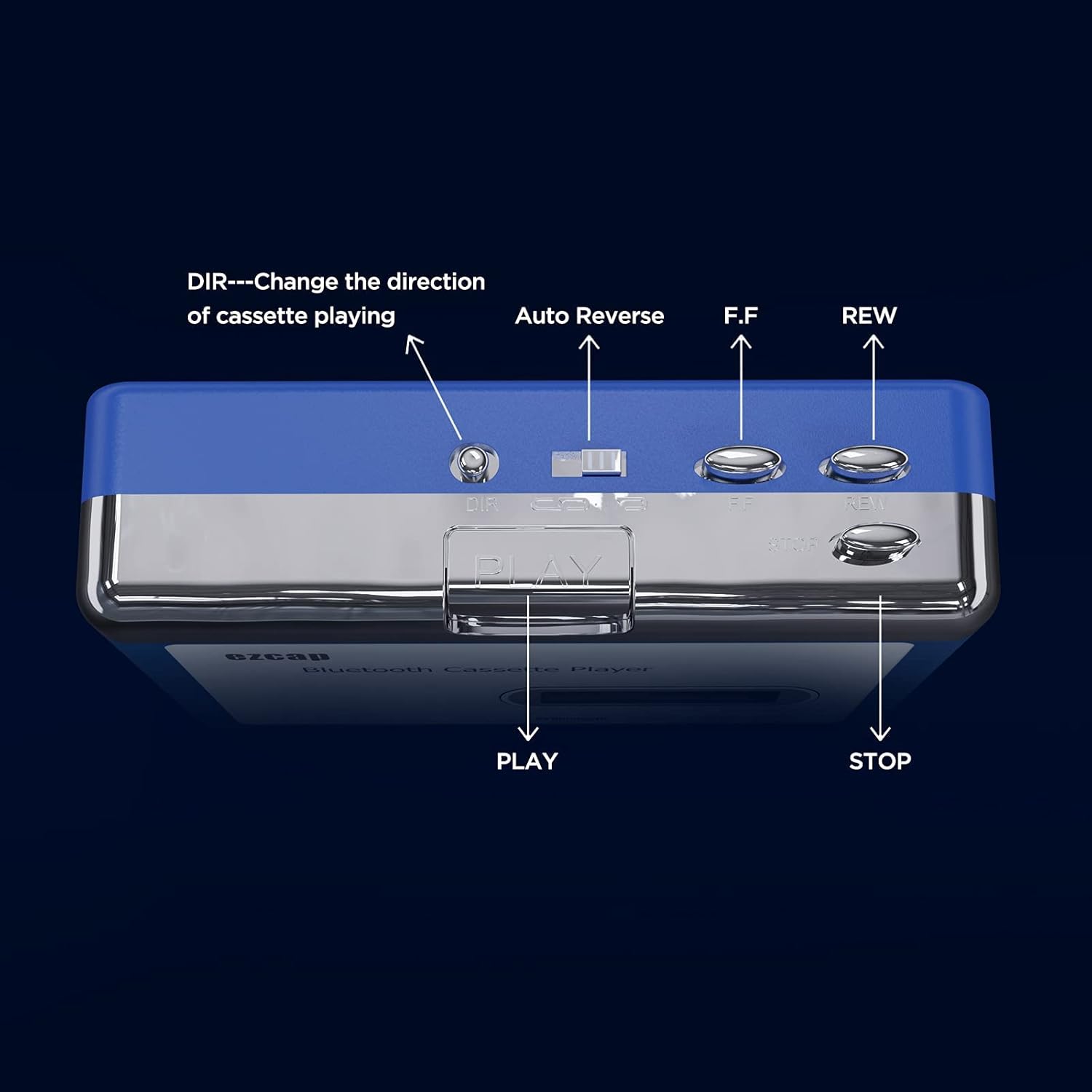

Resim: Üst view of the cassette player, detailing the control buttons: DIR (direction change), Auto Reverse switch, Fast Forward (F.F.), Rewind (REW), Play, and Stop buttons.

Kurmak

Cihazın Güçlendirilmesi

Your Ezcap Bluetooth Cassette Player can be powered in two ways:

• AA Piller: Insert two (2) AA batteries into the battery compartment located on the back of the device. Ensure correct polarity (+/-).
• USB Gücü: Connect the included USB-DC power cable to the DC 5V port on the side of the player. Plug the USB end into a USB power adapter (not included), a computer USB port, or a power bank.

Image: Illustration of the two power options for the cassette player: using a DC adapter connected via USB cable or inserting two AA batteries.

Kaset Takma

1. Slide down the "OPEN" switch on the side of the player to open the cassette compartment door.
2. Carefully insert your cassette tape with the open side facing upwards.
3. Kaset bölmesinin kapağını yerine oturana kadar sıkıca kapatın.

Kullanım Talimatları

Temel Oynatma

• Oynatmayı başlatmak için, OYNAMAK düğme.
• Çalmayı durdurmak için DURMAK düğme.
• Hızlı ileri sarmak için, FF düğme.
• Geri sarmak için, YENİDEN düğme.

Auto Reverse Function

The player features an auto-reverse function, allowing continuous playback of both sides of a cassette tape without manually flipping it.

• To activate auto-reverse, slide the Otomatik Geri Vites switch to the desired position (usually indicated by arrows for continuous play).
• To manually change the playback direction, press the YÖN düğme.

Volume Control and Audio Output

• Oynatma ses seviyesini aşağıdaki komutları kullanarak ayarlayın. HACİM dial on the side of the device.
• Connect the included earbuds or your own 3.5mm headphones/speakers to the AUX Bağlantı Noktası for wired audio output.

Bluetooth İletim

The Ezcap Bluetooth Cassette Player can transmit audio from your cassette tapes to a Bluetooth receiver (e.g., Bluetooth headphones, speakers) up to 10 meters away.

1. Ensure the cassette player is powered on (via AA batteries or USB).
2. Turn on your Bluetooth receiver and set it to pairing mode.
3. The cassette player will automatically begin searching for Bluetooth receivers. The LED indicator will flash quickly during the search.
4. Once successfully paired, the LED will flash slowly.

Not: If the device cannot pair within approximately three minutes, it will stop searching, and the LED will turn off. To restart the Bluetooth search, power off the cassette player and then power it back on.

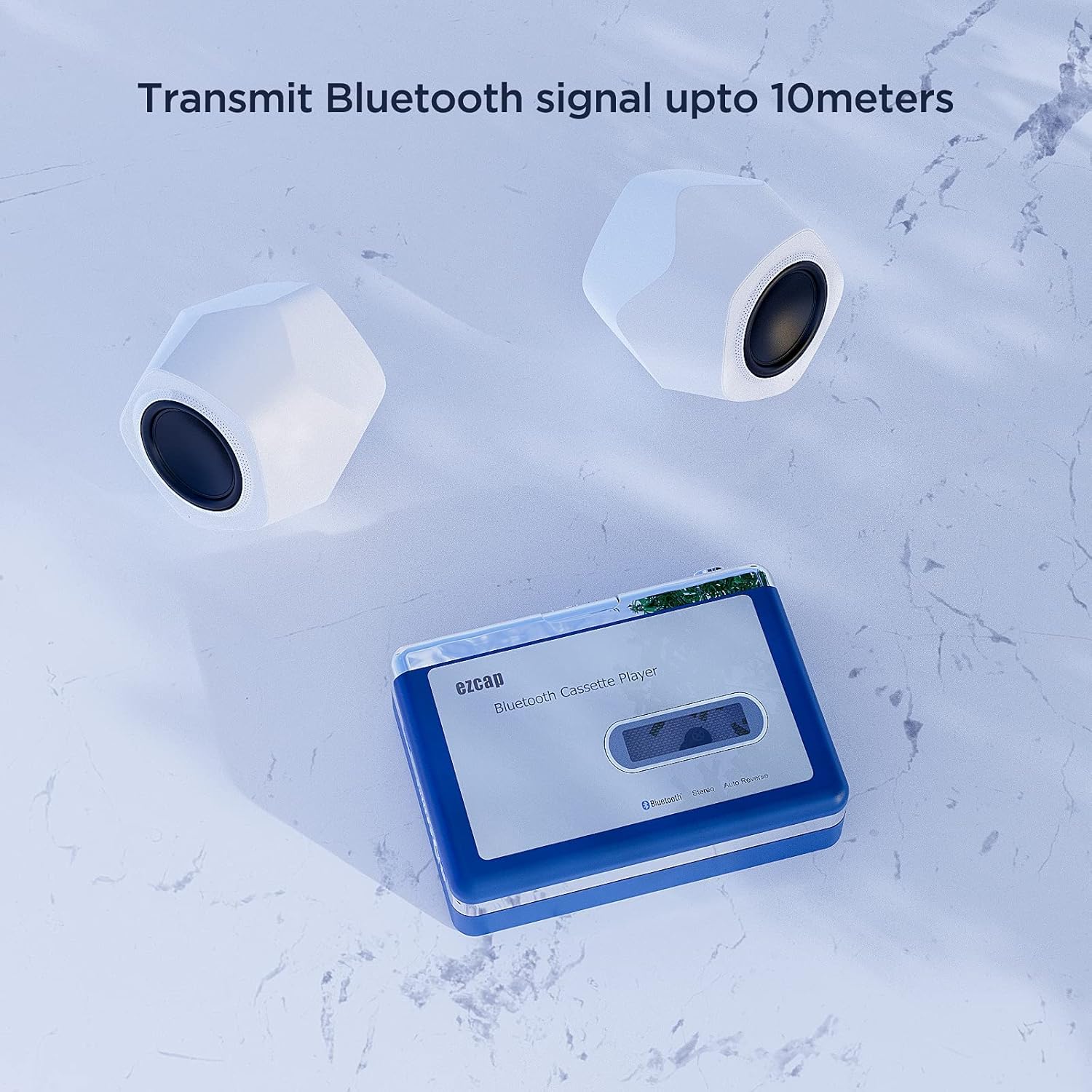

Image: The cassette player wirelessly transmitting audio to two Bluetooth speakers, illustrating its capability to send audio signals up to 10 meters.

Bakım

• Temizlik: Cihazın dışını temizlemek için yumuşak ve kuru bir bez kullanın. Sıvı temizleyiciler veya aerosoller kullanmayın.
• Bant Kafaları: Bant başlıklarını ve sıkıştırma silindirlerini periyodik olarak pamuklu çubukla hafifçe temizleyin.ampEn iyi ses kalitesini sağlamak ve kasetin zarar görmesini önlemek için izopropil alkol ile sonlandırılmıştır.
• Depolamak: When not in use for extended periods, remove the AA batteries to prevent leakage. Store the device in a cool, dry place away from dust.

Sorun giderme

Özellikler

Garanti ve Destek

This product comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included in your product packaging or visit the official ezcap website. For technical support, troubleshooting assistance, or service inquiries, please contact ezcap customer support through their official channels.

Daha fazla bilgi ve destek kaynaklarına şu adresten ulaşabilirsiniz: ezcap Amazon Store.
