Marathon Motors Fan Blower Motor B304 48S17D2056 User Manual

1. Giriş

This manual provides essential information for the safe installation, operation, and maintenance of your Marathon Motors Fan Blower Motor, model B304 48S17D2056. This motor is designed for fan and blower applications, featuring 1/3 horsepower, 1800 RPM, and 115V single-phase operation. Please read this manual thoroughly before installation and use to ensure proper function and to prevent injury or damage.

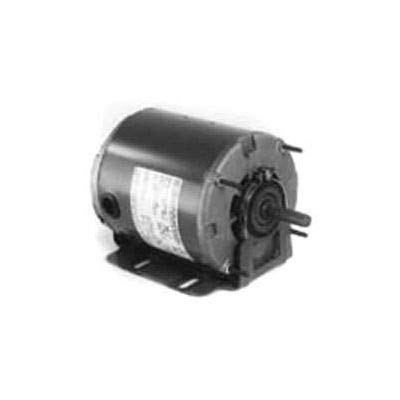

Image 1.1: The Marathon Motors Fan Blower Motor, model B304 48S17D2056. This image shows the compact design of the motor, typically used in HVAC and industrial fan systems.

2. Güvenlik Bilgileri

UYARI: Bu güvenlik talimatlarına uyulmaması elektrik çarpmasına, yangına, ciddi yaralanmalara veya ölüme neden olabilir.

• Always disconnect power before installing, servicing, or cleaning the motor.
• Kurulum ve kablolama işlemleri, tüm yerel ve ulusal elektrik yönetmeliklerine uygun olarak, yetkili bir elektrikçi tarafından yapılmalıdır.
• Ensure the motor is properly grounded to prevent electrical shock.
• Motor hasarlıysa veya herhangi bir kablosu yıpranmış veya açıkta kalmışsa motoru çalıştırmayın.
• Çalışma sırasında ellerinizi, giysilerinizi ve aletlerinizi hareketli parçalardan uzak tutun.
• Motorun aşırı ısınmasını önlemek için motorun çevresinde yeterli havalandırma olduğundan emin olun.
• Do not expose the motor to moisture or extreme temperatures unless specifically rated for such conditions.
• Yalnızca orijinal yedek parçalar kullanın.

3. Paket İçeriği

Verify that all items are present and undamaged upon opening the package. If any items are missing or damaged, contact your supplier immediately.

• Marathon Motors Fan Blower Motor (Model B304 48S17D2056)
• Kullanım Kılavuzu (bu belge)
• (Note: Mounting hardware and electrical connectors are typically sold separately and are not included.)

4. Kurulum

4.1 Motorun Montajı

The motor should be securely mounted to a stable, vibration-free surface. Ensure that the mounting bolts are tightened to the manufacturer's specifications. Proper alignment with the fan or blower assembly is crucial to prevent premature wear and vibration.

• Select a mounting location that provides sufficient clearance for ventilation and maintenance.
• Use appropriate mounting hardware (not included) that can support the motor's weight and operational forces.
• Ensure the motor shaft is correctly aligned with the driven equipment (e.g., fan blade, blower wheel) to minimize stress on bearings.
• Tighten all mounting bolts evenly and securely.

4.2 Elektrik Bağlantısı

DİKKAT: All electrical work must be performed by a qualified professional. Ensure power is disconnected at the source before making any connections.

• Tedarik hacminin doğrulandığını doğrulayıntage, motorun nominal hacmiyle eşleşir.tage (115V, 1PH).
• Connect the motor's power leads to the appropriate circuit using approved wiring methods and connectors.
• Ensure proper grounding of the motor frame to a reliable earth ground.
• Consult the motor's wiring diagram (typically found on the motor nameplate or in accompanying documentation) for specific connection details.

Typical wiring for a single-phase motor involves connecting the line (hot), neutral, and ground wires. Refer to the motor's specific terminal markings.

4.3 Dönme Yönü

Some fan blower motors may have reversible rotation. Consult the motor's wiring diagram or nameplate for instructions on how to change the direction of rotation, if applicable and required for your application. Incorrect rotation can lead to inefficient operation or damage to the fan/blower system.

5. Kullanım Talimatları

5.1 İlk Çalıştırma

• Gücü vermeden önce tüm elektrik bağlantılarını ve montaj güvenliğini iki kez kontrol edin.
• Ensure no obstructions are present around the fan or blower assembly.
• Apply power to the motor. Observe the motor for any unusual noises, vibrations, or excessive heat.
• Confirm the correct direction of rotation for your application.
• Herhangi bir anormallik tespit edilirse, derhal elektriği kesin ve nedenini araştırın.

5.2 Normal Çalışma

During normal operation, the motor should run smoothly with minimal noise and vibration. Periodically monitor the motor for:

• Unusual noises (grinding, squealing, humming).
• Aşırı titreşim.
• Overheating (the motor casing should be warm, but not excessively hot to the touch).
• Changes in performance of the driven equipment.

6. Bakım

Regular maintenance helps ensure the longevity and efficient operation of your motor. Always disconnect power before performing any maintenance.

6.1 Temizlik

• Keep the motor exterior clean and free from dust, dirt, and debris. Accumulation can impede cooling and lead to overheating.
• Use a soft, dry cloth or compressed air to clean the motor. Do not use liquids or solvents unless specifically approved for electrical components.
• Havalandırma açıklıklarının açık olduğundan emin olun.

6.2 Yağlama

This motor typically features permanently lubricated bearings, requiring no routine lubrication. If your specific motor model has grease fittings, consult the motor's nameplate or manufacturer's documentation for recommended lubricant type and lubrication schedule.

6.3 Muayene

Motoru periyodik olarak aşağıdaki hususlar açısından kontrol edin:

• Loose mounting bolts or connections.
• Signs of wear or damage to wiring.
• Corrosion or rust on the motor casing.
• Unusual bearing noise (indicating potential bearing failure).

7. Sorun Giderme

Before attempting any troubleshooting, ensure power is disconnected. If you are unable to resolve an issue, contact a qualified technician.

8. Özellikler

The following are the key specifications for the Marathon Motors Fan Blower Motor, model B304 48S17D2056:

• Marka: Genel
• Model Adı: B304 48S17D2056
• Beygir Gücü: 0.33 HP (1/3 HP)
• Hız: 1800 RPM
• Cilttage: 115 Volt
• Faz: 1 Phase (1PH)
• Çerçeve: 48Y FR (Frame)
• Malzeme: Bakır (sargılar)
• Ürün Ağırlığı: Yaklaşık 15 pound
• Üretici: Genel
• ASIN: B08J79F1CB

9. Garanti ve Destek

For warranty information and technical support, please refer to the documentation provided at the time of purchase or contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, you may contact the seller, CSH Electric Motor Supply, or the manufacturer, Generic, through their official channels.
