giriiş
This manual provides essential instructions for the safe installation, operation, and maintenance of your Hinkley Weymouth 20015BK Large Wall Mount Outdoor Lantern. Please read all instructions carefully before beginning installation and retain this manual for future reference.

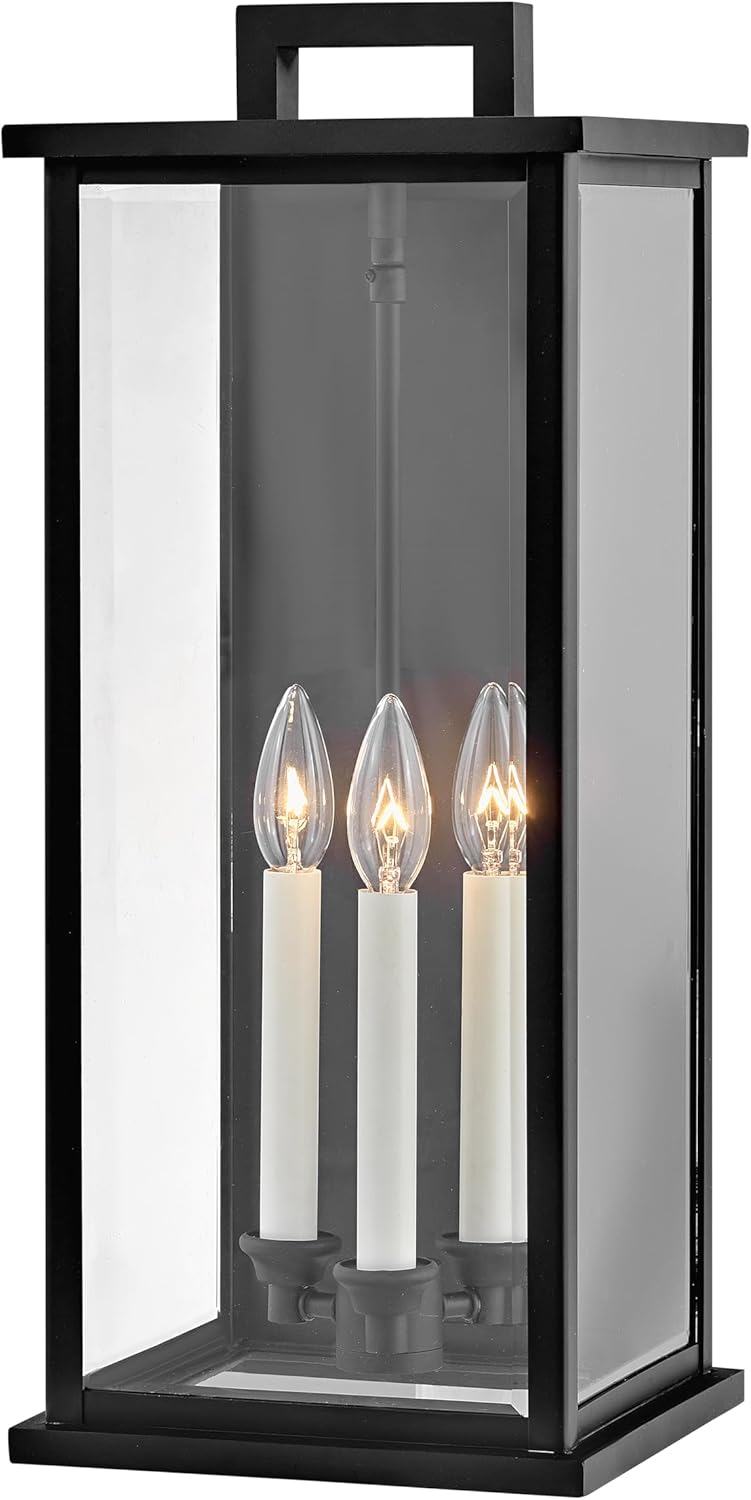

Image: Hinkley Weymouth Large Wall Mount Outdoor Lantern (Model 20015BK).
Ürün Özellikleri:
- Traditional aluminum design with a black finish.
- Features clear beveled glass panels.
- Requires three Candelabra (E12) base LED bulbs (5W max each, not included).
- Suitable for wet locations, meeting UL & CSA Product Safety Standards.
- Dimmable when used with compatible bulbs and dimmer switch.
Güvenlik Bilgileri
- UYARI: Kurulum veya bakım işlemlerinden önce devre kesiciden elektriği kesin.
- DİKKAT: All wiring connections must be in accordance with local and national electrical codes. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
- Armatürün uygun şekilde topraklandığından emin olun.
- Maksimum su miktarını aşmayıntage, ampuller için belirtilmiştir.
Kurulum ve Yükleme
Professional installation is recommended for this hardwired fixture. Refer to the official installation manual for detailed, step-by-step instructions and diagrams.
Başlamadan önce:
- Ana sigortadan elektriği kapatın.
- Carefully unpack the fixture and inspect for any damage.
- Ensure all parts listed in the official manual are present.
Genel Kurulum Adımları:
- Montaj braketini bağlantı kutusuna takın.
- Make electrical connections (ground, neutral, hot) according to local codes.
- Armatürü montaj braketine sabitleyin.
- Install the required bulbs (three Candelabra E12 base LED, 5W max each).
- Attach any glass panels or decorative elements as per the manual.
Resim: Montaj planlaması için ürün boyutları.
For complete installation details, please download the official Installation Manual (PDF): Hinkley Weymouth Installation Manual
Kullanım Talimatları
The Hinkley Weymouth Outdoor Lantern is designed for simple operation once installed.
- Güç Açık: Ensure the fixture is properly installed and wired. Turn on the power at the circuit breaker.
- Işık Aktivasyonu: Operate the lantern using the wall switch connected to the fixture's electrical circuit.
- Karartma (İsteğe bağlı): If using dimmable LED bulbs and a compatible dimmer switch, adjust the light intensity as desired.
Ampul Gereksinimleri:
- Tip: Candelabra (E12) base LED bulbs.
- Miktar: 3 bulbs.
- Netage: Maximum 5 watts per bulb.
Resim: Eskiample of compatible LED bulbs.
Bakım
Regular maintenance will help preserve the appearance and functionality of your outdoor lantern.
- Temizlik: Aydınlatma armatürünü düzenli olarak yumuşak bir bezle temizleyin.amp cloth. Avoid abrasive cleaners, solvents, or polishes as they may damage the finish.
- Cam Bakımı: Clean glass panels with a mild glass cleaner.
- Ampul Değişimi: Ensure power is off at the circuit breaker before replacing bulbs. Allow bulbs to cool completely before handling.
- Denetleme: Periodically check for loose connections, damaged wiring, or signs of wear. Address any issues promptly.
Sorun giderme
If your Hinkley Weymouth Outdoor Lantern is not functioning as expected, refer to the following common issues and solutions:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Işık açılmıyor. | Armatürde güç yok. | Devre kesiciyi ve duvar şalterini kontrol edin. Elektriğin geri geldiğinden emin olun. |
| Işık açılmıyor. | Bulbs are faulty or incorrectly installed. | Replace bulbs with new ones. Ensure bulbs are screwed in tightly. |
| Işık titriyor veya sönük. | Loose wiring connection or incompatible dimmer. | Turn off power and check wiring connections. Ensure bulbs and dimmer are compatible. |
| Armatürün içinde su var. | Montaj sırasında yanlış sızdırmazlık. | Turn off power. Inspect and reseal mounting surface if necessary. Consult installation manual. |
If troubleshooting steps do not resolve the issue, contact a qualified electrician or Hinkley customer support.
Özellikler
| Bağlanmak | Değer |
|---|---|
| Marka | Hinkley |
| Model Numarası | 20015BK |
| Ürün Boyutları | 9"U x 9"G x 22"Y |
| Ürün Ağırlığı | 11.5 Pound |
| Bitiş Türü | Siyah |
| Malzeme | Aluminum (Frame), Glass (Shade) |
| Montaj Tipi | Duvara Montaj |
| Işık Sayısı | 3 |
| Işık Kaynağı Türü | LED (Candelabra E12 base) |
| Maksimum VattagAmpul başına e | 5 watt |
| Cilttage | 120 Volt |
| Su Direnç Seviyesi | Water Resistant (Suitable for wet locations) |
| Güvenlik Standartları | UL & CSA Product Safety Standards |
| Özel Özellikler | Kısılabilir, Kablolu |
Garanti ve Destek
For detailed warranty information regarding your Hinkley Weymouth Outdoor Lantern, please refer to the official Hinkley website or contact Hinkley customer service directly. Warranty terms typically cover manufacturing defects and may vary.
Müşteri Desteği:
If you require assistance with installation, operation, or have questions about your product, please contact Hinkley customer support. You can often find contact information on the manufacturer's official website veya ürünün satın alındığı perakendeci aracılığıyla.
