MAGNANI Hot Water Dispenser User Manual

Modeli: 8719831798667

1. Giriş

Thank you for choosing the MAGNANI Hot Water Dispenser. This appliance is designed to provide hot water quickly and efficiently for various beverages and culinary needs. Please read this manual thoroughly before first use to ensure safe operation and optimal performance. Keep this manual for future reference.

MAGNANI Hot Water Dispenser and its packaging

Image 1.1: The MAGNANI Hot Water Dispenser shown with its retail packaging.

2. Güvenlik Talimatları

Yangın, elektrik çarpması ve kişisel yaralanma riskini azaltmak için elektrikli aletleri kullanırken her zaman temel güvenlik önlemlerine uyun.

  • Cihazı çalıştırmadan önce tüm talimatları okuyun.
  • Cihazı, kablosunu veya fişini suya veya başka sıvılara batırmayın.
  • Ses seviyesini garantileyintagCihazda belirtilen değer yerel şebeke voltajınıza uygundurtage.
  • Cihazı çocukların erişemeyeceği yerlerde saklayınız.
  • Hasarlı bir kablo veya fiş ile cihazı çalıştırmayın.
  • Sıcak yüzeylerle temasından kaçının. Kulp veya düğme kullanın.
  • Always unplug the dispenser when not in use and before cleaning.
  • Cihazı kullanım amacı dışında kullanmayın.
  • The appliance is equipped with two thermostats for overheat protection. Do not attempt to bypass these safety features.
  • Place the dispenser on a stable, flat, heat-resistant surface, away from the edge of the countertop.

3. Ürün Bileşenleri

Familiarize yourself with the parts of your MAGNANI Hot Water Dispenser:

  • Su Tankı: 2.5-liter capacity with a clear water level window.
  • Dağıtım Ağzı: Where hot water is released.
  • Control Panel/Button: For activating dispensing and setting functions.
  • Çıkarılabilir Damlama Tepsisi: Collects spills and drips, with a stainless steel lid.
  • Güç Kablosu: Elektrik prizine bağlanmak için.

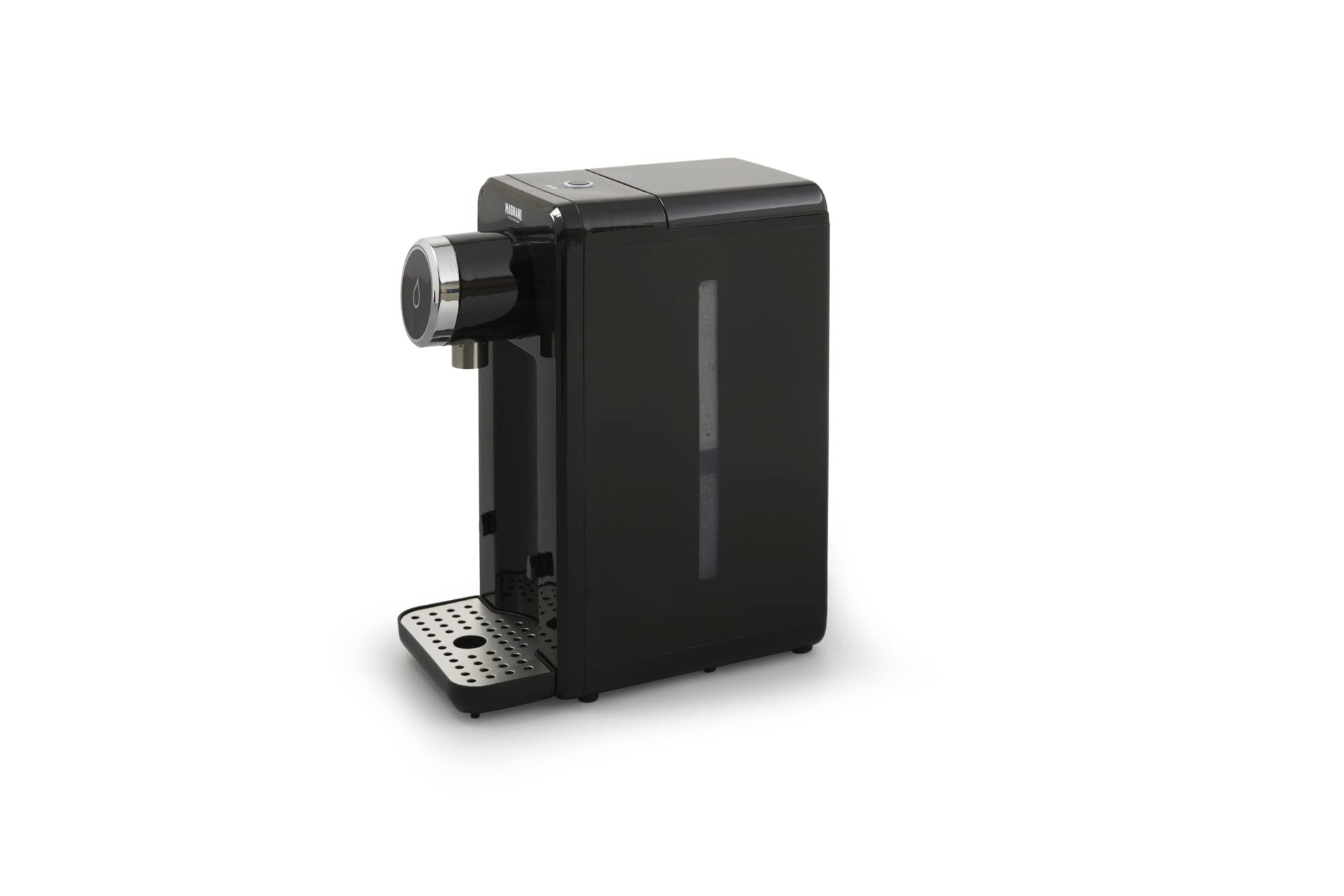

Taraf view of MAGNANI Hot Water Dispenser showing water level window

Resim 3.1: Yan view illustrating the water level window on the dispenser.

4. Kurulum

  1. Paketin açılması: Dağıtıcıyı ambalajından dikkatlice çıkarın. Ambalajı, ilerideki taşıma veya depolama için saklayın.
  2. Atama: Place the dispenser on a dry, stable, and level surface. Ensure there is adequate space around the unit for ventilation.
  3. İlk Temizlik: İlk kullanımdan önce dış yüzeyini bir ad ile silin.amp cloth. Remove the drip tray and wash it with warm, soapy water, then rinse and dry thoroughly.
  4. Su deposunu doldur: Open the water tank lid and fill the tank with fresh, cold tap water. Do not exceed the maximum fill line. The tank has a 2.5-liter capacity.
  5. Gücü bağlayın: Güç kablosunu topraklı bir elektrik prizine takın.

5. Kullanım Talimatları

The MAGNANI Hot Water Dispenser is designed for quick and convenient hot water delivery.

5.1 Sıcak Su Dağıtımı

  1. Su deposunun dolu olduğundan ve cihazın fişinin takılı olduğundan emin olun.
  2. Place your cup or container on the drip tray, directly under the dispensing spout. The height can be adjusted for different cup sizes.
  3. Press the dispensing button (often indicated by a water drop icon) to start the flow of hot water. The water will heat to 95-100°C in approximately 5-10 seconds.
  4. You can choose between a constant flow rate or a pre-set 200 ml flow. For a constant flow, press and hold the button. For 200 ml, a quick press may suffice (refer to specific model button functions if available). The dispenser can heat 400-500ml of water per minute.
  5. Su akışını durdurmak için düğmeye tekrar basın.

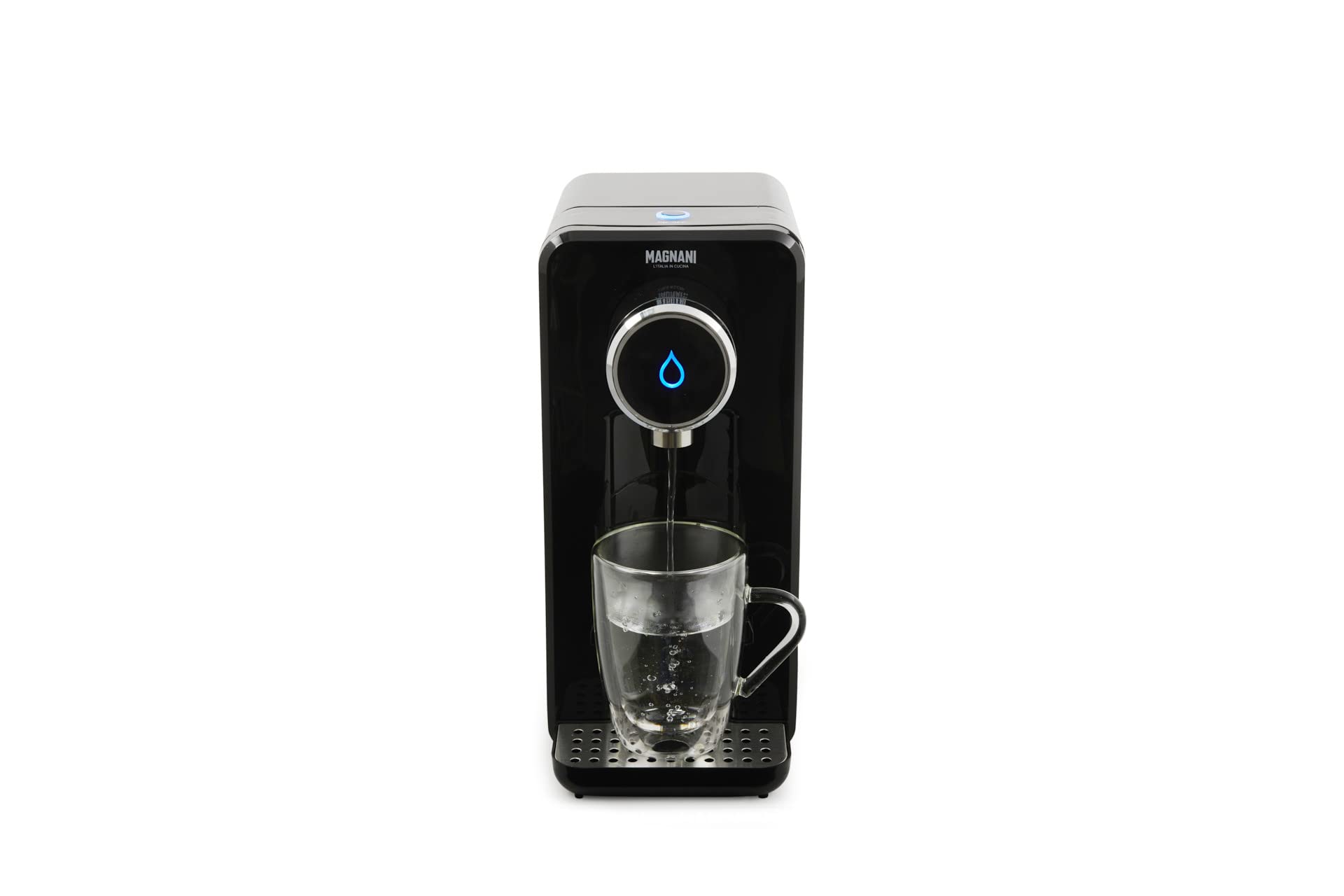

Ön view of MAGNANI Hot Water Dispenser dispensing water into a glass

Image 5.1: The dispenser actively releasing hot water into a glass.

5.2 Zamanlayıcı İşlevi

The dispenser includes an integrated timer that can be set between 1 and 60 minutes. This feature allows for scheduled operation or automatic shut-off.

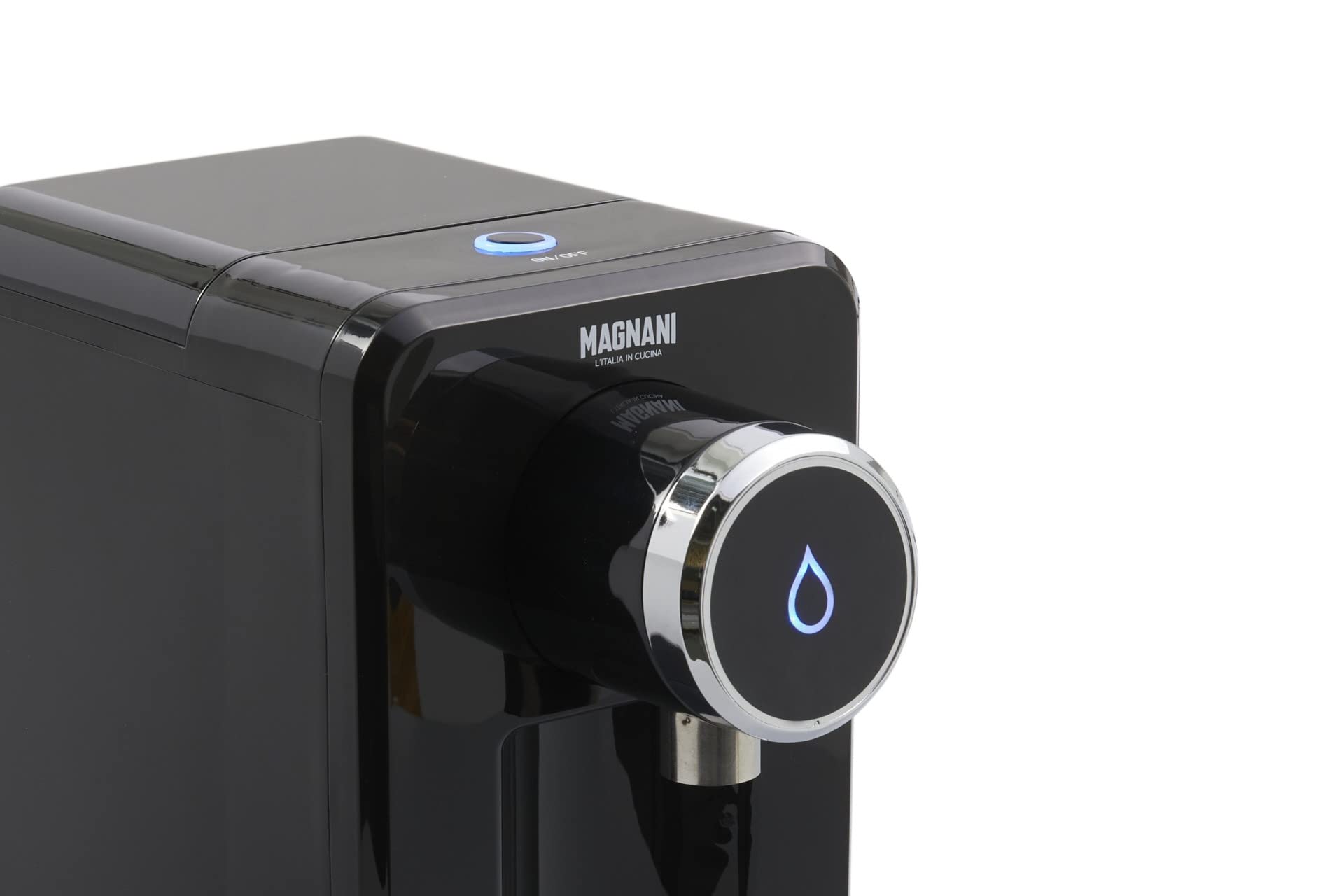

Close-up of the control knob with illuminated water drop icon on MAGNANI Hot Water Dispenser

Image 5.2: Detail of the control knob, which typically includes the dispensing and timer controls.

6. Bakım ve Temizlik

Regular cleaning ensures the longevity and hygienic operation of your dispenser.

  1. Fişi çekin: Temizlemeden önce cihazın fişini mutlaka prizden çekin ve tamamen soğumasını bekleyin.
  2. Dış Temizlik: Dış yüzeyleri yumuşak, damp bez. Aşındırıcı temizleyiciler veya ovma süngerleri kullanmayın.
  3. Damlama tepsisi: The drip tray is removable for easy cleaning. Lift it out, empty any collected water, and wash it with warm, soapy water. Rinse thoroughly and dry before reinserting.
  4. Su Tankı: Periodically rinse the water tank with fresh water. For thorough cleaning, a mild descaling solution designed for kitchen appliances can be used, following the product's instructions. Ensure all descaling solution is rinsed out before refilling with water.
  5. Kireç çözme: Depending on water hardness, descaling may be required every 1-3 months. Use a suitable descaling agent and follow its instructions carefully. After descaling, run several cycles of fresh water through the dispenser to flush out any residue.

7. Sorun Giderme

If you encounter issues with your hot water dispenser, refer to the following table for common problems and solutions.

SorunOlası NedenÇözüm
Güç yokAppliance not plugged in; power outlet faulty; fuse tripped.Ensure plug is securely in outlet; test outlet with another appliance; check household fuse/circuit breaker.
Su ısınmıyorWater tank empty; internal heating element issue.Fill water tank; if problem persists, contact customer support.
Su akışı zayıf veya düzensizdir.Mineral buildup (limescale); low water level.Descale the appliance; ensure water tank is adequately filled.
Su sebiliinden su sızıyor.Drip tray full; water tank not seated correctly; internal seal issue.Empty drip tray; ensure water tank is properly installed; if leaking persists, discontinue use and contact support.
Zamanlayıcı çalışmıyorIncorrect setting; temporary electronic glitch.Review operating instructions for timer setting; unplug and replug the unit to reset.

8. Özellikler

Technical details for the MAGNANI Hot Water Dispenser:

  • Model Numarası: 8719831798667
  • Cilttage Giriş: 220-240VAC - 50/60 Hz
  • Güç: 2200-2600W
  • Sıcaklık Aralığı: 95-100°C
  • Zamanlayıcı Aralığı 1-60 dakika
  • Su Tankı Kapasitesi: 2.5 Litre
  • Boyutlar (Y x G x D): 30x14x24 cm
  • Ağırlık: 1.7 kilo
  • Malzeme: Plastik ve Paslanmaz Çelik
  • Renk: Siyah
  • Özel Özellikler: Overheat Protection, Removable Drip Tray, Water Level Indicator

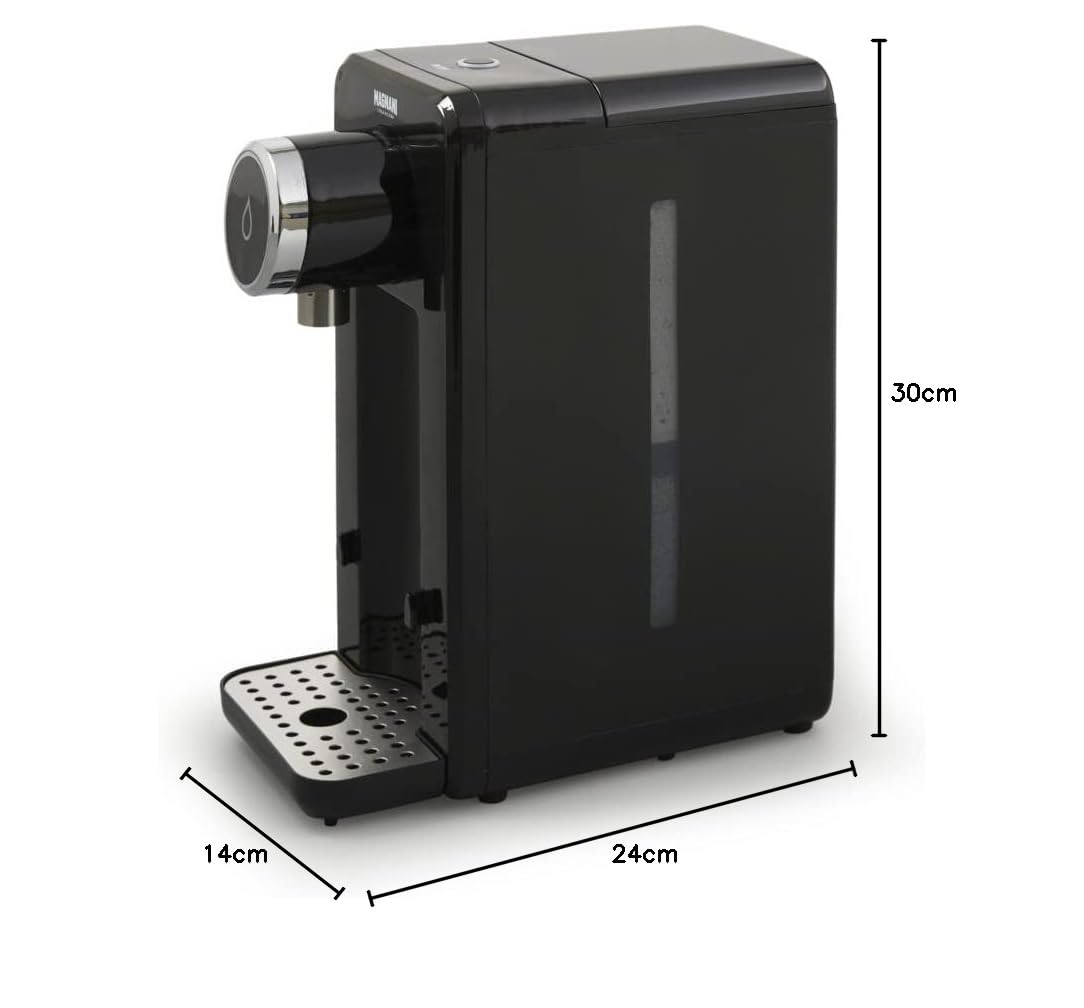

MAGNANI Hot Water Dispenser with dimensions labeled: 30cm height, 14cm width, 24cm depth

Image 8.1: Product dimensions for the MAGNANI Hot Water Dispenser.

9. Garanti ve Destek

For warranty information or technical support, please refer to the warranty card included with your product or contact your retailer. Keep your proof of purchase for any warranty claims.
