giriiş
The Definitive Technology Demand D17 High-Performance Tower Speakers are engineered to deliver full-range, room-filling sound with precise imaging. Featuring advanced acoustic technologies, these speakers are designed for an immersive audio experience in both Hi-Fi and home theater setups. This manual provides essential information for the proper setup, operation, and maintenance of your D17 speakers.
Güvenlik Talimatları
- Atama: Ensure speakers are placed on a stable, level surface to prevent tipping. Keep them away from heat sources, direct sunlight, and moisture.
- Havalandırma: Do not block any ventilation openings. Proper airflow is essential for preventing overheating.
- Güç: Bunlar pasif hoparlörlerdir ve harici bir güç kaynağına ihtiyaç duyarlar. ampLifier veya alıcı. Emin olun amplifier's output power matches the speaker's impedance and power handling capabilities.
- Kablolar: Use high-quality speaker cables and ensure all connections are secure to prevent short circuits or damage to your equipment.
- Temizlik: Disconnect from power before cleaning. Use a soft, dry cloth. Avoid liquid cleaners or aerosols.
- Servis: Do not attempt to service these speakers yourself. Refer all servicing to qualified service personnel.
Paket İçeriği
Paketinizin aşağıdaki öğeleri içerdiğini doğrulayın:
- Definitive Technology Demand D17 Tower Speaker (Left)
- Manyetik Izgara
- Stabilizer Feet/Spikes (for carpeted surfaces) or Glides (for hard floors)
- Kullanım Kılavuzu (bu belge)
Kurmak
1. Paketten çıkarma
Hoparlörü ambalajından dikkatlice çıkarın. İlerideki taşıma veya saklama için tüm ambalaj malzemelerini saklayın.
2. Attaching Stabilizer Feet
The D17 speakers are designed to be floor-standing. Attach the included stabilizer feet to the base of the speaker. Use spikes for carpeted floors to penetrate the carpet and couple the speaker to the subfloor, or use glides for hard surfaces to protect the floor and provide stability.
3. Hoparlör Yerleşimi
Optimal speaker placement is crucial for sound quality. Position the speakers equidistant from your primary listening position. Experiment with toe-in (angling the speakers slightly towards the listener) to achieve the best stereo imaging. Keep speakers away from corners and walls to avoid excessive bass resonance.
Image: Definitive Technology Demand D17 speakers in a living room, illustrating typical placement.
4. Sizinle Bağlantı Kurmak Ampyükseltici/Alıcı
The D17 speakers feature high-quality binding posts for secure connections. Use appropriate gauge speaker wire for the distance between your amplifier and speakers. Connect the positive (+) terminal of the speaker to the positive (+) terminal of the ampyükseltici ve hoparlörün negatif (-) terminali, hoparlörün negatif (-) terminaline bağlanır. amplifier. Ensure all connections are tight and free from stray wire strands that could cause a short circuit.
Image: Rear panel of the D17 speaker with binding posts for amplifer bağlantısı.
Kullanım Talimatları
1. Initial Playback
Once connected, select your audio source on your amplifier/receiver and begin playback at a low volume. Gradually increase the volume to a comfortable listening level. Verify that sound is coming from both speakers and that the stereo image is balanced.
2. Alıştırma Süreci
Like many high-performance speakers, the Demand D17 benefits from a break-in period. During the first 50-100 hours of use, the drivers will loosen up and reach their optimal performance. You may notice an improvement in bass response and overall clarity as the speakers break in. Play a variety of music at moderate volumes during this period.
3. Amplifier Uyumluluğu
Sizin emin olun amplifier is capable of driving an 8-ohm load and provides sufficient power for your listening preferences. While the D17 speakers are efficient, a quality amplifier will allow them to perform at their best.
Bakım
Kabinin Temizlenmesi
Use a soft, lint-free cloth to gently wipe the speaker cabinet. For stubborn marks, slightly dampen the cloth with water. Avoid harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish.
Izgarayı Temizleme
The magnetic grille can be carefully removed. Use a soft brush or a vacuum cleaner with a brush attachment on a low setting to remove dust from the grille fabric.
Driver Care
Avoid touching the speaker drivers (tweeter, midrange, woofers) directly, as this can cause damage. If dust accumulates, use a soft brush or compressed air from a distance.
Sorun giderme
- Ses Yok:
- Hem hoparlör hem de hoparlördeki tüm hoparlör kablosu bağlantılarını kontrol edin amplifier. Ensure positive (+) and negative (-) terminals are correctly matched.
- Doğrulayın ampAmplifikatör açık ve doğru giriş kaynağı seçilmiş durumda.
- Kontrol et amplifier's volume level and mute settings.
- Bozuk Ses:
- Ses seviyesini düşürün. Bozulma genellikle şu durumlarda meydana gelir: amplifier aşırı hızlanmış.
- Inspect speaker wires for frayed strands or loose connections.
- Ensure the speaker impedance is compatible with your ampcankurtaran.
- Ses kaynağında bozulma olup olmadığını kontrol edin.
- Unbalanced Sound (one speaker louder/softer):
- Arızalı hoparlörün hoparlör kablosu bağlantılarını kontrol edin.
- Verify the balance settings on your ampkaldırıcı/alıcı.
- Ensure both speakers are placed symmetrically in the room.
Özellikler

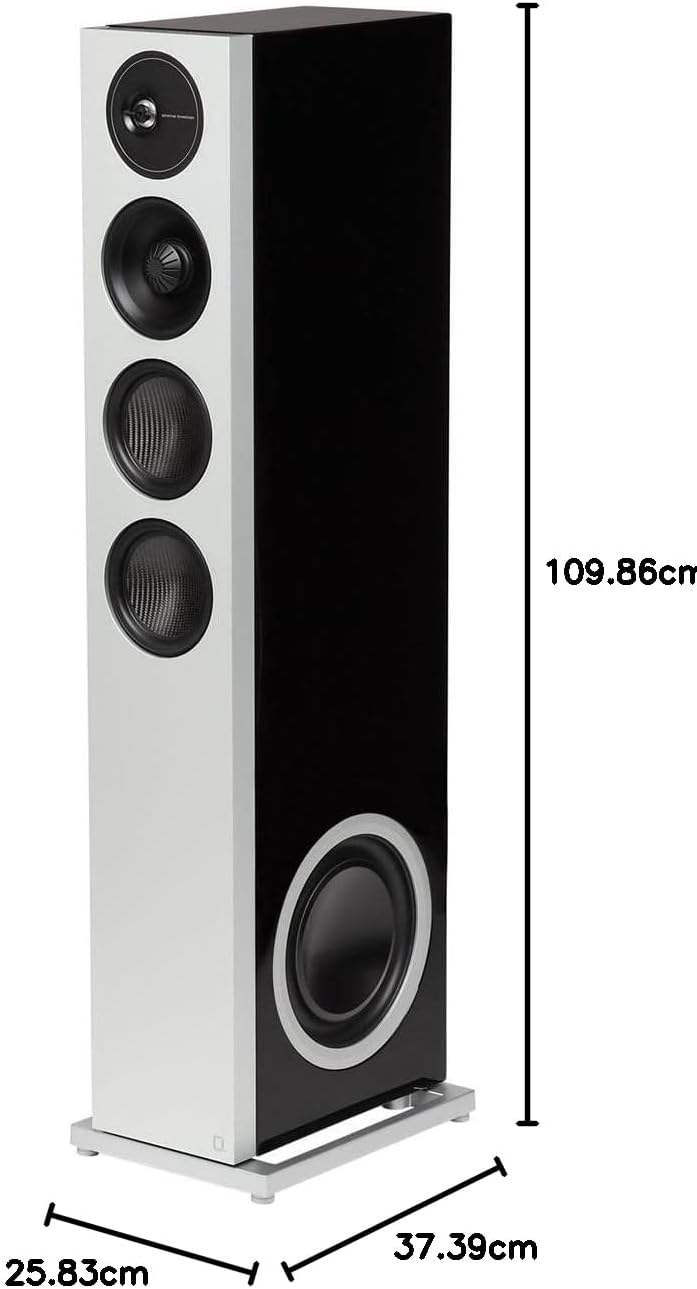

Image: Dimensions of the D17 Tower Speaker.
| Özellik | Şartname |
|---|---|
| Model Numarası | 300025-01-00-005 |
| Hoparlör Tipi | Tower, 3-way full-range |
| Boyutlar (Y x G x D) | 109.86 cm x 25.83 cm x 37.39 cm (43.25 inç x 10.17 inç x 14.72 inç) |
| Ağırlık | 3.95 kg (8.7 lbs) |
| Tweeter Çapı | 1 Inch (Annealed Aluminum Dome) |
| Woofer Çapı | 10 Inches (Carbon Fiber) |
| orta seviye sürücü | 6.5 Inches (BDSS - Balanced Double Surround System) |
| Empedans | 8 Ohm |
| Hoparlör Maksimum Çıkış Gücü | 3 Watts (Note: This typically refers to a minimum amplifier power for safe operation, not the speaker's maximum handling capacity. Consult your amplifier's manual for compatible loads.) |
| Bağlantı Teknolojisi | Coaxial (via binding posts) |
| Muhafaza Malzemesi | Alüminyum |
| Belirli Kullanımlar | Home theater, Hi-Fi audio listening |
Garanti Bilgileri
Definitive Technology provides a 5 yıllık üretici garantisi for the Demand D17 Tower Speakers. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the warranty card included with your product or visit the official Definitive Technology webalan.
Destek
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Definitive Technology customer support. You can typically find contact information on the official Definitive Technology websitemizden veya yetkili satıcınız aracılığıyla temin edebilirsiniz.
Çevrimiçi Kaynaklar: Ziyaret edin Definitive Technology Store on Amazon Ek ürün bilgisi ve destek için.
