AKDY KF0010 Ticari Tip Yaylı Boyunlu Aşağı Çekilebilir Mutfak Bataryası Kullanım Kılavuzu

1. Giriş

Thank you for choosing the AKDY KF0010 Commercial Style Spring Neck Pulldown Kitchen Faucet. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet. Please read these instructions thoroughly before installation and retain them for future reference.

2. Güvenlik Bilgileri

Herhangi bir kurulum veya bakım işlemine başlamadan önce ana su kaynağını mutlaka kapatın.
Montaj sırasında güvenlik gözlüğü ve eldiven gibi uygun kişisel koruyucu ekipman kullanın.
Sızıntıları önlemek için tüm bağlantıların güvenli olduğundan emin olun.
Kurulum sürecinin herhangi bir noktasında emin değilseniz, kalifiye bir tesisatçıya danışın.

3. Paket İçeriği

Kuruluma başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun:

AKDY KF0010 Faucet Body
Tek Kolu
Püskürtme Başlığı
Yardım hatları
All necessary Mounting Hardware

4. Özellikler

Özellik	Detay
Marka	AKDİ
Önerilen Kullanımlar	Mutfak
Montaj Tipi	Tek delikli
Bitiş Türü	Krom
Malzeme	Pirinç
Renk	Krom
Kol Sayısı	1
Delik Sayısı	1
Özel Özellik	Kurşunsuz
Stil	Pre-rinse/Spring Neck/Pull-Down
Kurulum Türü	Deck Mounted/Single-hole Installation
Maksimum Akış Hızı	Dakikada 1.8 Galon
Emzik yüksekliği	5.38 inç
Emzik ulaşmak	8.25 inç
Ürün Ağırlığı	6.44 pound
Ürün Boyutları	8.25 x 5.13 x 19.5 inç
Hortum Uzunluğu	20 inç
Anahtar Stili	Rocker anahtarı

5. Kurulum ve Kurulum

The AKDY KF0010 faucet is designed for single-hole, deck-mounted installation. All necessary mounting hardware and supply lines are included for a straightforward setup.

Montaj yüzeyinin temiz ve kalıntılardan arındırılmış olduğundan emin olun.
Insert the faucet body into the single mounting hole on your sink or countertop.
Secure the faucet from underneath the sink using the provided mounting hardware. Tighten securely but do not overtighten.
Connect the hot and cold supply lines to the corresponding water supply valves. Ensure a watertight seal.
Connect the sprayer hose to the main faucet body.
Once all connections are made, slowly turn on the main water supply and check for any leaks.

Diagram showing easy 1-hole installation of the AKDY kitchen faucet. — Figure 1: Easy 1-hole installation process. This image illustrates the simple steps for mounting the faucet onto a single-hole countertop or sink, highlighting the included hardware.

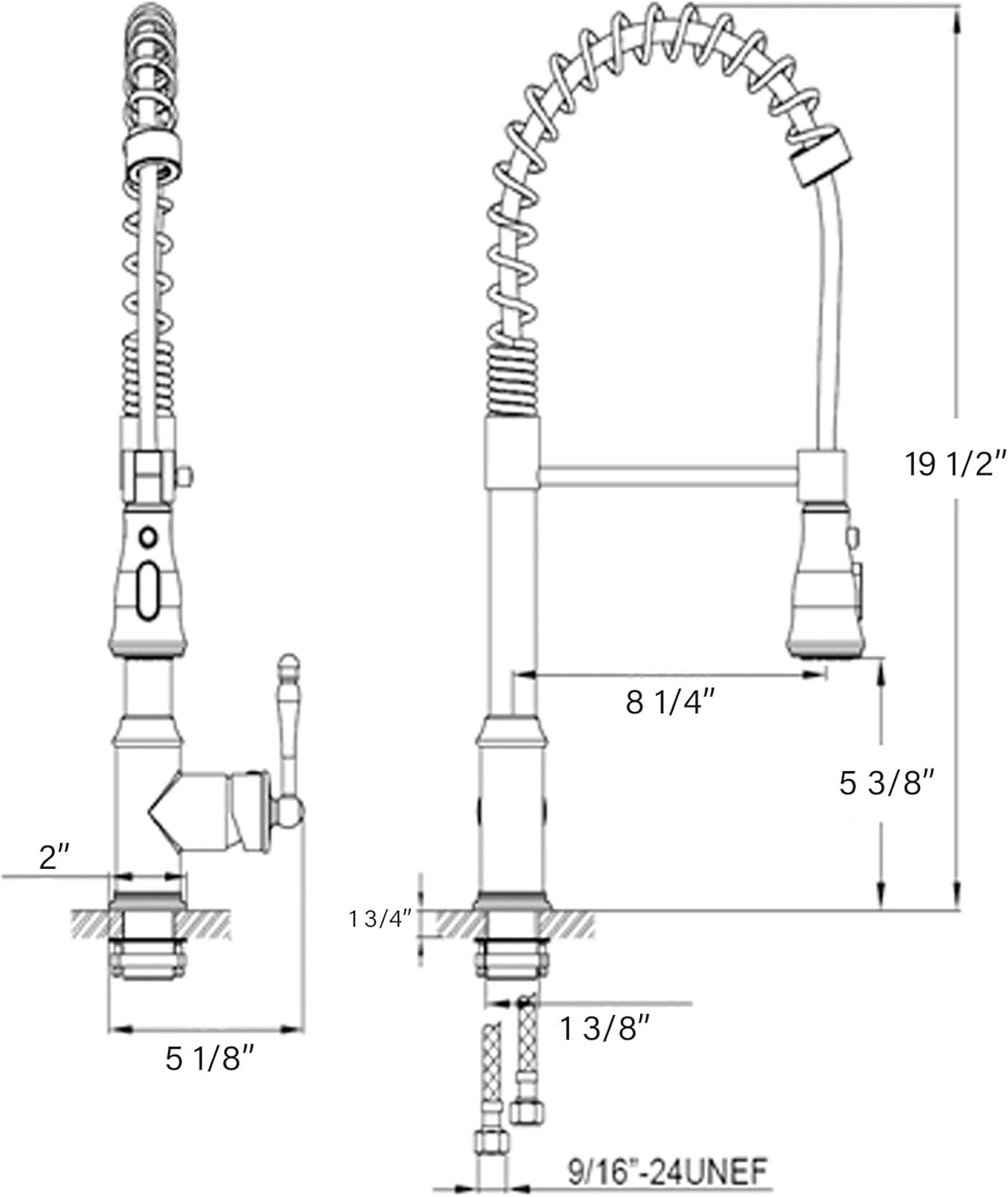

Technical drawing with dimensions of the AKDY KF0010 faucet. — Figure 2: Faucet Dimensions. This diagram provides precise measurements for the faucet's height, spout reach, and other critical dimensions for installation planning.

6. Kullanım Talimatları

The AKDY KF0010 faucet offers versatile operation for various kitchen tasks.

6.1. Su Akışı ve Sıcaklık Kontrolü

The single lever handle controls both water flow and temperature. Move the handle up to increase flow and down to decrease it. Swivel the handle left for hot water and right for cold water.

6.2. Sprayer Functionality

The pull-down sprayer features three distinct setting modes: Stream, Spray, and Pause. A rocker switch on the sprayer head allows for easy toggling between Stream and Spray modes. The Pause button temporarily stops water flow, useful for moving the sprayer between tasks without turning off the main handle.

Close-up of the 3-function sprayer and single lever handle of the AKDY faucet. — Figure 3: Sprayer and Handle Controls. This image details the rocker switch for changing spray patterns and the single lever handle for adjusting water temperature and volume.

AKDY kitchen faucet installed in a modern kitchen setting. — Figure 4: Faucet in Use. This image shows the AKDY faucet in a kitchen environment, highlighting its high-arc design and pull-down sprayer functionality.

Ayrıntılı view of the AKDY KF0010 faucet's design and features. — Figure 5: Faucet Design Details. A closer look at the faucet's construction, including the spring neck and the sprayer head, emphasizing its commercial style.

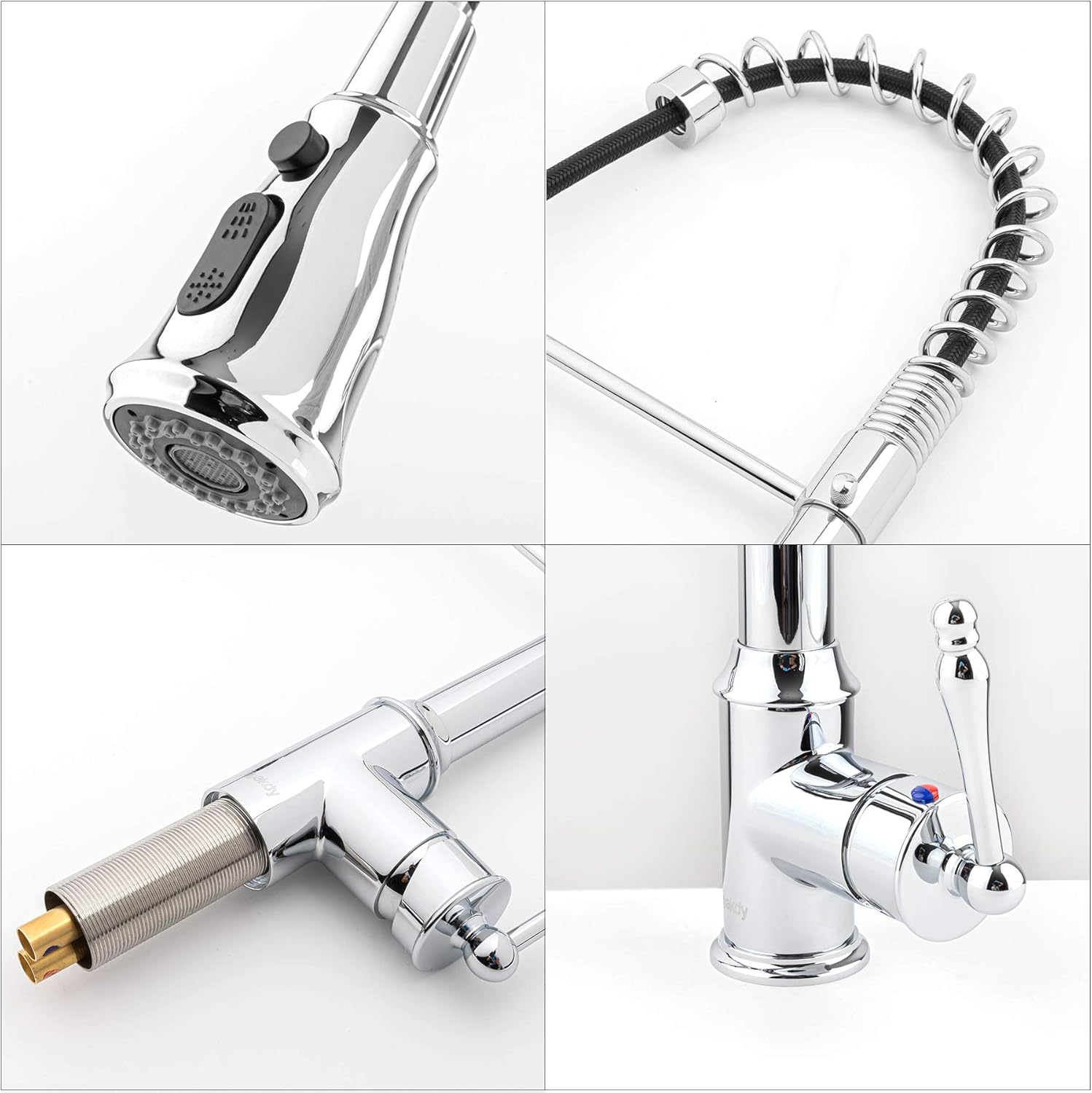

Quad-panel close-up of the AKDY faucet's sprayer, spring, base, and handle. — Figure 6: Component Close-ups. This multi-panel image provides detailed views of the sprayer, spring mechanism, faucet base, and handle, showcasing the quality and design.

6.3. Faucet Swivel

The main faucet body swivels 180 degrees, providing extensive reach and flexibility for various sink configurations and tasks.

6.4. Resmi Ürün Videosu

Video 1: AKDY Spring Neck Pulldown Kitchen Faucet Overview. This video demonstrates the key features and operation of the AKDY Spring Neck Pulldown Kitchen Faucet, including the pull-down sprayer, 3-function modes, and single-handle control.

7. Bakım

Regular cleaning and maintenance will ensure the longevity and optimal performance of your AKDY faucet.

7.1. Cleaning the Faucet Surface

Krom kaplamayı yumuşak bir bezle temizleyin.amp Bez ve yumuşak sabun kullanın. Cilaya zarar verebileceğinden aşındırıcı temizleyiciler, sert kimyasallar veya ovma süngerlerinden kaçının.

7.2. Cleaning Rubber Nozzles

The sprayer head features easy-to-clean rubber nozzles. To remove mineral buildup or debris, simply wipe the nozzles with your finger or a soft brush. This helps maintain consistent spray performance.

Close-up of the easy-clean rubber nozzles on the AKDY faucet sprayer. — Figure 7: Easy Clean Rubber Nozzles. This image highlights the flexible rubber nozzles on the sprayer head, designed for simple cleaning to prevent mineral buildup.

8. Sorun Giderme

If you encounter any issues with your faucet, refer to the following common troubleshooting steps:

Düşük Su Basıncı: Check if the main water supply valves are fully open. Inspect the aerator/nozzles for mineral buildup and clean if necessary.
Sızıntılar: Ensure all connections, especially the supply lines and mounting hardware, are securely tightened. Check O-rings and gaskets for proper seating and damage.
Sıcaklık Ayarlamasında Zorluk: Verify that both hot and cold water supply lines are connected correctly and that the shut-off valves are open.
Sprayer Not Functioning: Check the sprayer hose for kinks or obstructions. Ensure the rocker switch is operating correctly.

For persistent issues, please contact AKDY customer support.

9. Garanti ve Destek

The AKDY KF0010 Commercial Style Spring Neck Pulldown Kitchen Faucet comes with a Limited Lifetime Warranty. This warranty covers defects in material and manufacturing under normal use and service.

For warranty claims, technical assistance, or any other inquiries, please contact AKDY customer service through their official websatın alma belgelerinizle birlikte verilen site veya iletişim bilgileri.
