IBM X3550 M4 550W Hot Swap Power Supply User Manual

1. Giriş

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your IBM X3550 M4 550W Hot Swap Power Supply. Please read this manual thoroughly before installation and keep it for future reference. This power supply is designed for use in compatible IBM X3550 M4 server systems.

2. Güvenlik Bilgileri

Yaralanmayı veya ekipmana gelebilecek zararı önlemek için her zaman aşağıdaki güvenlik önlemlerine uyun:

• Elektrik Tehlikesi: Disconnect all power cords from the server before installing or removing the power supply. Ensure the server is completely powered off.
• Statik deşarj: Use an electrostatic discharge (ESD) wrist strap or take other anti-static precautions when handling the power supply to prevent damage to sensitive electronic components.
• Havalandırma: Ensure proper airflow around the server and power supply. Do not block ventilation openings.
• Kalifiye Personel: Installation and maintenance should only be performed by qualified service personnel.
• Hot-Swap Caution: While designed for hot-swapping, always follow server manufacturer guidelines for proper hot-swap procedures to avoid system disruption.

3. Ürün Bittiview

The IBM X3550 M4 550W Hot Swap Power Supply is a critical component designed to provide reliable power to your server. It features a hot-swap design, allowing for replacement without powering down the entire system, enhancing server uptime and serviceability.

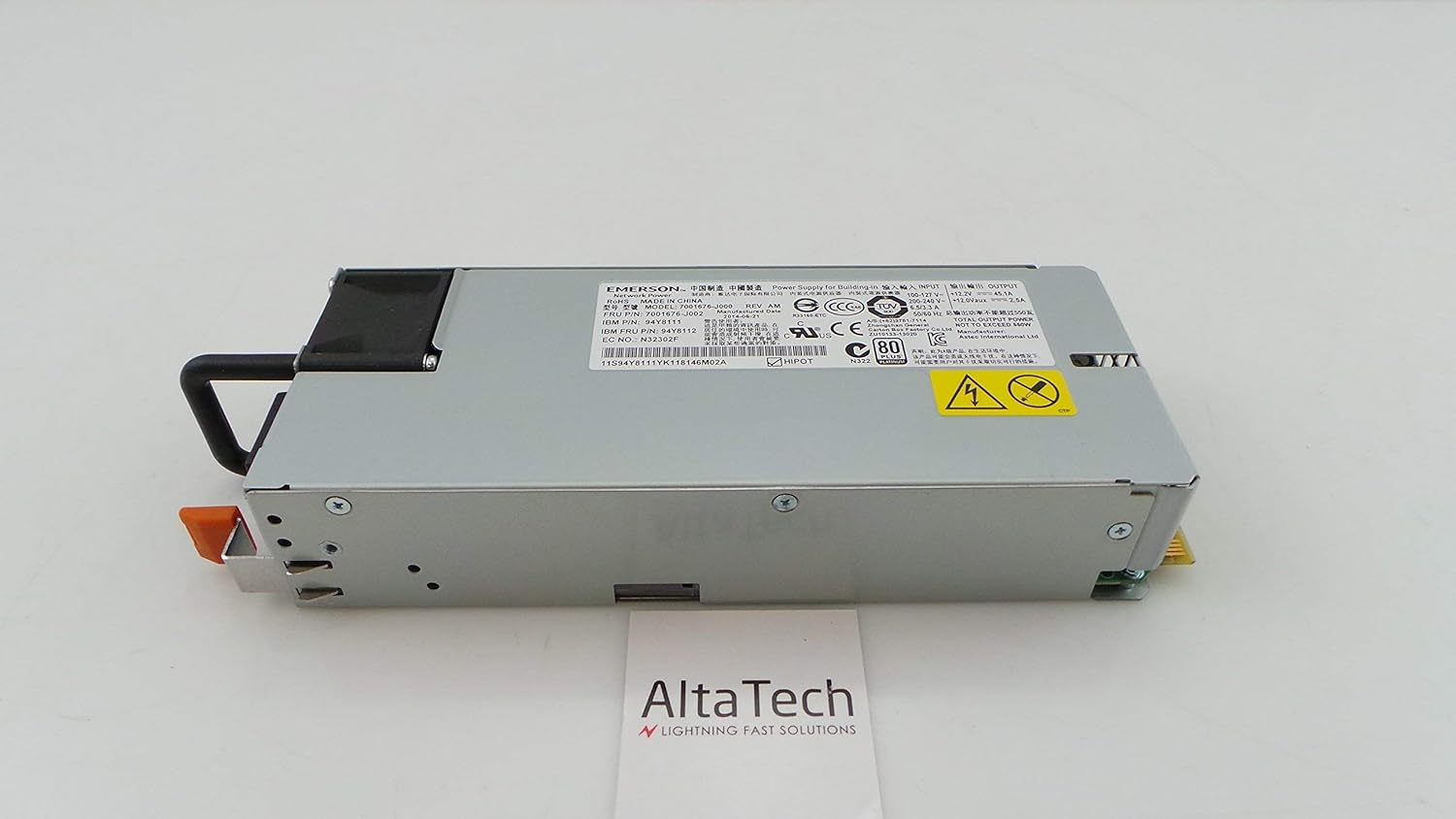

Şekil 3.1: Taraf view of the IBM X3550 M4 550W Hot Swap Power Supply, showing the extraction handle.

Şekil 3.2: Tepe view of the power supply, illustrating its compact form factor.

Şekil 3.3: Arka view of the power supply, showing the electrical connectors designed for hot-swap functionality.

Şekil 3.4: Ayrıntılı view of the product label, displaying model numbers (e.g., 94Y8111, 7001676-J002) and manufacturing information. The serial number for this unit is 11S94Y8111YK118146M02A.

4. Kurulum ve Kurulum

Follow these steps to properly install the hot-swap power supply into your IBM X3550 M4 server. Refer to your server's documentation for specific bay locations and procedures.

1. Hazırlık: Ensure the server is in a stable environment. If replacing an existing power supply, identify the faulty unit.
2. Önce Güvenlik: Always wear an ESD wrist strap and ensure proper grounding.
3. Remove Old Unit (if applicable): If replacing, disconnect the power cord from the old power supply. Press the release latch (if present) and use the handle to slide the old power supply out of its bay.
4. Insert New Unit: Align the new power supply with the empty bay. Gently slide the power supply into the bay until it clicks securely into place. Ensure it is fully seated.
5. Gücü bağlayın: Connect the appropriate power cord to the newly installed power supply and then to a grounded electrical outlet.
6. Doğrulamak: Check the status indicator lights on the power supply and the server's control panel to confirm proper operation.

5. Kullanım Talimatları

Once installed, the power supply operates automatically. It continuously provides power to the server and manages power distribution. Key operational aspects include:

• Durum Göstergeleri: Most server power supplies include LED indicators. A green or amber light typically indicates operational status. Refer to your server's manual for specific LED meanings.
• Fazlalık: In systems with multiple power supplies, this unit contributes to power redundancy, ensuring continuous operation even if one power supply fails.
• Çalışırken Değiştirme Özelliği: This power supply can be replaced while the server is running, provided the server supports hot-swap functionality and has sufficient remaining power capacity from other power supplies.

6. Bakım

Regular maintenance helps ensure the longevity and reliability of your power supply:

• Toz Giderimi: Periodically inspect the power supply and server for dust accumulation. Use compressed air to gently clean vents and fan areas. Ensure the server is powered off and unplugged before cleaning.
• Kablo yönetimi: Ensure all power cables are securely connected and not obstructing airflow.
• Çevre Kontrolü: Operate the server in a clean, temperature-controlled environment to prevent overheating and dust buildup.
• Denetleme: Visually inspect the power supply for any signs of damage, such as bulging capacitors or burnt components, during routine server maintenance.

7. Sorun Giderme

Güç kaynağınızla ilgili sorunlarla karşılaşırsanız, aşağıdaki yaygın sorun giderme adımlarını göz önünde bulundurun:

• Güç Yok:
  • Verify the power cord is securely connected to both the power supply and the electrical outlet.
  • Prizin çalışır durumda olduğundan emin olmak için başka bir cihazla kontrol edin.
  • Ensure the server's main power switch is in the ON position.
• Error Indicator Light:
  • An amber or red indicator light typically signals a fault. Consult your server's documentation for specific error codes or patterns.
  • Attempt to reseat the power supply by sliding it out and reinserting it firmly.
  • If the issue persists, the power supply may be faulty and require replacement.
• System Instability/Unexpected Shutdowns:
  • This could indicate an intermittent power supply issue or insufficient power.
  • Ensure the server's cooling system is functioning correctly to prevent overheating, which can stress power components.
  • If multiple power supplies are present, check if one is failing.

If troubleshooting steps do not resolve the issue, contact technical support or consider replacing the unit.

8. Özellikler

9. Garanti ve Destek

This IBM X3550 M4 550W Hot Swap Power Supply (Renewed) typically comes with a 30 günlük garanti from the seller. Additionally, as an Amazon Renewed product, it is eligible for replacement or refund under the Amazon Yenilenmiş Garantisi eğer satın aldığınız üründen memnun kalmazsanız.

For technical support or warranty claims, please contact the seller directly or refer to the Amazon Renewed program details for assistance.
