OUKANING 42-Inch Industrial Vintage Cage Ceiling Fan User Manual

1. Güvenlik Bilgileri

Please read and understand this entire manual before attempting to assemble, install, or operate this product. Failure to do so may result in electric shock, fire, or serious injury.

• All electrical connections must be in accordance with local codes and ordinances, National Electrical Code (NEC), and ANSI/NFPA 70-1999.
• Elektrik tesisatı konusunda bilginiz yoksa, yetkili bir elektrikçiye danışın.
• Kurulum yapılacak yerin fanın ağırlığını (yaklaşık 20.2 kg) taşıyabileceğinden emin olun.
• Kurulum veya bakım işlemlerinden önce devre kesiciden elektriği kesin.
• Kurulum veya temizlik sırasında bıçak tutucularını bükmeyin.
• Ensure the fan blades are at least 25cm (approximately 10 inches) from the ceiling.

2. Paket İçeriği

Verify all components are present and undamaged before beginning installation.

• Ceiling Fan Unit (with integrated motor and light fixture)
• Retractable ABS Fan Blades (5 pieces)
• Downrods (2 options: 5-inch and 10-inch)
• Montaj Braketi
• Uzaktan kumanda
• Donanım Paketi (vidalar, kablo somunları, vb.)
• Kullanıcı Kılavuzu

Resim: All components of the OUKANING Ceiling Fan, including the main unit, retractable blades, downrods, remote control, and hardware, laid out for assembly.

3. Kurulum ve Kurulum

Follow these steps carefully for proper installation. Professional installation is recommended if you are unsure about any steps.

3.1 Montaj Braketinin Kurulumu

The mounting bracket must be securely attached to a ceiling joist or a suitable electrical junction box capable of supporting the fan's weight.

• Standard Installation (Cement Ceiling): Use expansion screws to secure the mounting bracket.
• Ceiling Installation (Ornamental Ceiling): Ensure the position is reinforced to withstand a weight of 30KG.
• Ahşap Tavan Montajı: Use tapping screws to secure the mounting bracket. Extend the downrod as appropriate, ensuring fan blades are more than 25cm from the ceiling. The thickness of the plank in the lifting position should not be less than 30MM.

Resim: Visual guide illustrating standard, ornamental, and wooden ceiling installation methods for the fan's mounting bracket.

3.2 Downrod Selection

Choose the appropriate downrod length (5-inch or 10-inch) based on your room height and desired air volume. Ensure the fan-to-ground height is suitable for your space.

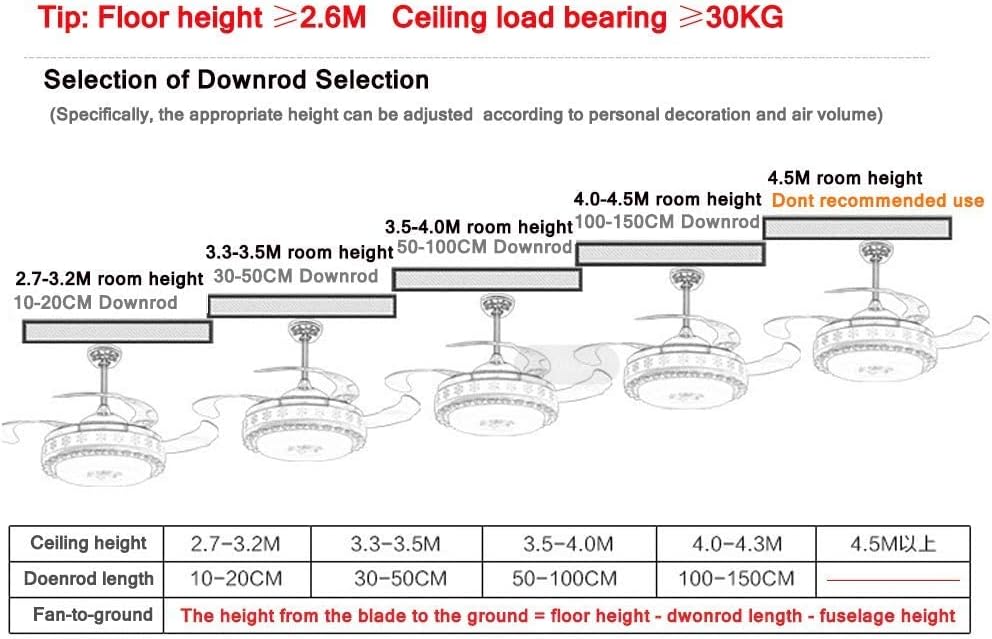

Resim: A diagram showing recommended downrod lengths for various room heights, ensuring optimal fan performance and safety clearance.

3.3 Kablolama

Connect the electrical wires from the ceiling to the fan unit. Ensure correct connections for Live (Black), Neutral (White), and Ground (Green/Yellow) wires. Refer to the wiring diagram provided in the manual.

Resim: A detailed wiring diagram indicating connections for Live, Neutral, and Ground wires, along with the receiver for remote control functionality.

3.4 Assembling the Fan Unit

Assemble the fan blades and light fixture to the main motor unit. The retractable blades are designed for easy attachment.

3.5 Ampul Montajı

This fan requires 5 E26 Medium base bulbs (not included). Compatible with LED, incandescent, or Edison bulbs, with a maximum wattagampul başına 40W e.

Resim: An illustration detailing the E26 socket bases and various compatible bulb types, including LED, incandescent, and Edison bulbs, with a maximum wattage of 60W for the entire light fixture.

4. Kullanım Talimatları

Your OUKANING Ceiling Fan is controlled by a convenient remote control, offering various settings for comfort and ambiance.

4.1 Uzaktan Kumanda İşlevleri

The remote control allows independent operation of the fan and light functions.

• Fan Hızı: Select from 3 speeds (Low, Mid, High).
• Fan Açık/Kapalı: Turn the fan on or off independently.
• Işık Açık/Kapalı: Turn the light on or off independently.
• Zamanlayıcı: Set the fan to operate for 1, 2, 4, or 8 hours.
• Forward/Reverse (F/R): Change the direction of the fan blades for seasonal use (forward for cooling, reverse for circulating warm air).
• Işık Parlaklığı: Işıkların parlaklığını ayarlayın.

Resim: The remote control unit, displaying buttons for fan speed, light control, timer settings, and forward/reverse blade rotation.

5. Bakım

Düzenli bakım, tavan vantilatörünüzün optimum performans göstermesini ve uzun ömürlü olmasını sağlar.

• Temizlik: Turn off power before cleaning. The design allows for easy access to wipe down the clear acrylic blades and metal cage. Use a soft, damp Bez; sert kimyasallardan kaçının.
• Ampul Değişimi: Ensure power is off. Replace E26 Medium base bulbs as needed, adhering to the maximum 40W per bulb.

6. Sorun Giderme

If you encounter issues, refer to the following common solutions. For persistent problems, contact customer support.

7. Özellikler

• Marka: OUKANING
• Model Adı: OUKANING-RTS1
• Boyut: 42 Inch Diameter
• Renk: Retro Industria Cage
• Malzeme: Metal (cage), Acrylic (blades)
• Motor: Copper Motor, Quiet Operation (average serving life 5-10 years)
• Cilttage: 110-120 Volt (AC)
• Işık kaynağı: 5 x E26 Medium Base (bulbs not included)
• Maksimum Ampul Değeritage: Ampul başına 40 watt
• Kontrol Yöntemi: Uzaktan kumanda
• Özel Özellikler: Retractable Blades, Remote Control, Timer Function (1/2/4/8 hours), 3 Fan Speeds (Low/Mid/High), Reversible Motor
• Kurulum Türü: Semi Flush Mount, Downrod Mount (5-inch and 10-inch downrods included)
• Ürün Ağırlığı: 20.2 Pound
• Önerilen Oda Tipi: Bedroom, Dining Room, Living Room, Kitchen, Office

8. Garanti ve Destek

OUKANING offers a 30-day replacement or 100% refund service if you are unsatisfied with your purchase. For any problems regarding the package or installation process, please contact us directly.

For further assistance, visit the official OUKANING Store: OUKANING Store
