Neewer 200W LED Video Light User Manual

Model: 10094884 | Brand: NEEWER

giriiş

This manual provides detailed instructions for the safe and effective operation of your Neewer 200W LED Video Light. This professional-grade continuous lighting solution features a stable 5600K color temperature, high CRI 95+, and a powerful 21000LM output, making it suitable for various applications including YouTube video production, studio portraiture, product photography, weddings, and interviews. Please read this manual thoroughly before use and retain it for future reference.

Neewer 200W LED Video Light with remote control and power cables

Image: The Neewer 200W LED Video Light, showcasing its main unit, remote control, and power cables.

Paket İçeriği

Aşağıda listelenen tüm ürünlerin paketinizde mevcut olduğundan emin olun. Eksik veya hasarlı bir ürün varsa, lütfen perakendecinizle iletişime geçin.

1 x Neewer SL-200W Video Light
1 x Reflector Cover
1 x Güç Kablosu
1 x 2.4G Wireless Remote Control (requires 2 AA batteries, not included)

Diagram showing the Neewer SL-200W Video Light, reflector cover, power cord, and remote control as package contents.

Image: Visual representation of the items included in the Neewer 200W LED Video Light package.

Ürün Bittiview and Function Diagram

Familiarize yourself with the various components and controls of the Neewer 200W LED Video Light and its remote control.

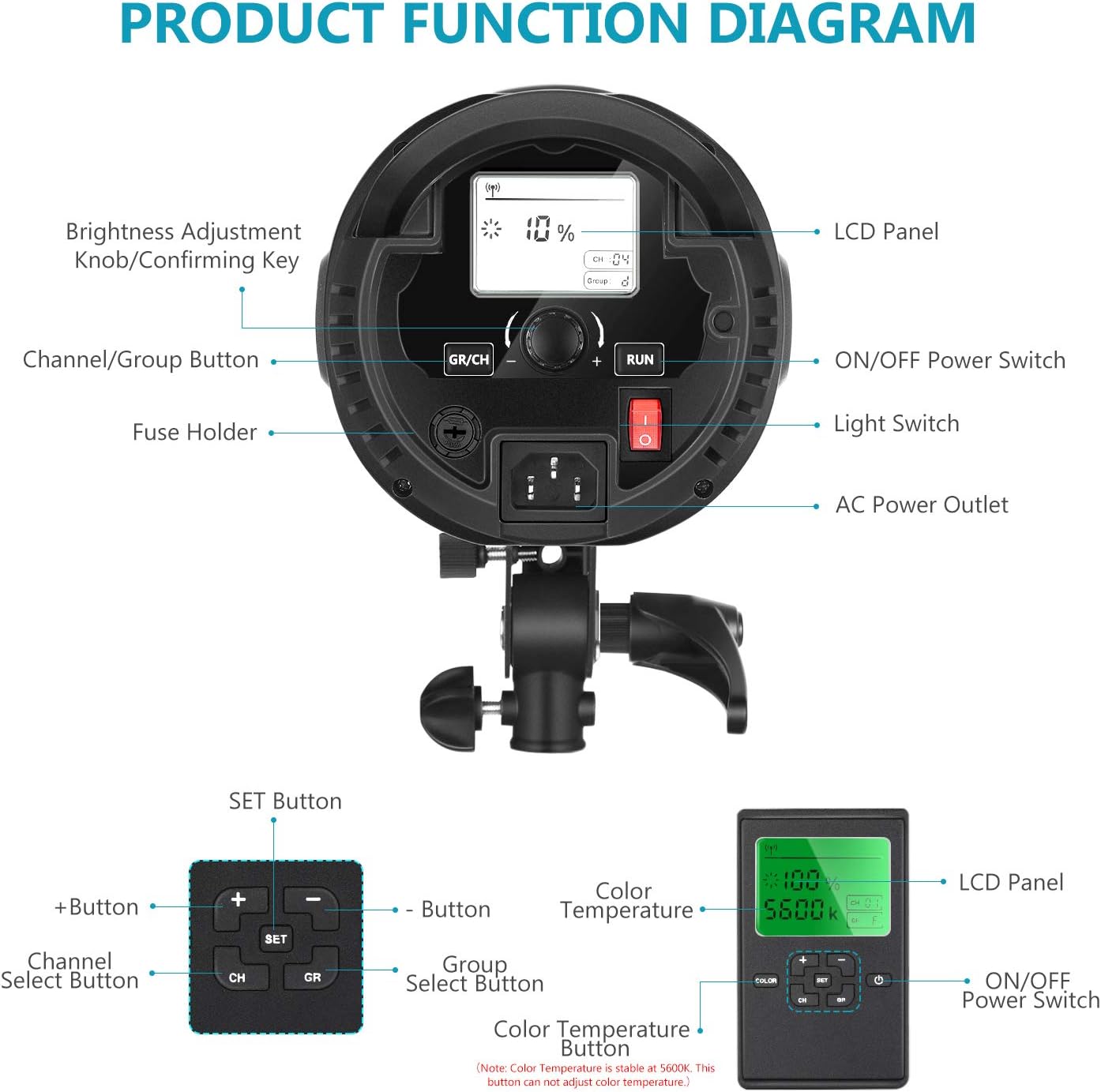

Detailed diagram of the Neewer 200W LED Video Light showing its various parts and controls, including LCD panel, power switch, fuse holder, and adjustment knobs.

Image: A comprehensive diagram illustrating the functional parts of the Neewer 200W LED Video Light and its remote control.

Ana Ünite Bileşenleri:

Brightness Adjustment Knob/Confirming Key: Used to adjust light intensity and confirm settings.
LCD Panel: Displays current settings such as brightness percentage, channel, and group.
Channel/Group Button (GR/CH): Toggles between channel and group selection modes.
Açma/Kapama Güç Anahtarı: Powers the light unit on or off.
Sigorta Tutucu: Ünitenin koruyucu sigortasını içerir.
Light Switch (RUN): Activates or deactivates the light output while keeping the fan operational, which is useful for heat dissipation after extended use.
AC Güç Çıkışı: Connects the power cord to the main power supply.

Uzaktan Kumanda Bileşenleri:

Ayarlama düğmesi: Enters setting mode for channel and group.
+ Düğme: Increases brightness or navigates options.
- Düğme: Decreases brightness or navigates options.
CH (Channel Select Button): Selects the operating channel.
GR (Group Select Button): Selects the operating group.
Renk Sıcaklığı Göstergesi: Shows the fixed color temperature (5600K). Note: This button cannot adjust the color temperature of the SL-200W light.
Açma/Kapama Güç Anahtarı: Uzaktan kumandayı açar veya kapatır.

Kurmak

1. Işığın Montajı

The Neewer 200W LED Video Light features a standard Bowens mount, allowing for compatibility with a wide range of light modifiers such as softboxes, snoots, beauty dishes, and barn doors. Securely attach the light to a sturdy light stand using the integrated mounting bracket.

Diagram illustrating the Bowens style mount on the Neewer 200W LED Video Light, showing compatible accessories like softbox, conical snoot, soft ball, beauty dish, and four-leaf barndoor.

Image: The Bowens mount interface on the light, demonstrating its versatility with various light shaping tools.

2. Gücü Bağlama

Connect the provided power cord to the AC Power Outlet on the back of the light unit, then plug the other end into a suitable wall outlet. Ensure the power source meets the light's voltage gereksinimleri.

3. Uzaktan Kumanda Pilinin Kurulumu

Open the battery compartment on the back of the 2.4G wireless remote control and insert two (2) AA batteries, observing the correct polarity. Close the compartment securely.

Kullanım Talimatları

1. Açma/Kapama

To power on the light, flip the AÇIK/KAPALI Güç Anahtarı on the main unit to the 'ON' position. The LCD panel will illuminate.
To turn off the light, flip the AÇIK/KAPALI Güç Anahtarı to the 'OFF' position.
The Light Switch (RUN) button on the main unit can be used to temporarily turn off the light output while keeping the cooling fan operational, which is useful for heat dissipation after extended use.

2. Parlaklığın Ayarlanması

Brightness can be adjusted directly on the light unit or via the remote control.

On the Light Unit: Döndür Parlaklık Ayar Düğmesi to increase or decrease the light intensity. The LCD panel will display the current brightness percentage.
Uzaktan Kumandanın Kullanımı: Ensure the remote is powered on. Use the + Ve - buttons to adjust the brightness. The remote's display will show the percentage.

Image demonstrating the brightness adjustment feature of the Neewer 200W LED light, showing different light intensities on a model's face at 20%, 50%, and 90% brightness.

Image: Visual representation of the light's adjustable brightness, from low to high intensity.

3. Channel and Group Settings (Remote Control)

The 2.4G wireless remote allows for controlling multiple Neewer lights simultaneously by assigning them to specific channels and groups.

Setting Channel/Group on Light Unit: Basın GR/CH button to switch between channel (CH) and group (GR) selection. Rotate the Parlaklık Ayar Düğmesi to select the desired channel (1-16) or group (A-D). Press the knob to confirm.
Setting Channel/Group on Remote: Basın AYARLAMAK düğmesini kullanın. CH button to select the channel and the GR button to select the group. Use the + Ve - buttons to change the values. Ensure the remote's channel and group match the light unit's settings for proper communication.

4. Renk Sıcaklığı

The Neewer 200W LED Video Light has a fixed color temperature of 5600K (Daylight Balanced). This setting cannot be adjusted.

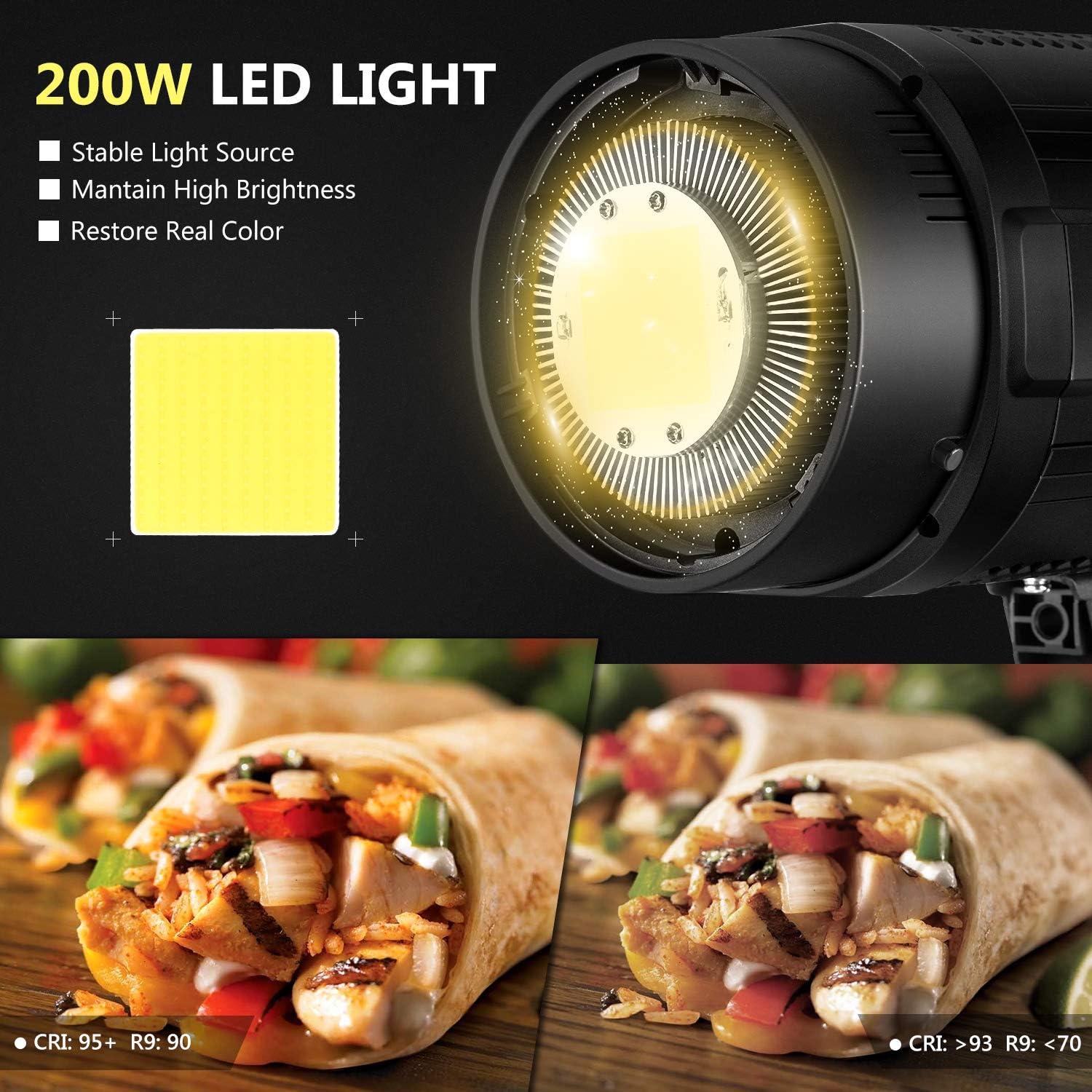

Image showing the 200W LED light source and a comparison of color rendering index (CRI) with CRI 95+ on the left and lower CRI on the right, demonstrating accurate color restoration.

Image: Illustration of the light's stable 200W LED source and its high Color Rendering Index (CRI 95+), ensuring accurate color reproduction.

5. Uygulamalar

This light is versatile for various photographic and videographic needs.

İki eskiamples of photography applications: a dancer in a studio for portrait photography and a grapefruit for product photography, both illuminated by the Neewer 200W LED light.

Resim: Eskiamples of the light's application in portrait and product photography.

Bakım

Temizlik: Regularly wipe the exterior of the light with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the light is unplugged before cleaning.
Havalandırma: Keep the ventilation openings clear of dust and obstructions to ensure proper heat dissipation. The integrated cooling fan is essential for stable operation and longevity.
Depolamak: When not in use, store the light in a cool, dry place, away from direct sunlight and excessive humidity.
Sigorta Değişimi: If the light does not power on, check the fuse in the fuse holder. Replace it with a fuse of the same type and rating if necessary. Always unplug the light before replacing the fuse.

Sorun giderme

Sorun	Olası Neden	Çözüm
Işık yanmıyor.	Power cord not connected properly; Power outlet malfunction; Blown fuse.	Ensure power cord is securely connected. Try a different power outlet. Check and replace the fuse if blown.
Uzaktan kumanda çalışmıyor.	Batteries are dead or incorrectly inserted; Remote not paired with light; Interference.	Replace AA batteries in the remote, ensuring correct polarity. Ensure remote and light are set to the same channel and group. Move closer to the light or away from potential interference sources.
Light turns off unexpectedly or overheats.	Insufficient ventilation; Prolonged use at high intensity; Internal thermal protection activated.	Ensure ventilation openings are clear. Reduce brightness or allow the unit to cool down. If the light has a 'RUN' button, press it to keep the fan running for cooling.
Brightness adjustment is unresponsive.	Remote control issue; Knob malfunction.	Try adjusting brightness directly on the light unit. If using the remote, check batteries and pairing.

Özellikler

Modeli: 10094884
Güç Çıkışı: 200W
Renk Sıcaklığı: 5600K (Fixed)
Işık Akısı: 21000LM
Renksel Geriverim İndeksi (CRI): 95+
Montaj Tipi: Bowens Dağı
Kablosuz kontrol: 2.4G Wireless Remote (16 Channels, 16 Groups)
Uzaktan Kumanda Pilleri: 2 x AA (dahil değildir)
Ürün Ağırlığı: 8.32 pound (yaklaşık 3.77 kg)
Paket Boyutları: 21.02 x 9.92 x 9.45 inç (yaklaşık 53.4 x 25.2 x 24 cm)
Estimated LED Life: 50,000 Saat

Garanti ve Destek

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official NEEWER webSite. Satın alma belgenizi herhangi bir garanti talebi için saklayın.

For further assistance, you may contact NEEWER customer service through their official channels.
