1. Ürün Bittiview
The Youtob Motion Sensor LED Ceiling Light, Model PIR-15W-US, is a 15W, 1100LM flush mount round lighting fixture designed for various indoor and outdoor applications. It features motion activation and a light sensor for automatic operation, providing 3000K warm white light. This product is ETL certified, ensuring compliance with stringent North American safety standards.
Şekil 1: Ön view of the Youtob Motion Sensor LED Ceiling Light.
This light is suitable for areas such as hallways, closets, stairways, basements, porches, pantries, and laundry rooms. Its design aims to provide wide coverage and comfortable illumination.

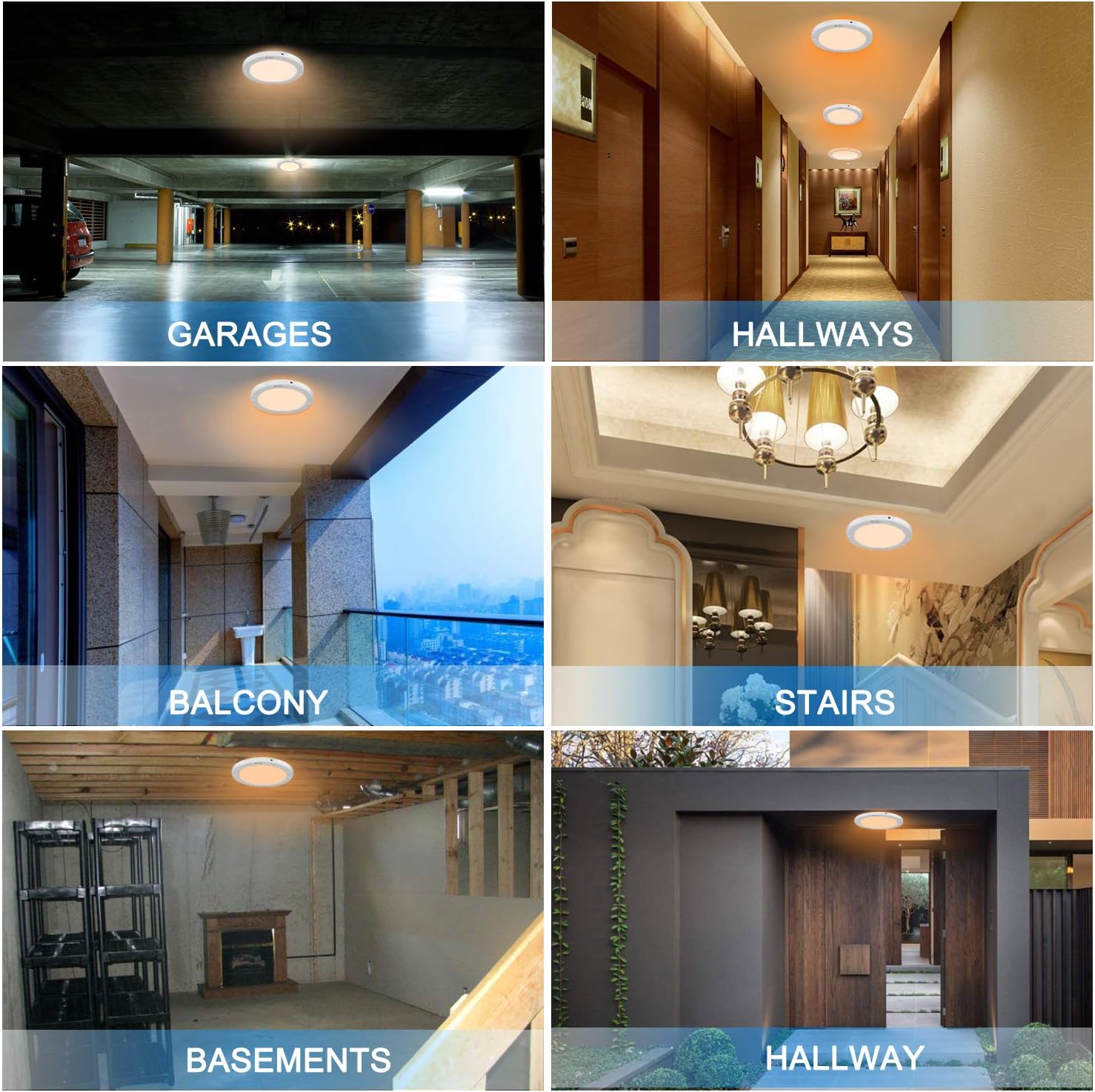

Şekil 2: Ör.amples of typical installation locations for the ceiling light.
2. Güvenlik Yönergeleri
Kurulum ve kullanımdan önce lütfen tüm talimatları dikkatlice okuyun. Bu kılavuzu ileride başvurmak üzere saklayın.
- Elektriksel Güvenlik: Installation should be performed by a qualified electrician or a person with electrical knowledge. Ensure power is turned off at the circuit breaker before installation or maintenance.
- ETL Sertifikası: This product is ETL certified, indicating it meets recognized safety standards.
- Cilttage: Operate only with 120 Volts AC.
- İç/Dış Mekan Kullanımı: Suitable for both indoor and outdoor usage, including porches.
- Montaj: Designed for flush mount installation. Ensure the mounting surface is secure and can support the fixture's weight.
3. Paket İçeriği
Kuruluma başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun:
- Youtob Motion Sensor LED Ceiling Light (1 unit)
- Montaj Donanımı (vidalar, kablo bağlantı somunları, montaj braketi)
- Kullanım Kılavuzu
4. Teknik Özellikler
| Şartname | Detay |
|---|---|
| Model Numarası | PIR-15W-US |
| Netage | 15 Watt |
| Parlaklık | 1100 Lümen |
| Renk Sıcaklığı | 3000K Sıcak Beyaz |
| Cilttage | 120 Volt |
| Ürün Boyutları | 8.66"U x 8.66"G x 0.65"Y (220 mm x 220 mm x 18 mm) |
| Malzeme | Alüminyum, Plastik |
| Kurulum Türü | Dağı Flush |
| Özel Özellikler | Motion Activated, Light Sensor |
| Sertifikasyon | ETL, CE, FCC, RoHS |
Şekil 3: Ürün boyutları.
5. Kurulum Talimatları
This fixture is designed for easy hardwired flush mount installation. Always ensure the power is disconnected at the circuit breaker before proceeding.
Gerekli Araçlar (Dahil Değil):
- Tornavida
- Tel Soyucular
- Elektrik Bandı
Kurulum Adımları:
- Gücü Kapatın: Locate the circuit breaker controlling the light fixture's power and switch it to the OFF position.
- Montaj Yüzeyini Hazırlayın: Ensure the ceiling or wall surface is clean, dry, and structurally sound to support the light fixture.
- Montaj Braketini Takın: Secure the provided mounting bracket to the junction box using the screws.
- Kablo Bağlantıları: Connect the household electrical wires to the fixture's wires using wire nuts. Typically, connect black to black (live), white to white (neutral), and ground to ground. Ensure all connections are secure.
- Fikstürü Takın: Carefully align the light fixture with the mounting bracket and secure it in place with the provided screws. Ensure no wires are pinched.
- Gücü Geri Yükle: Once the fixture is securely mounted, turn the power back ON at the circuit breaker.
Şekil 4: Ör.ample of outdoor installation on a porch.
6. Kullanım Talimatları
Hareket aktivasyonu
The Youtob Motion Sensor LED Ceiling Light is equipped with a passive infrared (PIR) motion sensor and a light sensor. The light will automatically turn on when motion is detected within its range.
- Algılama Aralığı: Motion is sensed within 9-16 feet (approximately 2.7-4.9 meters).
- Algılama Açısı: The motion sensor has a 120-degree detection angle.
- Otomatik kapanma: The light automatically turns off approximately 30 seconds after motion ceases.
Figure 5: Motion detection and beam angle diagram.
Çalışma Modları
The fixture offers two operating modes, selectable via a switch on the unit:
- DAYLIGHT Mode (Sun icon): In this mode, the motion sensor will activate the light during both daytime and nighttime conditions.
- NIGHT Mode (Moon icon): In this mode, the light sensor will prevent activation during daylight hours. The motion sensor will only activate the light when ambient light levels are low (i.e., at night). This mode is generally more suitable for outdoor use or areas where light is only needed after dark.
Figure 6: Location of motion sensor, light sensor, and mode selection switch.
7. Bakım ve Onarım
To ensure optimal performance and longevity of your Youtob Motion Sensor LED Ceiling Light, follow these simple maintenance guidelines:
- Temizlik: Temizlemeden önce elektriği kesin. Armatürü yumuşak, kuru veya hafif nemli bir bezle silin.amp Bez kullanın. Aşındırıcı temizleyiciler, çözücüler veya alkol içeren temizleyiciler kullanmayın, çünkü bunlar yüzeye veya elektrikli bileşenlere zarar verebilir.
- Denetleme: Periodically check for any loose connections or damage to the fixture. If any damage is observed, discontinue use and consult a qualified electrician.
- LED ömrü: The integrated LED light source is designed to last over 30,000 hours, reducing the need for frequent bulb replacement.
8. Sorun Giderme Kılavuzu
If you encounter issues with your Youtob Motion Sensor LED Ceiling Light, refer to the following table for common problems and solutions:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Işık açılmıyor. | No power, incorrect wiring, sensor blocked, or in NIGHT mode during daylight. | Check circuit breaker. Verify wiring connections. Ensure sensor is clear. Switch to DAYLIGHT mode or test at night. |
| Işık sürekli açık kalır. | Constant motion detected, sensor malfunction, or incorrect mode setting. | Ensure no continuous motion in detection area. Check for obstructions near sensor. Verify mode setting (NIGHT mode should turn off during day). |
| Işık titriyor veya sönükleşiyor. | Loose wiring connection, voltage fluctuations, or fixture defect. | Turn off power and check all wire connections. Consult an electrician if problem persists. |
| Hareket sensörü yeterince hassas değil. | Installation height too high, sensor obstructed, or environmental factors. | Ensure installation height is within recommended range (e.g., 10ft). Clear any obstructions. |
Sorun giderme adımları sorunu çözmezse, lütfen müşteri desteğiyle iletişime geçin.
9. Garanti ve Müşteri Desteği
Youtob provides an 18 aylık sınırlı garanti Bu ürün için satın alma tarihinden itibaren geçerlidir. Bu garanti, normal kullanım koşullarında malzeme ve işçilik kusurlarını kapsar.
For warranty claims, technical assistance, or any questions regarding your Youtob Motion Sensor LED Ceiling Light, please contact Youtob customer service. Please have your purchase receipt and product model number (PIR-15W-US) available when contacting support.
İletişim Bilgileri: Refer to your purchase documentation or the Youtob official webEn güncel müşteri desteği iletişim bilgileri için siteyi ziyaret edin.
