Ariete Solenoid Valve Jiayin JYZ-3 Stiromatic Series Instruction Manual

giriiş

This manual provides essential information for the installation, operation, and maintenance of the Ariete original Jiayin JYZ-3 Solenoid Valve and coil. This component is designed for use in Ariete Stiromatic series steam irons with boilers. Please read these instructions carefully before proceeding with installation or any maintenance to ensure safe and correct usage.

Ürün Bittiview

The Ariete Jiayin JYZ-3 Solenoid Valve is a critical component responsible for controlling the flow of water or steam within your steam iron's boiler system. It ensures precise operation and efficient steam generation. This genuine Ariete part is designed for reliability and compatibility with specified models.

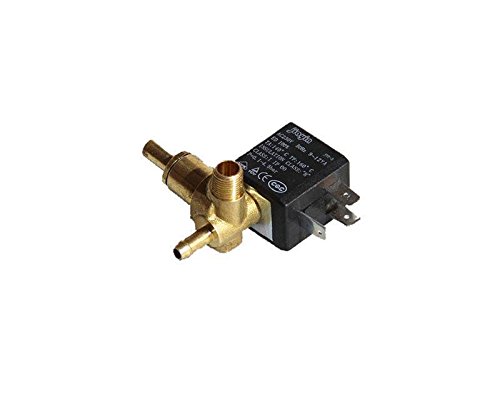

Image: Ariete Jiayin JYZ-3 Solenoid Valve and Coil. This image displays the solenoid valve and its accompanying coil, which are essential for regulating fluid flow in compatible steam irons.

Özellikler

Note: Product data can typically be found on the identification plate, usually located under the appliance.

Uyumluluk

This solenoid valve is compatible with various Ariete Stiromatic steam iron models. Please verify your appliance's model number against the list below. If your model is not listed, please contact Ariete customer support for assistance.

Compatible Ariete Stiromatic Models:

• Stiromatic No Stop (e.g., 00S439000AR0, 00S439000KEBG, 00S439001AR0, 00S439001KEBG, 00S43902KEBG, 00S439014AREX, 00S439014ARGR, 00S439014KEAU, 00S439020AR0, 00S439021AR0)
• Stiromatic No Stop V5 FMP4 (00S439570AR0)
• Stiromatic No Stop V6 FMS4 (00S439660AR0)
• Stiromatic No Stop V7 FMP2 (00S439740AR0, 00S4397414141AR0)
• Stiromatic No Stop V7 FMS4 (00S439760AR0)
• Stiromatic No Stop V7 FMP4 (00S439771AR0, 00S439771KEBG)
• Stiromatic No Stop EXCELLENCE (e.g., 00S638500AR0, 00S638540AR0, 00S638540KETR, 00S638570KEBG, 00S638700AR0, 00S638760AR0, 00S638770AR0, 00S638770KEBG)
• Stiromatic No Stop Pro (e.g., 00S640000AR0, 00S64000AR333800S, 00S640010AR0, 00S640010KEBG, 00S640040ALUK, 00S640040AR0, 00S640050ALUK, 00S640050AR0, 00S640050KEBG, 00S640050KETR)
• Stiromatic No Stop Digital (00S640100AR0, 00S640110)

Kurulum (Setup)

1. Önce Güvenlik: Always disconnect the steam iron from the main power supply and allow it to cool completely before attempting any installation or repair.
2. Bileşene Erişim: Refer to your specific steam iron's service manual for instructions on how to safely access the internal components, including the solenoid valve. This may involve removing covers or panels.
3. Identify the Solenoid Valve: Locate the existing solenoid valve. It will typically have electrical connections (for the coil) and plumbing connections (for water/steam lines).
4. Bağlantıyı kes: Carefully disconnect the electrical wiring from the old solenoid coil. Note the orientation and connection points for reassembly. Then, disconnect the water/steam lines. Be prepared for residual water.
5. Eski Vanayı Çıkarın: Unmount the old solenoid valve from its position.
6. Yeni Vana Takın: Position the new Ariete Jiayin JYZ-3 Solenoid Valve in the same location. Secure it firmly.
7. Yeniden bağlan: Reconnect the water/steam lines to the new valve, ensuring all connections are tight to prevent leaks. Then, reconnect the electrical wiring to the new coil, matching the original configuration.
8. Test: Before reassembling the entire appliance, perform a preliminary test. Reconnect the power supply and check for proper function and any leaks. If issues arise, disconnect power immediately.
9. Yeniden birleştirme: Once confirmed operational and leak-free, reassemble the steam iron's covers and panels.

Uyarı: Installation should only be performed by individuals with appropriate technical knowledge and experience in appliance repair. Improper installation can lead to electric shock, water leaks, or damage to the appliance.

Çalışma Prensibi

The solenoid valve operates as an electrically controlled switch for fluid flow. When the steam iron's control system sends an electrical signal to the solenoid coil, it generates a magnetic field. This magnetic field actuates a plunger, which in turn opens or closes the valve, allowing or stopping the flow of water into the boiler or steam out of the boiler, depending on its specific placement and function within the appliance. This precise control is crucial for generating steam on demand and maintaining optimal ironing performance.

Bakım

As an internal component, the solenoid valve itself typically requires no routine user maintenance. Its longevity is primarily dependent on the quality of water used in the steam iron and the overall maintenance of the appliance.

• Su Kalitesi: Using distilled or demineralized water in your steam iron can help prevent mineral buildup (limescale) that could affect the solenoid valve's operation over time.
• Appliance Descaling: Regularly descale your steam iron according to its manufacturer's instructions. This helps maintain the entire steam system, including the solenoid valve, free from blockages.
• Denetleme: During any other internal maintenance, visually inspect the solenoid valve and its connections for signs of wear, corrosion, or leaks.

Sorun giderme

If your steam iron is experiencing issues related to steam generation or water flow, the solenoid valve might be a contributing factor. Here are some common symptoms and potential causes:

• No Steam or Very Little Steam:
  • Olası Neden: Solenoid valve stuck closed or coil failure.
  • Aksiyon: Check electrical connections to the coil. If the coil is receiving power but the valve doesn't open, the valve or coil may be faulty and require replacement.
• Continuous Steam or Water Leakage:
  • Olası Neden: Solenoid valve stuck open or internal seal failure.
  • Aksiyon: The valve may be clogged with mineral deposits or have a damaged internal component. Cleaning or replacement of the valve is usually necessary.
• Unusual Noises (Clicking, Buzzing) from Valve Area:
  • Olası Neden: Coil issues or foreign material interfering with the plunger.
  • Aksiyon: Inspect the valve for obstructions. If the noise persists and performance is affected, consider replacing the valve.

For complex issues or if you are unsure about performing repairs, it is recommended to consult a qualified technician or Ariete customer support.

Garanti Bilgileri

As a replacement part, the warranty for this Ariete Jiayin JYZ-3 Solenoid Valve may be subject to specific terms and conditions. Please refer to the original purchase documentation or contact Ariete customer service for detailed warranty information applicable to replacement parts.

Müşteri Desteği

For further assistance, technical inquiries, or to report issues, please contact Ariete customer support. You can typically find contact information on the official Ariete website or within the original appliance's user manual.

Referans: For specific product inquiries, you may be asked for the product data found on the identification plate, generally located under the appliance.

Ariete Resmi Webalan: www.ariete.net
