JDIAG JD101 OBDII/EOBD/CAN OBD2 Scanner Code Reader Instruction Manual

1. Giriş

The JDIAG JD101 is a compact and user-friendly diagnostic tool designed to read and clear trouble codes from your vehicle's On-Board Diagnostics II (OBDII) system. It supports all OBDII, EOBD, and CAN protocols, providing essential information for vehicle maintenance and repair. This manual provides detailed instructions for the proper use and care of your JD101 scanner.

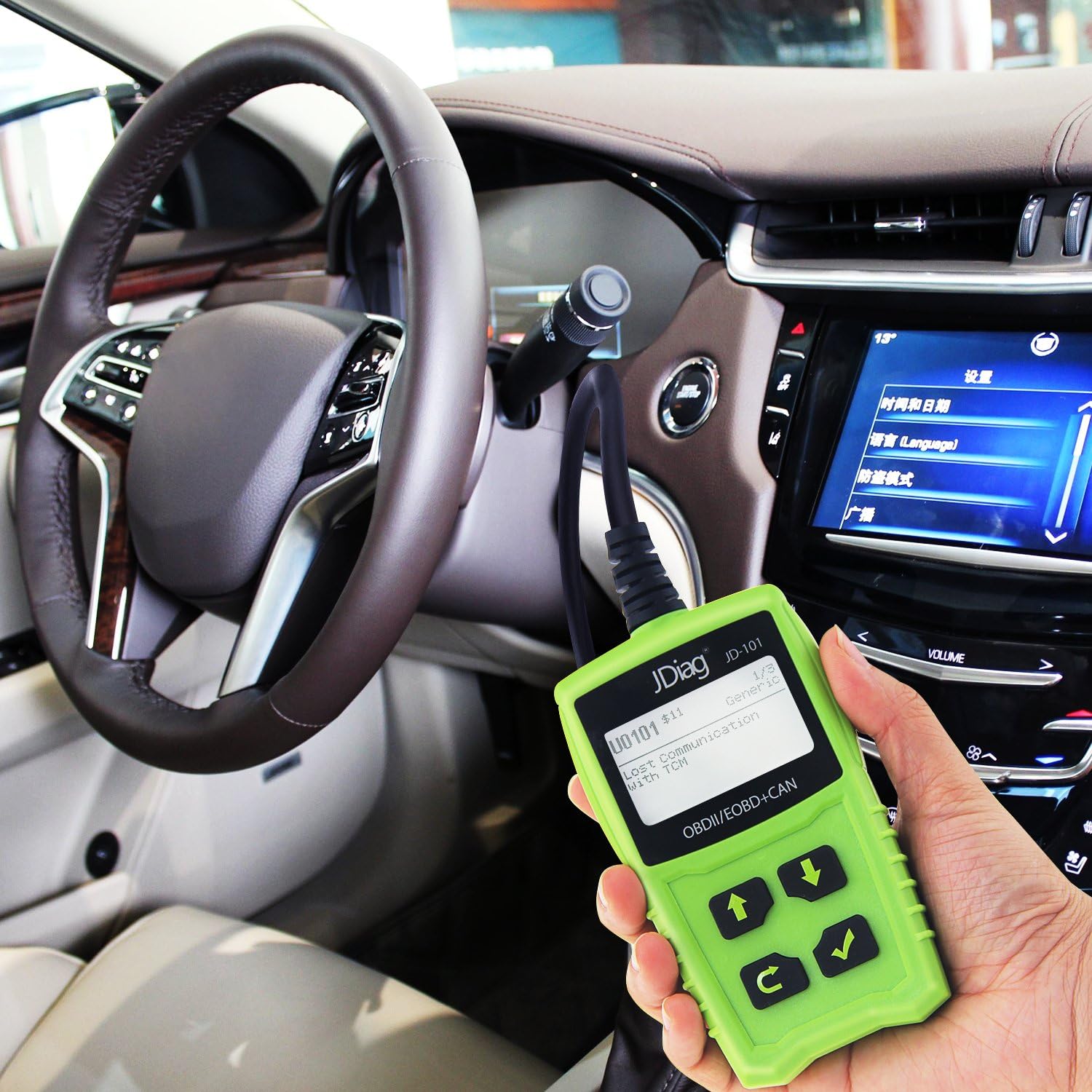

Resim 1.1: The JDIAG JD101 OBD2 scanner connected to a vehicle's diagnostic port, showing its display screen. This image illustrates the device in use within a car's interior.

2. Güvenlik Bilgileri

Always observe safety precautions when working on a vehicle. Failure to do so may result in personal injury or damage to the vehicle or the diagnostic tool.

• Araç Kullanımı: Operate the vehicle in a well-ventilated work area to avoid inhaling exhaust fumes.
• Çevre Koruma: Keep the device away from corrosive substances and water to prevent damage.
• Kişisel Güvenlik: Do not wear loose clothing or jewelry when working on a vehicle. Ensure the vehicle is in park with the parking brake engaged before connecting or disconnecting the tool.
• Araç Kullanım Kılavuzu: Always refer to your vehicle's service manual for specific diagnostic procedures and safety precautions.

Resim 2.1: Arka taraf view of the JDIAG JD101 scanner, displaying a warning label regarding operation in a well-ventilated area and protection from corrosive substances and water. This image also shows some operational specifications.

3. Ürün Bittiview

The JDIAG JD101 scanner features a clear LCD display and intuitive buttons for easy navigation and operation. Familiarize yourself with the components below.

Resim 3.1: A detailed diagram of the JDIAG JD101 scanner, highlighting its key components: the LCD Display, Up Scroll Button, Exit Button, Down Scroll Button, Enter Button, and the OBD II Connector. This helps users identify each part of the device.

Cihaz Bileşenleri:

• LCD Ekran: Shows test results, menu options, and diagnostic information.
• Up Scroll Button: Moves the cursor up or scrolls up through menu options.
• Down Scroll Button: Moves the cursor down or scrolls down through menu options.
• Çıkış Düğmesi: Önceki menüye döner veya bir işlemi iptal eder.
• Giriş Düğmesi: Bir seçimi onaylar veya bir menüye girer.
• OBD II Konektörü: Tarayıcıyı aracın Veri Bağlantı Konnektörüne (DLC) bağlar.

4. Özellikler

The JDIAG JD101 offers a range of diagnostic capabilities to help you understand and maintain your vehicle.

Resim 4.1: An infographic showcasing the multiple functions of the JDIAG JD101, such as reading and clearing fault codes, retrieving vehicle information, viewing freeze frame data, and supporting online upgrades and multiple languages.

• Geniş Araç Uyumluluğu: Works on most vehicles manufactured from 1996 onwards that support OBD II and CAN protocols, including domestic and imported models.
• Kod Alma: Retrieves generic (P0, P2, P3, and U0) and manufacturer-specific (P1, P3, and U1) diagnostic trouble codes (DTCs). Capable of reading pending codes, stored codes, and freeze frame codes.
• MIL Management: Turns off the Malfunction Indicator Light (MIL), clears DTCs, and resets monitors after repairs.
• DTC Tanımları: Displays DTC definitions directly on the 2.4-inch LCD screen for quick understanding.
• Canlı Veri Akışı: Reads live data stream (PID) with over 130 parameters, providing real-time vehicle sensor information.
• Araç bilgisi: Retrieves vehicle information such as Vehicle Identification Number (VIN), Calibration ID (CIN), and Calibration Verification Number (CVN).
• Çok Dilli Destek: Features a multilingual menu and DTC definitions, including English, Spanish, French, Russian, German, Italian, Japanese, and Chinese.
• Çevrimiçi Yükseltme: Supports online software upgrades to ensure compatibility with newer vehicles and updated diagnostic protocols.

5. Özellikler

Technical specifications for the JDIAG JD101 scanner.

Resim 5.1: This image details the driving information and communication protocols supported by the JDIAG JD101, such as AUTO, ISO15765-4 (CAN11/250), EOBD, and OBD II standards. It also provides examples of VIN and Calibration ID retrieval.

6. Kurulum

Follow these steps to connect and power on your JDIAG JD101 scanner.

1. DLC'yi bulun: Identify the vehicle's 16-pin Data Link Connector (DLC). This is usually located under the dashboard on the driver's side.
2. Ateşleme: Turn the vehicle's ignition key to the "ON" position. The engine should be off.
3. Connect Scanner: Plug the OBDII connector of the JD101 scanner firmly into the vehicle's DLC.
4. Güç Açık: The scanner will automatically power on and display the main menu. If it does not power on, check the connection and the vehicle's battery.

7. Kullanım Talimatları

This section outlines the basic operations of the JDIAG JD101 scanner.

7.1. Arıza Teşhis Kodlarını (DTC'leri) Okuma

1. Ana menüden şunu kullanın: Up/Down Scroll Buttons to navigate to "Read Codes" and press the Giriş Düğmesi.
2. Select "Stored Codes" to view current fault codes or "Pending Codes" to view intermittent codes.
3. The screen will display the DTCs and their definitions. Use the Up/Down Scroll Buttons ile view all codes if multiple are present.

7.2. Arıza Teşhis Kodlarının (DTC'ler) Silinmesi

Not: Clearing DTCs will also turn off the Malfunction Indicator Light (MIL) and reset all monitor status to a non-ready state. Ensure the underlying issue has been resolved before clearing codes.

1. From the main menu, navigate to "Erase Codes" and press the Giriş Düğmesi.
2. A confirmation message will appear. Select "Yes" and press the Giriş Düğmesi onaylamak için.
3. The scanner will confirm that the codes have been cleared.

7.3. ViewCanlı Veri Akışı

1. From the main menu, navigate to "Live Data" and press the Giriş Düğmesi.
2. Select the desired data parameters (PIDs) to view.
3. The screen will display real-time sensor data.

7.4. ViewÇerçeve Verilerini Dondur

Freeze Frame Data is a snapshot of the vehicle's operating conditions at the moment an emission-related fault occurred.

1. From the main menu, navigate to "Freeze Frame" and press the Giriş Düğmesi.
2. Tarayıcı, kaydedilen parametreleri ekranda gösterecektir.

7.5. Retrieving Vehicle Information

This function allows you to retrieve the Vehicle Identification Number (VIN), Calibration ID (CIN), and Calibration Verification Number (CVN).

1. From the main menu, navigate to "Vehicle Info" and press the Giriş Düğmesi.
2. Tarayıcı, mevcut araç bilgilerini görüntüleyecektir.

8. Bakım

Proper maintenance ensures the longevity and reliable operation of your JDIAG JD101 scanner.

• Temizlik: Tarayıcının yüzeyini temizlemek için yumuşak, kuru bir bez kullanın.asing and screen. Do not use abrasive cleaners or solvents.
• Depolamak: Store the tool in a cool, dry place, away from direct sunlight and extreme temperatures.
• İşleme: Tarayıcıyı düşürmekten veya şiddetli darbelere maruz bırakmaktan kaçının.
• Kablo Denetimi: Regularly inspect the OBDII cable for any signs of damage, such as cuts, fraying, or bent pins. Replace if damaged.
• Yazılım Güncellemeleri: Check the official JDIAG website periodically for available software updates to ensure your scanner has the latest features and vehicle compatibility.

9. Sorun Giderme

If you encounter issues with your JDIAG JD101, refer to the following common problems and solutions.

9.1. Scanner Does Not Power On

• Bağlantıyı kontrol et: OBDII konektörünün aracın DLC girişine güvenli bir şekilde takılı olduğundan emin olun.
• Ateşleme Durumu: Verify that the vehicle's ignition is in the "ON" position (engine off).
• Araç Aküsü: Confirm the vehicle's battery has sufficient charge.
• DLC Fuse: Check the vehicle's fuse for the DLC (often labeled as cigarette lighter, accessory, or OBD).

9.2. "Link Error" or "No Communication" Message

• Bağlantıyı Doğrulayın: Re-check that the OBDII connector is properly seated in the DLC.
• Ateşleme Durumu: Kontak anahtarının açık olduğundan emin olun.
• Araç Uyumluluğu: Confirm your vehicle is OBDII compliant (generally 1996 and newer for US vehicles, 2001 for petrol EU vehicles, 2004 for diesel EU vehicles).
• Diğer Modüller: Ensure no other diagnostic tools are connected to the vehicle.

9.3. Incorrect Data Displayed

• Yazılım Güncellemesi: Tarayıcının yazılımının güncel olduğundan emin olun.
• Araç Özellikleri: Some data parameters may vary or not be supported by all vehicles.

10. Garanti ve Destek

For warranty information, technical assistance, or customer service inquiries regarding your JDIAG JD101 scanner, please refer to the manufacturer's official website or contact their customer support channels. Details are typically provided with your product packaging or on the manufacturer's webalan.
