CRAFTSMAN 103.23141 Drill Press Operator's and Parts Manual

1. Giriş

This manual provides detailed instructions for the CRAFTSMAN 103.23141 Drill Press. It is a reproduction of the original operator's and parts manual, designed to assist users with the proper installation, safe operation, routine lubrication, and essential maintenance procedures. Additionally, it includes guidance on drill sharpening, a speed pulley chart, and comprehensive exploded view diagrams for all parts.

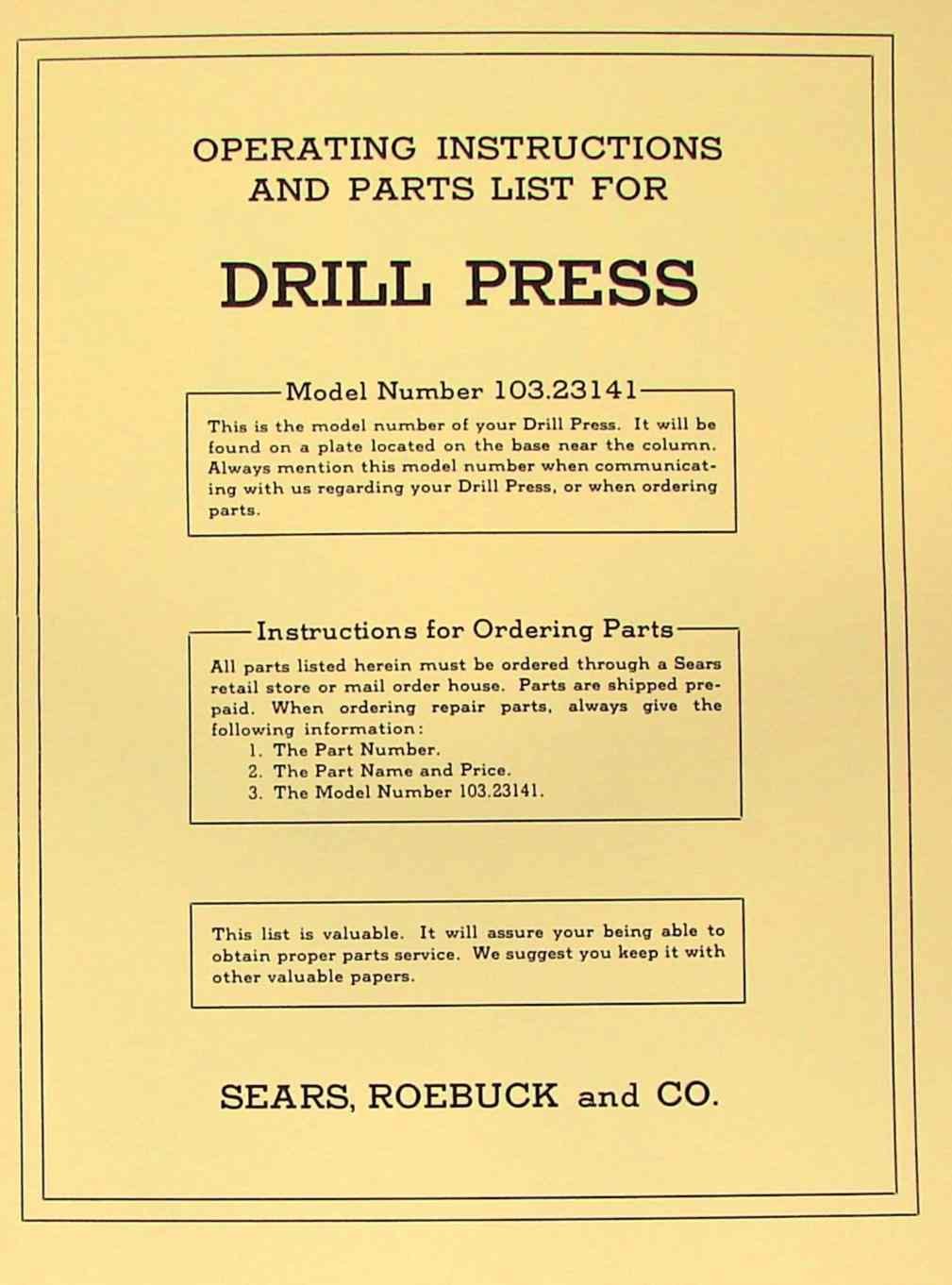

Image 1.1: Cover of the CRAFTSMAN 103.23141 Drill Press Operator's and Parts Manual.

2. Kurulum

Proper installation is crucial for the safe and efficient operation of your drill press. Follow these guidelines carefully:

• Paketin açılması: Carefully remove all components from the packaging. Verify that all parts listed in the manual are present.
• Toplantı: Assemble the drill press according to the provided diagrams and instructions. Ensure all fasteners are securely tightened.
• Montaj: Securely mount the drill press to a sturdy workbench or stand using appropriate hardware. The mounting surface must be level and capable of supporting the weight and operational forces of the machine.
• Elektrik Bağlantısı: Connect the drill press to a grounded electrical outlet with the correct voltagve amperage as specified on the motor nameplate.

3. Operasyon

Before operating the drill press, familiarize yourself with its controls and safety features. Always wear appropriate personal protective equipment (PPE), including eye protection.

• İş parçası ClampTürkçe: Her zaman clamp the workpiece securely to the drill press table. Never hold the workpiece by hand.
• Hız Seçimi: Adjust the spindle speed according to the material being drilled and the drill bit size. Refer to the Speed Pulley Chart for recommended settings.
• Matkap Ucu Montajı: Ensure the drill bit is properly seated and tightened in the chuck. Use the chuck key to secure it firmly.
• Drilling Procedure: Lower the drill bit slowly into the workpiece, applying steady pressure. Avoid excessive force, which can damage the bit or the material.
• Acil durdurma: Locate and understand the function of the emergency stop switch before beginning any operation.

4. Yağlama

Regular lubrication is essential for maintaining the smooth operation and longevity of your drill press. Refer to the specific lubrication points and schedules detailed in the original manual.

• Mil Yatakları: Lubricate spindle bearings as recommended to reduce friction and wear.
• tüy: Apply a light coat of grease or oil to the quill for smooth vertical movement.
• Table Rack and Pinion: Keep the table height adjustment mechanism clean and lubricated.
• Motor: Check motor bearings for lubrication requirements, if applicable.

5. Bakım

Perform routine maintenance to ensure the drill press remains in optimal working condition and to prevent potential hazards.

• Temizlik: Keep the drill press clean from dust, chips, and debris. Disconnect power before cleaning.
• Kemer gerginliği: Periodically check and adjust the drive belt tension to prevent slippage and ensure efficient power transfer.
• Chuck Muayenesi: Inspect the chuck for wear or damage. Replace if necessary to ensure secure drill bit retention.
• Elektrik Sistemi: Regularly inspect power cords, switches, and connections for any signs of damage.
• Bağlantı Elemanı Kontrolü: Tüm somun, cıvata ve vidaların sıkı olduğundan emin olun. Gerektiğinde tekrar sıkın.

6. Drill Sharpening

Dull drill bits can lead to inefficient drilling, poor hole quality, and increased strain on the drill press. This manual provides guidance on how to properly sharpen your drill bits to maintain their cutting edge.

• Açı Tutarlılığı: Maintain the correct cutting angle for the drill bit type and material.
• Clearance Angle: Ensure proper clearance behind the cutting edge to prevent rubbing.
• Lip Length: Keep both cutting lips of the drill bit equal in length for balanced cutting.
• Soğutma: Use a coolant or allow the bit to cool during sharpening to prevent overheating.

7. Speed Pulley Chart

The speed pulley chart is a critical reference for selecting the appropriate spindle speed for various drilling operations. Incorrect speeds can lead to premature drill bit wear, poor finish, or damage to the workpiece.

Consult the original manual's speed pulley chart for specific recommendations based on drill bit diameter and material type (e.g., wood, soft metals, hard metals).

8. Parts Diagrams

This manual includes a complete set of exploded view parts diagrams. These diagrams are invaluable for identifying individual components, understanding their assembly, and facilitating the ordering of replacement parts.

When ordering parts, always refer to the specific part numbers and descriptions provided in the diagrams to ensure compatibility with your CRAFTSMAN 103.23141 Drill Press.

9. Sorun Giderme

This section addresses common issues that may arise during the operation of your drill press. Refer to the original manual for more detailed troubleshooting steps.

10. Özellikler

The following specifications are for the CRAFTSMAN 103.23141 Drill Press. Please note that this manual is a reproduction and these details are provided for informational purposes.

• Modeli: 103.23141
• Yayımcı: Ozark Tool Manuals (for this reproduction)
• Dil: İngilizce
• Sayfa sayısı: 6 (for this reproduction)
• Ürün Ağırlığı: 8 ounces (for this reproduction)

11. Garanti ve Destek

This document is a reproduction of the original CRAFTSMAN 103.23141 Drill Press Operator's and Parts Manual. As such, it does not include any warranty information for the drill press itself. For warranty details, technical support, or service inquiries regarding the CRAFTSMAN 103.23141 Drill Press, please refer to the original manufacturer's documentation or contact CRAFTSMAN directly.

For questions regarding this specific manual reproduction, please contact the publisher, Ozark Tool Manuals.
