Foset Element ELF-81N High-Neck Kitchen Faucet, Satin Finish User Manual

giriiş

This manual provides detailed instructions for the installation, operation, and maintenance of your Foset Element ELF-81N High-Neck Kitchen Faucet with Satin Finish. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Güvenlik Bilgileri

• Herhangi bir kurulum veya bakım işlemine başlamadan önce ana su kaynağını mutlaka kapatın.
• Montaj sırasında güvenlik gözlüğü ve eldiven gibi uygun kişisel koruyucu ekipman kullanın.
• Sızıntıları önlemek için tüm bağlantıların güvenli olduğundan emin olun.
• Kurulum sürecinin herhangi bir noktasında emin değilseniz, kalifiye bir tesisatçıya danışın.
• Do not use abrasive cleaners or harsh chemicals on the faucet's satin finish, as this may damage the surface.

Paket İçeriği

Kuruluma başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun.

• Foset Element ELF-81N High-Neck Kitchen Faucet (1 unit)
• Montaj donanımı
• Kurulum talimatları (bu kılavuz)

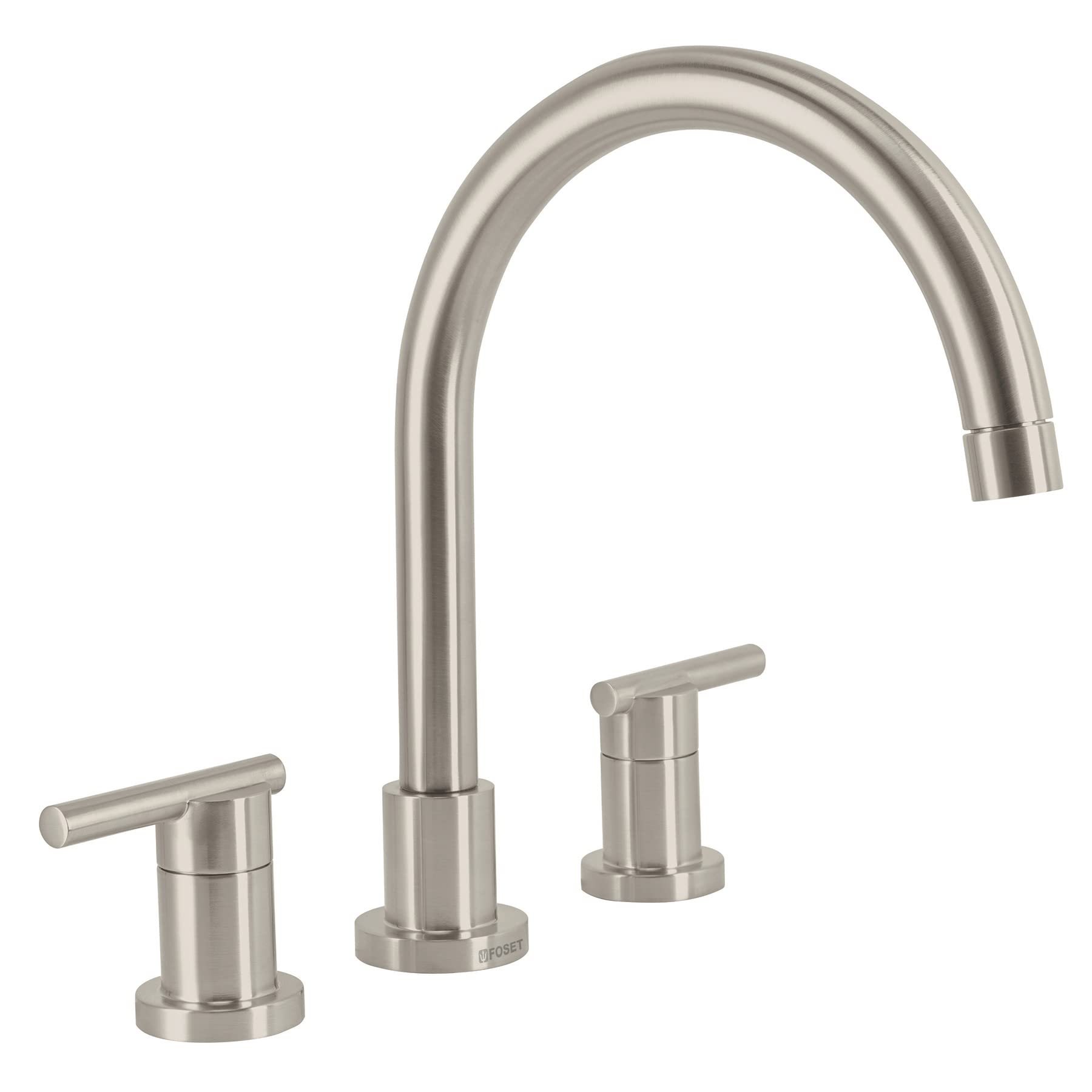

Image: Foset Element ELF-81N High-Neck Kitchen Faucet, Satin Finish. This image displays the complete faucet unit, including the high-arc spout and two metal handles, ready for installation.

Özellikler

Image: Faucet dimensions. This image illustrates the total height of the faucet, which is approximately 29 cm from the base to the top of the high-arc spout.

Image: Faucet features. This image highlights the brass neck construction and the durable metal handles of the faucet.

Kurulum ve Yükleme

This faucet is designed for widespread installation with separate hot and cold water handles. Follow these steps for proper installation:

1. Lavaboyu Hazırlayın: Ensure the sink or countertop has three pre-drilled holes for widespread faucet installation. Clean the area thoroughly.
2. Tutacakları Takın: Insert the hot and cold water handles into their respective holes. Secure them from underneath the sink using the provided washers and nuts. Ensure they are oriented correctly for operation.
3. Musluğu Takın: Insert the faucet spout into the center hole. Secure it from underneath with the provided washer and mounting nut. Ensure the spout is facing forward.
4. Su Hatlarını Bağlayın: Connect the hot and cold water supply lines to the corresponding inlets on the faucet handles. Use thread sealant tape on all threaded connections to prevent leaks. Connect the spout's water inlet to the hot and cold water lines using the provided connectors or flexible hoses.
5. Sızıntı Testi: Slowly turn on the main water supply. Check all connections for leaks. If any leaks are detected, tighten the connections as necessary.
6. Musluğu Boşaltın: Remove the aerator from the spout. Turn on both hot and cold water for a few minutes to flush out any debris from the water lines. Turn off the water, reattach the aerator, and check for proper flow.

This faucet is designed to operate effectively with low water pressure. Refer to the pressure table for minimum operating pressure requirements:

Image: Water pressure requirements table. This table shows the recommended water pressure (kPa, kgf/cm², PSI) based on the height (h) of the water tank or supply source.

Kullanım Talimatları

The Foset Element ELF-81N faucet features two metal handles and a ceramic cartridge for smooth operation.

• Soğuk Su: Soğuk su akışını açmak için sağdaki kolu saat yönünün tersine çevirin. Kapatmak için saat yönünde çevirin.
• Sıcak Su: Sıcak su akışını açmak için sol kolu saat yönünün tersine çevirin. Kapatmak için saat yönünde çevirin.
• Suyu Karıştırma: İstediğiniz su sıcaklığını ve akış hızını elde etmek için her iki kolu da ayarlayın.
• The ceramic cartridge ensures a smooth and easy 1/4 turn opening and closing action.

Bakım

Düzenli bakım, musluğunuzun yüzeyinin ve işlevselliğinin korunmasına yardımcı olacaktır.

• Bitişin Temizlenmesi: Clean the satin finish regularly with a soft cloth and mild soap and water. Rinse thoroughly and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Havalandırıcı Temizliği: If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the tip of the spout, clean any debris or mineral deposits, and rinse thoroughly before reattaching.
• Kartuş Değiştirme: If the faucet drips or leaks from the handles, the ceramic cartridge may need replacement. Turn off the water supply, remove the handle, and replace the cartridge according to the manufacturer's instructions for cartridge replacement (specific instructions not provided in this manual, consult a professional if needed).

Sorun giderme

Garanti Bilgileri

Specific warranty details for the Foset Element ELF-81N faucet are not provided in the product data. Please refer to the manufacturer's official website or contact customer support for comprehensive warranty information.

Note: The product is eligible for a 30-day free return policy through the retailer.

Destek

For technical assistance, replacement parts, or further inquiries, please contact Foset customer support or visit their official webalan.

• Üretici: Truper SA de CV
• Marka: Foset
• Webalan: Foset Official Store on Amazon.com.mx
