AvosDim LUXE ALU Roll-Up Window Mosquito Screen - Model MKENAL

Ürün Bittiview

The AvosDim LUXE ALU Roll-Up Window Mosquito Screen is designed to provide effective insect protection for your windows. This model, MKENAL, features a robust extruded aluminum frame and a high-quality PVC-coated fiberglass mesh. Its roll-up mechanism allows for easy operation, similar to a classic roller blind. The screen is installed on the exterior window frame and can be operated from the interior using ergonomic handles. A pull cord is included for screens installed out of reach.

Temel Özellikler:

• Recuttable Components: Koruyucu casing, side guides, pull bar, and insect mesh are all designed to be cut to size, ensuring a perfect fit for various window dimensions. A graduated scale on the casing assists with precise cutting.
• Dayanıklı Alüminyum Yapı: casing, side guides, and handle bar are made from exclusively extruded aluminum, providing superior rigidity and longevity compared to less expensive models.
• High-Quality Mesh: Equipped with a high-quality PVC-coated fiberglass mesh. The gray mesh is discreet and nearly invisible once installed, maximizing light transmission.
• Renk Seçenekleri: Available in various thermolacquered aluminum colors including white, brown, anthracite gray, and black. A realistic golden oak veneer option is also available for wood-framed windows.

AvosDim LUXE ALU Roll-Up Window Mosquito Screen in brown.

Kurulum ve Yükleme

Installation of the AvosDim LUXE ALU Roll-Up Window Mosquito Screen requires careful measurement and cutting to ensure a proper fit. It is recommended to have assistance during installation, especially for larger screens.

Gerekli Araçlar (Dahil Değil):

• Ölçüm bandı
• Kalem
• Saw (for cutting aluminum profiles and mesh)
• Delmek
• Tornavida
• Seviye
• Güvenlik gözlükleri ve eldivenler

Kurulum Adımları:

1. Measure the Window Opening: Accurately measure the width and height of the exterior window frame opening where the screen will be installed.
2. Cut Components to Size: Based on your measurements, carefully cut the aluminum casing, side guides, and mesh to the required dimensions. Use the graduated scale on the casing for precision.
3. Çerçeveyi Birleştirin: Attach the side guides to the main casing. Ensure all connections are secure.
4. Mount the Casing: Position the assembled casing at the top of the exterior window frame. Use a level to ensure it is perfectly horizontal. Mark the drilling points for the casing end caps.
5. Drill and Secure: Drill pilot holes at the marked points. Insert appropriate wall plugs (if necessary) and secure the casing to the window frame using screws.
6. Install Side Guides: Align the side guides vertically along the window frame, ensuring they are parallel and the mesh can move freely. Mark and drill holes, then secure the side guides.
7. Insert Mesh and Pull Bar: Ensure the mesh is correctly tensioned within the side guides and the pull bar is properly seated.
8. Attach Handles and Pull Cord: Install the ergonomic handles on the pull bar. If the screen is installed high, attach the optional pull cord to the lower traverse for easier access.

Kapatmak view of the black aluminum profile and end cap, illustrating mounting points.

White aluminum profile with integrated brush seal, designed to prevent insects from entering.

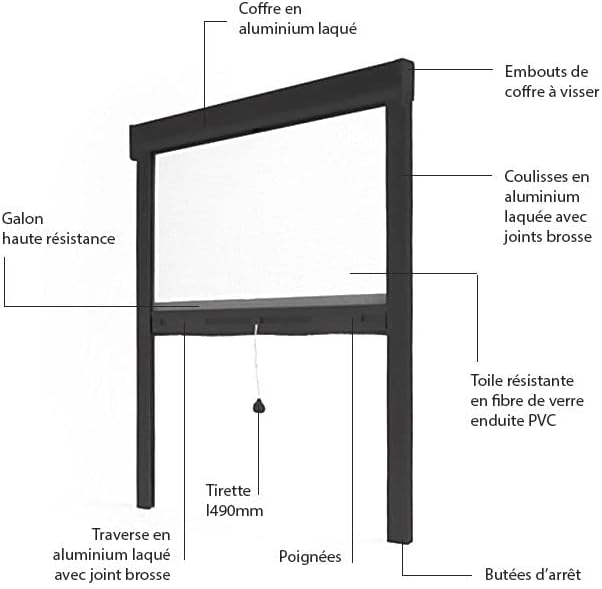

Diagram illustrating the components of the roll-up mosquito screen, including the lacquered aluminum casing, side guides with brush seals, PVC-coated fiberglass mesh, pull cord, and handles.

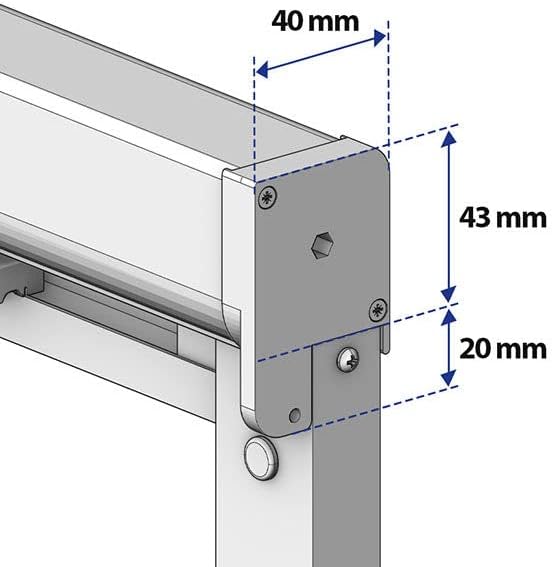

Detailed diagram showing dimensions of the top casing and side guide attachment points (40mm, 43mm, 20mm).

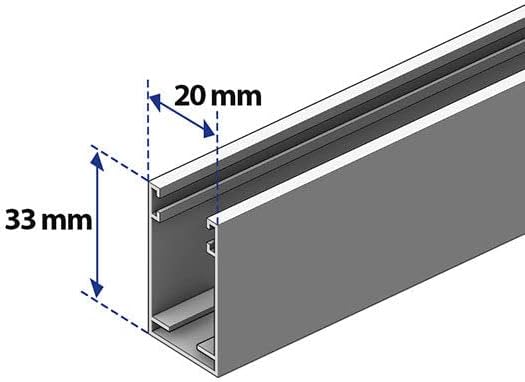

Detailed diagram showing dimensions of the side guide profile (20mm, 33mm).

Kullanım Talimatları

The AvosDim LUXE ALU Roll-Up Window Mosquito Screen operates with a spring-loaded mechanism, similar to a traditional roller blind. It is designed for manual operation.

To Lower the Screen:

• Grasp the ergonomic handles located on the pull bar at the bottom of the mesh.
• Gently pull the handles downwards to unroll the mesh.
• Continue pulling until the mesh reaches the desired position or fully extends to the bottom of the window frame. The screen will lock into place.
• If using the optional pull cord, pull the cord downwards to lower the screen.

To Raise the Screen:

• Grasp the ergonomic handles on the pull bar.
• Slightly pull the handles downwards to release the locking mechanism, then gently guide the screen upwards as the spring mechanism retracts the mesh into the casing.
• Allow the screen to fully retract into the top casing.
• If using the optional pull cord, gently pull the cord downwards to release the lock, then guide the screen upwards.

Hand demonstrating the operation of the mosquito screen using the ergonomic handles.

Bakım

To ensure the longevity and optimal performance of your AvosDim LUXE ALU Roll-Up Window Mosquito Screen, follow these simple maintenance guidelines:

• Fileyi Temizleme: The fiberglass mesh is PVC-coated and can be spot cleaned. Use a soft cloth dampened with mild soapy water to gently wipe away dirt or debris. Avoid harsh chemicals or abrasive cleaners, as these can damage the mesh or coating.
• Çerçevenin Temizlenmesi: Wipe the aluminum frame and side guides with a damp toz ve kiri temizlemek için kullanılan bez.
• Tıkanıklıkları İnceleyin: Periodically check the side guides for any obstructions that might hinder the smooth operation of the screen. Remove any leaves, insects, or other debris.
• Zorla Çalıştırmaktan Kaçının: Always operate the screen gently. Do not force it up or down, as this can damage the spring mechanism or the mesh.

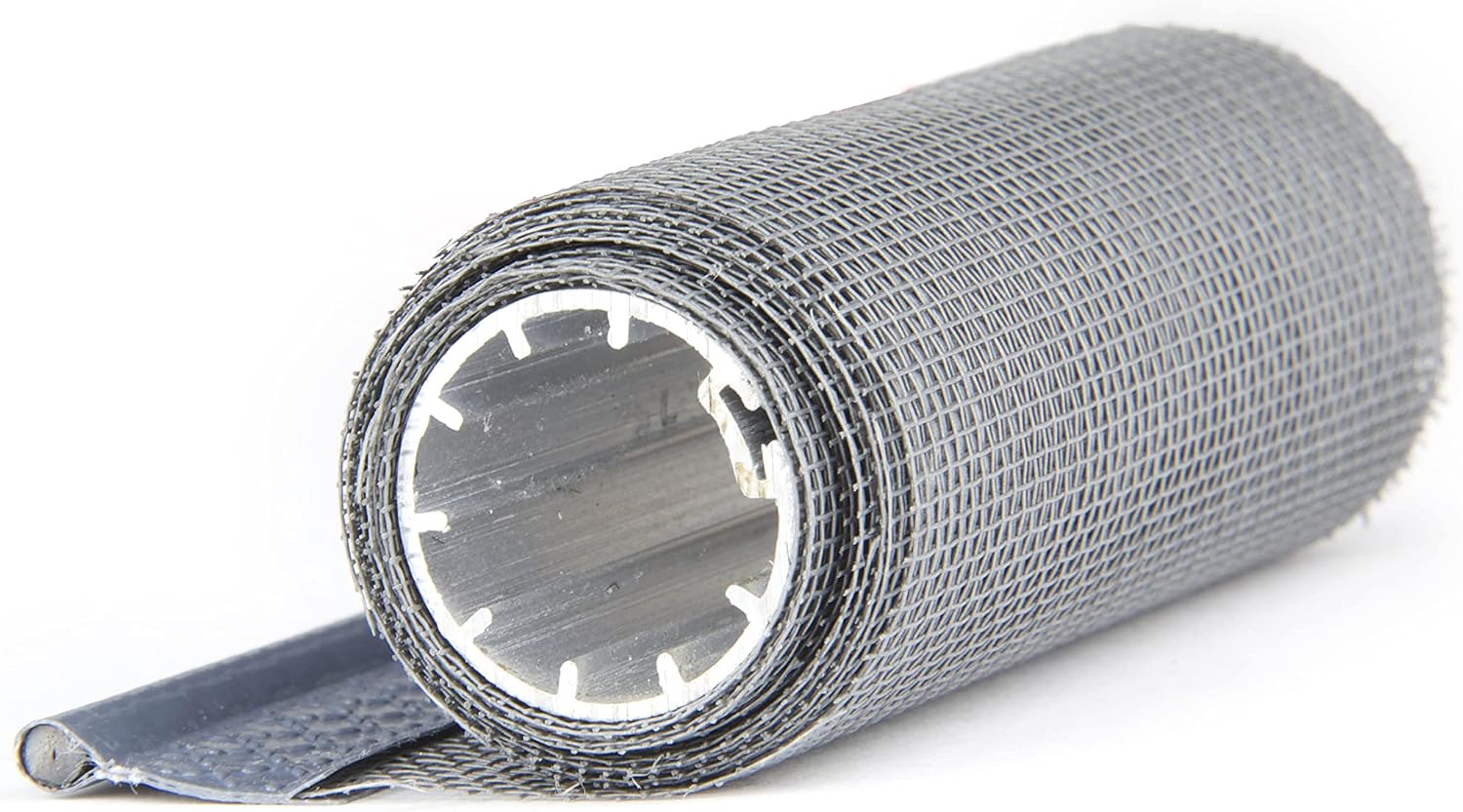

Rolled fiberglass mesh with PVC coating, showing the material texture.

Sorun giderme

If you encounter issues with your mosquito screen, consider the following common solutions:

• Screen does not roll up/down smoothly:
  • Check the side guides for any debris or obstructions.
  • Ensure the side guides are clean and free of sticky residue.
  • Verify that the screen is properly aligned within the side guides.
• Screen does not stay in position:
  • The locking mechanism might be obstructed or require adjustment.
  • Ensure the screen is fully extended to engage the lock.
• Mesh is torn or damaged:
  • Small tears can sometimes be repaired with a mesh repair kit.
  • For significant damage, contact customer support for replacement mesh or components.

For issues not covered here, please refer to the support section.

Ürün Özellikleri

Various color options for the roll-up mosquito screen, including white, anthracite, brown, and golden oak.

Garanti Bilgileri

Specific warranty details for the AvosDim LUXE ALU Roll-Up Window Mosquito Screen are not provided in the product data. Please refer to the retailer's return policy or contact AvosDim customer support for warranty information.

Müşteri Desteği

For further assistance, technical support, or inquiries regarding your AvosDim LUXE ALU Roll-Up Window Mosquito Screen, please contact AvosDim customer service. Contact information can typically be found on the manufacturer's official websitenizden veya satın alma noktanızdan.

Not: Bazı müşteri yorumlarıviews mention that installation instructions can be downloaded from the manufacturer's website via a QR code. Please check the product packaging for such a code.
