Miele WT 2790 WPM Edition 111 Washer Dryer

1. Giriş

This instruction manual provides essential information for the safe and efficient operation, installation, and maintenance of your Miele WT 2790 WPM Edition 111 washer dryer. Please read this manual thoroughly before using the appliance for the first time to prevent damage and ensure optimal performance. Keep this manual in a safe place for future reference.

2. Güvenlik Talimatları

Kazaları ve cihazda hasarı önlemek için her zaman aşağıdaki güvenlik önlemlerine uyun:

• Elektriksel Güvenlik: Ensure the power supply matches the specifications on the appliance's rating plate. Do not use extension cords or multi-sockets. The appliance must be properly earthed.
• Su Bağlantıları: Connect the water inlet and drain hoses securely to prevent leaks. Do not reuse old hoses.
• Çocuk Güvenliği: This appliance is equipped with a child lock feature. Activate it to prevent children from operating the machine unsupervised. Keep packaging materials away from children.
• Kurulum: The appliance is heavy (approximately 222.67 lbs). Use appropriate lifting techniques and assistance during installation. Ensure the appliance is level and stable to prevent vibrations during operation.
• Yanıcı malzemeler: Do not wash or dry items that have been soiled with flammable substances (e.g., oil, paint, solvents).
• Bakım: Herhangi bir temizlik veya bakım işlemine başlamadan önce cihazın elektrik bağlantısını kesin.

3. Kurulum ve Kurulum

3.1 Paketin açılması

Carefully remove all packaging materials. Inspect the appliance for any transport damage. Retain packaging for potential future transport.

3.2 Yerleştirme

The Miele WT 2790 WPM Edition 111 is a freestanding, front-loading washer dryer. It can also be installed under a counter. Ensure there is adequate ventilation around the appliance. Place the machine on a firm, level floor. Adjust the feet to ensure stability.

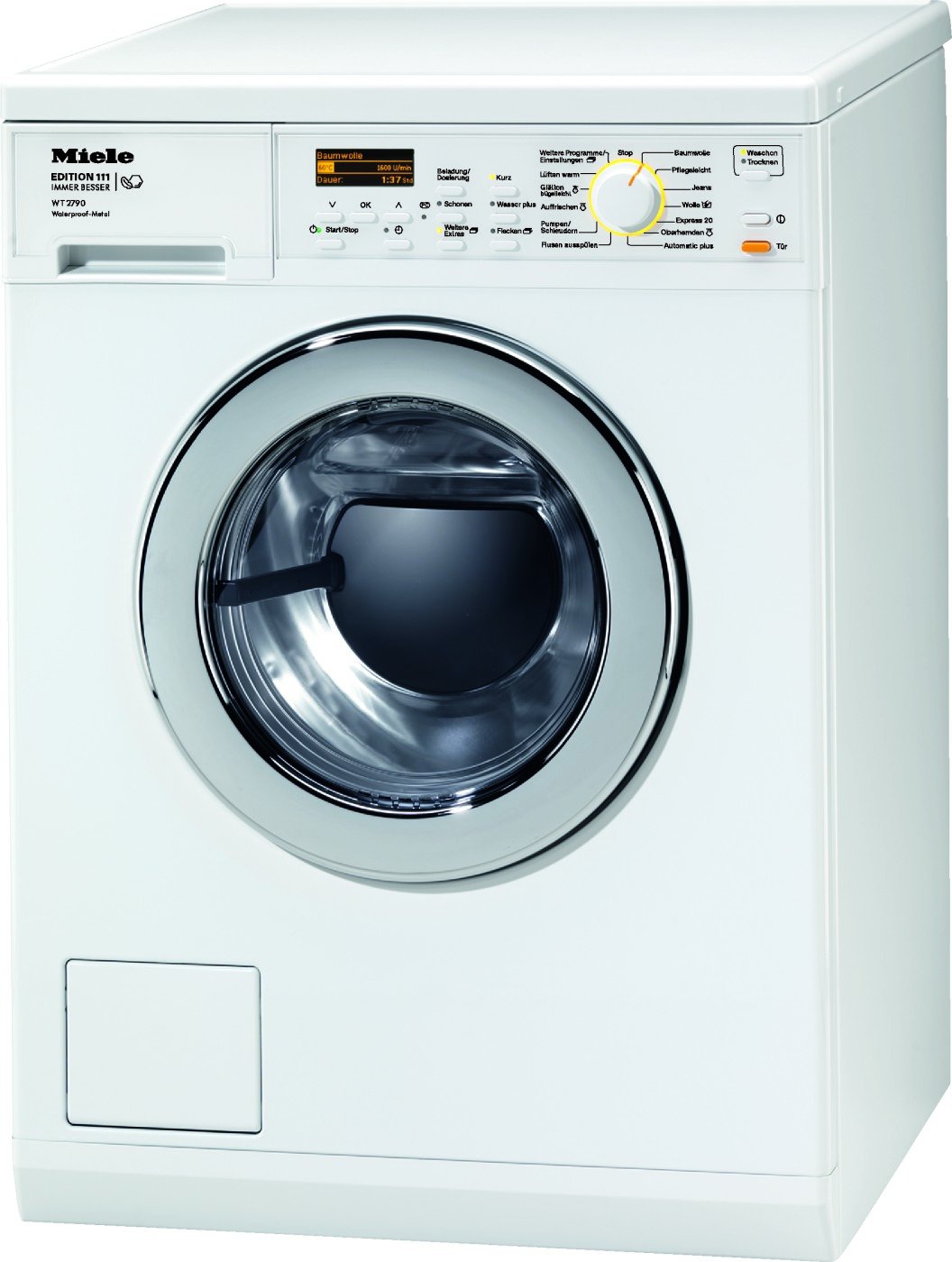

Resim: Ön view of the Miele WT 2790 WPM Edition 111 washer dryer, showing the control panel and loading door.

3.3 Su Bağlantısı

Connect the supplied fill hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks. Position the drain hose into a suitable drain or standpipe, ensuring it is securely fixed and allows for proper drainage.

3.4 Elektrik Bağlantısı

Plug the power cable into a properly earthed electrical socket. Ensure the socket is easily accessible.

3.5 İlk Kullanım

Before the first wash, run an empty wash cycle at 60°C without laundry but with a small amount of detergent to clean the drum and remove any manufacturing residues.

4. Kullanım Talimatları

4.1 Kontrol Paneli

The appliance features a button-type control panel for selecting programs and options. The display provides information on the selected program, remaining time, and status.

4.2 Çamaşırların Yüklenmesi

Open the front loading door and place laundry loosely into the stainless steel drum. Do not overload the machine. The maximum washing capacity is 3 kg. For drying, the capacity is typically lower, around 2.5 kg, to ensure effective drying.

4.3 Deterjan Dispenseri

Add the appropriate amount of detergent and fabric softener to the designated compartments in the dispenser drawer. Refer to detergent packaging for dosage recommendations.

4.4 Program Seçimi

Turn the program selector or press the relevant buttons to choose your desired wash or dry program. Available wash and dry cycles include:

• Sıhhi: For heavily soiled items requiring high temperatures.
• Aktif Buhar: For refreshing clothes and reducing creases.
• Hızlı yıkama: Hafif kirli ve hızlı yıkama gerektiren ürünler için.

The machine offers 3 wash cycles, 3 dry cycles, and 3 option cycles.

4.5 Bir Program Başlatmak

After selecting the program and options, press the Start button. The machine will begin the cycle. The operating mode is automatic.

4.6 Çocuk Kilidi

To activate the child lock, refer to the specific instructions in the full manual. This feature prevents accidental program changes or starting by children.

4.7 Combined Wash and Dry Function

The appliance can perform a continuous wash and dry cycle. Select the appropriate combined program. Ensure the load size is suitable for drying (e.g., 2.5 kg) when using this function.

5. Bakım

5.1 Dış Cephenin Temizlenmesi

Cihazın dışını yumuşak, damp bezle silin. Aşındırıcı temizleyiciler veya çözücüler kullanmayın.

5.2 Deterjan Bölmesinin Temizlenmesi

Kalıntı birikmesini önlemek için deterjan haznesini düzenli olarak çıkarıp temizleyin.

5.3 Fluff Filter

Unlike some traditional dryers, this washer dryer does not have a removable fluff filter that needs manual cleaning. Instead, it uses a 7-minute 'fluff program' to flush lint into the drain system. Run this program periodically, especially after drying cycles, to ensure efficient operation and prevent lint buildup.

5.4 Tambur Temizliği

Periodically run a maintenance wash cycle at a high temperature (e.g., 90°C) with a suitable drum cleaner to prevent odors and maintain hygiene.

6. Sorun Giderme

Müşteri hizmetleriyle iletişime geçmeden önce lütfen aşağıdaki sık karşılaşılan sorunları kontrol edin:

• Cihaz çalışmıyor: Ensure the power cable is securely plugged in and the door is properly closed. Check the circuit breaker.
• Su alımı yok: Check if the water tap is open and the water inlet hose is not kinked.
• Poor wash results: Ensure correct detergent dosage and program selection. Do not overload the machine.
• Kötü kurutma sonuçları: Ensure the load size is appropriate for drying. Check if the fluff program has been run recently.
• Olağandışı ses/titreşim: Ensure the appliance is level and stable. Check for foreign objects in the drum.

If the problem persists, refer to the comprehensive troubleshooting guide in the full user manual or contact Miele customer support.

7. Özellikler

8. Garanti ve Destek

For detailed information regarding the warranty period and terms for your Miele WT 2790 WPM Edition 111 washer dryer, please refer to the warranty card included with your purchase or visit the official Miele website. In case of technical issues or service requests, contact Miele customer support directly. Ensure you have your model number and purchase date available when contacting support.
