Philips Senseo HD7870/10 Twist Coffee Pad Machine User Manual

1. Önemli Güvenlik Bilgileri

Read this user manual carefully before using the appliance and save it for future reference. Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons.

• Cihazı suya veya başka bir sıvıya batırmayın.
• Ses seviyesini garantileyintage cihaz üzerinde belirtilen yerel şebeke hacminize karşılık gelir.tage bağlanmadan önce.
• Cihazı çocukların erişemeyeceği yerlerde saklayınız.
• Fiş, elektrik kablosu veya cihazın kendisi hasarlıysa cihazı çalıştırmayın.
• Cihazı yalnızca evde kullanım amacına uygun olarak kullanın.

2. Ürün Bittiview

Familiarize yourself with the components of your Philips Senseo HD7870/10 Twist Coffee Pad Machine.

Şekil 1: Üzeriview of the Senseo HD7870/10 machine with accessories.

• Su deposu: Detachable tank for water. Capacity for 6 cups.
• Kahve Musluğu: Height-adjustable to accommodate various cup sizes.
• Pad Holder: For single or double coffee pads.
• Damlama tepsisi: Fazla sıvıyı toplar ve temizlik için çıkarılabilir.
• Dokunmatik Ekran: For operation and status indicators.

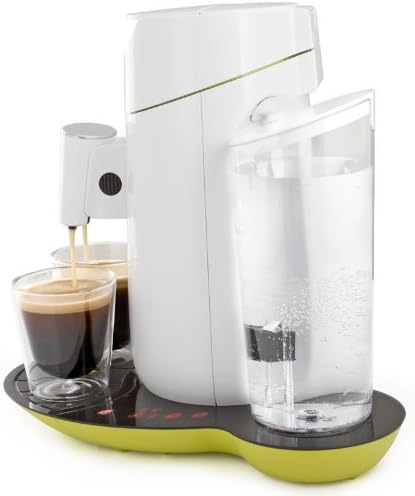

Şekil 2: Yan view highlighting the water reservoir.

Figure 3: Detail of the touchscreen control panel with power, 1-cup, 2-cup, and descaling indicators.

3. Kurulum

3.1 İlk Kullanım ve Durulama

1. Tüm ambalaj malzemelerini çıkarın.
2. Clean the water reservoir, pad holders, and drip tray with warm water and a mild detergent. Rinse thoroughly.
3. Fill the water reservoir with fresh cold water up to the MAX indication.
4. Place the water reservoir back onto the appliance.
5. Place a pad holder (without a coffee pad) and close the lid.
6. Musluğun altına bir kase yerleştirin.
7. Press the power button to turn on the machine. The 1-cup and 2-cup buttons will flash.
8. Press the 2-cup button to start the rinsing cycle. Repeat this process once or twice until the water reservoir is empty.

3.2 Su Deposunun Doldurulması

• Remove the water reservoir from the appliance.
• Fill it with fresh, cold tap water up to the MAX level.
• Place the water reservoir back onto the appliance, ensuring it is seated correctly.

4. Kahve Makinesinin Çalıştırılması

4.1 Kahve Demleme

Figure 4: The machine brewing two cups of coffee simultaneously.

1. Su haznesinin dolu olduğundan emin olun.
2. Open the lid and place one or two Senseo coffee pads into the appropriate pad holder. Use the 1-cup pad holder for one pad and the 2-cup pad holder for two pads.
3. Kapağını sıkıca kapatın.
4. Place one or two cups under the coffee spout. Adjust the spout height if necessary.
5. Press the power button. The 1-cup and 2-cup buttons will light up steadily when the machine is ready.
6. Basın 1 fincan düğmesi for a single cup of coffee or the 2 fincan düğmesi for two cups. The machine will start brewing.
7. The machine will automatically stop when the coffee is ready.

Şekil 5: Üst view of the machine, illustrating the pad placement area.

4.2 Kahve Sertliğini Ayarlama

The Senseo HD7870/10 allows you to adjust the coffee strength:

• After pressing the power button, the 1-cup and 2-cup buttons will light up.
• To select a stronger coffee, press the desired cup button (1 or 2) twice quickly. The button will flash faster to indicate stronger brew selection.
• For a regular coffee, press the desired cup button once.

4.3 Otomatik Bekleme

The machine automatically switches to standby mode after 15 minutes of inactivity to save energy. To reactivate, press the power button.

5. Bakım

5.1 Temizlik

• Temizlemeden önce mutlaka cihazın fişini çekin.
• Makinenin dışını bir bezle silin.amp bez. Aşındırıcı temizlik maddeleri kullanmayın.
• The water reservoir, pad holders, and drip tray can be cleaned with warm water and a mild detergent or in the dishwasher.
• Clean the coffee spout regularly to prevent blockages.

5.2 Kireç çözme

The Senseo HD7870/10 features a descaling indicator (CALC light on the touchscreen). When this light illuminates, it is time to descale your machine. Regular descaling ensures optimal coffee quality and extends the lifespan of your appliance.

Follow the descaling instructions provided in the full manual or on the Philips support website. Typically, this involves using a Senseo descaling agent and running several rinsing cycles.

6. Sorun Giderme

If you encounter issues with your Senseo machine, refer to the following common problems and solutions:

If the problem persists, please contact Philips Consumer Care.

7. Özellikler

8. Garanti ve Destek

Ayrıntılı garanti bilgileri için lütfen ürününüzle birlikte verilen garanti kartına bakın veya resmi Philips web sitesini ziyaret edin. website. If you require assistance, have questions, or need to report a problem, please contact Philips Consumer Care through their official support channels.

İletişim bilgilerini ve sık sorulan soruları şu adreste bulabilirsiniz: Philips Desteği Webalan.
