giriiş
Welcome to your ONKYO TX-NR616 7.1-channel AV Receiver. This manual provides essential information for setting up, operating, and maintaining your receiver to ensure optimal performance and longevity. The TX-NR616 features a discrete amplifier configuration for all 7 channels, utilizing high-capacity power transistors and a 3-stage inverted Darlington circuit for enhanced speaker drive capability. It supports 4K upscaling via HDMI (when connected to a compatible display) using Marvell Qdeo technology for high-quality video output. Additionally, the receiver offers extensive network audio playback capabilities, including streaming services like radiko.jp, vTuner, AUPEO!, and MP3tunes, allowing access to various internet content and PC/network HDD music.
Önemli Güvenlik Talimatları
Please read and follow all safety instructions carefully before operating the unit. Keep this manual for future reference.
- Güç Kaynağı: Cihazı yalnızca şebeke elektriğine (AC) bağlı bir prize bağlayın.tage arka panelde belirtilir.
- Havalandırma: Ensure adequate ventilation. Do not block ventilation openings. Maintain a minimum clearance of 20 cm (8 inches) around the unit.
- Su ve Nem: Üniteyi yağmura veya neme maruz bırakmayın. Vazo gibi sıvı dolu nesneleri ünitenin üzerine koymayın.
- Sıcaklık: Üniteyi radyatör, kalorifer ızgarası, soba veya diğer cihazlar (dahil) gibi ısı kaynaklarının yakınına yerleştirmeyin. amp(ısı üreten)
- Temizlik: Temizlemeden önce cihazı prizden çıkarın. Temizlik için kuru bir bez kullanın.
- Servis: Bu ürüne kendiniz servis vermeye çalışmayın. Tüm servis işlemleri için kalifiye servis personeline başvurun.
Kurmak
Paketten Çıkarma ve Yerleştirme
Carefully remove the receiver from its packaging. Place the unit on a stable, level surface with sufficient space for ventilation. Avoid placing it in direct sunlight or near heat-generating equipment.
Bağlantılar
Refer to the diagram below for proper connection of your audio and video components, as well as speakers.

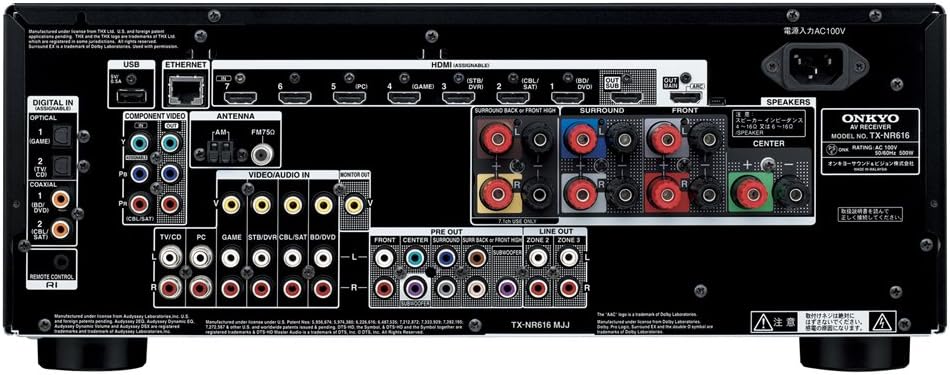

This image displays the rear panel of the ONKYO TX-NR616 AV Receiver. Key connection points include multiple HDMI inputs and outputs, digital audio inputs (optical and coaxial), analog audio inputs, component video inputs, Ethernet port for network connectivity, USB port, and speaker terminals for 7.1 channel setup. Ensure all cables are securely connected to their respective ports.
- HDMI Bağlantıları: Connect your HDMI-compatible devices (Blu-ray player, game console, cable box) to the HDMI IN ports. Connect your TV or projector to the HDMI OUT (MAIN) port.
- Hoparlör Bağlantıları: Connect your speakers to the corresponding speaker terminals (FRONT L/R, CENTER, SURROUND L/R, SURROUND BACK/HIGH L/R). Ensure correct polarity (+ to + and - to -).
- Dijital Ses: Use optical or coaxial cables for digital audio sources if not using HDMI.
- Ağ: Connect an Ethernet cable to the LAN port for network features and firmware updates.
- USB BAĞLANTI: Use the USB port for compatible external storage devices.
Hoparlör Kurulumu
After connecting your speakers, use the receiver's on-screen display (OSD) menu to configure speaker settings. This includes setting speaker size, distance, and levels for optimal sound calibration. The built-in Audyssey MultEQ® room correction system can automatically optimize these settings for your listening environment.
İlk Sistem Yapılandırması
Upon first power-on, follow the on-screen setup wizard to configure basic settings such as language, network connection, and input assignments. This ensures your receiver is ready for use with your specific home theater components.
Operasyon
Basic Controls and Remote
The receiver can be operated using the front panel controls or the included remote control. Familiarize yourself with the remote control layout for easy access to functions.
This image shows the RC-837M remote control for the ONKYO TX-NR616 AV Receiver. It features dedicated buttons for input selection (BD/DVD, CBL/SAT, STB/DVR, GAME, PC, MODE, RECEIVER, TV, AUX, NET, FM, USB), volume control, navigation, setup, audio modes, and numerical input. The remote allows comprehensive control over the receiver's functions.
- Güç: Use the power button on the remote or front panel to turn the unit on/off.
- Giriş Seçici: Press the corresponding input button (e.g., BD/DVD, GAME, CBL/SAT) to switch between connected devices.
- Hacim: Adjust the master volume using the VOL +/- buttons.
- Kurmak: Press the SETUP button to access the on-screen menu for detailed configurations.
Giriş Kaynağı Seçimi
To select an input source, press the dedicated input button on the remote control (e.g., BD/DVD, GAME, PC) or rotate the INPUT SELECTOR knob on the front panel. The selected input will be displayed on the receiver's front panel and your TV screen.
Audio and Video Adjustments
Access the receiver's menu system via the SETUP button on the remote to fine-tune audio and video settings. This includes selecting surround sound modes (e.g., Dolby TrueHD, DTS-HD Master Audio, THX Select2 Plus), adjusting tone controls, and configuring video processing options like 4K upscaling.
Ağ Özellikleri
Once connected to your home network, the TX-NR616 allows access to various network audio features:
- İnternet Radyosu: Access services like vTuner and radiko.jp for a wide selection of online radio stations.
- Müzik akışı: Enjoy music from streaming services such as AUPEO! and MP3tunes.
- Network Audio Playback: ses akışı files from your PC or network-attached storage (NAS) devices.
- Remote Control App: Control the receiver using a dedicated app on your Android or iOS device.
Bakım
Temizlik
To maintain the appearance and performance of your receiver, regularly clean the unit. Disconnect the power cord before cleaning. Use a soft, dry cloth to wipe the exterior. For stubborn dirt, lightly dampen the cloth with water and then wipe dry. Do not use abrasive cleaners, solvents, or alcohol, as these can damage the finish.
Firmware güncellemeleri
Onkyo may release firmware updates to improve performance or add new features. Connect your receiver to the internet via the Ethernet port. Access the firmware update option through the receiver's setup menu. Follow the on-screen instructions carefully. Do not power off the unit during an update.
Sorun giderme
If you encounter issues with your TX-NR616, refer to the table below for common problems and solutions. If the problem persists, contact customer support.
| Sorun | Olası Neden / Çözüm |
|---|---|
| Güç yok | Güç kablosunun duvar prizine ve alıcıya sağlam bir şekilde takılı olduğundan emin olun. Başka bir cihaz kullanarak güç prizini kontrol edin. |
| Ses yok | Check speaker connections and polarity. Verify the correct input source is selected. Ensure the volume is not muted or set too low. Check audio settings in the receiver's menu. |
| Video yok | Ensure HDMI cables are securely connected. Verify the correct input source is selected on both the receiver and your TV. Check video output settings on the receiver. |
| Uzaktan kumanda çalışmıyor | Replace batteries. Ensure there are no obstructions between the remote and the receiver's IR sensor. |
| Ağ bağlantı sorunları | Check Ethernet cable connection. Restart your router and modem. Verify network settings in the receiver's menu. |
Özellikler
- Marka: Onkyo
- Modeli: TX-NR616
- Kanallar: 7.1 kanal
- Nominal Çıkış Gücü: 130W per channel (7 channels driven)
- Maksimum Çıkış Gücü: Kanal başına 190W
- Surround Sound Formats: DOLBY TrueHD, DTS-HD Master Audio, THX Select2 Plus
- HDMI Girişleri: 8
- HDMI Çıkışları: 2
- Dijital Ses Girişleri: 2 Optik, 2 Koaksiyel
- USB Bağlantı Noktası: 1 (for compatible devices)
- Ağ Bağlantısı: Ethernet (LAN)
- Uygulama Kontrolü: Android/iOS compatible
- Video Yükseltme: Up to 4K (4096x2160 pixels) via HDMI with Marvell Qdeo technology
- Ses Uyumluluğu: AAC compatible
- Ürün Ağırlığı: 11 kg (24.25 lbs)
- Renk: Siyah
Garanti ve Destek
Garanti bilgileri ve müşteri desteği için lütfen ürününüzle birlikte verilen garanti kartına bakın veya resmi Onkyo web sitesini ziyaret edin. website. You can find detailed support resources, FAQs, and contact information there. Keep your purchase receipt as proof of purchase for warranty claims.
