Nokia 5310 XpressMusic User Manual

giriiş

The Nokia 5310 XpressMusic is a compact and feature-rich mobile phone designed for communication and music playback. It features a sleek aluminum finish, dedicated music keys, a 2-megapixel camera, and a bright 2-inch QVGA screen. This manual provides essential information for setting up, operating, and maintaining your device.

Şekil 1: Ön view of the Nokia 5310 XpressMusic phone, showcasing its compact design and screen.

Kurmak

1. SIM Kartın Takılması

The Nokia 5310 requires a SIM card for cellular network access. Ensure the phone is powered off before inserting or removing the SIM card. Locate the SIM card slot, typically under the battery cover. Insert your SIM card into the designated slot until it clicks into place.

2. Pilin Takılması

Open the back cover of the phone. Align the battery contacts with the terminals inside the battery compartment. Gently press the battery down until it is securely in place. Replace the back cover.

3. MicroSD Kart Takma (İsteğe Bağlı)

For expanded storage, particularly for music and photos, you can insert a MicroSD card (up to 4 GB). The MicroSD card slot is usually located near the SIM card slot or on the side of the phone. Insert the card with the gold contacts facing down until it locks.

4. Pilin Şarj Edilmesi

Connect the charger to the phone's charging port. Plug the charger into a power outlet. The battery indicator on the screen will show charging progress. A full charge provides up to 5 hours of talk time or 300 hours of standby time.

5. Açma/Kapama

To power on, press and hold the Power key until the Nokia logo appears. To power off, press and hold the Power key until the power-off options appear, then select 'Power off'.

Kullanım Talimatları

Temel Telefon Fonksiyonları

• Arama Yapma: Tuş takımını kullanarak telefon numarasını girin ve Arama tuşuna basın.
• Çağrıları Cevaplama: Telefon çaldığında Arama tuşuna basın.
• Kısa Mesaj Gönderme (SMS): Navigate to 'Messages', select 'Create new message', type your message, and send it to a recipient.
• Sending Multimedia Messages (MMS): Similar to SMS, but allows adding images, audio, or video.
• İletişim: Store up to 2000 contacts with multiple numbers and text fields.

Music Playback (XpressMusic Features)

The Nokia 5310 is optimized for music with dedicated playback controls on the side of the phone.

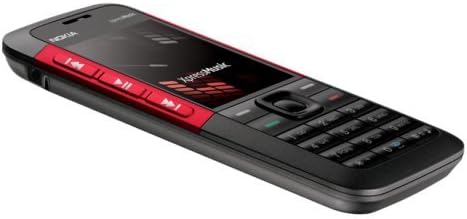

Şekil 2: Yan view highlighting the dedicated music playback controls.

• Dedicated Music Keys: Use the play/pause, reverse, and forward buttons located on the side for easy music control.
• Desteklenen Formatlar: MP3, MP4, AAC, eAAc+, and WMA.
• FM Radyo: Tune into your favorite radio stations using the integrated FM tuner.
• Bluetooth A2DP: Stream music wirelessly to compatible Bluetooth stereo headphones.
• 3.5 mm Kulaklık Girişi: Connect standard wired headphones for private listening.

Kamera Fonksiyonları

The phone features a 2-megapixel camera for capturing still images and video.

• Sabit Görüntüler: Capture photos up to 1600 x 1200 pixels with 4x digital zoom.
• Video Yakalama: Record short video clips.

Bağlantı

• Bluetooth 2.0: For hands-free communication (HFP, HSP), file transfer (OPP, FTP), and stereo audio streaming (A2DP).
• USB Bağlantısı: Connect to a PC for data transfer and synchronization.
• E-posta: Supports IMAP4, POP3, and SMTP with attachment viewing (DOC, PDF, XLS, JPEG, 3GP, MP3).
• Web Tarayıcı: Utilize the Opera Mini web İnternet erişimi için tarayıcı.

Diğer Özellikler

• Organizatör: Alarm clock, calendar, to-do list, notes, calculator, stopwatch, countdown timer.
• Uçak Modu: Disables wireless functions for safe use in environments requiring cellular connection to be off.
• T9 Predictive Text: Facilitates faster text entry.

Bakım

Pil Bakımı

• Pil ömrünü uzatmak için aşırı sıcaklıklardan kaçının.
• İlk kullanımdan önce pili tam olarak şarj edin.
• Unplug the charger once the battery is full to conserve energy.

Cihazınızı Temizleme

Use a soft, lint-free cloth to clean the phone's screen and body. Avoid using harsh chemicals or abrasive materials, which can damage the surface.

Sorun giderme

Ağ Uyumluluğu

This unlocked cell phone is compatible with GSM carriers such as AT&T and T-Mobile. It will not function with CDMA carriers like Verizon Wireless, Alltel, and Sprint. Ensure your chosen carrier uses GSM technology and supports the phone's tri-band frequencies (900/1800/1900 MHz).

Figure 3: Carrier compatibility information for the Nokia 5310.

Ortak Sorunlar

• Phone does not power on: Pilin doğru şekilde takıldığından ve şarj edildiğinden emin olun.
• Ağ sinyali yok: Check SIM card insertion. Verify you are within your carrier's coverage area.
• Kötü ses kalitesi: Ensure the speaker/microphone is not obstructed. Adjust volume settings.

Özellikler

Garanti ve Destek

Garanti Bilgileri

Please note that this product is an international version and may not include a US warranty, as some manufacturers do not honor warranties for international version phones. For specific warranty details, it is recommended to contact the seller directly at the point of purchase.

Müşteri Desteği

For further assistance, technical support, or service inquiries, please refer to the contact information provided by your retailer or visit the official Nokia support website for general product information.
